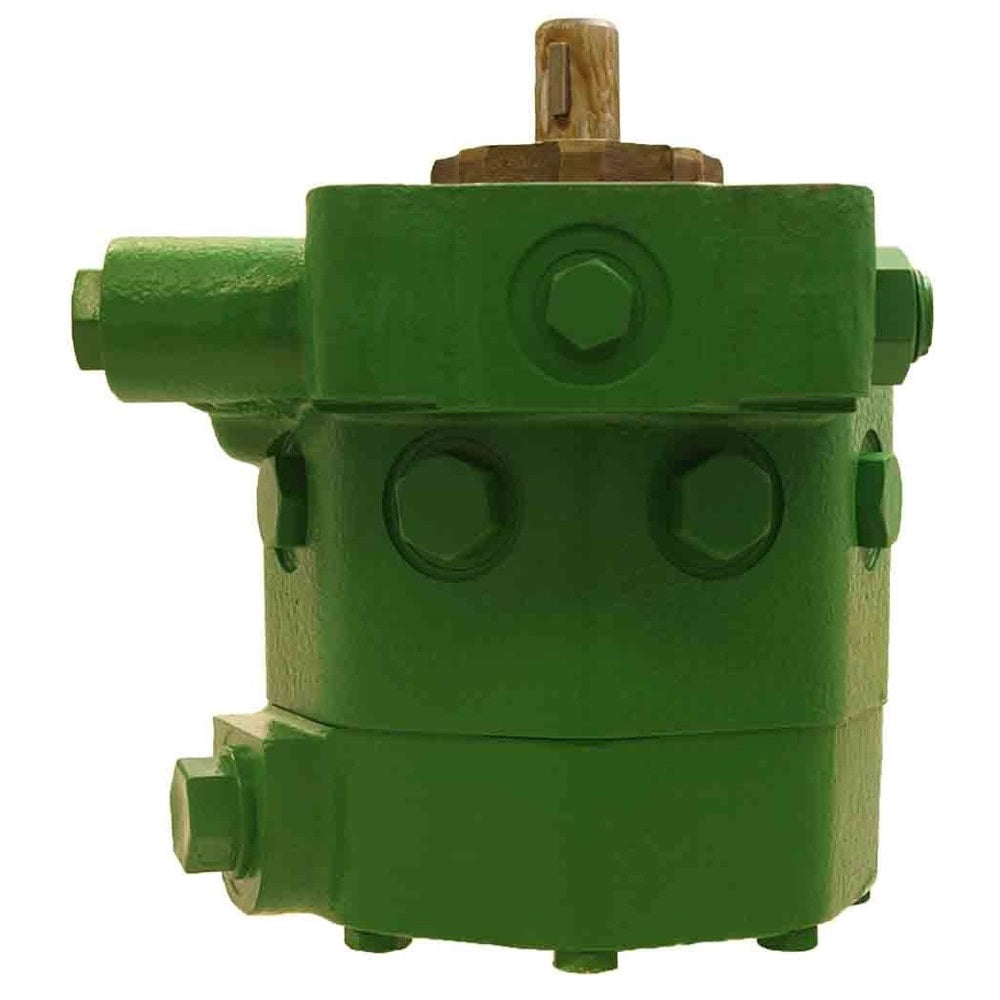

E-AR103033 Hydraulic Pump Fits John Deere 1020, 1040, 1550, 1850, 2120, 2155++

Name: E-AR103033 Hydraulic Pump Fits John Deere 1020, 1040, 1550, 1850, 2120, 2155++
SKU: AR103033_18
Price: 710.31 USD
Availability: InStock

E-AR103033 Hydraulic Pump Fits John Deere 1020, 1040, 1550, 1850, 2120, 2155++

$710.31 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hydraulic Pump for John Deere (JD) Tractors, Harvesters, and Industrial Equipment

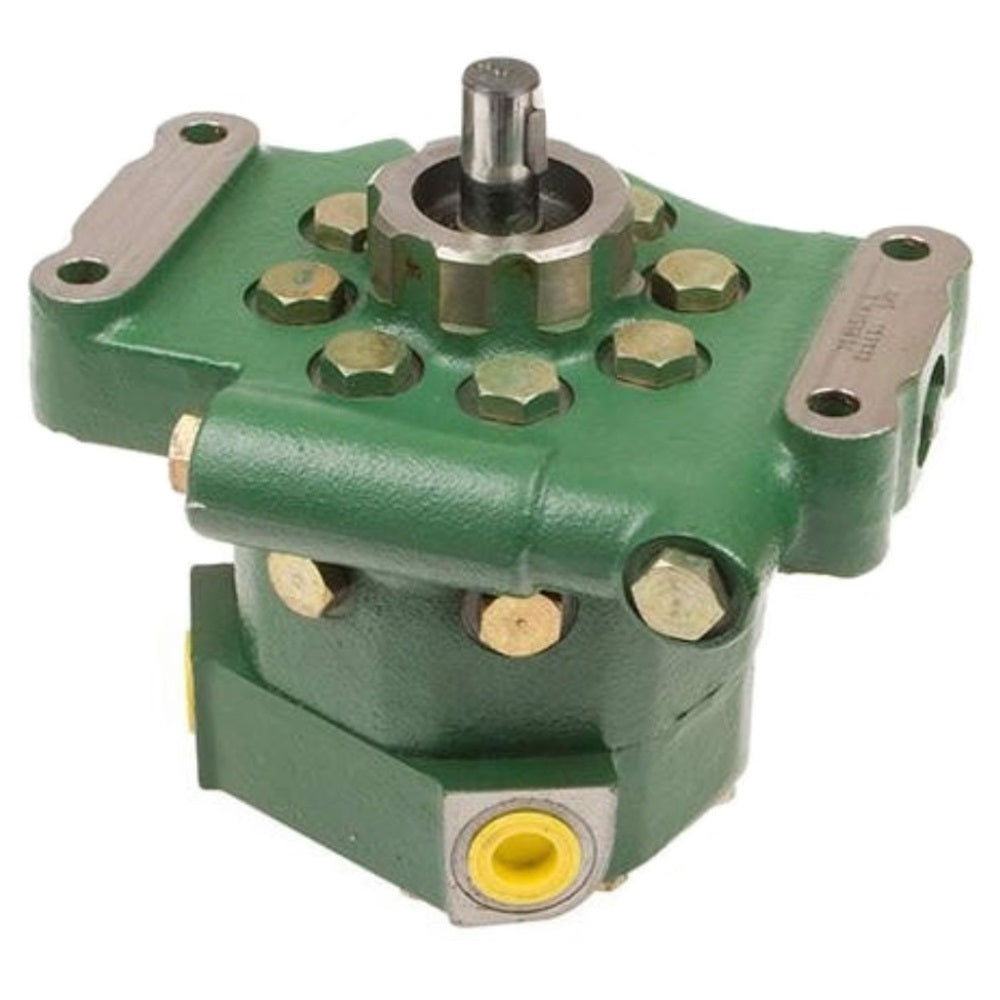

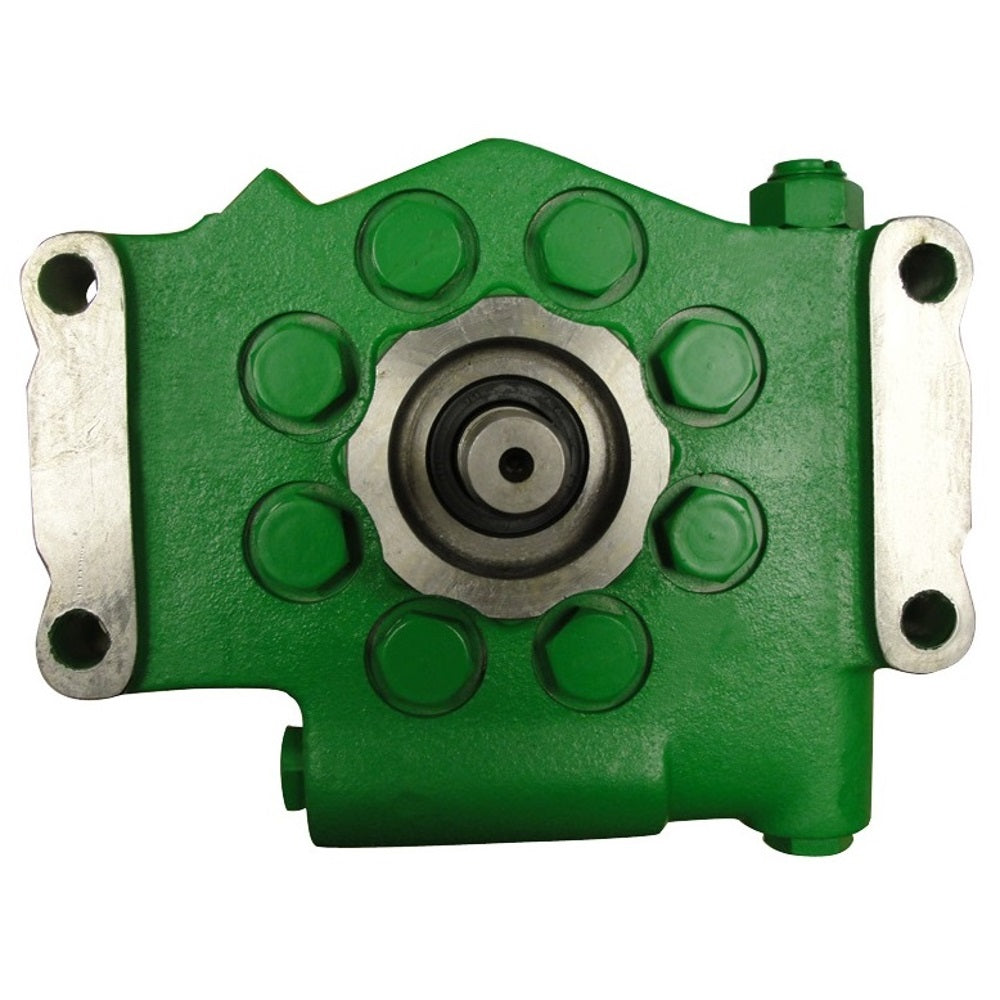

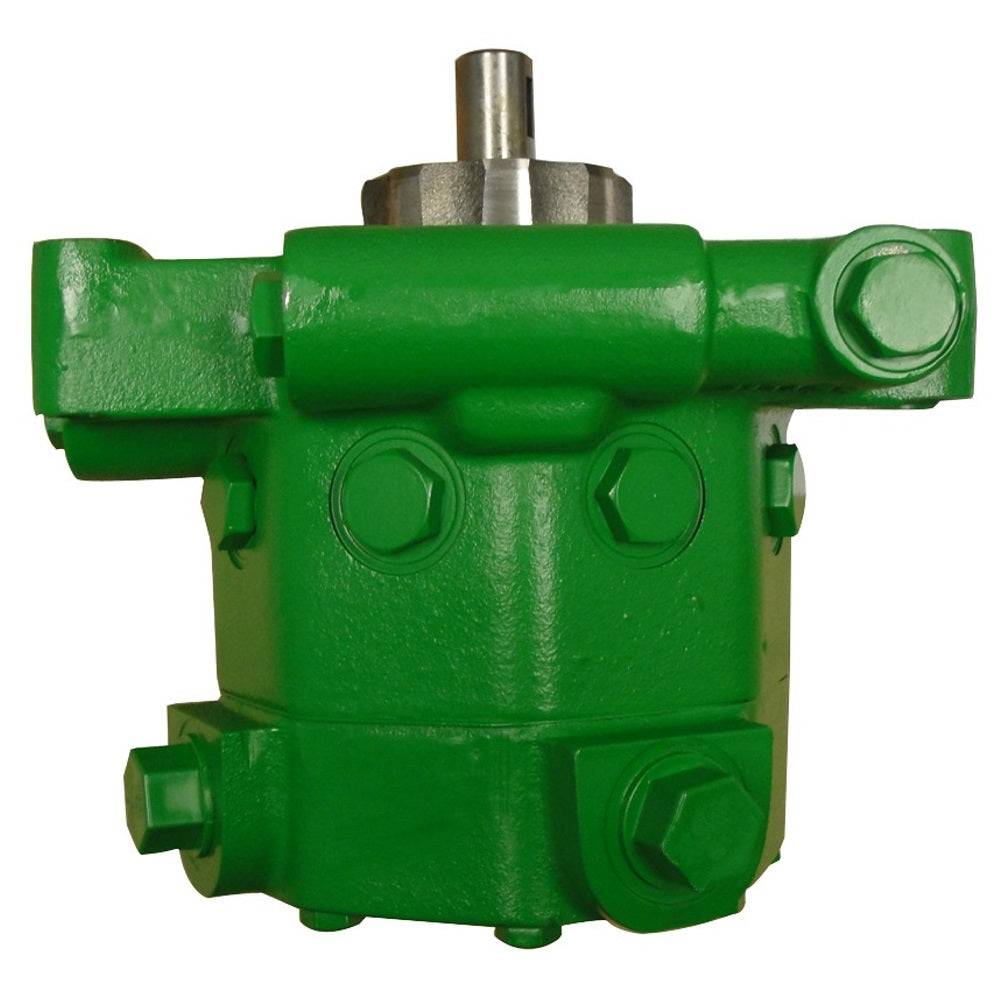

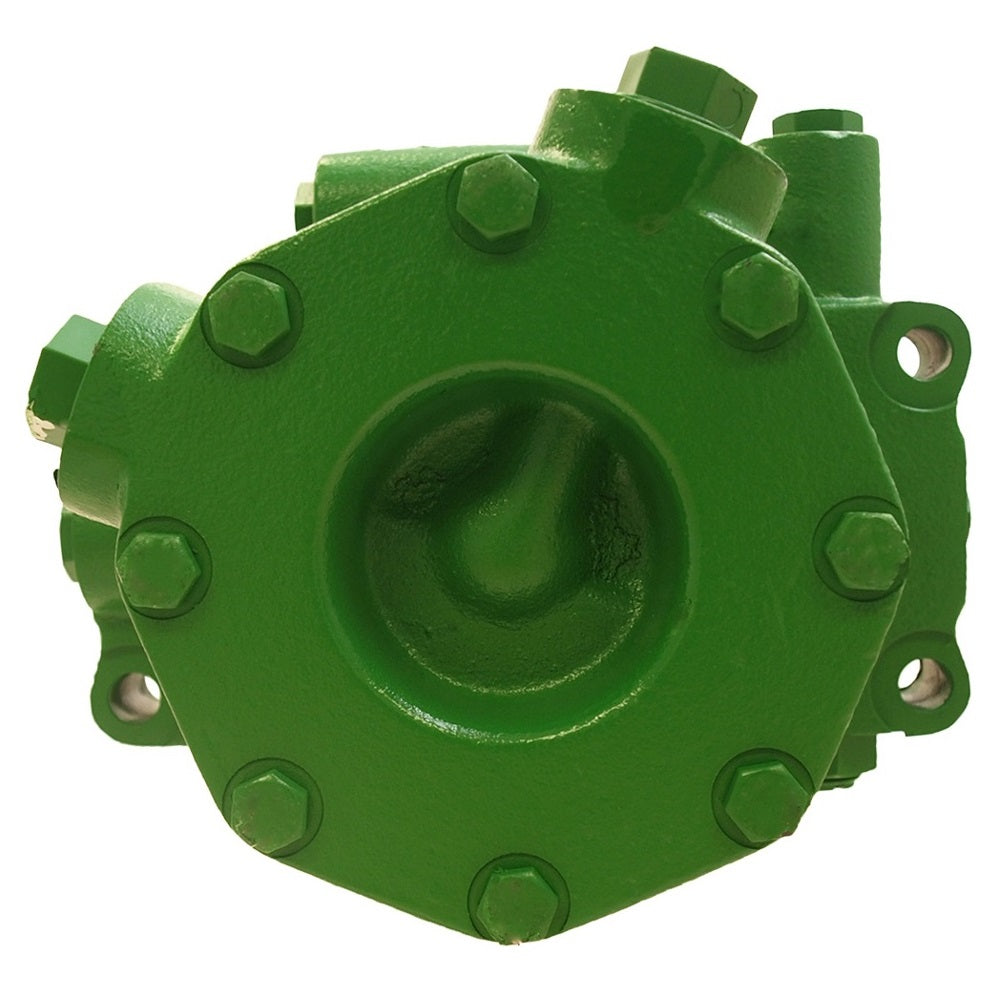

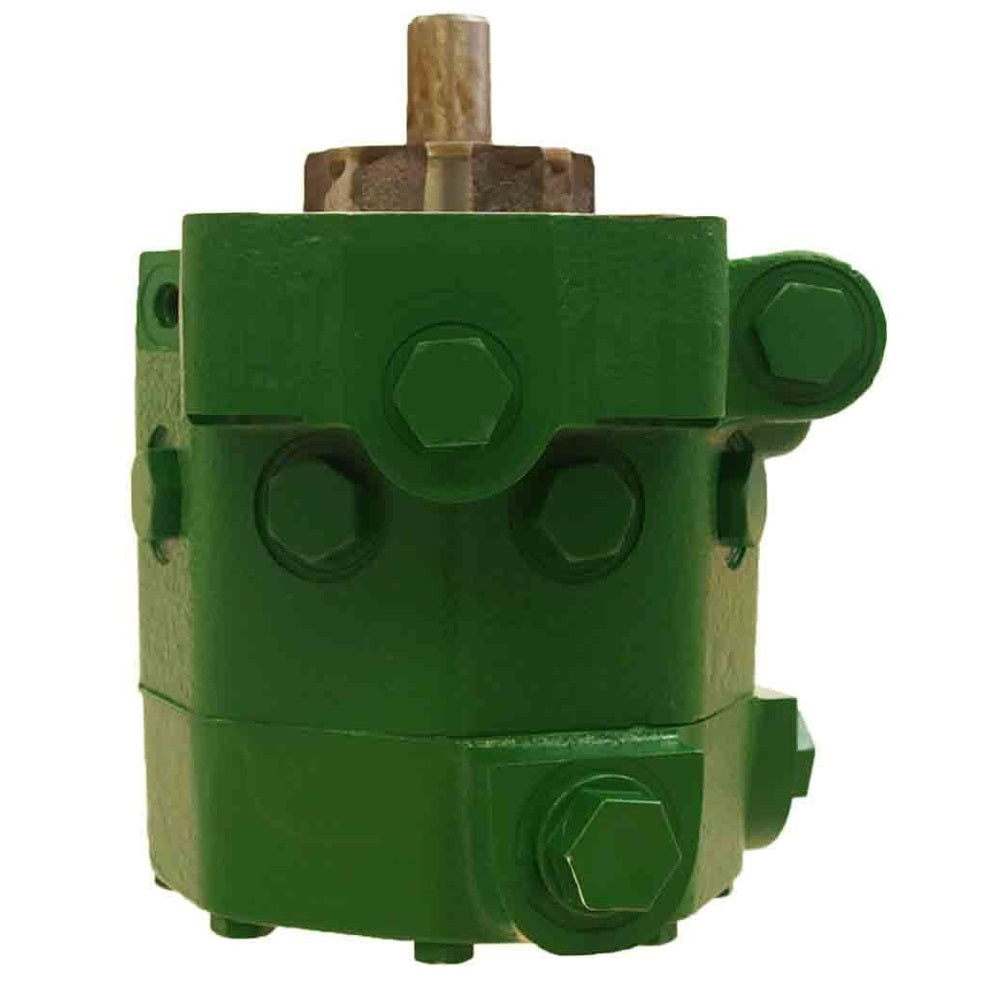

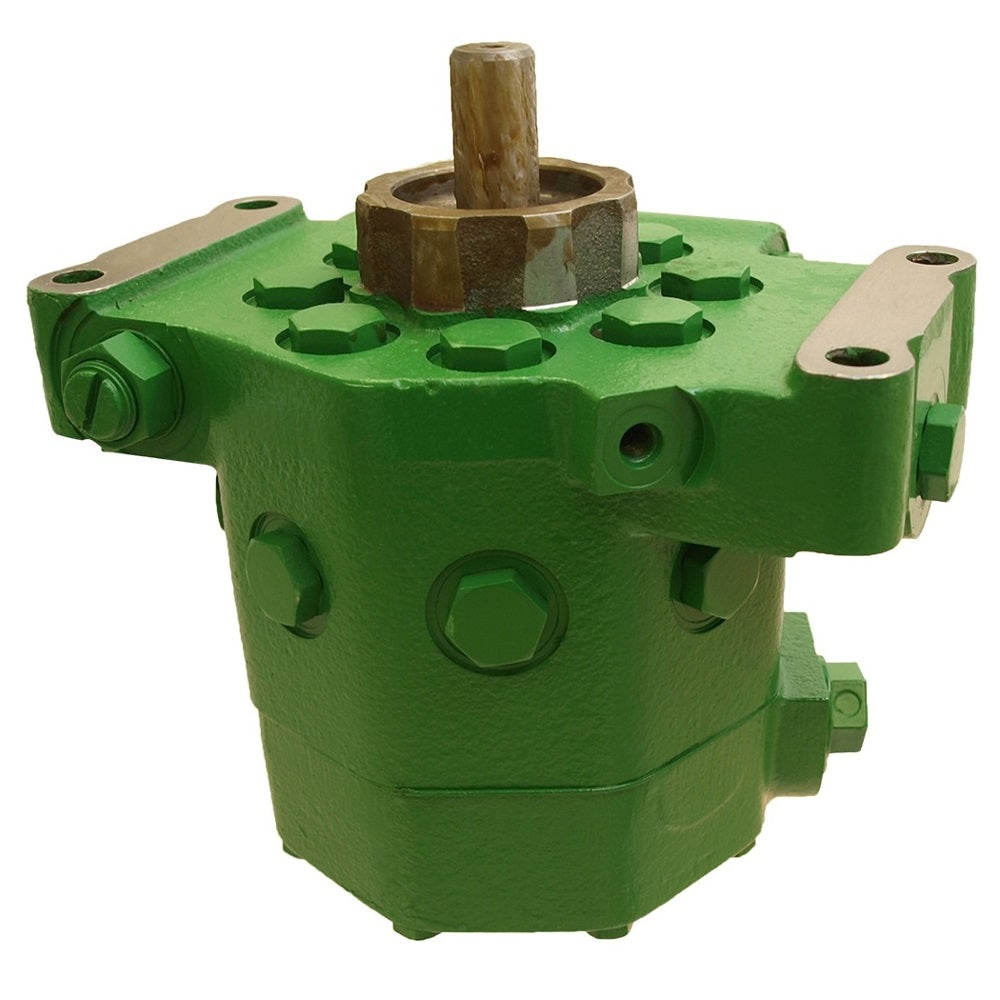

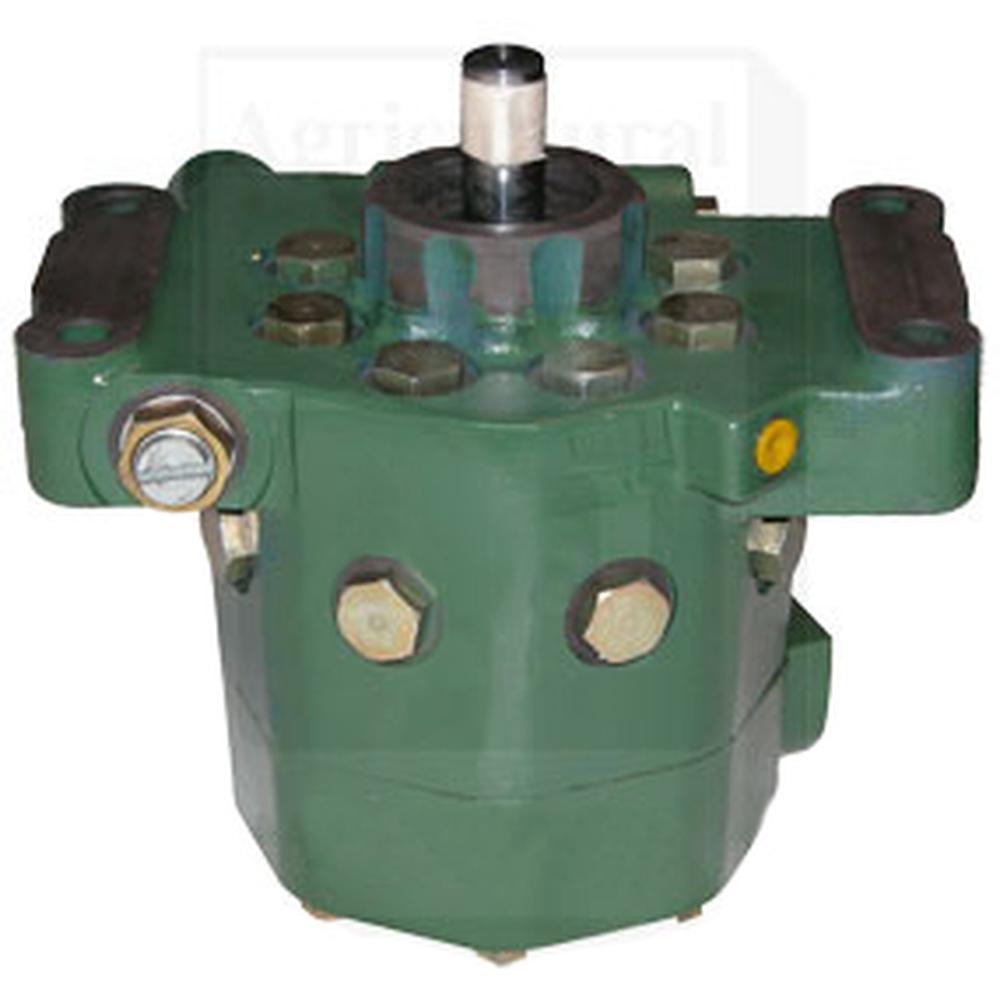

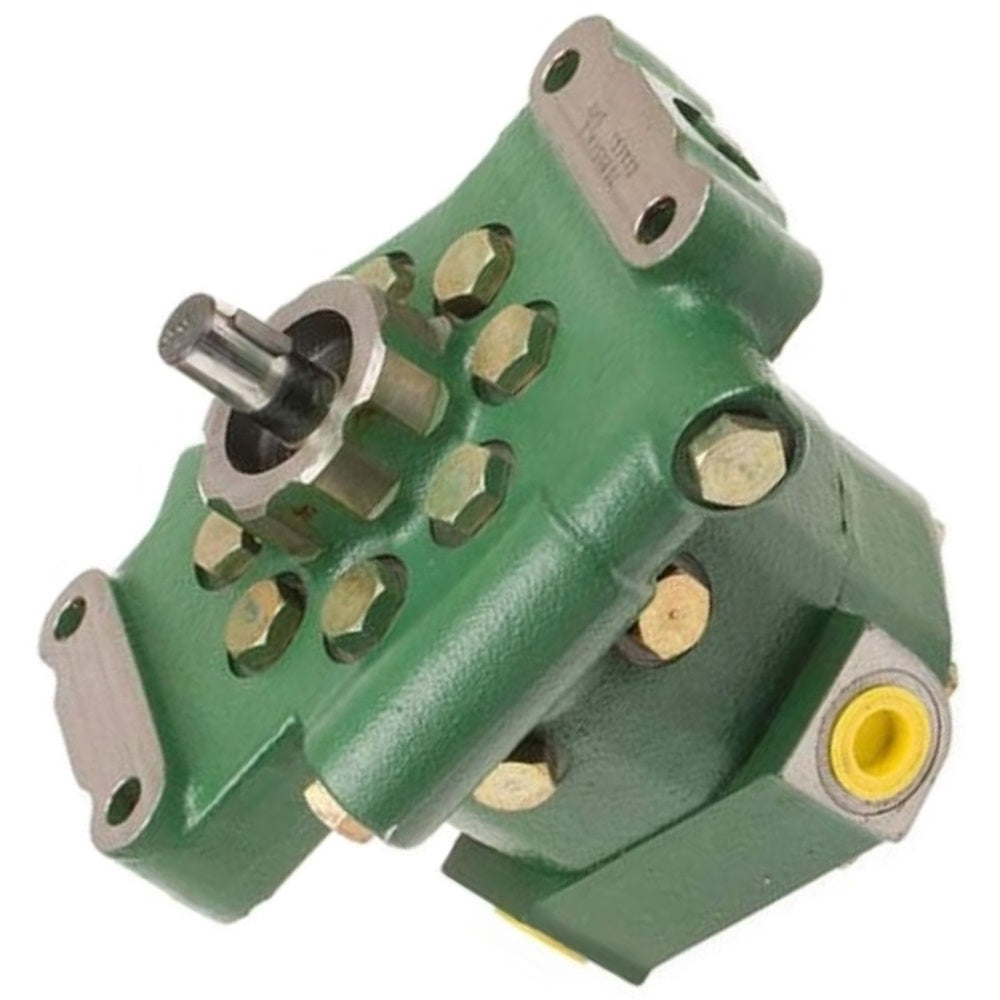

This aftermarket replacement radial piston hydraulic pump replaces John Deere OEM part AR103033 and fits a wide range of John Deere (JD) agricultural tractors, cotton strippers, cotton pickers, backhoe loaders, and industrial/construction equipment. It supplies pressurized hydraulic fluid to power the tractor's hydraulic lift, remote cylinders, and power steering circuits. When replacing this pump, the system should be thoroughly flushed and refilled with clean, new hydraulic fluid.

Specifications

Pump Type: Single, Radial Piston
Displacement: 23 cc (1.38 cu. in.)
Max Pressure: 2600 PSI
Flow Rate: 13.5 GPM
Drive Type: Keyed Shaft (Woodruff Key)
Shaft O.D.: 7/8 in.

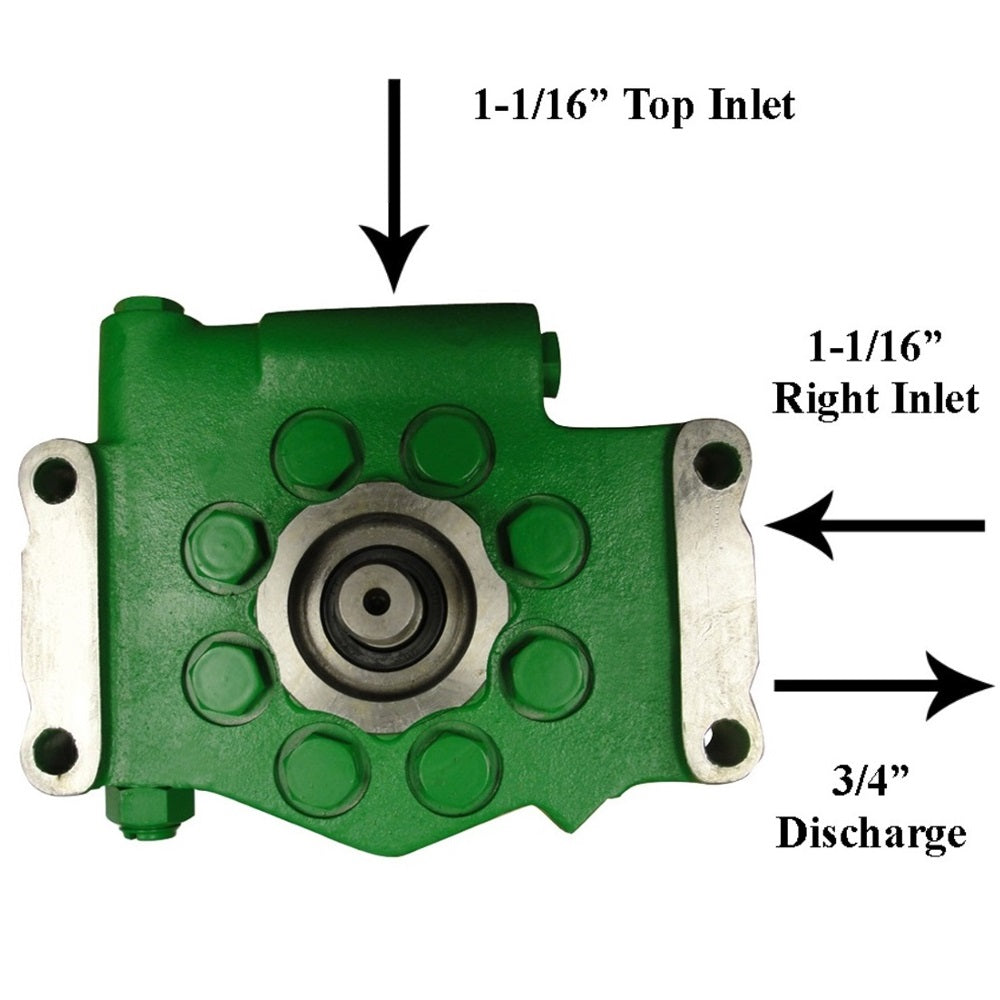

Top Inlet: 1-1/16 in.
Right Inlet: 1-1/16 in.
Discharge: 3/4 in.
Pistons: 8
Relief Valve: Included

Compatible Models

John Deere Tractors: 830 (3-cylinder), 840, 930, 940, 1020, 1030, 1030OU, 1035, 1035EF, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1630OU, 1635, 1635EF, 1640, 1750, 1830, 1840, 1850, 1950, 1950N, 2020, 2030, 2035, 2040, 2040S, 2120, 2130, 2135, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2855N, 2940, 2950, 3030, 3040, 3050, 3120, 3130, 3135, 3140, 3150, 3340, 3350, 3640, 3650, 4030, 4040, 4230, 4240, 4250, 4430, 4440, 4450, 4630, 4640, 4650, 4840, 4850, 8450

John Deere Cotton Strippers/Pickers: 7440, 7445, 9920, 9930, 9940, 9950

John Deere Backhoe Loaders and Industrial/Construction: 300, 301, 301A, 302, 400, 401, 401B, 401D

Replaces Part Number(s):

AR103033, AR103036, AR39019, AR39168, AR89061, AR89064, AL70641, 640-217B

Aftermarket Interchange Numbers

A-AR103033, TP-AR103033, 703132AT, MFX TAR103033

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4440, 2555, 2155, 302, 930, 3135, 2450, 2240, 2350, 3130, 2255, 840 940 1040 1140 1350 1550 1640 1750 1840 1850 1950 1950N 2040 2040S 2140 2150 2155 2250 2255 2350 2355 2355N 2450 2550 2555 2650 2750 2755 2850 3040 3050 3140 3350 3640 3650, 1030, 2150, 3640, 1830, 2040S, 1630OU, 4250, 840, 401B, 1030OU, 3030, 2020, 1550, 1950N, 4650, 1020, 2250, 7445, 1350, 4450, 1140F, 4430, 301, 2135, 1950, 1140V, 2650, 300, 4240, 2640, 3150, 1635EF, 2550, 1840, 1035, 1635, 2850, 4850, 830 3 cylinder, 8450, 1530, 2355, 2750, 1630, 2130, 4840, 3120, 3350, 830, 1750, 2040, 9940, 1520, 2840, 3340, 2030, 2140, 4640, 4230, 1140, 7440, 2355N, 4050, 2950, 1120, 1850, 2755, 401, 3140, 1130, 2440, 301A, 2120, 4030, 2630, 401D, 400, 2035, 1040V, 2940, 9930, 1640, 3050, 3040, 940, 9920, 4630, 2855N, 1040, 3650, 4040, 1035EF, 9950

Additional Information:

Keyed shaft The system needs be flushed and replaced with clean, new fluid Drive Type Keyed Max PSI 2600 Pump Type Single Relief Valve Included Volume 23 cc

Reference Numbers:

AR103036, AR89064, AR103033, AR103036, AR103033, AR103036, AR39019, AR39168, AR89064, AR39168, AR103035, AR103036, AR89064, AR39019, AR103033, AR89061, AL70641, 640-217B
