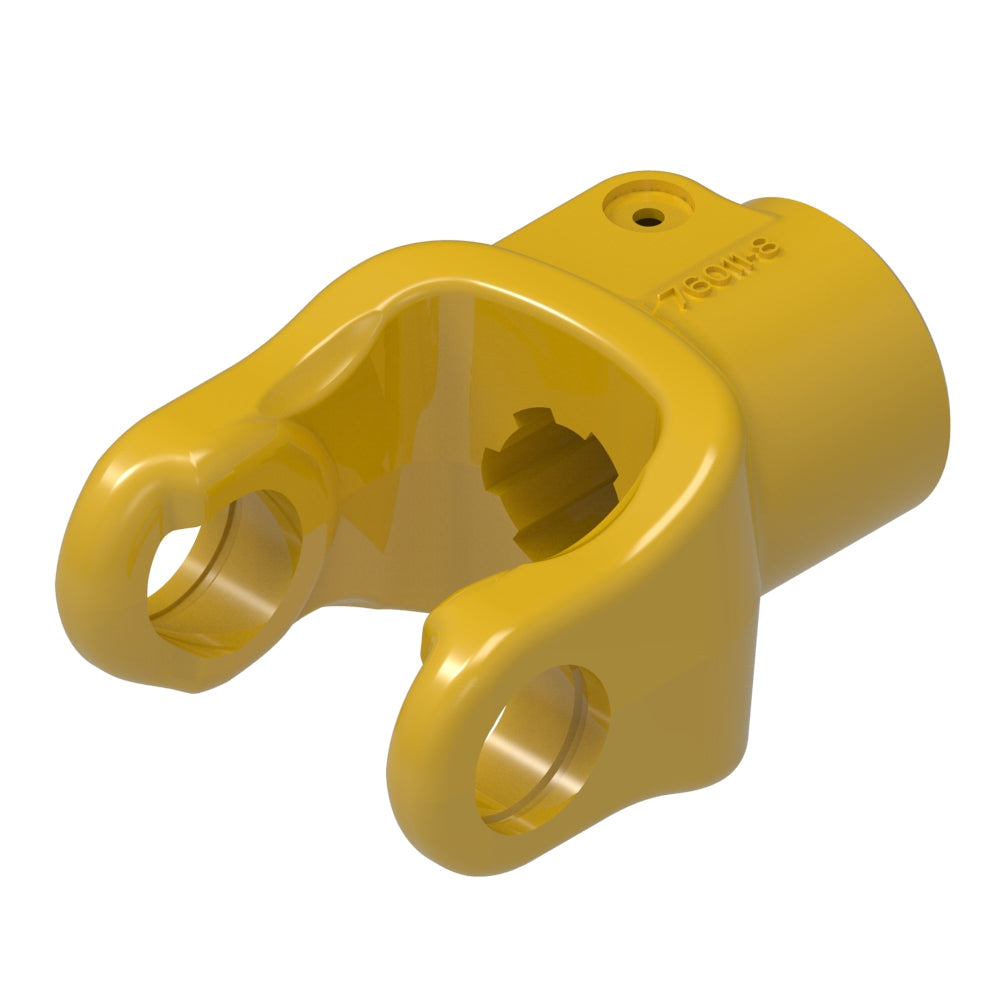

One New Aftermarket Replacement Quick Disconnect Tractor Yoke for Weasler AB5 / Metric 5 Series PTO Drivelines
This aftermarket replacement quick disconnect (QD) tractor yoke connects your tractor PTO shaft to the driveline using a push-pin mechanism for fast, tool-free attachment and release. It fits Weasler AB5 Series (Metric 5 Series) PTO drive shaft profiles and is interchangeable with Bondioli & Pavesi Series 5 components.
Specifications
- Bore: 1-3/8" x 6 Spline (Type 1)
- Connection Type: Quick Disconnect (Push Pin)
- Series: AB5 / Metric 5 Series
- U-Joint Cap Size: 30.2 mm / 1-3/16" (1.189")
- Cap to Cap: 79.4 mm / 3-1/8" (3.126")
- Rated: 100 hp at 1,000 rpm / 65 hp at 540 rpm
- Weight: approx. 4.61 lb
- Compatible Cross Kit: 30.2 x 80 mm (uses cross kit 00868)
Compatible Models
Weasler: AB5 Series (Metric 5 Series) PTO Drive Shafts
Bondioli & Pavesi: 100 Series Size 5 PTO Drive Shafts
Bush Hog: Applications using R64608BH / 51A6118
Fits Case IH: Applications using W1026506DS
Kuhn: Applications using 40030150
Land Pride: Applications using A-1025010
Fits New Holland: Applications using 782095
Replaces Part Number(s):
102-6506, 102 6506, 1026506
Aftermarket Interchange Numbers
DRF30-0132, PM102-6506, 8-5012, BYQ5001138, BYQ5-00-1-138, 507050351, 50507M, R64608BH, 51A6118, W1026506DS, 40030150, A-141025001, ECC1025010, 1025010, 6713-39063, A-1025010, 782095, VTE3004, 3406061M91, 971-1026506, 40013322, 5-05-07, 68-03-01, 04608
New aftermarket replacement part - not remanufactured, not used.
