One New Aftermarket Replacement Drawbar for International Harvester (Case IH) Tractors

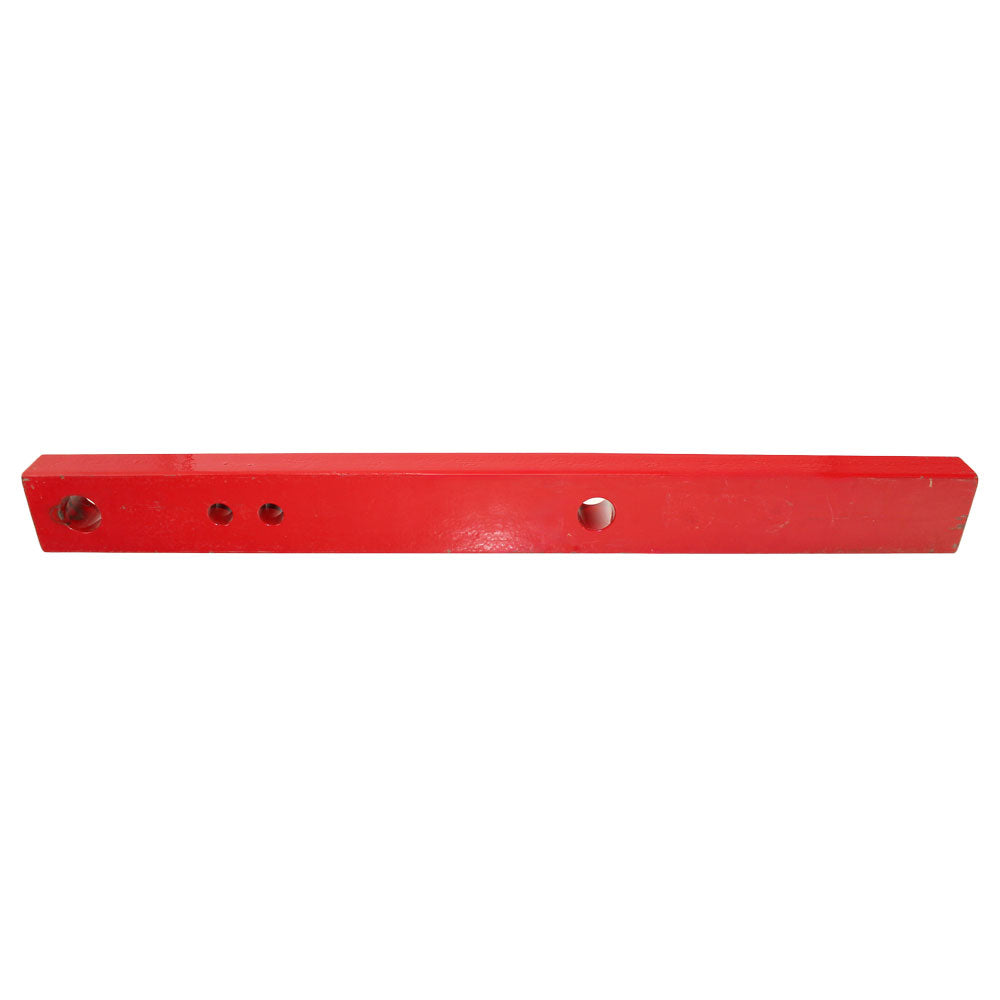

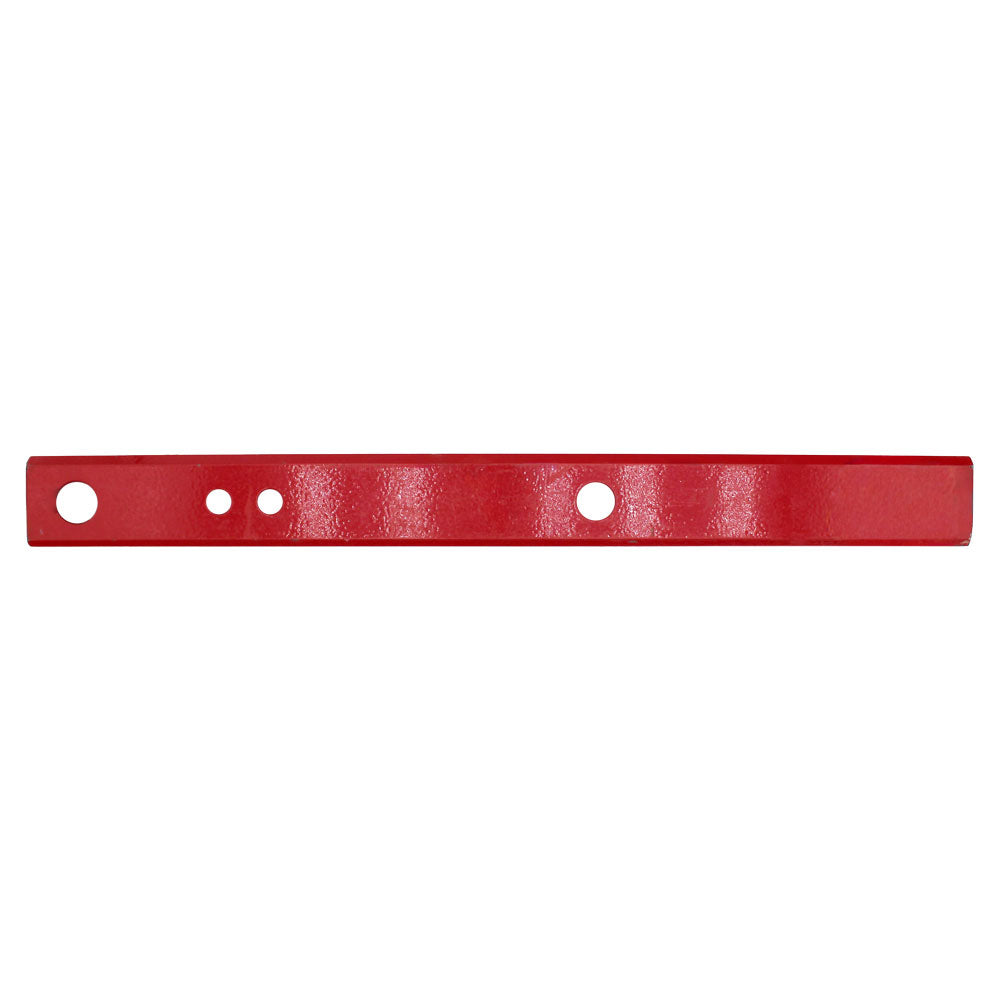

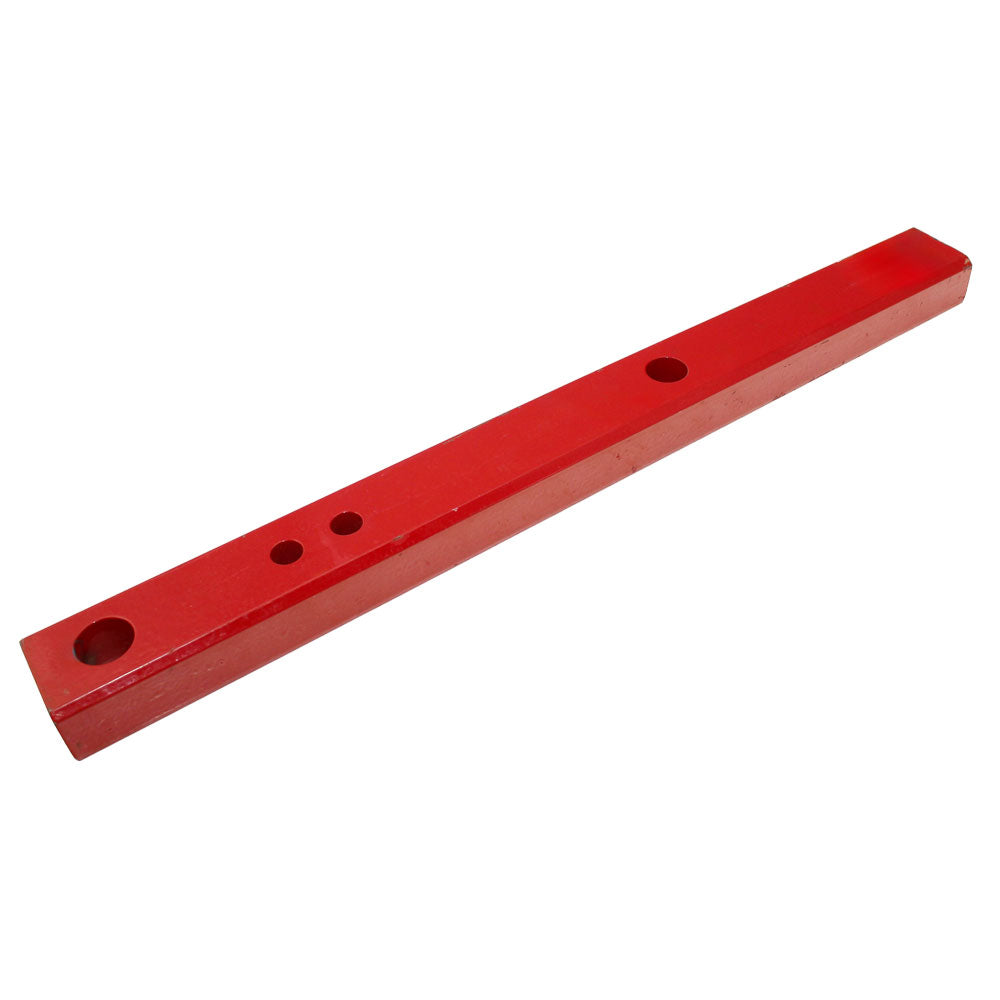

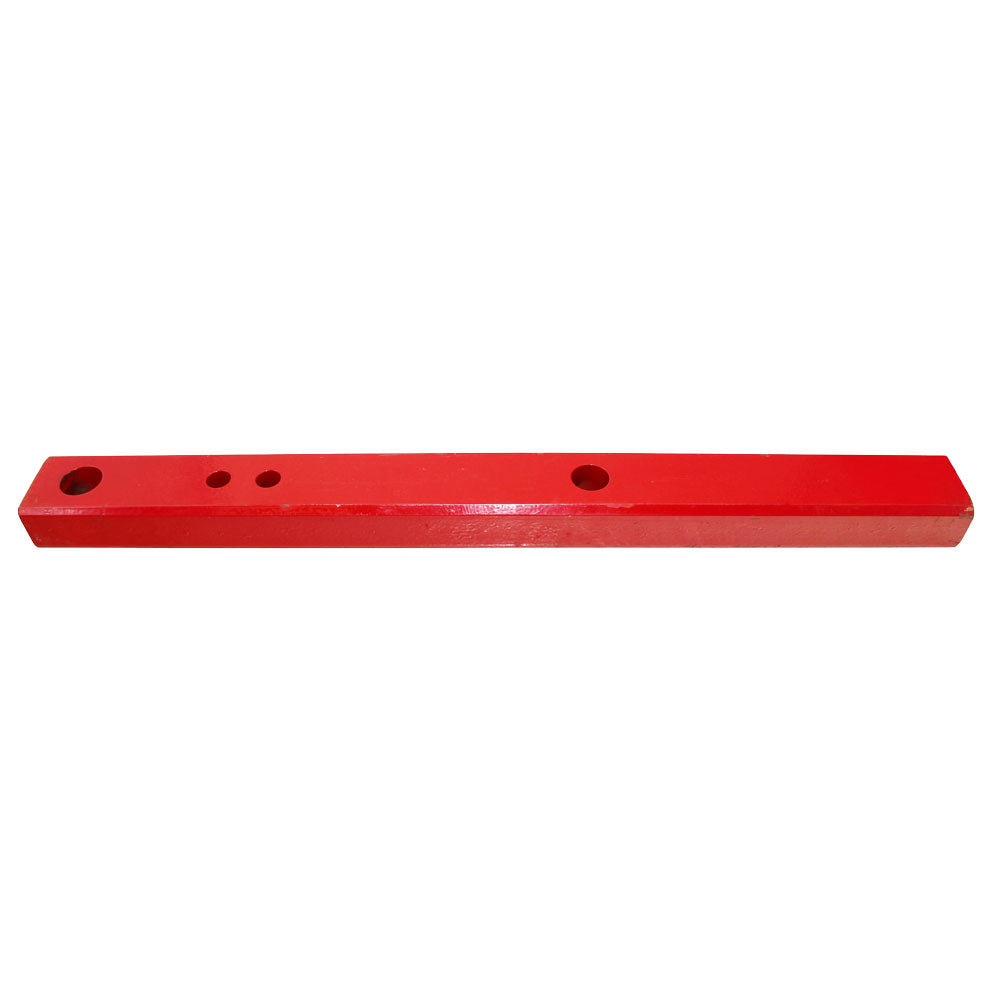

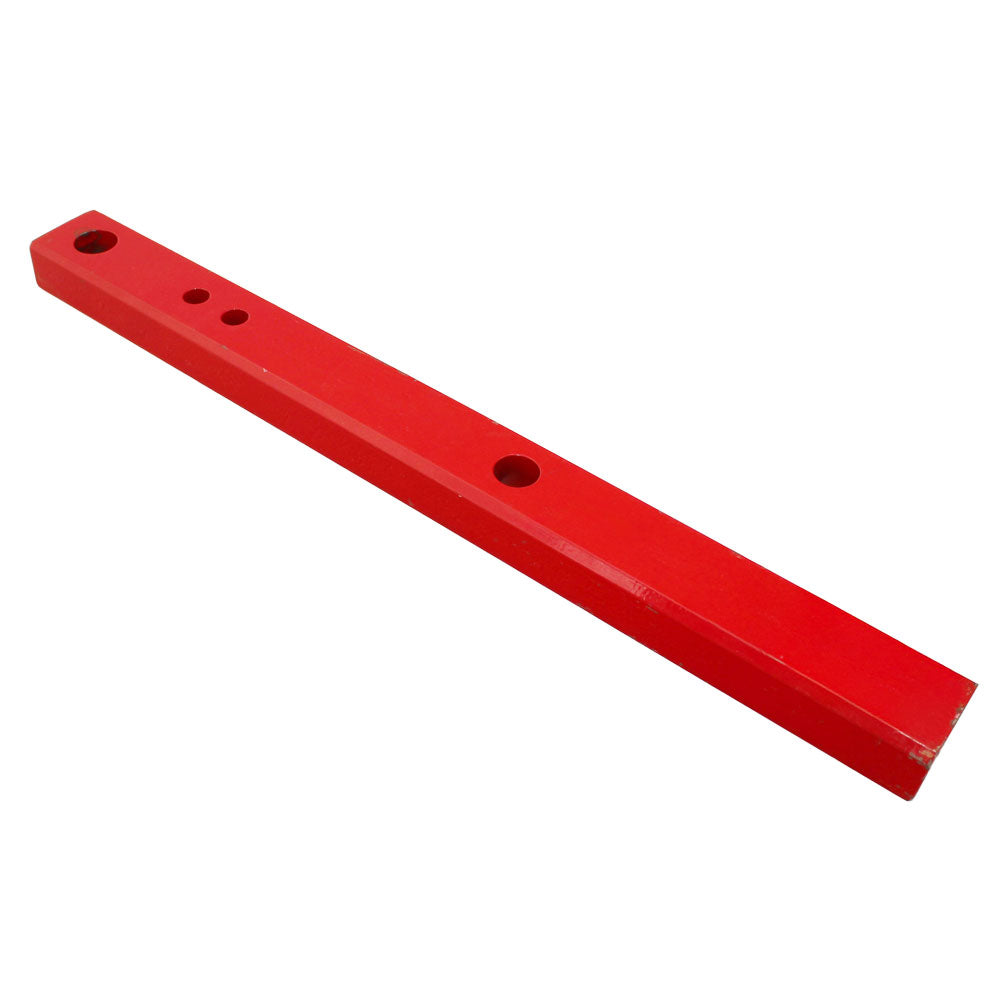

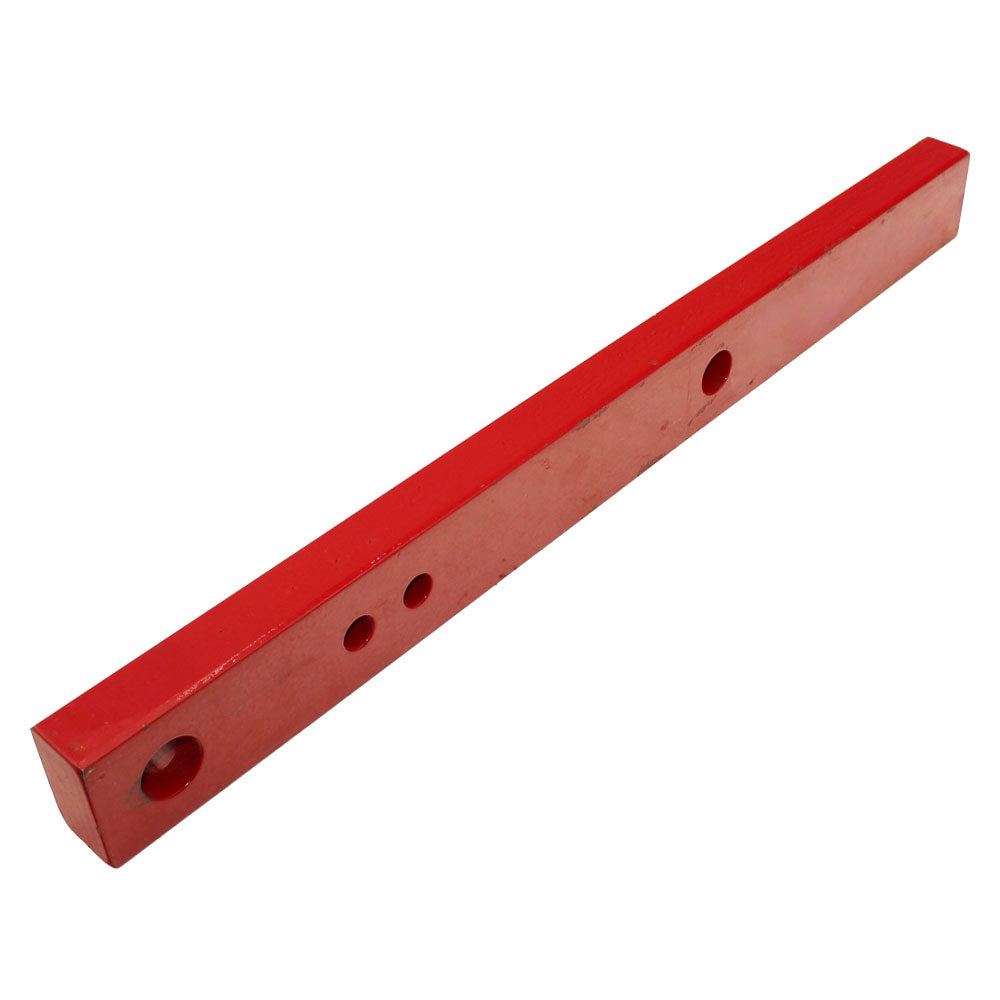

This rear straight drawbar stub is a direct aftermarket replacement for International Harvester (IH) and Case IH tractors equipped with a 3-point hitch system. It mounts at the rear of the tractor and serves as the primary tow point for implements and trailers. Features one 1.040" diameter hole located 10.500" from the front of the bar. Dimensions: 26.25" long, 2.5" wide, 1.5" high.
Serial Number Restrictions
Important: This drawbar applies to specific serial number ranges. Verify fitment before ordering:
706: S/N 19250 and above (with 3-point hitch)
756: S/N 13892 and below
766: S/N 13892 and below
806: S/N 14500-23000 (with 3-point hitch)
826: S/N 13892 and below
966: S/N 270896 and below
1026: S/N 13892 and below
Specifications
- Length: 26.25"
- Width: 2.5"
- Height: 1.5"
- Hole diameter: 1.040"
- Hole location: 10.500" from front
- Type: Rear, Straight Drawbar Stub
Compatible Models
International Harvester (IH) / Case IH Tractors: 706, 756, 766, 806, 826, 856, 966, 1026
See serial number restrictions above. Requires 3-point hitch on 706 and 806 models.
Replaces Part Number(s):
397065R1, 397065R1-A
New aftermarket replacement part - not remanufactured, not used.
