One New Aftermarket Replacement Right Hand Drag Link End Tie Rod Ball Joint for John Deere, Cub Cadet, MTD, and Case/IH Lawn and Garden Tractors

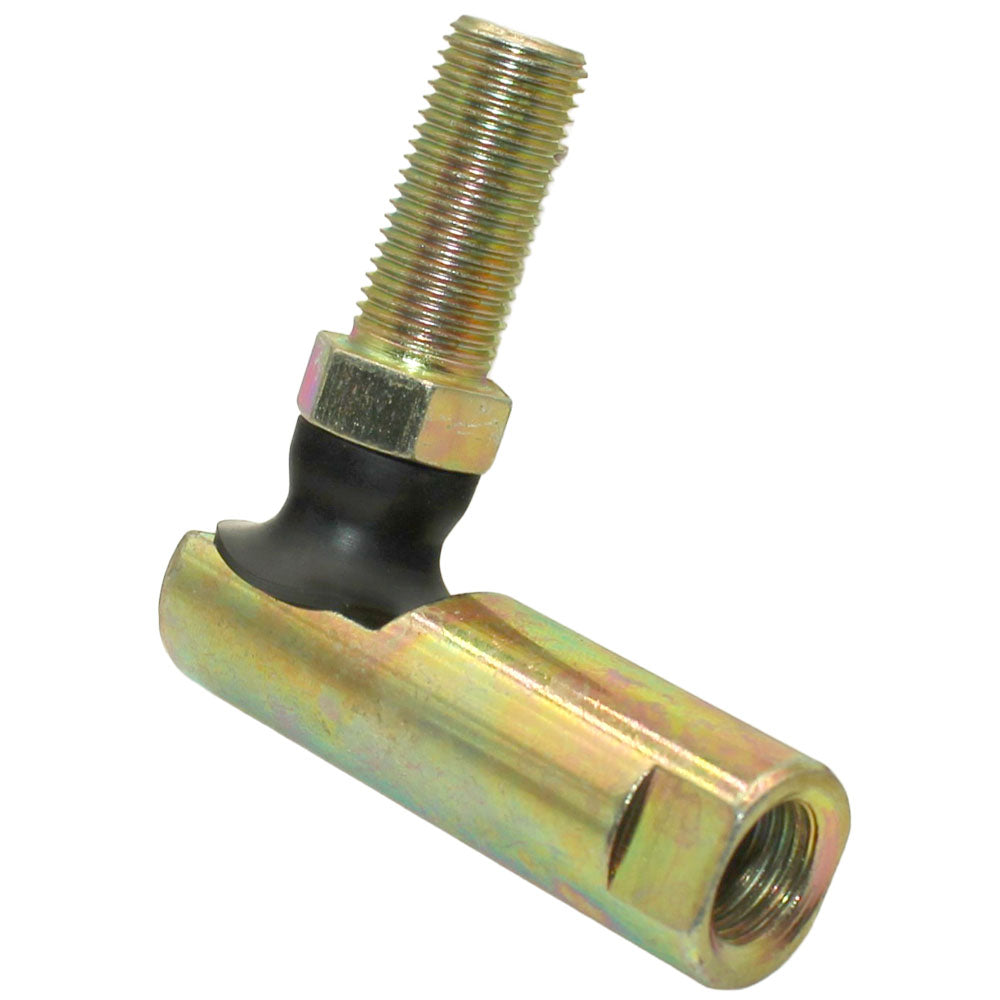

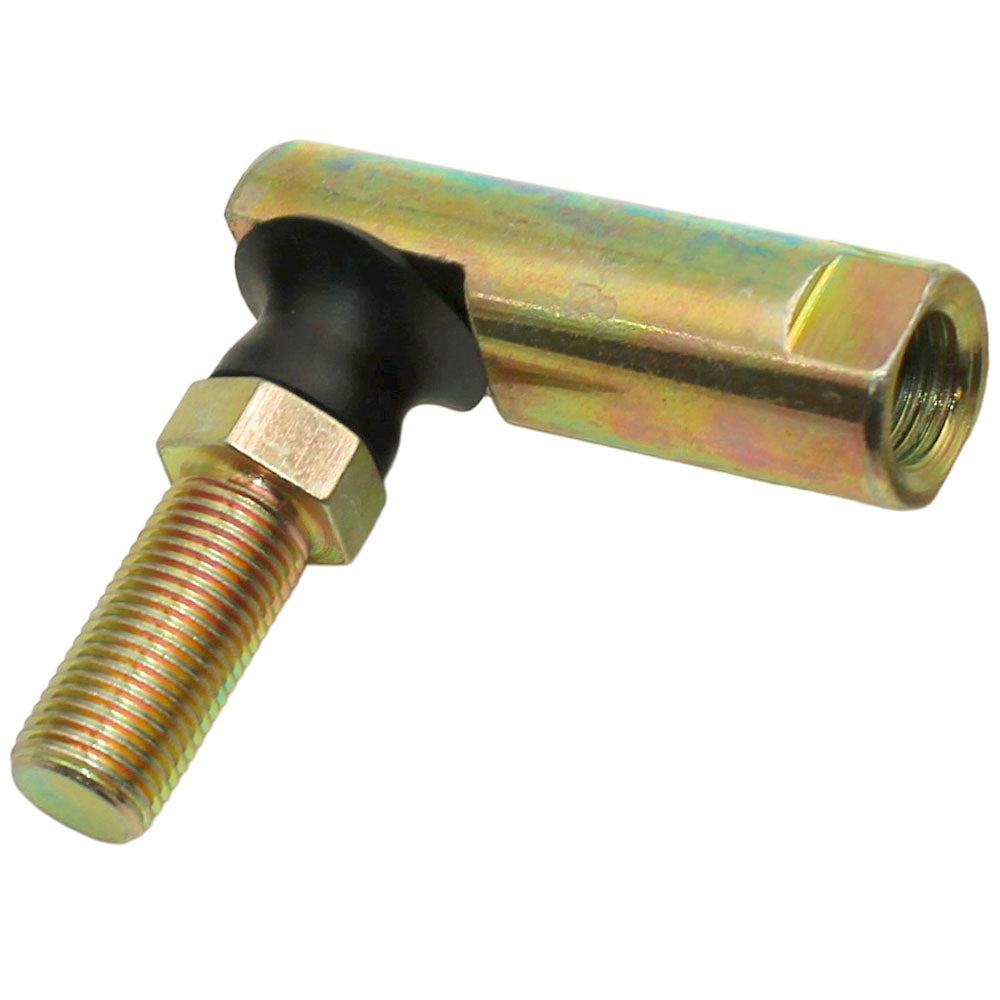

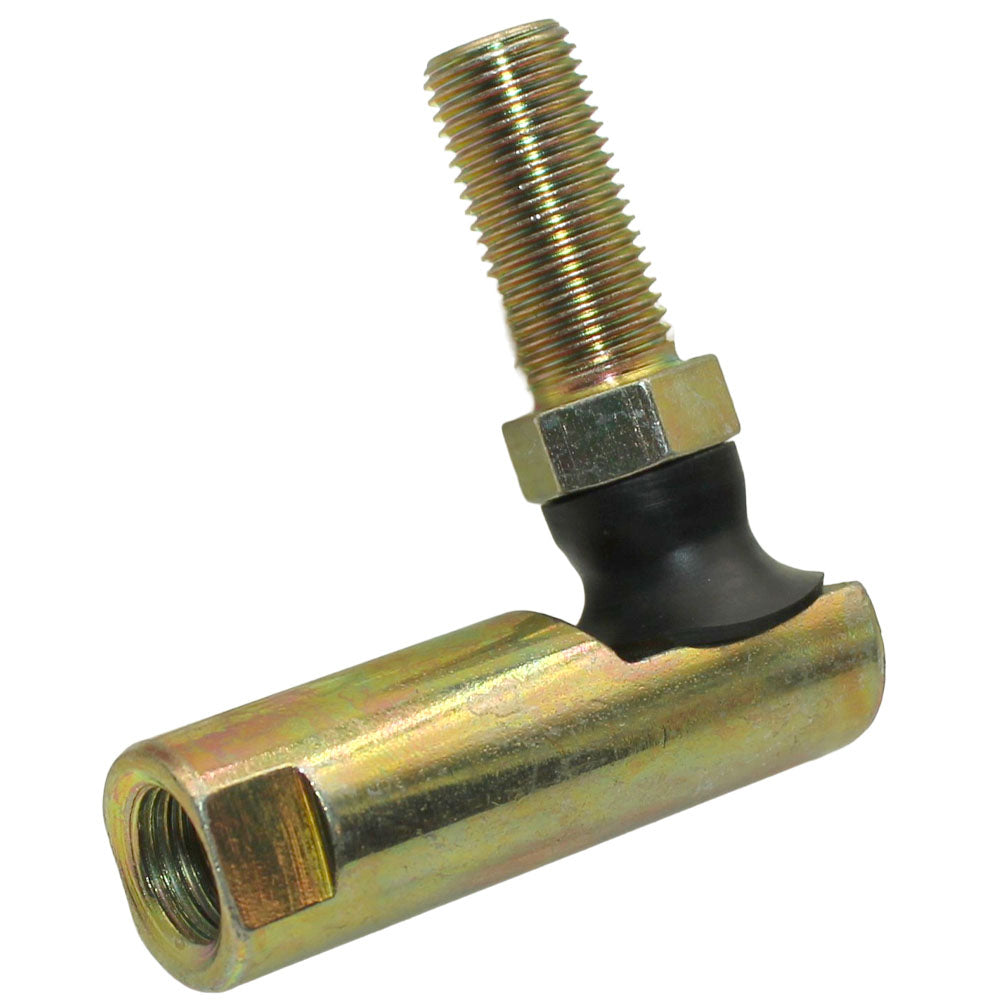

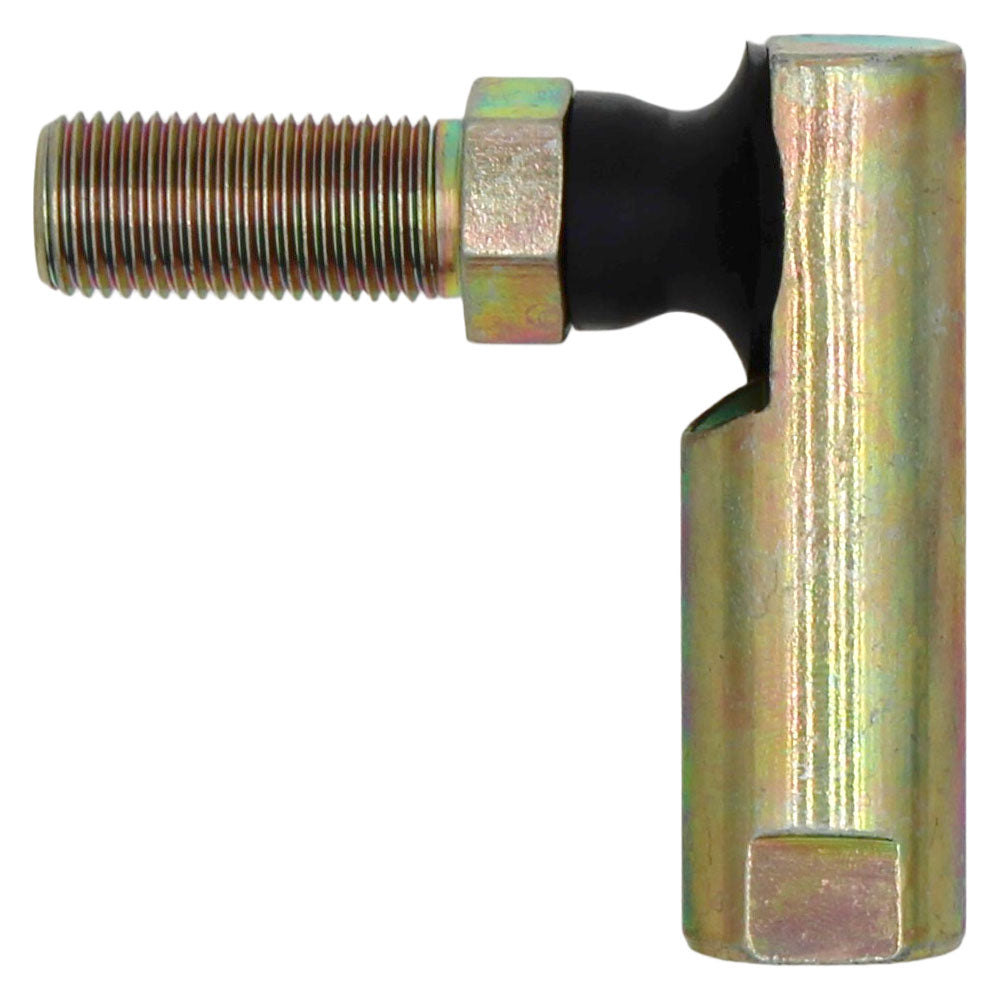

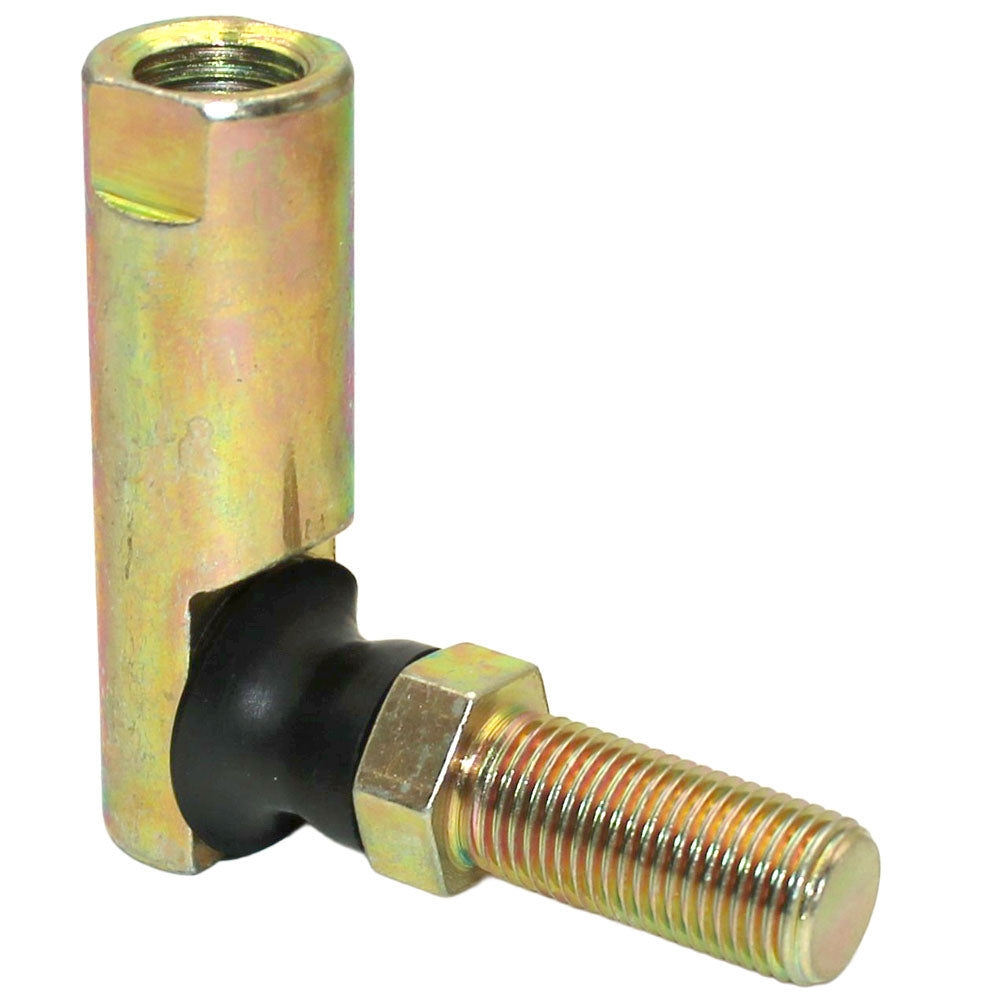

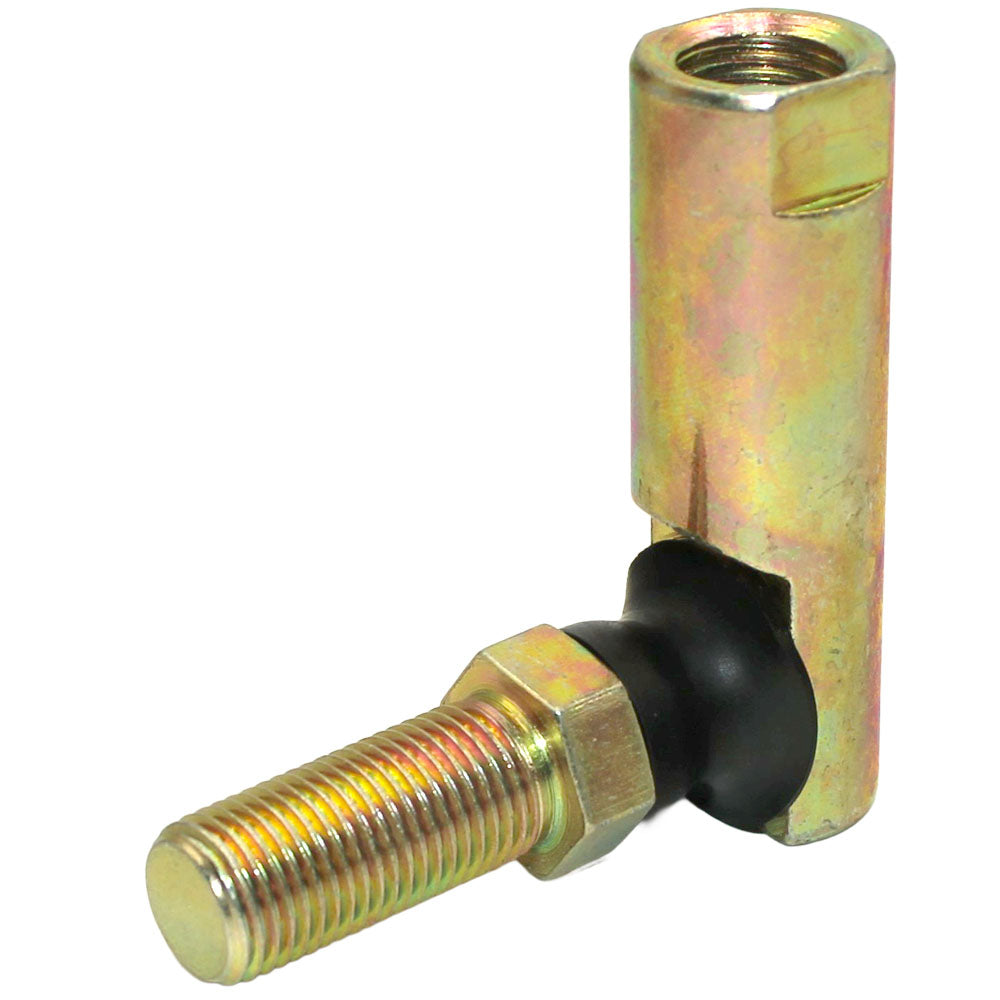

This right hand (RH) tie rod ball joint connects the drag link and tie rod ends in the front axle steering assembly of John Deere garden tractors, Cub Cadet riders, and many MTD-platform lawn and garden tractors. It is threaded 1/2"-20 RH on both the male and female ends and includes a split washer and locking nut. This is the right hand unit; a matching left hand ball joint (AM100645) is sold separately.
Specifications
- Male Thread: 1/2"-20 RH
- Female Thread: 1/2"-20 RH
- Hand: Right Hand (RH)
- Includes split washer and locking nut
Compatible Models
John Deere Garden Tractors: 60, 110, 110H, 112, 112H, 120, 140, 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317, 318, 322, 330, 332, 400, 420, 430 (with or without Hydraulic Lift)
John Deere Industrial/Cotton: 484 Cotton, 7440 Cotton, 762 Industrial
Cub Cadet / IH Lo-Boy: 154 Lo-Boy, 184 Lo-Boy, 185 Lo-Boy, 982, 984, 986
Case / Case IH: 155, 195
MTD (Cub Cadet, White, and related MTD-platform brands): Many models between 1985-1998
Replaces Part Number(s):
AM100644, AM30168, AM30169, AM32868, AM32869, C12102, C44640, GW-B1713361, GW-1713361, 1705259, 1707639, 1711604, 1713361, 7230179, 9230179, M47234, 923-3015, 723-3015, 923-0179, 723-0179, 7-07494, 529430R1, 529431R1, 511014M1, 511014M2, AG516491, B1BS2212, 245-043, 45-114, 31129
Aftermarket Interchange Numbers
9230179-A, AM100644-A, AM32868-A, C12102-A, 45-114-A, 723-0179--A, B1SB2212-A
New aftermarket replacement part - not remanufactured, not used.
