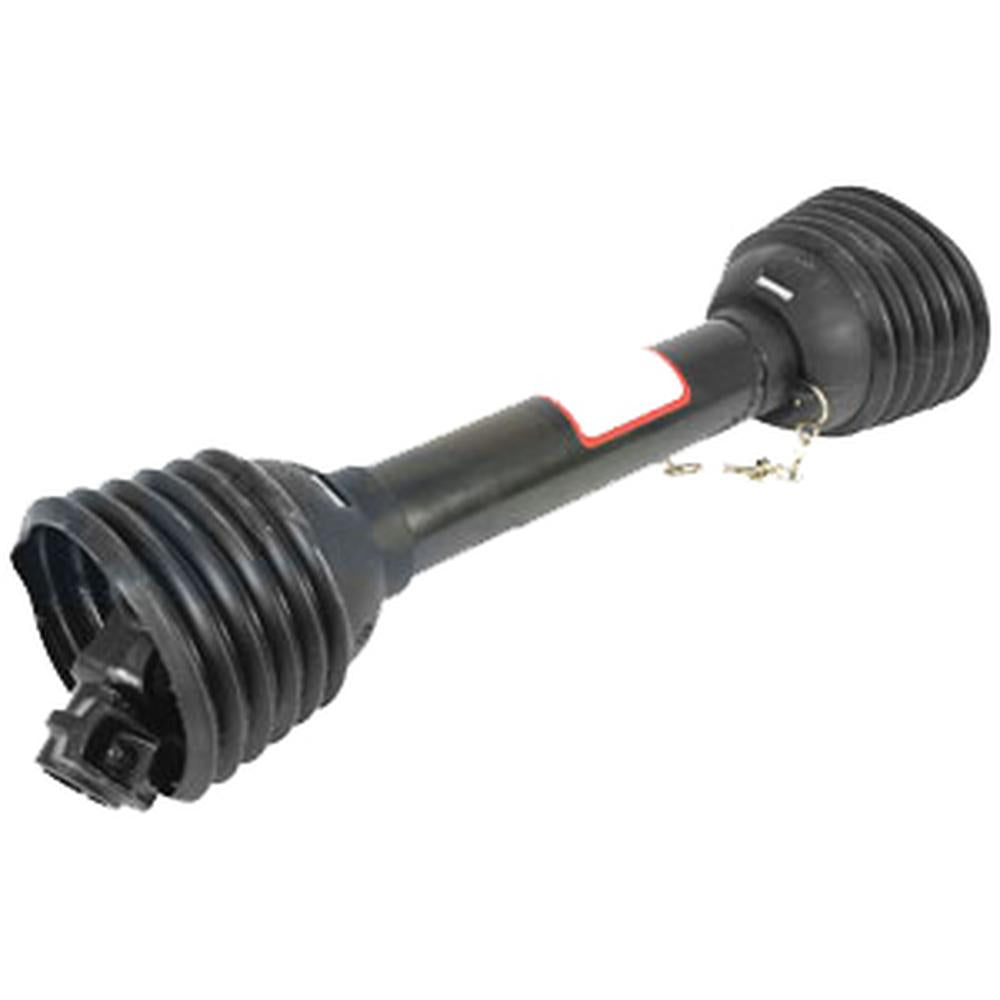

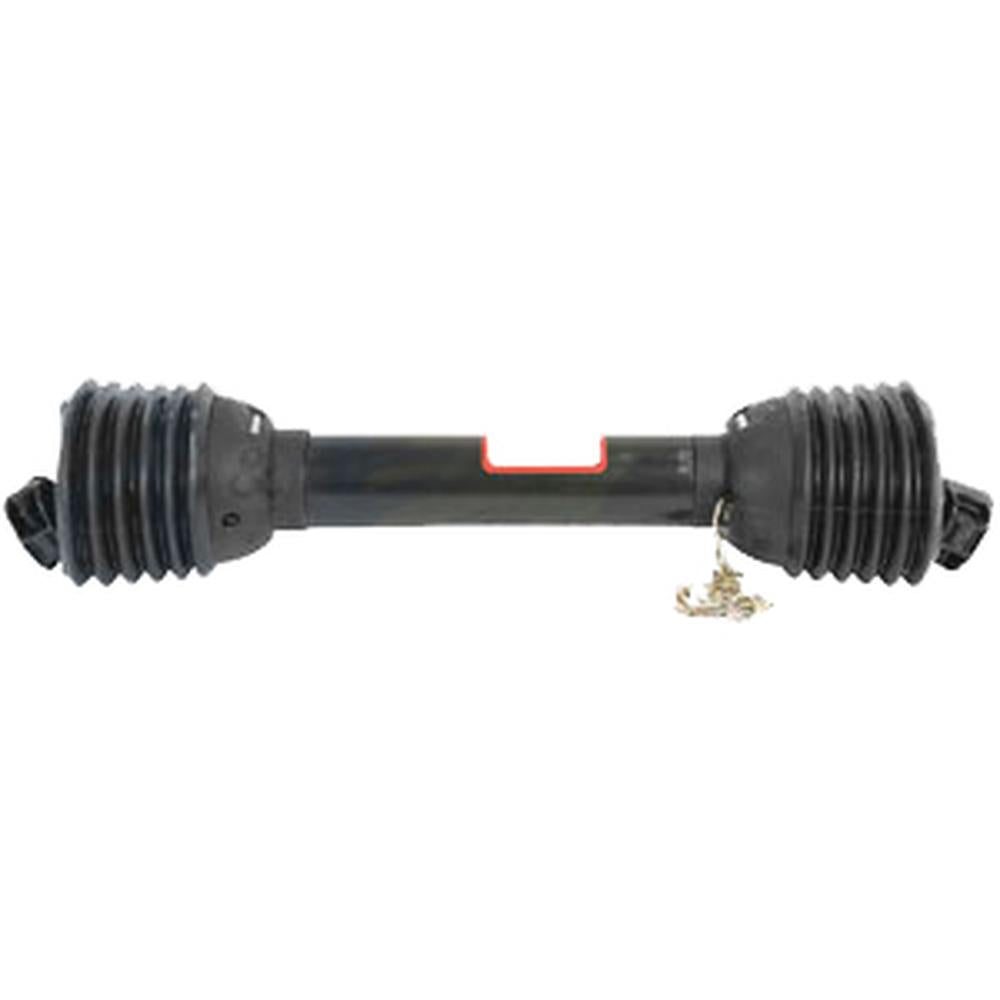

Driveline PTO Shaft Assembly Fits Bondioli & Pavesi Replaces CS12111

Name: Driveline PTO Shaft Assembly Fits Bondioli & Pavesi Replaces CS12111
SKU: CS12111_05
Price: 129.99 USD
Availability: InStock

Driveline PTO Shaft Assembly Fits Bondioli & Pavesi Replaces CS12111

$129.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Driveline PTO Shaft Assembly

Tech Info:
-1 3/8", 6 Spline, QD Yokes.
-
-Size: 1
-Min C-to-C Length: 21" (514 mm)
-Max C-to-C Length: 29" (750 mm)
-Total Collapsed Length: 27" (700 mm)
-Tractor: 1 3/8" -6
-Implement: 1 3/8" -6
-Series: 100
-Category: 1 (16 HP)
-
-It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Made to Fit Bondioli & Pavesi:
Models: Size 1
Model Breaks: 100 Series: Size 1

Models This Part Fits:

100 Series: Size 1

Additional Information:

1 3/8" 6 Spline, QD Yokes Size: 1 Min Center to Center Length: 21" (514 mm) Max Center to Center Length: 29" (750 mm) Total Collapsed Length: 27" (700 mm) Tractor: 1 3/8" -6 Implement: 1 3/8" -6 Series: 100 Category: 1 (16 HP) It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
