One New Aftermarket Replacement Female O-Ring Face Seal (ORFS) Swivel Coupler - Straight

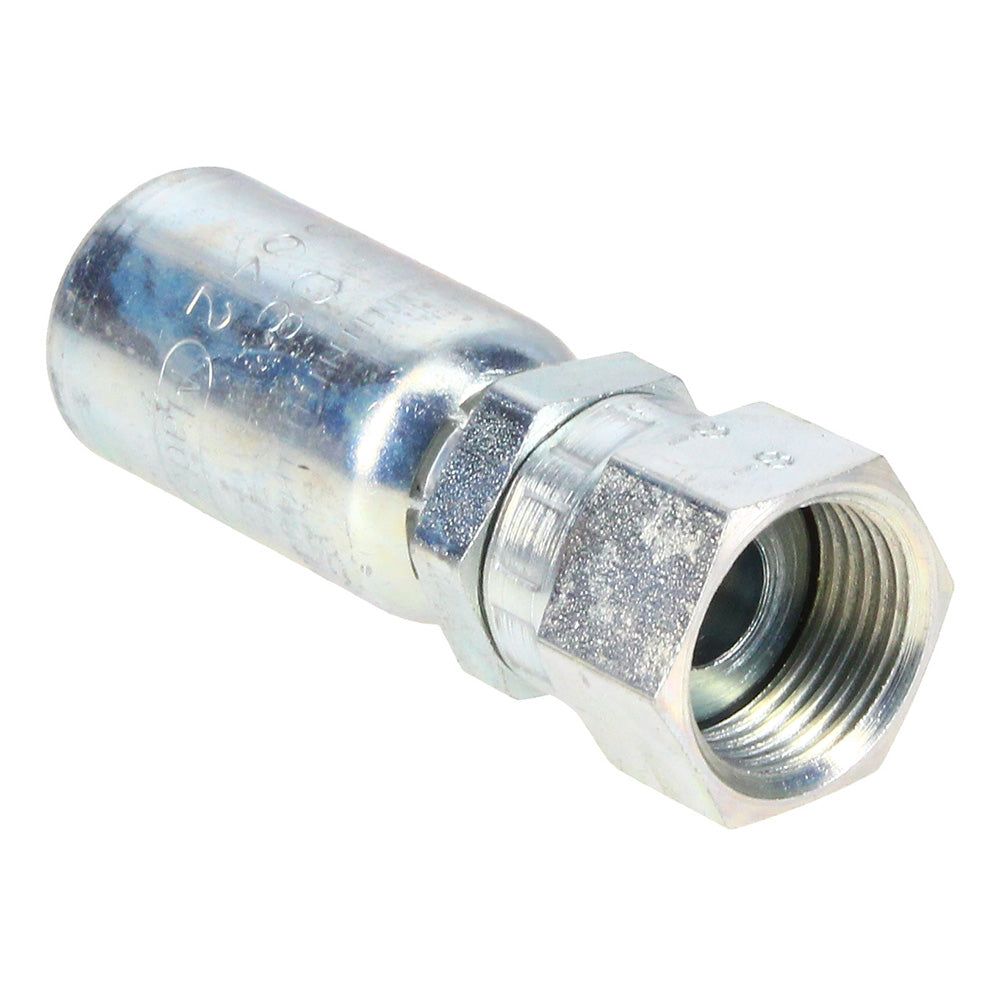

The FFX-06-08 is a Female Seal-Lok (ORFS) swivel straight hydraulic hose coupler designed for use in high-pressure hydraulic hose assemblies. It features a 3/8" hose end paired with a 1/2" O-Ring Face Seal (ORFS) swivel connection. The ORFS design uses an O-ring seated in a groove on the male face side that mates with a flat female face, forming a leak-resistant seal without metal deformation - ideal for demanding agricultural and construction hydraulic circuits.
Specifications
- Part Number: FFX-06-08
- Style: Female Seal-Lok Swivel - Straight - Short (HC-FFX)
- Hose End Size: -06 (3/8")
- ORFS Thread Size: -08 (1/2")
- Thread: 13/16-16 ORFS
- Connection Type: Female O-Ring Face Seal (ORFS) Swivel
- Orientation: Straight
Compatible Applications
Universal hydraulic hose fitting suitable for use in agricultural, construction, and industrial equipment hydraulic systems requiring a 3/8" hose-to-1/2" ORFS female swivel straight connection. Compatible with SAE 100R2, SAE 100R16, SAE 100R17, and similar braided hydraulic hoses.
Replaces Part Number(s):
FFX-06-08, A-FFX-06-08-AI
Aftermarket Interchange Numbers
Weatherhead 06U-S68
New aftermarket replacement part - not remanufactured, not used.
