Complete Tune Up Kit Fits Farmall Replaces 407017R91

Complete Tune Up Kit Fits Farmall Replaces 407017R91

$73.99 USD
$73.99 USD
Sale Sold out
Shipping calculated at checkout.

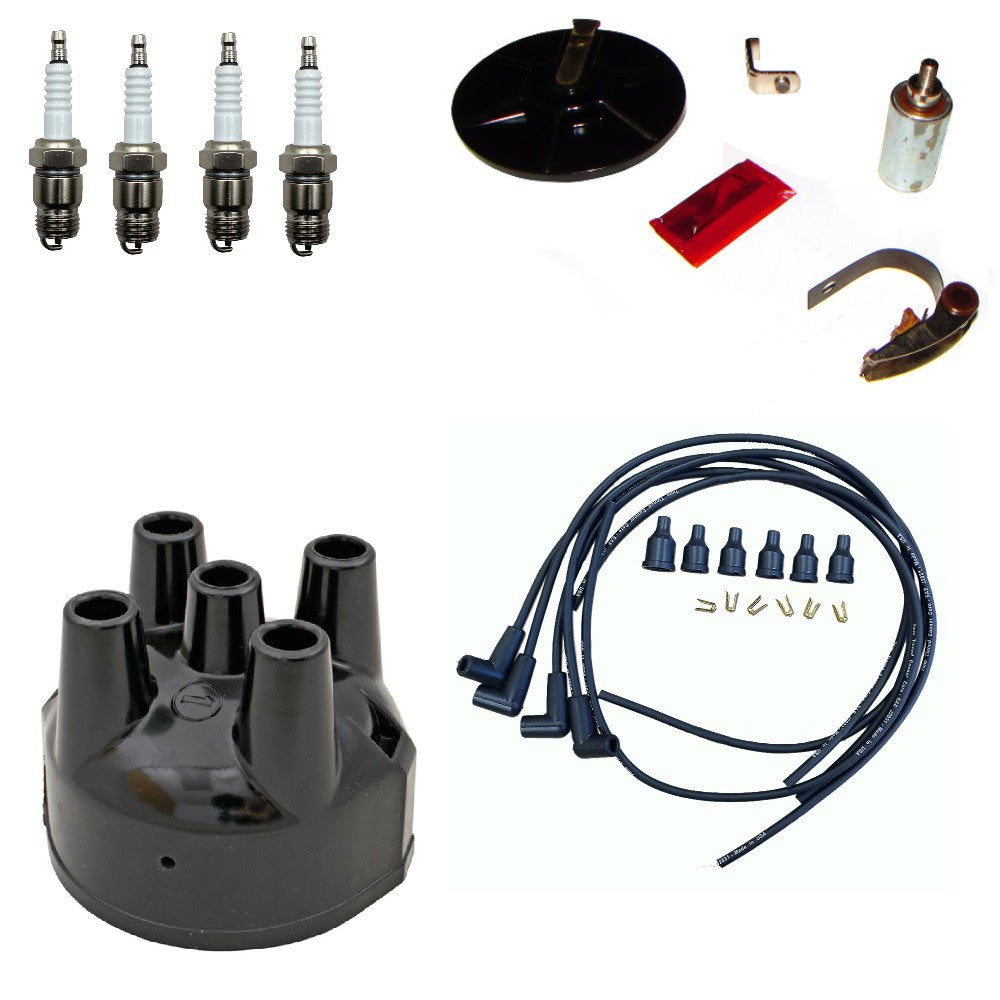

One New Aftermarket Complete Tune Up Kit

Tech Info:
 -(1) 4 Cylinder Spark Plug Wiring Set
 --These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
 --Note: You must cut the wires to length and crimp the ends with a crimping tool.
 --Wire lengths are approximately;
 -(2) 24-3/4" spark plug wires
 -(1) 29-3/4" spark plug wire
 -(1) 34-1/2" spark plug wire
 -(1) 23-1/2" long coil wire.
 --The coil wire is made from excess wire left over from the spark plug wire.
 -
 -
 -(1) Distributor Cap
 -Only fits models using an IHC H4 magneto
 -Replaces Part Number(s): 47413DYC
 -
 -(1) Ignition Kit
 -Contains points, condensers & rotors to service H-4 Magneto
 -Replaces Part Number(s): 407017R91, 407017R92
 -
 -(4) Spark Plugs
 --M18-1.50mm thread,
 --1/2" Thread reach,
 --7/8" Hex,
 --Preset Gap 0.034",
 --Medium hot,
 --Power tip / Non-Resistor

Made to Fit Farmall:
 Tractor Models: A, AV, B, BN, C, H, HV, I9, ID9, M, MD, MDV, MTA, MV, O4, O6, ODS6, OS4, OS6, Super A, Super C, Super H, Super HV, Super M, Super MD, Super MDV, Super MV, Super W4, Super W6, Super WD9, Super WDR9, T5, T9, TD14, TD14A, TD6, TD9, W4, W6, W6TA, W9, WD6, WD9, WDR9, WR9, WR9S, 100, 130, 200, 230, 300, 350, 400, 450, 600, 650
 Model Breaks: w/ H4 Magneto System
 Replaces Part Number(s): 47413DYC, 407017R91, 407017R92

Models This Part Fits:

B, HV, W9, 130, Super W4, TD14A, Super MDV, W4, M, Super MD, MTA, 200, O4, C, Super C, 450, OS6, MD, OS4, BN, WDR9, MV, W6TA, TD9, MDV, W6, Super A, 300, ID9, T5, AV, T9, 350, 650, Super W6, Super H, O6, 100, TD6, 400, 600, A, WR9, WR9S, Super HV, Super M, Super WDR9, WD9, Super MV, I9, TD14, WD6, H, Super WD9, ODS6, 230

Additional Information:

(1) 4 Cylinder Spark Plug Wiring Set -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. -Note: You must cut the wires to length and crimp the ends with a crimping tool. -Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (1) Distributor Cap Only fits models using an IHC H4 magneto Replaces Part Number(s): 47413DYC (1) Ignition Kit Contains points, condensers & rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs -M18-1.50mm thread, -1/2" Thread reach, -7/8" Hex, -Preset Gap 0.034", -Medium hot, -Power tip / Non-Resistor

Reference Numbers:

47413DYC, 407017R91, 407017R92

Product Sub Group:

Ignition Components
