Complete Tune Up Kit Fits Case/International Harvester Replaces 0201-4656B

Complete Tune Up Kit Fits Case/International Harvester Replaces 0201-4656B

$84.99 USD
$84.99 USD
Sale Sold out
Shipping calculated at checkout.

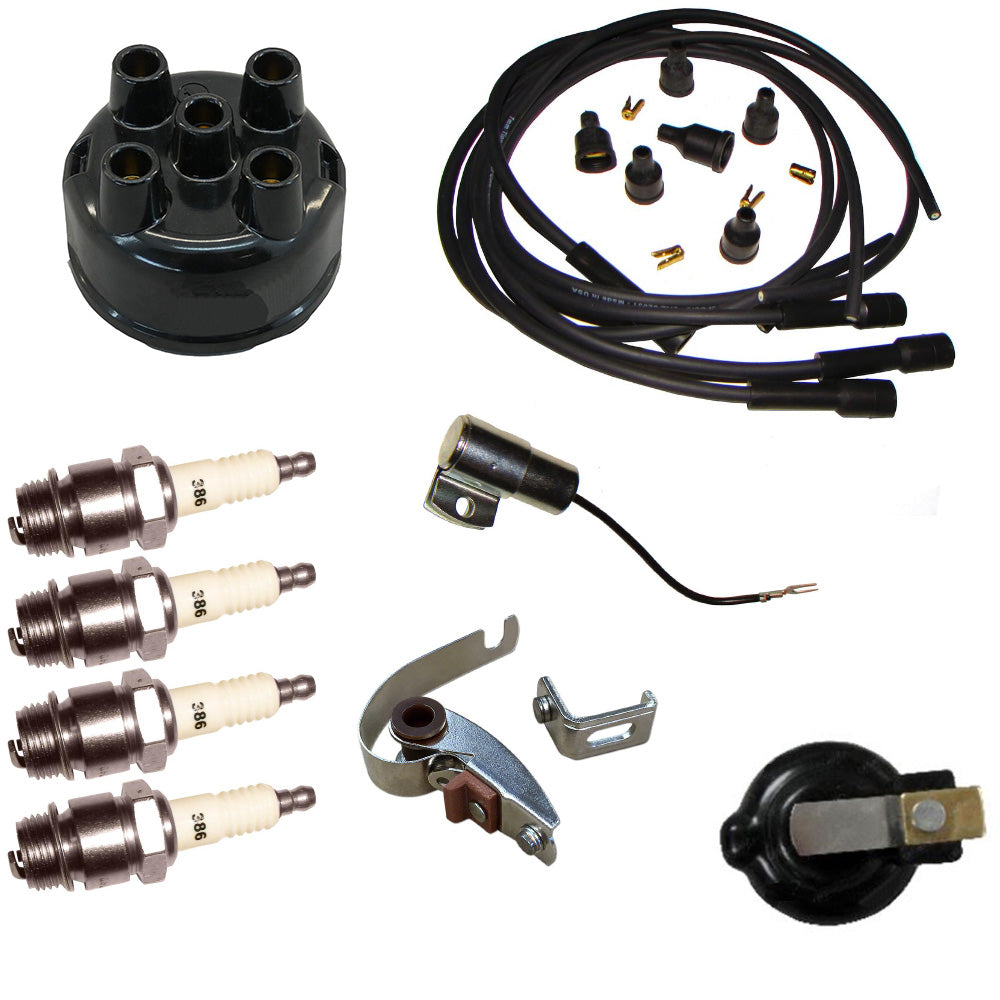

One New Aftermarket Complete Tune Up Kit

Tech Info:
 -Kit Contains:
 -(1) Distributor Cap
 -Clip Style Cap
 -
 -Replaces Part Number(s):
 -0201-4656B, 21A461, 351693R1, 351693R92
 -
 -(1) Spark Plug Wire Set - (Non-tailored Straight Boot)
 -4 Cylinder
 -
 -(1) Ignition Condenser
 -Fits 1951-62 Distributors.
 -Also Fits J4 Magneto
 -
 -Replaces Part Number(s):
 -251539R91, 353903R91, 353903R92, 353905R1, 354136R92
 -
 -(4) Spark Plugs
 -Standard Info
 -Thread Size: 18mm
 -7/8" Hex Shoulder
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Seat Type: Gasket
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Terminal Type: Removable Nut
 -Resistor: No
 -Thread Pitch: 1.5mm
 -Center Electrode
 -Type: Standard
 -Material: Nickel
 -Size: 2.5mm
 -Projection: Non-Projected
 -Ground Electrode
 -Type: Standard
 -Material: Nickel
 -
 -Replaces Part Number(s):
 -G44840, 4012405C
 -
 -(1) Rotor
 -
 -Replaces Part Number:
 -353896R91
 -
 -(1) Magneto Point Set
 -Point Gap = 0.013"
 -
 -Replaces Part Number(s):
 -353172R91, 407018R91

Made to Fits Case/International Harvester:
 Tractor Models: A, I4, AV, Super A, B, BN, C, Super C, 154, 184, 185, H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, MDV, MTA, MV, O4, O6, ODS6, Super W4, W4, Super W6, W6, W6TA, W9, WD6, WD9, WDR9, WR9, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 424, 444, 450, 600, 650
 Replaces Part Number(s): 353896R91, G44840, 4012405C, 351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91

Models This Part Fits:

Super W6, WD6, M, Super H, ODS6, I4, 154, I9, 130, C, MTA, O6, 444, W6TA, 600, Super W4, B, 450, MDV, 200, 184, WR9, 330, 340, Super A, 300, WD9, H, ID9, MV, 400, Super M, O4, WDR9, 185, MD, BN, HV, 404, Super C, Super HV, W4, 240, W6, 350, AV, 230, 650, 140, Super MD, 424, W9, A, 100

Additional Information:

Kit Contains: (1) Distributor Cap Clip Style Cap Replaces Part Number(s): 0201-4656B, 21A461, 351693R1, 351693R92 (1) Spark Plug Wire Set - (Non-tailored Straight Boot) 4 Cylinder (1) Ignition Condenser Fits 1951-62 Distributors. Also Fits J4 Magneto Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Rotor Replaces Part Number: 353896R91 (1) Magneto Point Set Point Gap = 0.013" Replaces Part Number(s): 353172R91, 407018R91

Reference Numbers:

353896R91, G44840, 4012405C, 351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91
