Complete T Bolt and Clutch Kit Fits John Deere 70 720 730

Name: Complete T Bolt and Clutch Kit Fits John Deere 70 720 730
SKU: F1392R-AA6129R-KIT
Price: 421.99 USD
Availability: InStock

Complete T Bolt and Clutch Kit Fits John Deere 70 720 730

$421.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Complete T-Bolt and Clutch Kit

Fits John Deere Tractor Models: 70, 720, 730

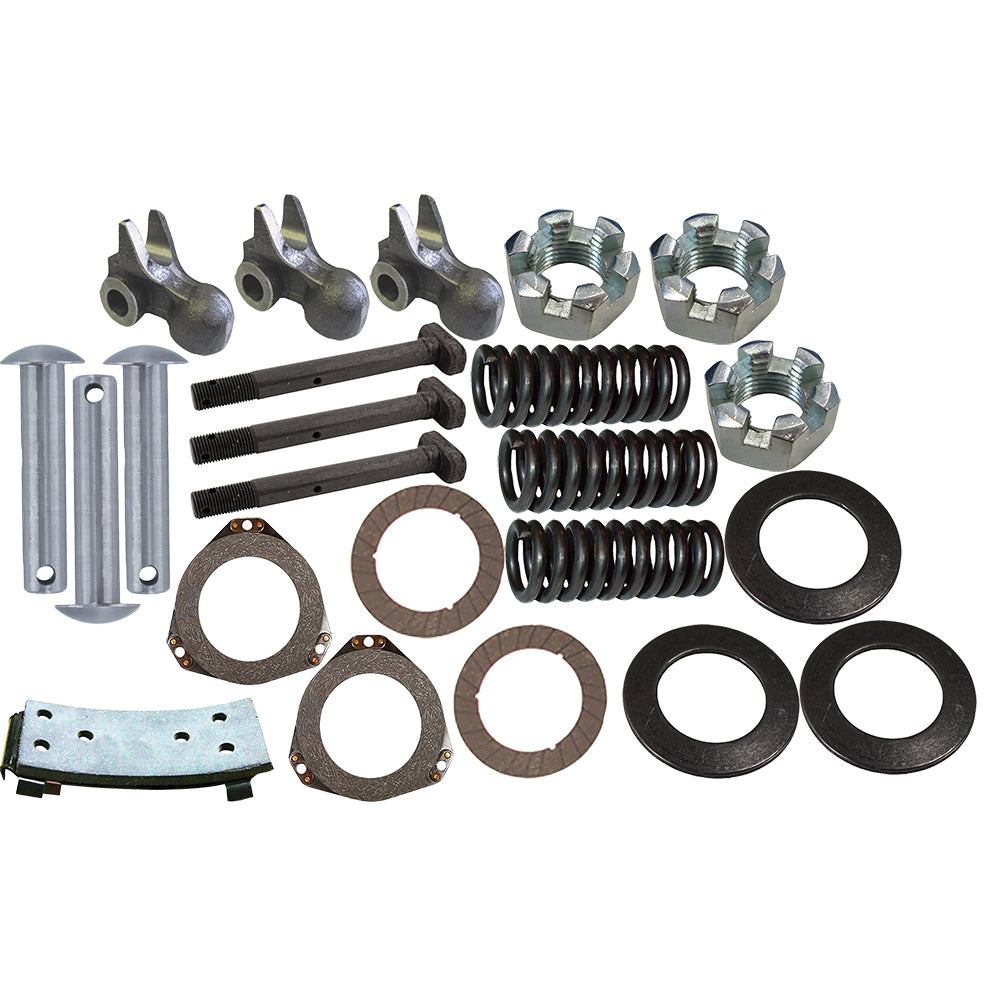

Kit Includes:

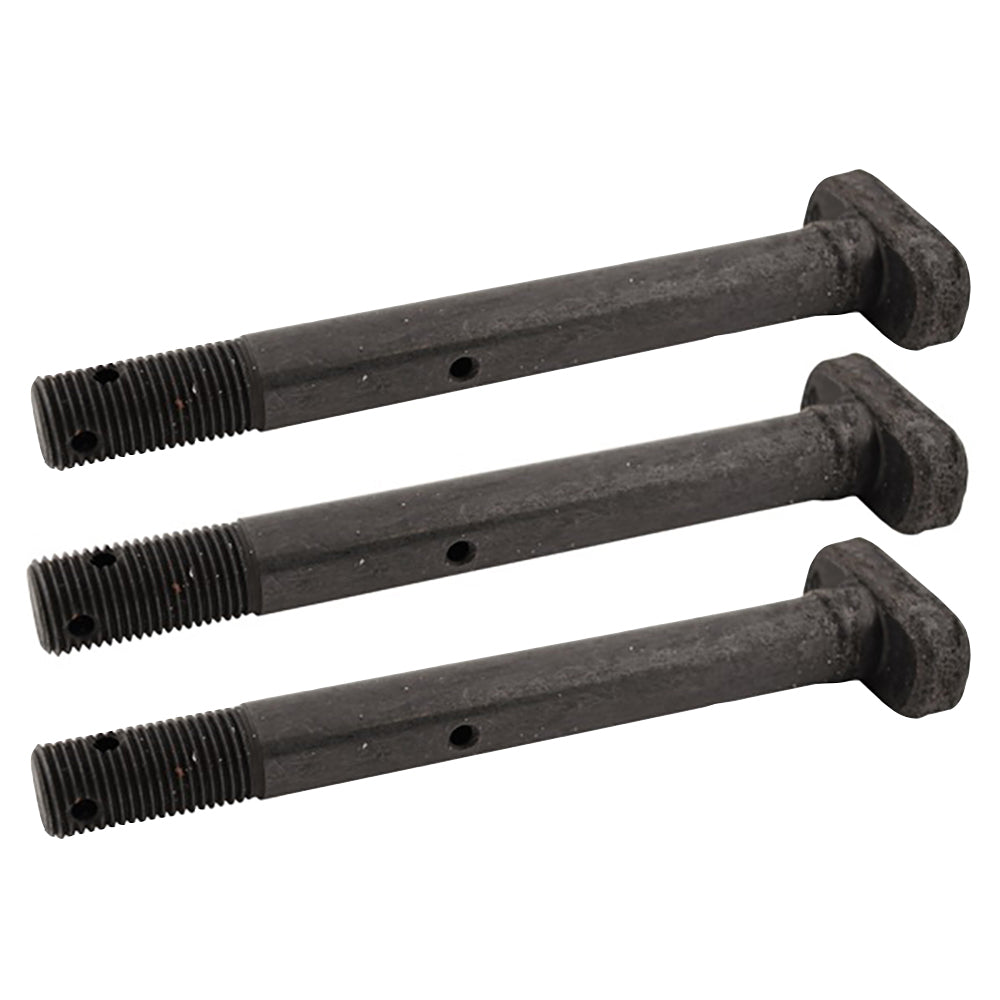

3 Clutch Operating T-Bolts (F1392R) 5-9/16" Long 9/16" Diameter

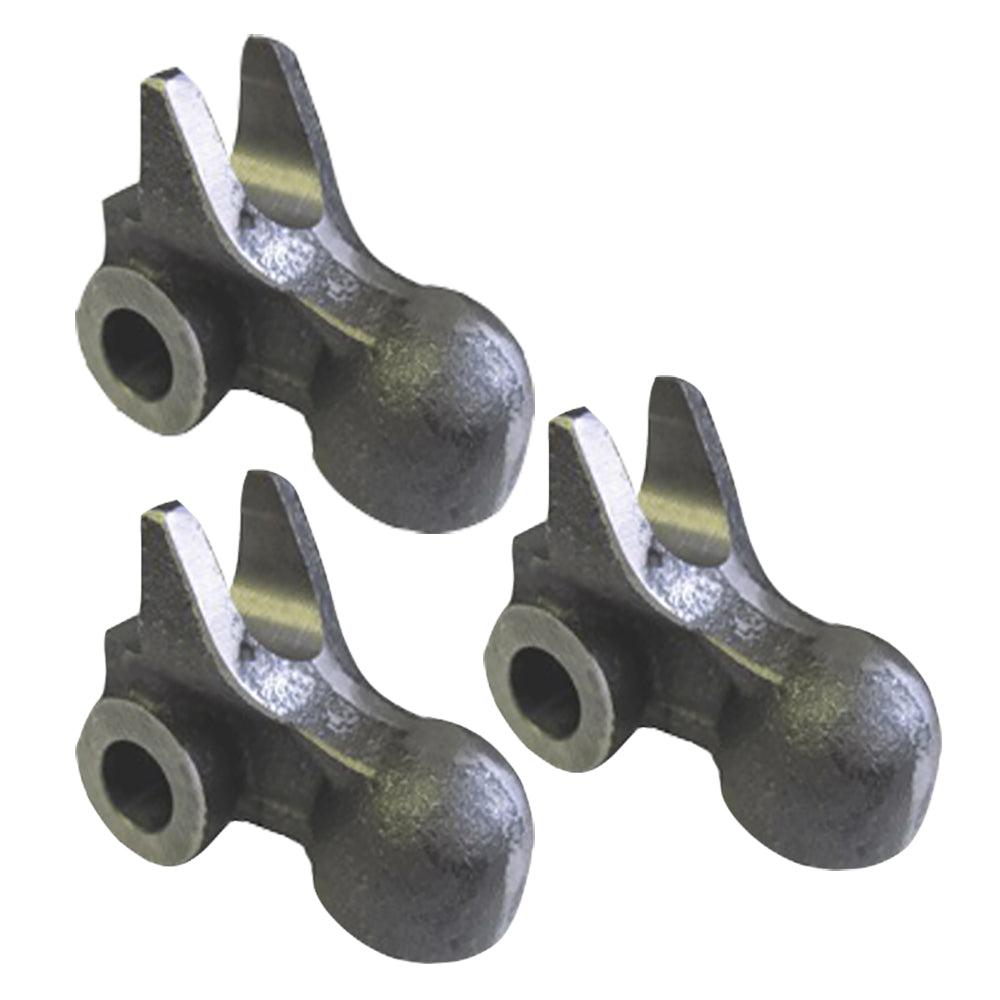

3 Clutch Dogs (C74R) Cast Steel

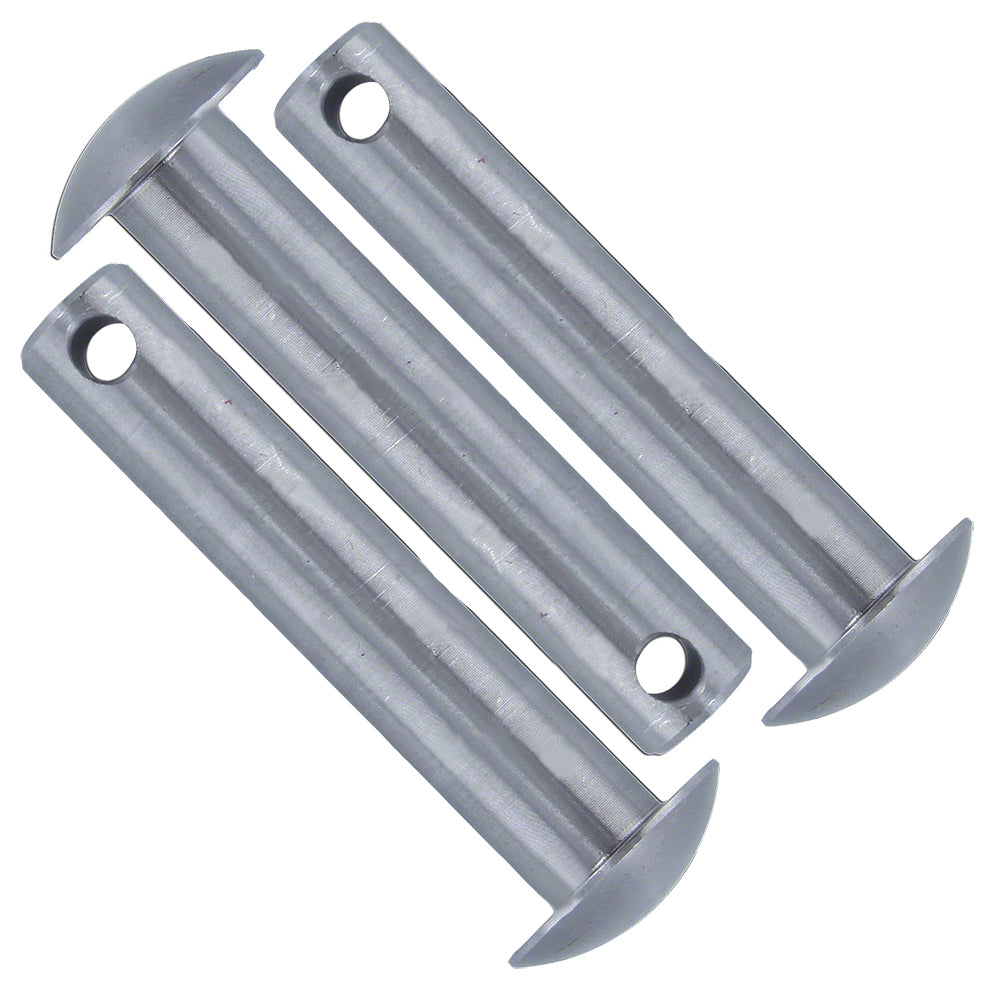

3 Clutch Dog Pins (D355R) 0.793" Diameter 2.5" Usable Length

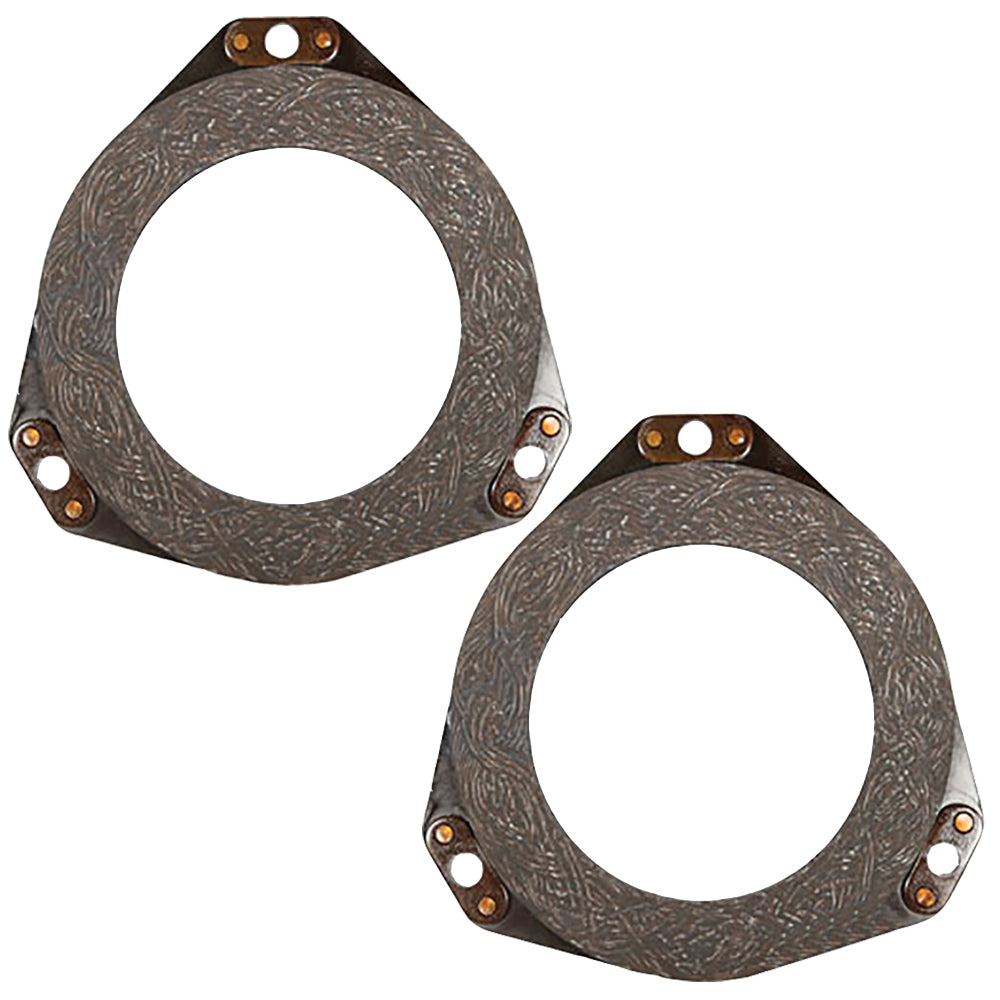

2 Pulley Clutch Discs w/Bonded Lining (AA6129R) 0.393" Thick

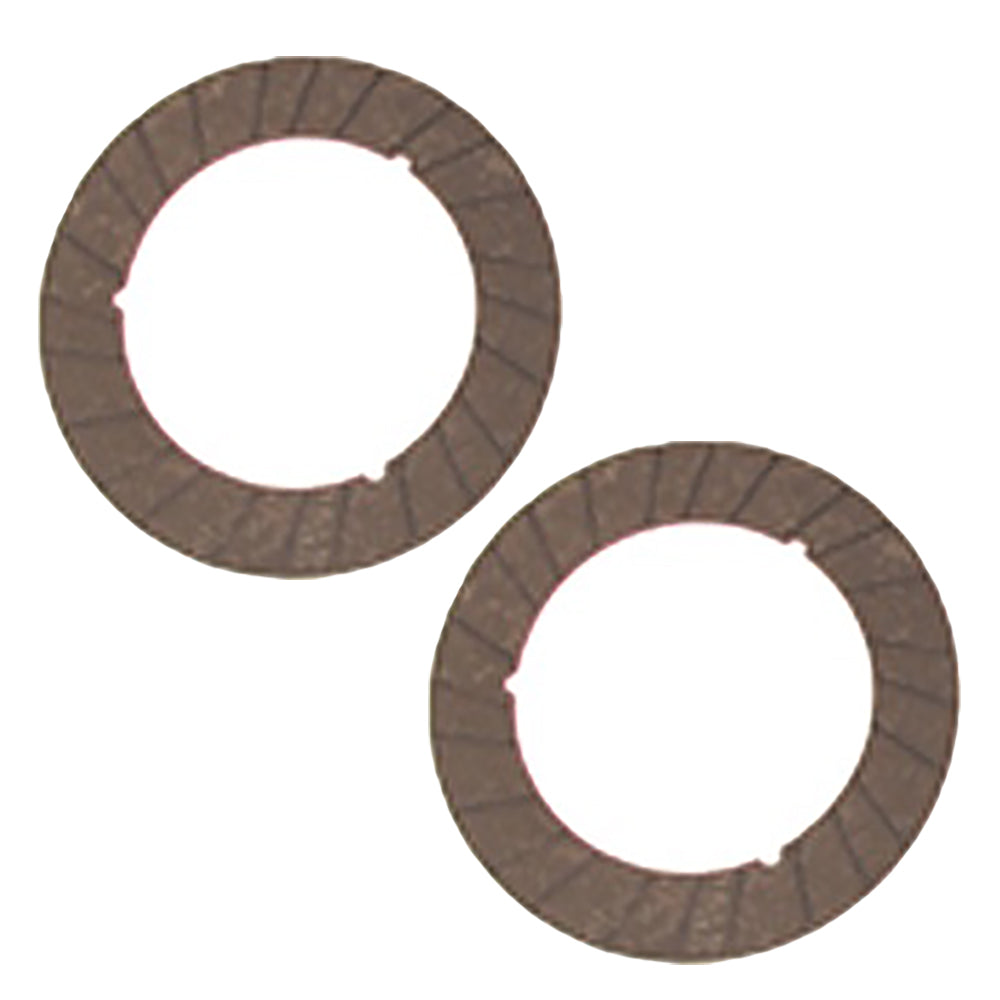

2 Floating Clutch Facing Discs (C614R) 10" OD 0.15" Thick 6.75" ID

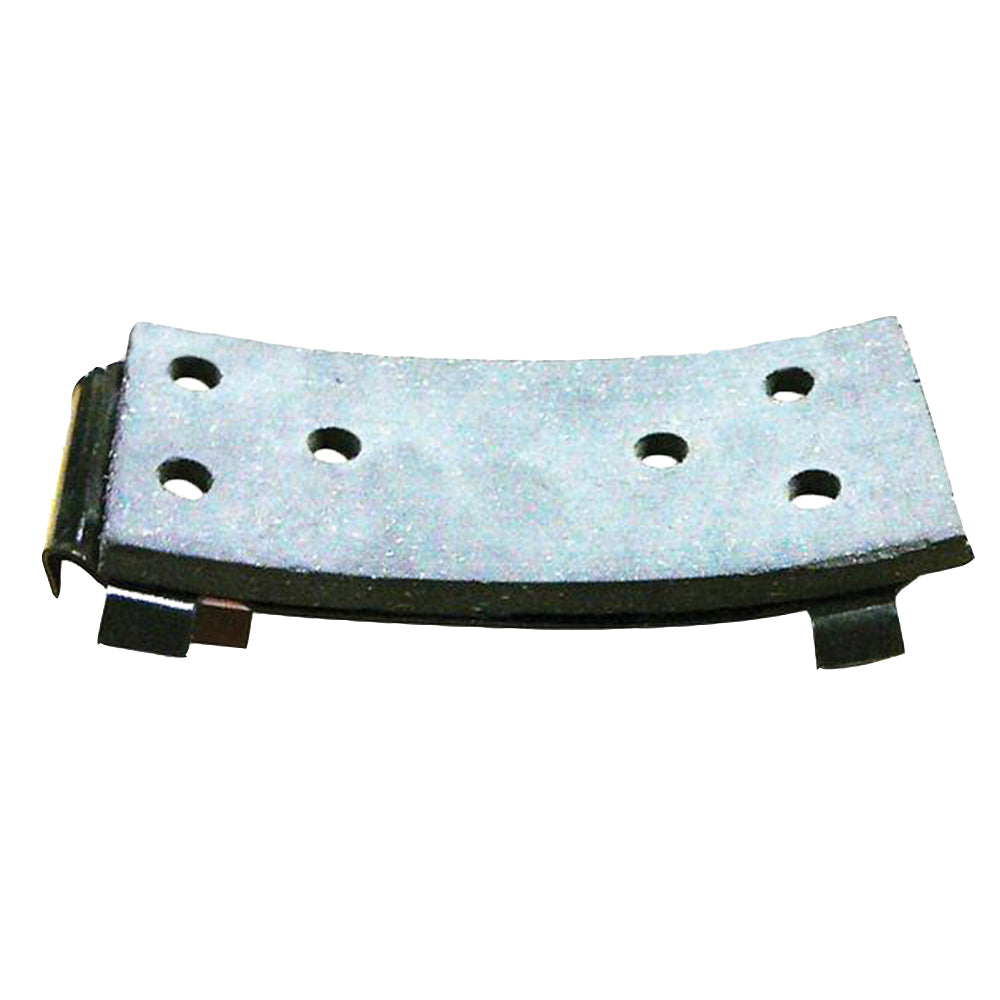

1 Belt Pulley Brake Pad Lining (RE29790)

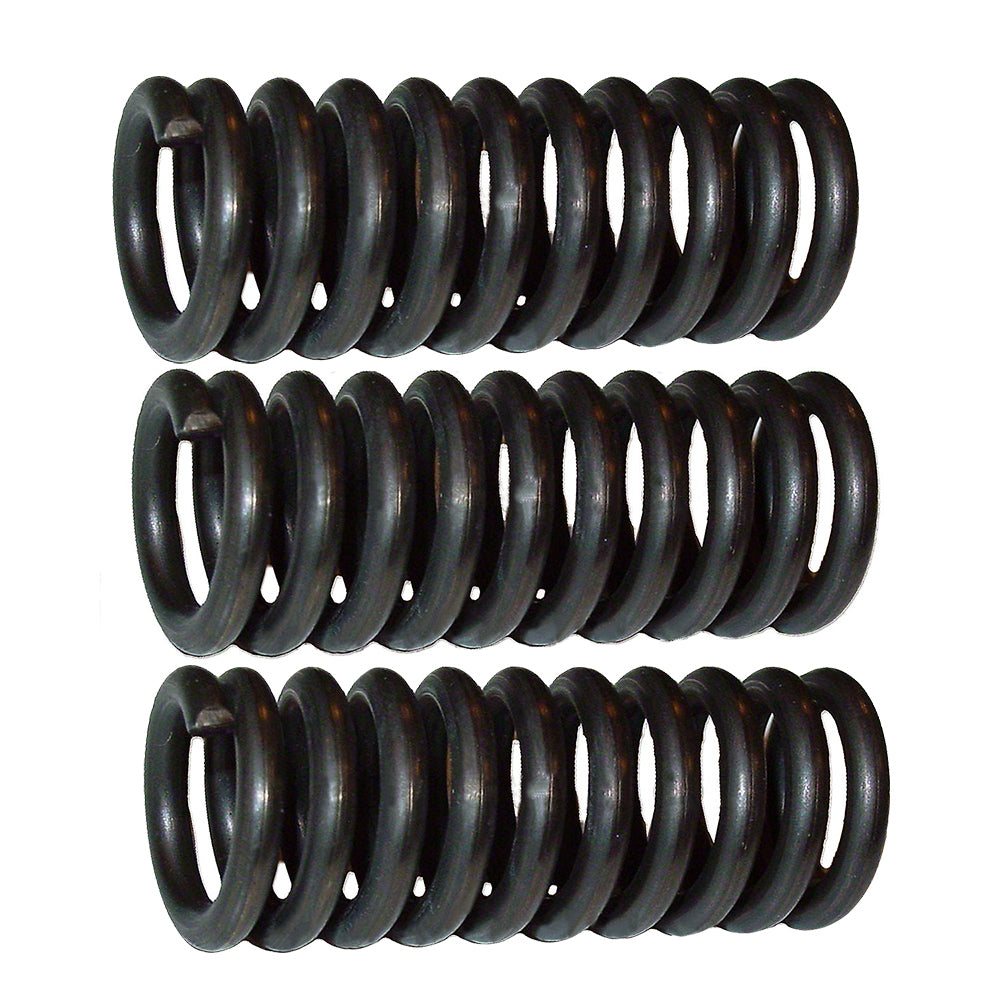

3 Clutch Disc Adjusting Springs (A352R) 1.915" Long 0.120" Thick

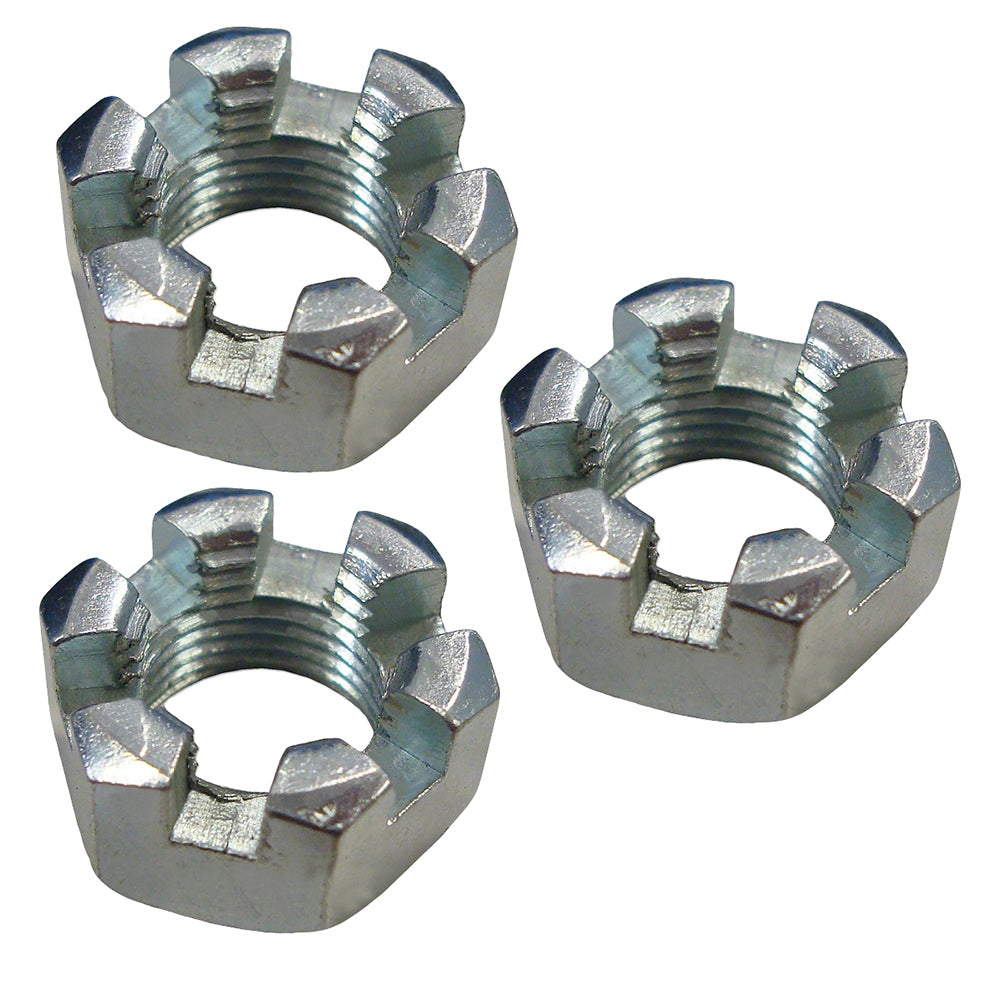

3 Clutch Adjusting Nuts (14H862) 9/16" Slottd Hex Nuts 18 NF

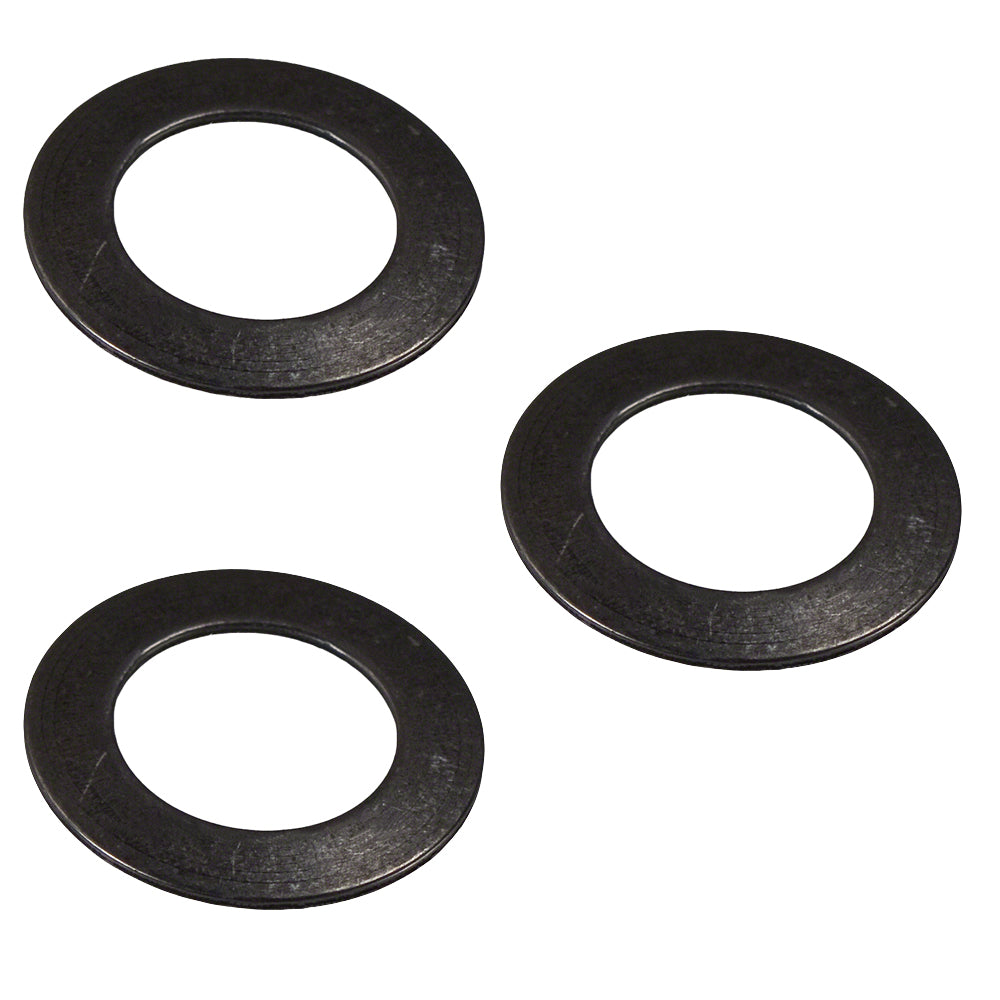

3 Clutch Pressure Plate Spring (Fits Belleville) Washers (Fits JDS1626) 15 FT 0.572 ID 0.937 OD 0.035 Thick

Replaces Part Numbers: F1392R, C74R, D355R, AA6129R, C614R, RE29790, A352R, 14H862, Fits JDS1626

Models This Part Fits:

720, 730

Additional Information:

(3) Clutch Operating T-Bolt 3 used per tractor 9/16" diameter 5-9/16" overall length Replaces Part Numbers: F1392R (3) Clutch Dog 3 required per tractor Replaces Part Numbers: C74R (3) Clutch Dog Pin 0.495" diameter 2.500" usable length 3 used per tractor Replaces Part Numbers: D355R (2) Facing Clutch Pulley Sold individually 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (2) Facing Clutch Disc 10" outside diameter 6-3/4" inside diameter 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 9/16" - 18 NF Grade 5 Slotted hex nut, 9/16" 3 used per tractor Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626
