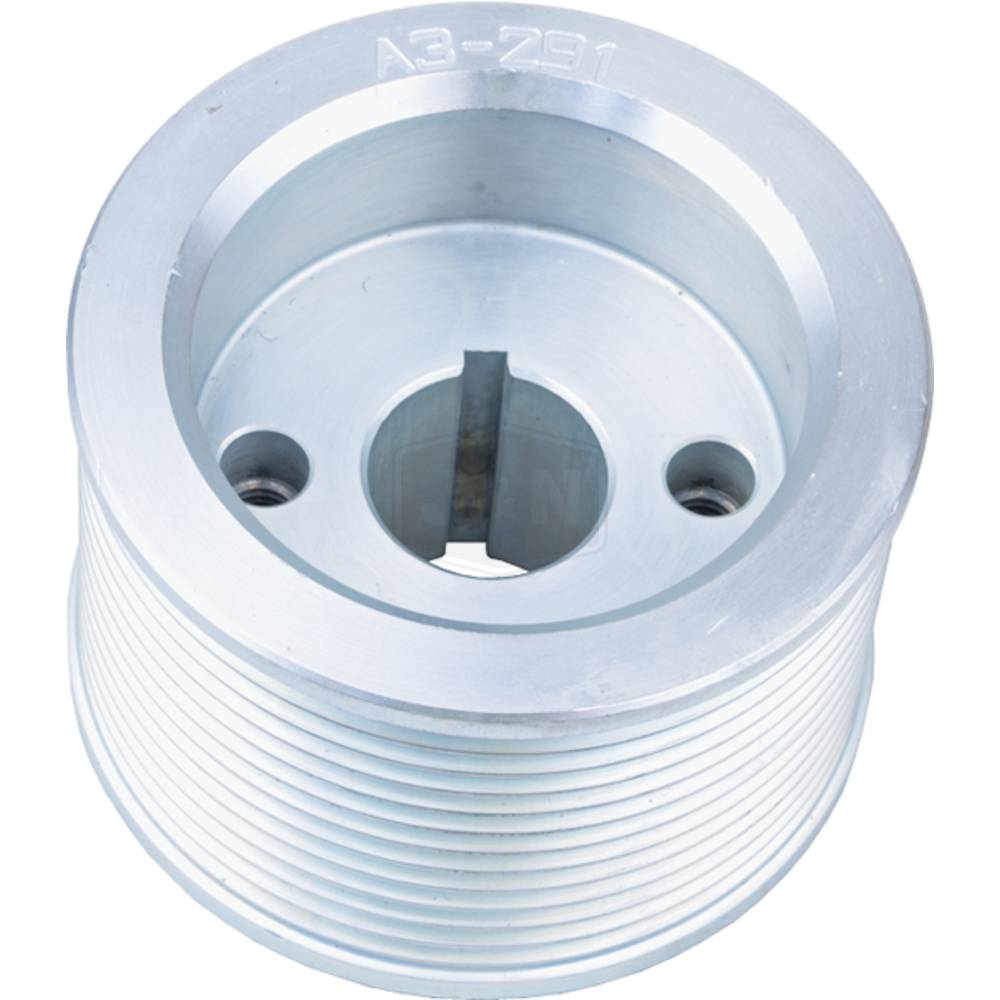

CEN-A3-291-JN C.E. Niehoff Pulley

CEN-A3-291-JN C.E. Niehoff Pulley

$205.99 USD
$205.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket C.E. Niehoff Pulley

Tech Info:
-Arrowhead: A3-291; C.E. Niehoff: A3-291
-: (2) M8-1.25 Threaded Holes, COMPOSITION: Steel, GROOVE OD: 2.984", GROOVE OD: 75.800mm, GROOVE TYPE: Serpentine, ID: 0.876", ID: 22.250 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 12, NUT RECESS: 0.827", NUT RECESS: 21mm, OD: 3.075", OD: 78.100 mm, PULLEY TYPE: Solid, THICKNESS: 54.900 mm

Replaces Part Number(s): CEN-A3-291

Additional Information:

Arrowhead: A3-291; C.E. Niehoff: A3-291, : (2) M8-1.25 Threaded Holes, COMPOSITION: Steel, GROOVE OD: 2.984", GROOVE OD: 75.800mm, GROOVE TYPE: Serpentine, ID: 0.876", ID: 22.250 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 12, NUT RECESS: 0.827", NUT RECESS: 21mm, OD: 3.075", OD: 78.100 mm, PULLEY TYPE: Solid, THICKNESS: 54.900 mm

Reference Numbers:

CEN-A3-291
