CEN-A3-267-JN C.E. Niehoff Pulley

CEN-A3-267-JN C.E. Niehoff Pulley

$287.99 USD
$287.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket C.E. Niehoff Pulley

Tech Info:
-Arrowhead: A3-267; C.E. Niehoff: A3-267

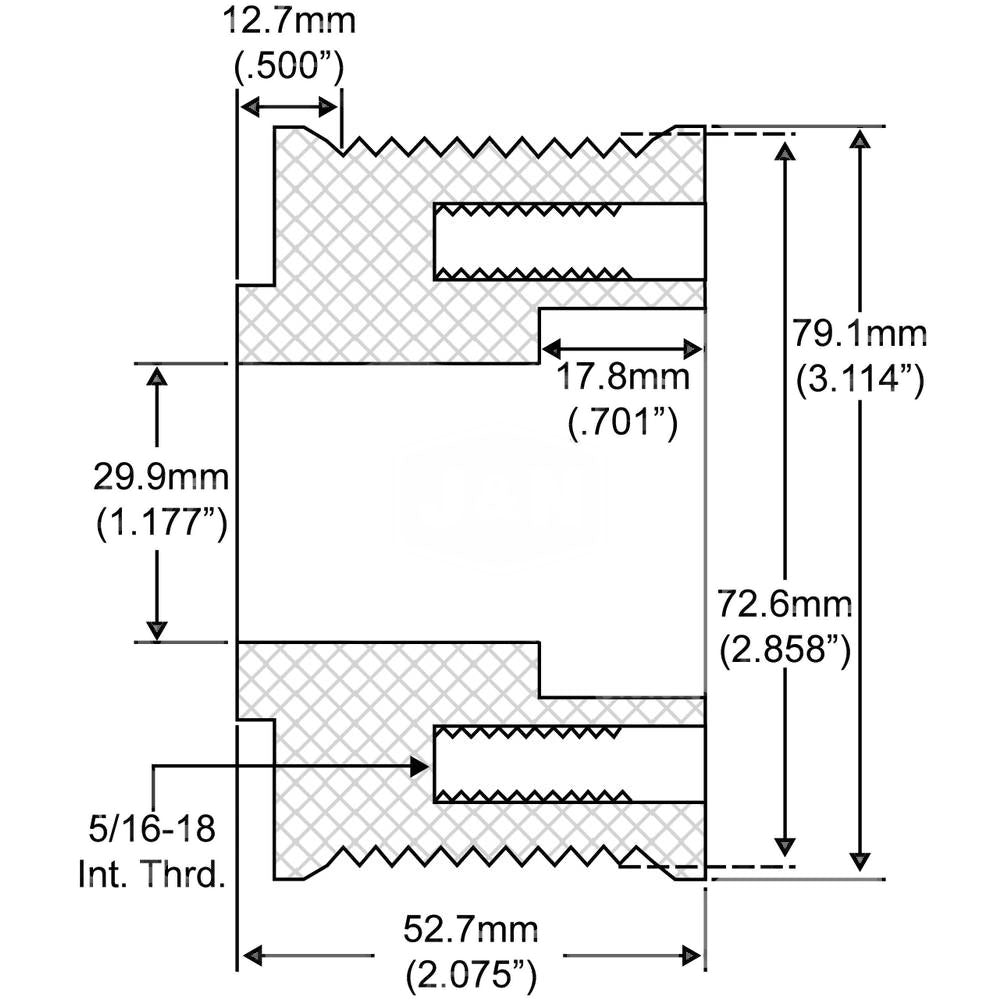

-: (2) 5/16-18 Threaded Holes, CENTER OF GROOVE TO REAR: 0.500", CENTER OF GROOVE TO REAR: 12.700mm, GROOVE OD: 2.835", GROOVE OD: 72mm, GROOVE TYPE: Serpentine, ID: 1.177", ID: 29.900 mm, KEYWAY WIDTH: 0.185", KEYWAY WIDTH: 4.700mm, NUMBER OF GROOVES: 10, NUT RECESS: 0.701", NUT RECESS: 17.800mm, OD: 3.114", OD: 79.100 mm, PULLEY TYPE: Solid, THICKNESS: 52.700 mm

Replaces Part Number(s): CEN-A3-267

Additional Information:

Arrowhead: A3-267; C.E. Niehoff: A3-267, : (2) 5/16-18 Threaded Holes, CENTER OF GROOVE TO REAR: 0.500", CENTER OF GROOVE TO REAR: 12.700mm, GROOVE OD: 2.835", GROOVE OD: 72mm, GROOVE TYPE: Serpentine, ID: 1.177", ID: 29.900 mm, KEYWAY WIDTH: 0.185", KEYWAY WIDTH: 4.700mm, NUMBER OF GROOVES: 10, NUT RECESS: 0.701", NUT RECESS: 17.800mm, OD: 3.114", OD: 79.100 mm, PULLEY TYPE: Solid, THICKNESS: 52.700 mm

Reference Numbers:

CEN-A3-267
