BEARING for Simplicity Fits Allis Chalmers 536986 7013313 7013313SM - Lawn Mower

BEARING for Simplicity Fits Allis Chalmers 536986 7013313 7013313SM - Lawn Mower

$14.42 USD
$14.42 USD
Sale Sold out
Shipping calculated at checkout.

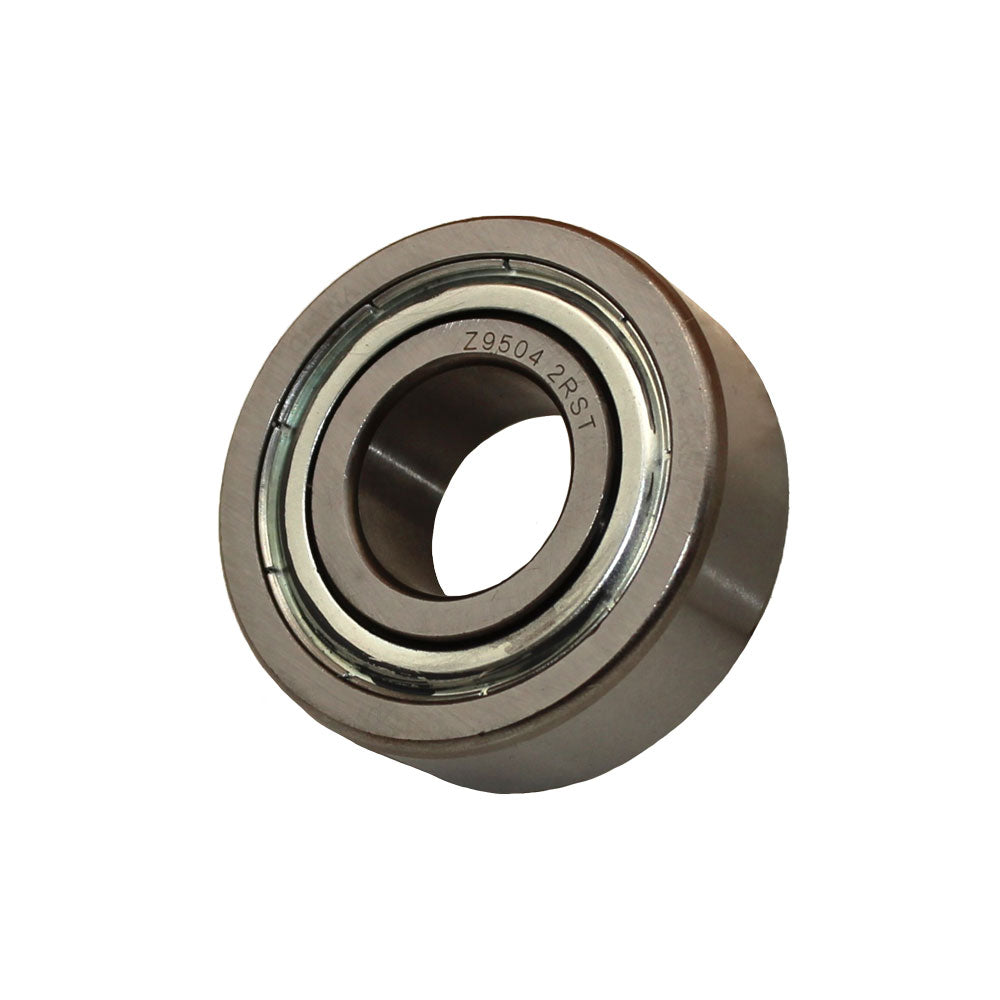

One New Aftermarket Replacement Ball Bearing for Simplicity, Allis Chalmers, John Deere, Snapper, Ariens, Gravely, Toro and More

This double-sealed ball bearing is a direct replacement for mower deck spindle assemblies across a wide range of riding mowers, zero-turn mowers, lawn and garden tractors, compact utility tractors, and snow blowers. It seats in the spindle housing to support blade shaft rotation, reducing friction and wear during operation. Metal dust shields on both sides help protect the bearing from debris and moisture.

Specifications

  • Bearing Inner Diameter: 3/4" (19mm)
  • Bearing Outer Diameter: 1.781" (45mm)
  • Bore Shape: Round
  • Inner Ring Width: .61"
  • Outer Ring Width: .61"
  • Steel dust shields on both sides
  • Metal seals

Compatible Models

Simplicity: Consumer Z

Allis Chalmers: (see Replaces section - replaces Allis Chalmers 536986)

John Deere Riding Mowers: 100, 108, 110 (100001-250000), 110 (250001- ), 111, 111H, 112 (100001-250000), 112 (250001- ), 112L, 116, 116H, 130, 140 ( -30000), 160, 165, 170, 172, 175, 180, 185, 200, 210, 212, 214, 216, 240, 245, 260, 261, 265, 272, 285, 320, 325, 335, 345, 38, 39, 41, 46, 47, 48, 54, 55, 56, 57, 60, 65, 66, 66 Series, 68, 70, 72, 85, G100, GT242, GT262, GT275, GX255, GX325, GX335, GX345, GX355, GX70, GX75, GX85, GX95, LX172, LX173, LX176, LX178, LX186, LX188, LX280, LX289, RX63, RX73, RX75, RX95, S80, S82, S92, S2048, S2348, S2554, SRX75, SRX95, SST15, SST16, SST18, STX30 (Yellow Mower Deck), STX38 (Yellow Mower Deck), SX75, SX85, SX95, X300R, X305R, X320, X324, X340, X465, X475, X485, X495, X500, X520, X534, X540, X724, X729, X744, X749

John Deere Compact Utility Tractors: 2032R, 2038R, 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3320, 3520, 3720, 4484, 4493, 4684, 4884, 5184, 5186, 5193

John Deere Zero-Turn Mowers: 647, 657, 667, 717, 727, 762B, 862B, 991028 152Z XDZ, M653, M655, M665, MC, MT

John Deere Other: 30042SR, 51048SR, 30" two-stage large frame

Snapper: 30" two-stage large frame snowthrowers and rear engine riders

Ariens, Gravely, Toro, Troy-Bilt, Cub Cadet, Honda, Dixon, Walker, Woods, Yazoo/Kees, Case/International Harvester, Massey Ferguson, Bolens, Murray, Sabre, Scotts: See Replaces Part Numbers below for full brand cross-reference list.

Replaces Part Number(s):

Allis Chalmers: 536986 | Ariens: 05407000, 05407300, 05412000, 54073, 54120 | Case: C28971, 28971 | Cub Cadet: 465003-R91, 470880-R91, IH-470880-R91 | Dixon: 539125515, 6011 | Gravely: 011641, 11641, 35925 | Honda: 91102-VA4-003, 91102-VA4-013 | John Deere: JD9239, JD9266, JD9296 | Massey Ferguson: 833-411-M1, 83341M1 | Simplicity: 108202, 108202SM, 2108202, 2108202SM, 536986 | Snapper: 1-0696, 1-3313, 5-4073, 7013313, 7013313SM | Toro: 106947, 109842, 251-351, 31-0530, 93-2559 | Troy-Bilt: 1185574, 1185574P, 1185828, GW-1185574, GW-1185574P, GW-1185828 | Walker: 5265 | Woods: 16106 | Yazoo/Kees: 204-060

Aftermarket Interchange Numbers

Timken/Fafnir: P204RR6, 204RR6 | Koyo: DG1945A | Z9504RST | 10-9842, 109842 | Stens: 230-033 | Oregon: 45-295 | Rotary: 484 | Sunbelt: B1SB484 | 251-351, 31-0530

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

494A, 110 (100001-250000), 108, X724, GX70, LX280, 335, R72, LX176, GT275, 116, 240, 3039R, 3720, SX95, 694A, 2354HV, RX63, 48, 2048HV, 68, 30042SR, 200, GX355, X300R, 14002, 425, 140 ( -30000), 5193, 4493, 3045R, 727, 130, M655, X305R, 1240, 520, 100, 214, 694, 112 (100001-250000), 2148HV, 1300, 165, 1848HV, 71 Flexi, S80, GX75, SST16, 180, 494AN, X475, 260, R92, 5184, GX345, LX173, 695A, 493A, X500, STX30 (Yellow Mower Deck), 47, 3046R, 4884, X320, G100, M665, S2048, 862B, 1842HV, 445, X729, M653, 495, 14001, X324, 56, 3120, 3320, SRX75, S2554, 216, SX75, 1848GV, 66, 991028 152Z XDZ, X520, GT242, 2032R, 2554HV, X744, 210, X540, 717, 65, 55, LX188, S92, 495A, MC, SX85, 261, 185, 175, 60, 245, 2254HV, GX325, 894A, GT262, 2038R, RX75, R70, RX95, GX255, 695, 14000, GX95, 30" two-stage large frame, 72, 57, LX289, 1948HV, 112 (250001- ), 112L, 285, 41, 657, 455, 70, LX178, 4484, 46, S2348, 325, 85, 5186, Consumer Z, MT, LX172, 3033R, 39, 694AN, 51048SR, 54, 265, 212, 110 (250001- ), SST18, 116H, X340, SST15, 172, 3520, 1290, 4684, 160, GX85, 1260, STX38 (Yellow Mower Deck), 320, 66 Series, 522, 494, LX186, SRX95, 3038R, 38, 1250, 647, GX335, 272, 111H, X495, X485, 667, X465, 170, 1948GV, 1842GV, X534, 111, RX73, S82, 762B, X749, 524, 345

Additional Information:

Bearing Inner Diameter: 3/4" Bearing Outer Diameter: 1.781" Bore Shape: Round Inner Ring Width: .61" Outer Ring Width: .61" Steel Dust Shields on both sides Metal seals

Reference Numbers:

1185828, 465003-R91, 470880-R91, IH-470880-R91, 833-411-M1, 83341M1, 204-060, 91102-VA4-003, 91102-VA4-013, 108202, 536986, 2108202, 2108202SM, 7013313, 7013313SM, 108202SM, 05412000, 16106, 1185574, 1185574P, 1185828, GW-1185574, GW-1185574P, GW-1185828, P204RR6, Z9504RST, 9266, JD9296, JD9239, 11641, 35925, 05412000, 011641, 05412001, 035925, JD9296, 10-9842, 106947, 109842, 251-351, 31-0530, 93-2559, 28971, C28971, 1-0696, 1-3313, 2108202SM, 5-4073, 7013313, 7013313SM, 536986, 35384, 54073, 54120, 05412000, 05407000, 05407300, 539125515, 6011, 5265

Product Sub Group:

Bearings, Bushings, Seals
