AT317252 pin Fits John Deere 690D 200LC 200CLC 200DLC 225DLC
AT317252 pin Fits John Deere 690D 200LC 200CLC 200DLC 225DLC
Regular price
$477.99 USD
Regular price
Sale price
$477.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

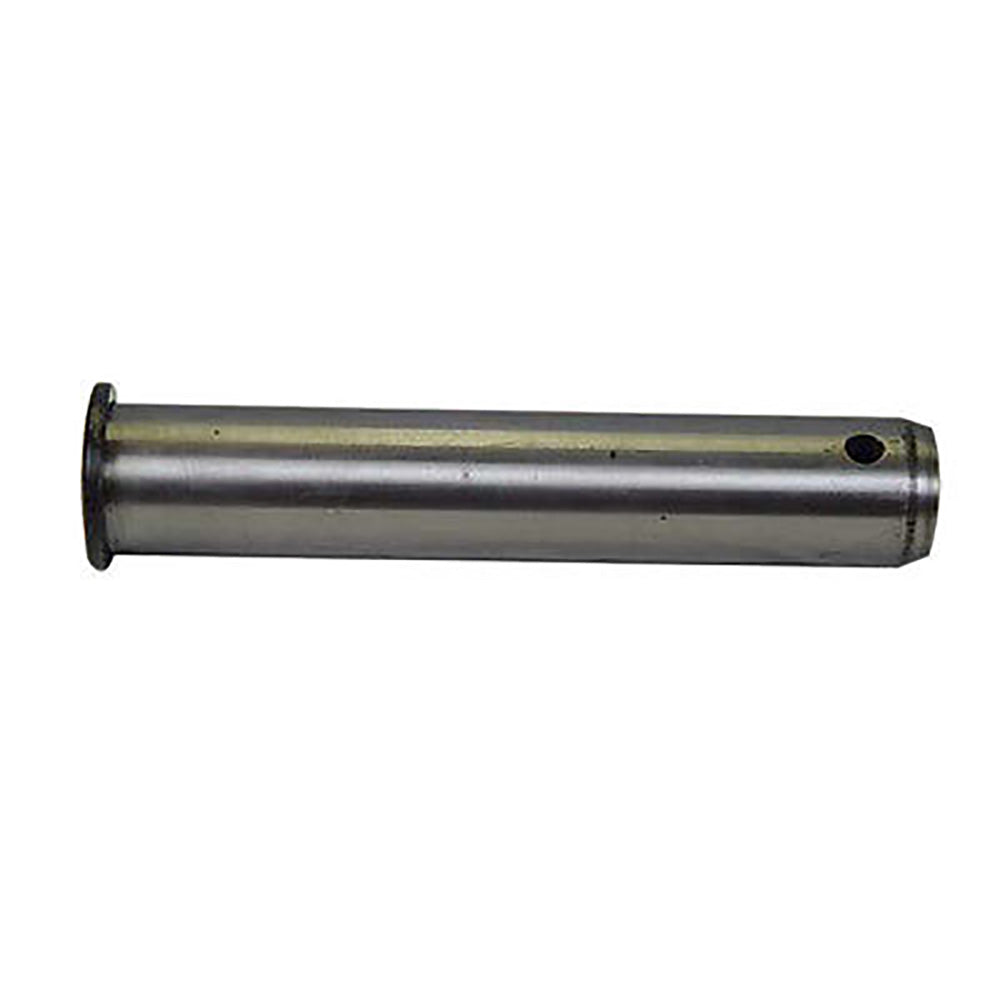

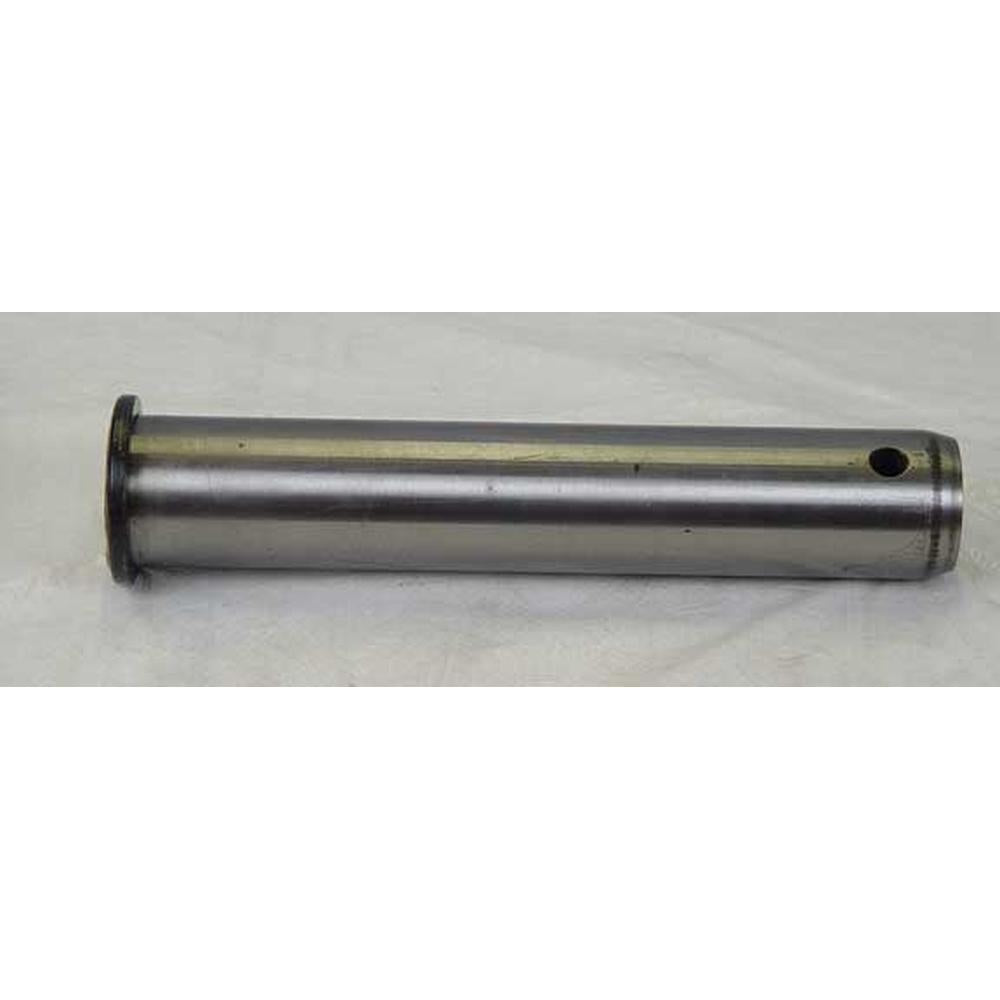

One New Aftermarket Replacement Bucket Pin Fits John Deere (Fits JD) Excavators
This aftermarket replacement bucket pin Fits John Deere excavators and is used at the bucket-to-linkage connection point on the dipper arm assembly. Manufactured from high carbon steel and induction hardened for abrasion resistance, with heat treatment and material matched to bushings for maximum service life.
Specifications
- Diameter: 80 mm
- Length: 424 mm
- Flange Diameter: 85 mm
- Flange Thickness: 11 mm
- Material: High carbon steel (S45C equivalent)
- Hardness: Induction hardened to HRC 52-56, 3+ mm deep
Compatible Models
Fits John Deere Excavators: 180, 180CW, 180GLC, 190DW, 190GW, 200CLC, 200D, 200DLC, 200G, 200LC, 210CW, 210G, 210GLC, 210P, 220DW, 225CLC, 225DLC, 230GW, 245GLC, 245P, 2054, 2154D, 2154G, 2154GLC, 690D, 690DB, 690D DLT, 690D LC, 690D LT, 690DR, 690ELC, 693D
Replaces Part Number(s):
AT317252, BAN90-0364
Aftermarket Interchange Numbers
T144754, 3088581, 3036973
New aftermarket replacement part - not remanufactured, not used.
