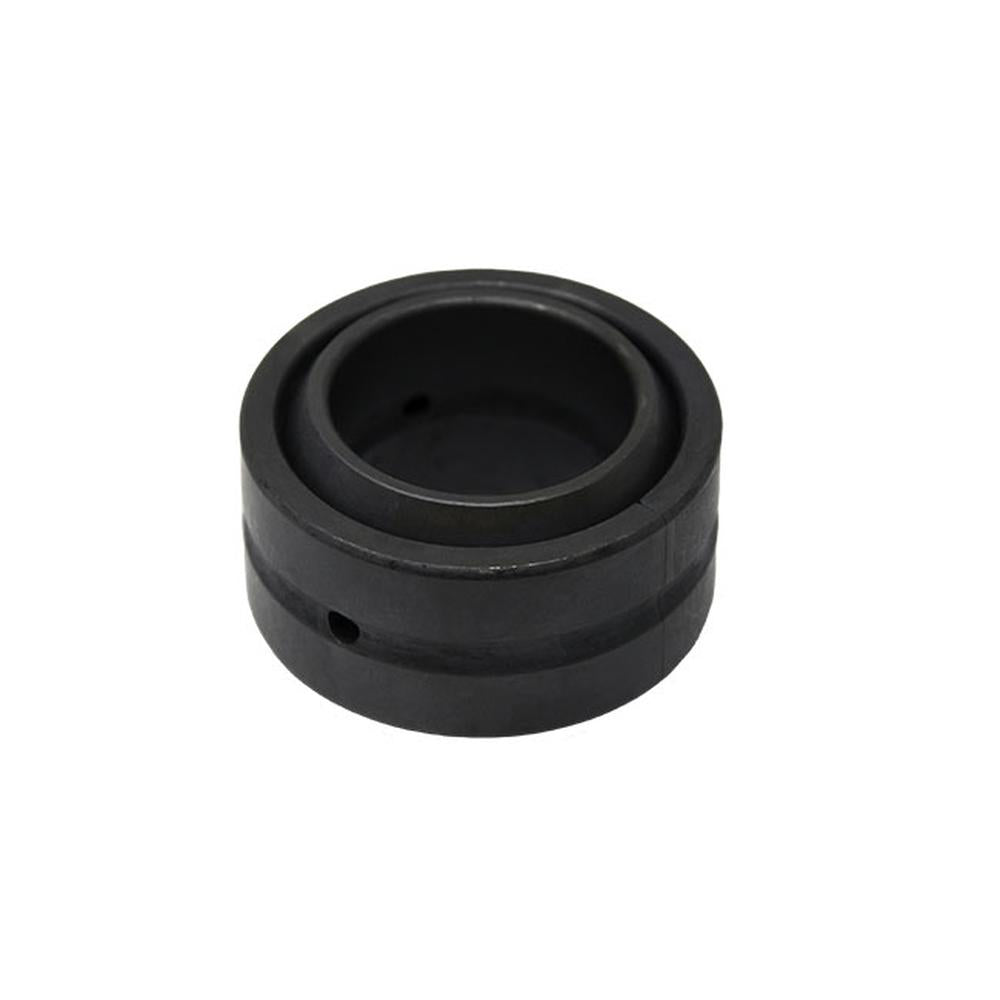

One New Aftermarket Replacement B20L Self-Aligning Spherical Plain Bushing for RBC Bearings Applications
This aftermarket replacement for the RBC Bearings B20L is a radial unsealed spherical plain bearing (self-aligning bushing) from the B-L Series. It supports high oscillating radial loads, moderate axial loads in two directions, and accommodates angular misalignment of the shaft. The open (unsealed) design includes lubrication holes and grooves in both rings for in-place relubrication. Common applications include construction and mining equipment, agricultural machinery, industrial automation, and general heavy-duty mechanical assemblies.
Specifications
- Type: Radial Spherical Plain Bearing (Self-Aligning Bushing), Unsealed/Open
- Series: B-L Series
- Bore (ID): 1-1/4 in (1.250 in / 31.75 mm)
- Outside Diameter (OD): 2 in (2.000 in / 50.8 mm)
- Overall Width: 1.093 in (27.762 mm)
- Housing Width: 0.937 in (15/16 in)
- Inner Ring Width: 1-3/32 in
- Material: Through-hardened 52100 steel (inner and outer rings)
- Static Radial Load Capacity: 58,800 lb
- Operating Temperature Range: -60 to 300 degrees F (-51 to 149 degrees C)
- Weight: 0.516 lb
- Outer Ring: Single fractured (split) for simplified assembly and disassembly
- Relubricatable: Yes
- Standard: ANSI/ABMA 22
Aftermarket Interchange Numbers
SKF GEZ104ES | B20-L
Replaces Part Number(s):
B20L, B20-L
New aftermarket replacement part - not remanufactured, not used.
