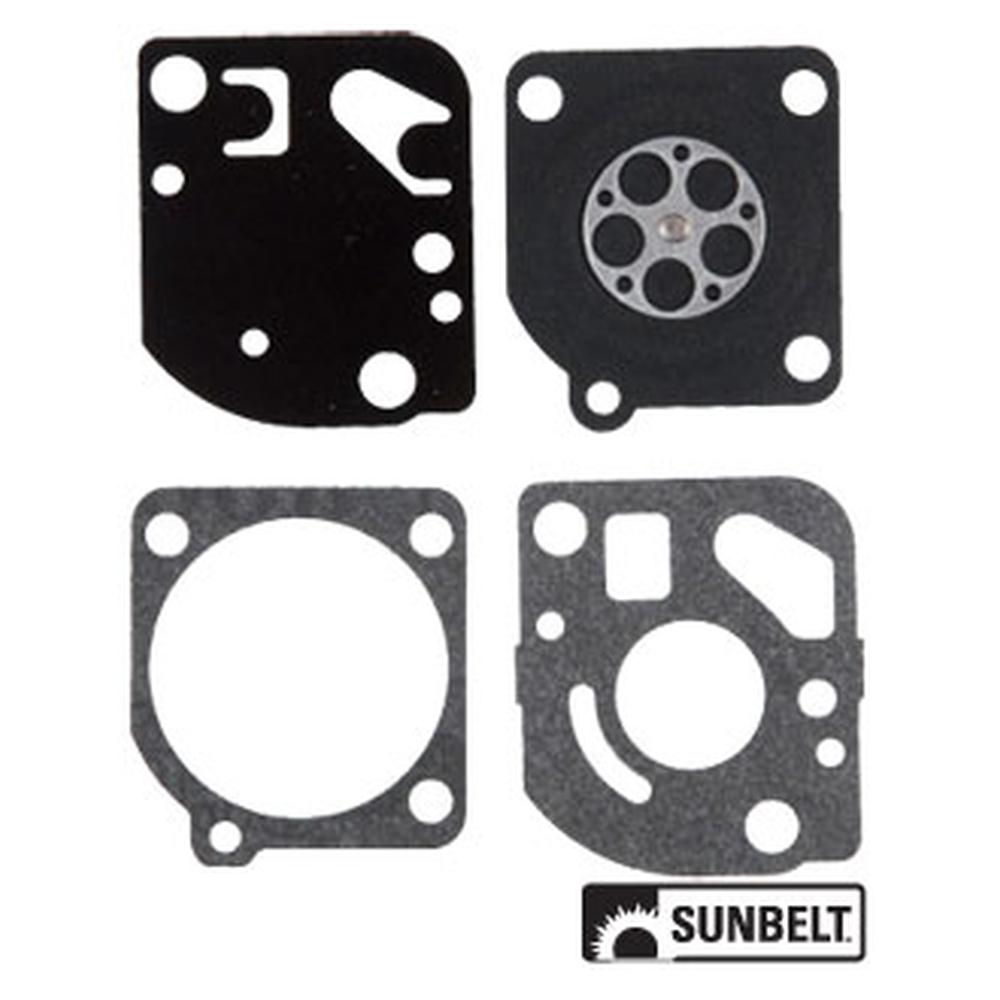

B1W95520 Metering Diaphragm Assembly
B1W95520 Metering Diaphragm Assembly
Couldn't load pickup availability
One New Aftermarket Replacement Metering Diaphragm Assembly Fits Walbro Carburetors
This metering diaphragm assembly is a key internal carburetor component used in Fits Walbro diaphragm-type carburetors fitted to lawn and garden equipment. The metering diaphragm sits inside the metering chamber of the carburetor, responding to engine vacuum to regulate fuel delivery and maintain proper air-fuel mixture. A worn or cracked diaphragm causes hard starting, rough running, or lean/rich conditions -- replacing it restores proper carburetor function. This part supersedes the earlier Fits Walbro part number 95-520.
Specifications
- Length: 4 in
- Width: 4 in
- Thickness: 0.1 in
Compatible Models
Fits Walbro HDB Series Carburetors: HDB-1-1, HDB-2-1, HDB-3-1, HDB-4-1, HDB-5-1, HDB-6-1, HDB-7-1, HDB-9-1, HDB-10-1, HDB-11-1, HDB-12-1, HDB-13-1, HDB-17-1, HDB-18-1, HDB-19-1
Fits Walbro HDC Series Carburetors: HDC-1-1, HDC-3-1, HDC-4-1, HDC-15-1, HDC-16-1, HDC-17-1, HDC-20-1, HDC-21-1, HDC-23-1, HDC-26-1, HDC-27-1, HDC-28-1, HDC-29-1, HDC-32-1, HDC-33-1, HDC-35-1, HDC-37-1, HDC-39-1
Fits Walbro carburetors for lawn and garden equipment including walk-behind mowers, tillers, and other small engine applications. Locate the carburetor number on the side of the carburetor body to confirm fitment before ordering.
Replaces Part Number(s):
B1W95520, 95-520-8, 955208, 95520, 9552O8
Supersedes obsolete Fits Walbro part number: 95-520
Aftermarket Interchange Numbers
A-B1W95520, A-B1W95520-AI
New aftermarket replacement part - not remanufactured, not used.
