Air Filter Tune Up Kit Fits Snapper Replaces 2-4507

Name: Air Filter Tune Up Kit Fits Snapper Replaces 2-4507
SKU: KT-FIW50-0017_05
Price: 32.99 USD
Availability: InStock

Air Filter Tune Up Kit Fits Snapper Replaces 2-4507

$32.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

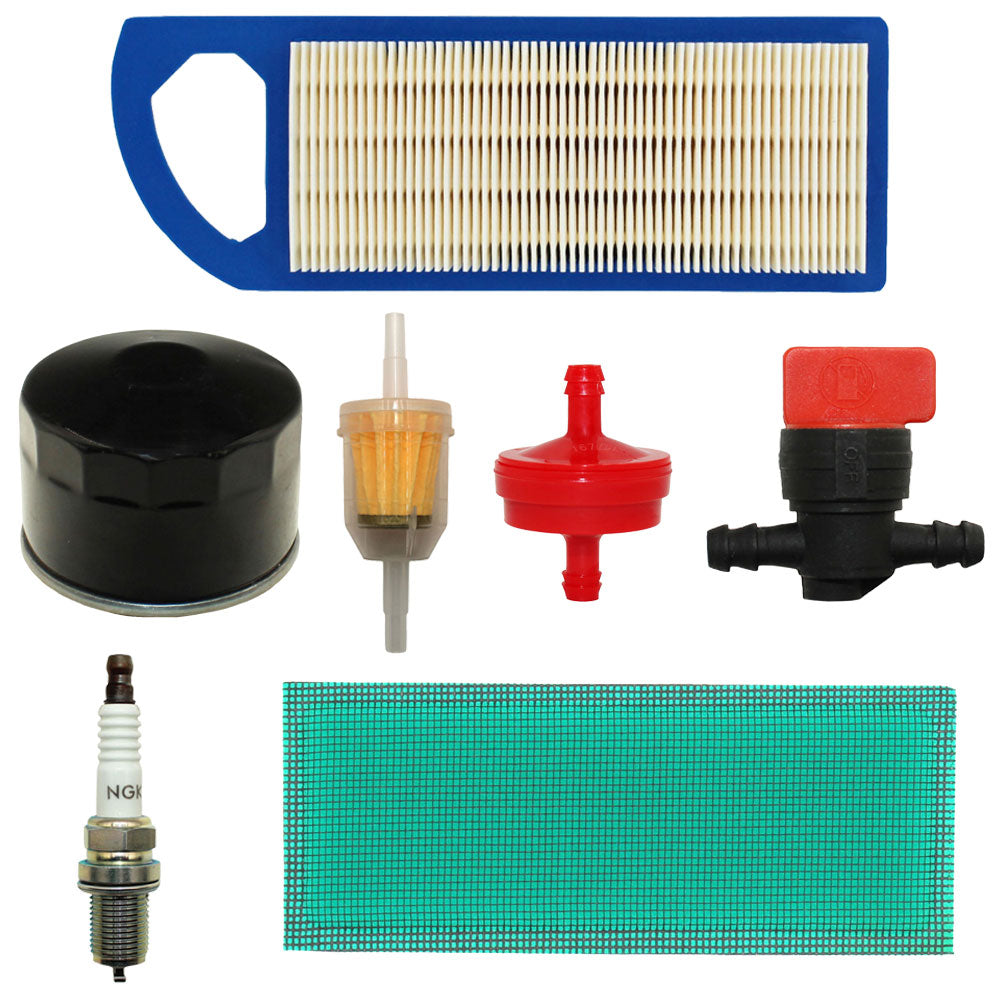

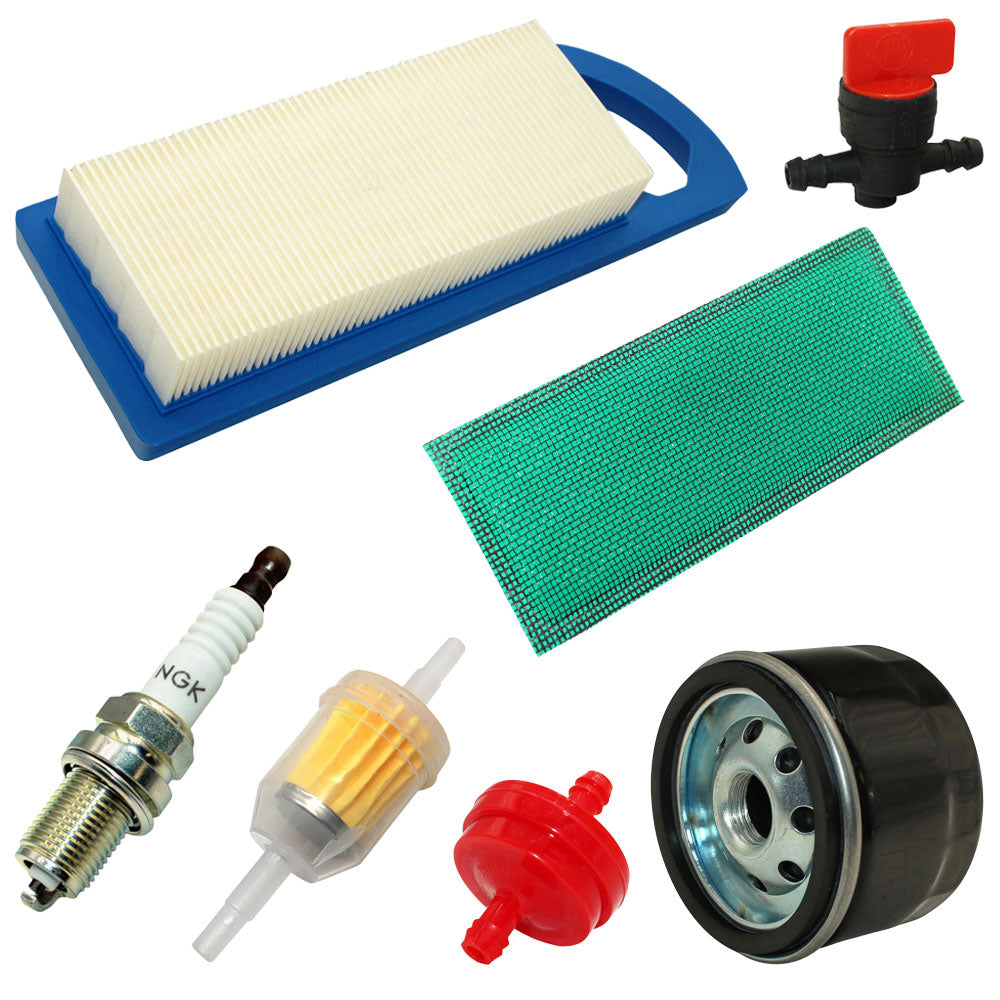

One New Aftermarket Air Filter Tune Up Kit

Tech Info:
-Kit Contains:
-
-(1) Prefilter:
-Replaces Part Number(s): 4215, 5077D, 5077H, 5077K, 5077W, 5078H, 5078K, 697015
-
-(1) Air Filter:
-Length: 7-1/8"
-Width: 3-3/16"
-Height: 1-1/2"
-Replaces Part Number(s): 697014, 697153, 697634, 698083, 794410B, 794422, 795115, 797008, 4206, 4211, 4214, 5076, 5076K, 5077, 5077D, 5077H, 5077K, 5077W, 5078, 5078H, 5078K
-
-(1) Fuel Filter:
-Diameter: 1-1/2"
-Overall Length: 4-1/8"
-Micron: 23-28
-Compatible with 1/4" Fuel Lines
-Replaces Part Number(s): 84001895
-
-(1) In-Line Fuel Filter:
-Fits 1/4" Fuel Line
-Micron: 150
-For Engines Without Fuel Pumps
-Replaces Part Number(s): 1501729MA, 297298, 298090, 298090S, 394358, 395018, 4105, 5018, 5018A, 5018B, 5018C, 5018D, 5018H, 5018K, 5018W
-
-(1) Oil Filter:
-Anti-Drain: Yes
-Height: 2.26"
-Micron: 30
-Outside Diameter: 2.96"
-Relief Pressure: 10 - 20 PSI
-Thread Size: 3/4"-16
-Replaces Part Number(s): 4049, 4049H, 4154, 4237, 492056, 492932, 492932B, 492932S, 5049, 5049A, 5049B, 5049C, 5049D, 5049E, 5049H, 5049K, 5049W, 5062H, 5062K, 5076, 5076D, 5076H, 5076K, 695396, 696854, 795137, 795890, 798576, 841023B, 842921, 842921B, 491056
-
-(1) Spark Plug:
-Type: Resistor
-Thread: 14mm
-Thread Reach: 19mm
-Seat Type: Flat
-Hex Size: 16mm
-Gap: 0.04"
-Replaces Part Number(s): 4217, 491055T
-
-(1) In-Line Fuel Shut Off Valve:
-Material: Plastic
-Fits 1/4" Inner Diameter Fuel Line
-Replaces Part Number(s): 491860, 493960, 494768, 5091, 5091D, 5091H, 5091K, 692008, 697947, 698183, T494768

Fits Snapper:
Lawn Mower Models: Several, Fits 1/4" Fuel Lines
Replaces Part Number(s): 2-4507, 3-4212, 7034212, 7034212YP

Models This Part Fits:

Fits 1/4" Fuel Lines

Additional Information:

(1) Pre-Filter: Replaces Part Number(s): 4215, 5077D, 5077H, 5077K, 5077W, 5078H, 5078K, 697015 (1) Air Filter: Length: 7-1/8" Width: 3-3/16" Height: 1-1/2" Replaces Part Number(s): 697014, 697153, 697634, 698083, 794410B, 794422, 795115, 797008, 4206, 4211, 4214, 5076, 5076K, 5077, 5077D, 5077H, 5077K, 5077W, 5078, 5078H, 5078K (1) Fuel Filter: Diameter: 1-1/2" Overall Length: 4-1/8" Micron: 23-28 Compatible with 1/4" Fuel Lines Replaces Part Number(s): 84001895 (1) In-Line Fuel Filter: Fits 1/4" Fuel Line Micron: 150 Color: Red (Colors May Vary) Compatible with Greater Than 10% Ethanol Fuel For Engines Without Fuel Pumps Replaces Part Number(s): 1501729MA, 297298, 298090, 298090S, 394358, 395018, 4105, 5018, 5018A, 5018B, 5018C, 5018D, 5018H, 5018K, 5018W (1) Oil Filter: Anti-Drain: Yes Height: 2.26" Micron: 30 Outside Diameter: 2.96" Relief Pressure: 10 - 20 PSI Thread Size: 3/4"-16 Replaces Part Number(s): 492932S, 5049, 5049A, 5049B, 5049C, 5049D, 5049E, 5049H, 5049K, 5049W, 5062H, 5062K, 5076, 5076D, 5076H, 5076K, 695396, 696854, 795137, 795890, 798576, 841023B, 842921, 842921B, 491056, 7045184YP, 4049, 4049H, 4154, 4237, 492056, 492932, 492932B (1) Spark Plug: Type: Resistor Thread: 14mm Thread Reach: 19mm Seat Type: Flat Hex Size: 16mm Gap: 0.04" Replaces Part Number(s): 491055S, 992304, 4217, 491055T, 594264, 691043, 692051, 692720, 696202, 711252, 790267, 792015, 793541, 496018S (1) In-Line Fuel Shut Off Valve: Material: Plastic Fits 1/4" Inner Diameter Fuel Line Replaces Part Number(s): 491860, 493960, 494768, 5091, 5091D, 5091H, 5091K, 692008, 697947, 698183, T494768
