AT157174 Bushing, Self Aligning, Tilt Cylinder - Fits John Deere 750J, 750K
AT157174 Bushing, Self Aligning, Tilt Cylinder - Fits John Deere 750J, 750K
Couldn't load pickup availability

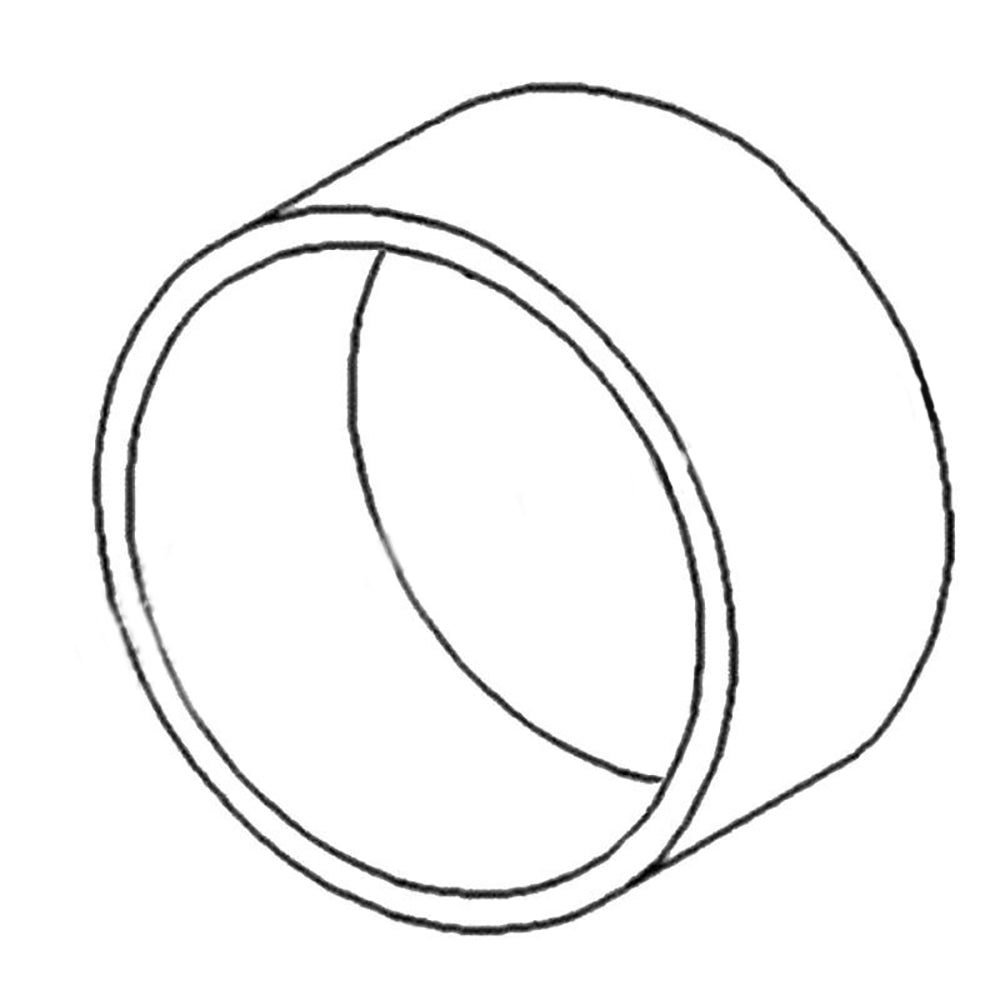

One New Aftermarket Replacement AT157174 Self-Aligning Bushing Fits John Deere Crawler Dozers
This grooved self-aligning ball bushing fits at the rod end and tube end of the tilt cylinder (2 required per machine) and is also used at angle cylinder and blade support arm pivot points on Fits John Deere crawler dozers. Its spherical steel core allows angular movement while maintaining structural support, ensuring smooth articulation at blade pivot and hydraulic linkage locations. Two bushings are required per machine for the tilt cylinder application.
Specifications
- Type: Grooved Self-Aligning Ball Bushing
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Overall Width: 56 mm
- Width: 36 mm
- Weight: 4 lbs
- Application: Tilt Cylinder Rod End and Tube End (Required Qty: 2); also fits Angle Cylinder Rod and Tube End
Compatible Models
Fits John Deere Crawler Dozers (450/550/650 Series): 450G, 550G, 650G
Fits John Deere Crawler Dozers (750 Series): 750C, 750C-II, 750J, 750J-II, 750K, 750L
Fits John Deere Crawler Dozers (850 Series): 850C, 850C-II, 850J, 850J-II, 850K, 850L
Replaces Part Number(s):
AT157174, AT157174-A
Aftermarket Interchange Numbers
AT116652, AT125754
New aftermarket replacement part - not remanufactured, not used.
