(1) Aftermarket RH/LH Spindle Fits John Deere Replaces AR103473 AR52862 AR58608

(1) Aftermarket RH/LH Spindle Fits John Deere Replaces AR103473 AR52862 AR58608

$118.79 USD
$118.79 USD
Sale Sold out
Shipping calculated at checkout.

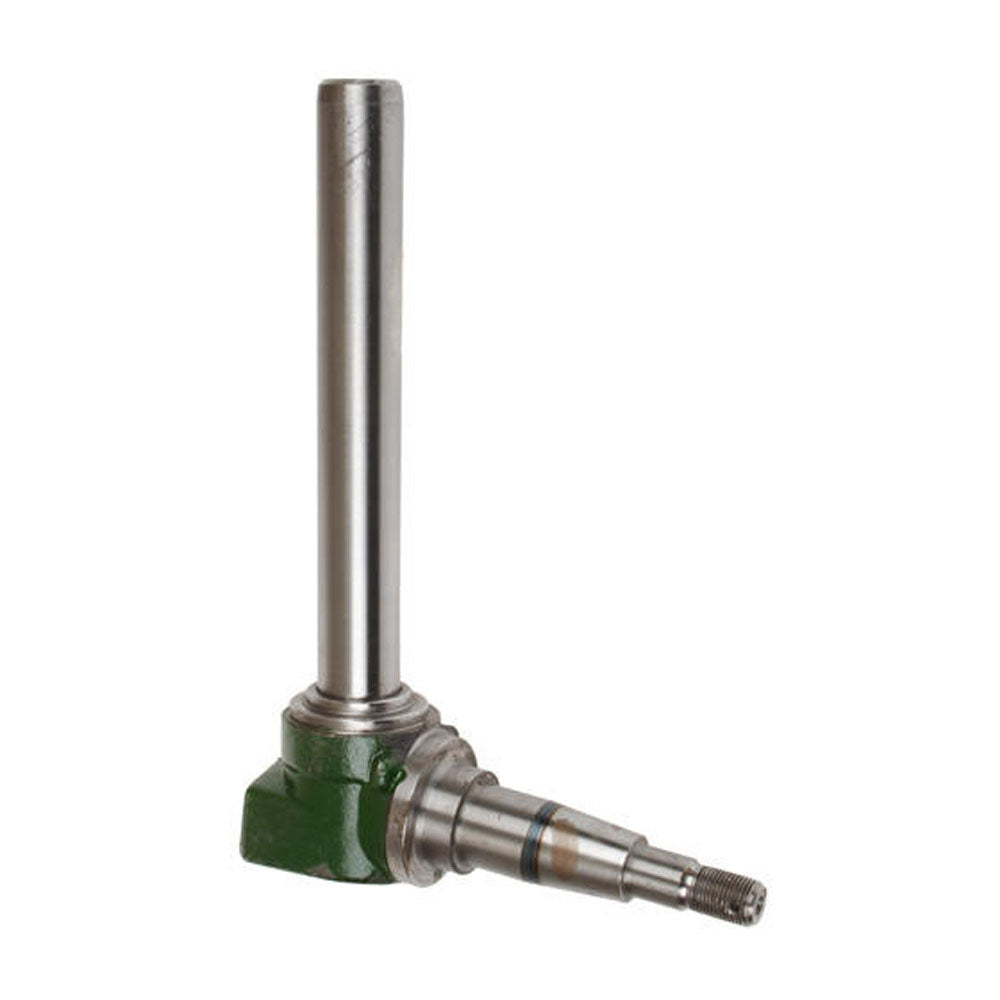

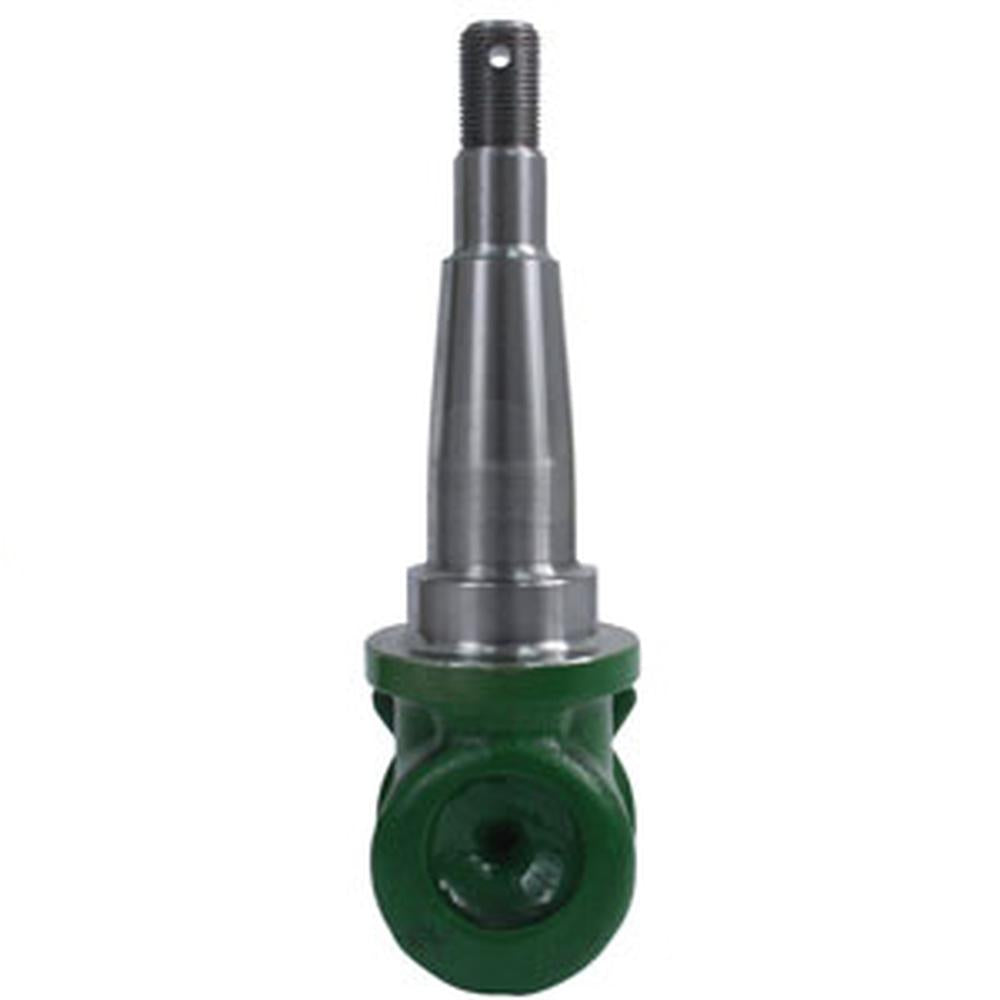

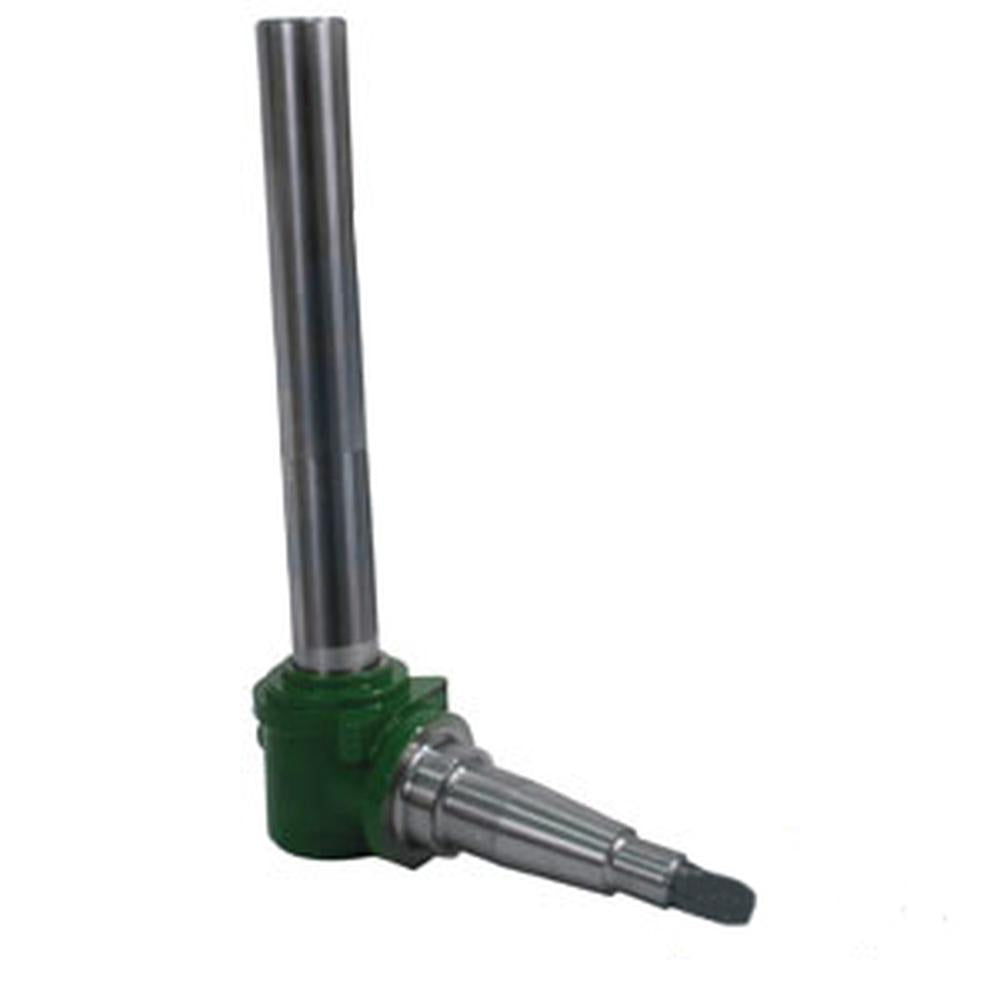

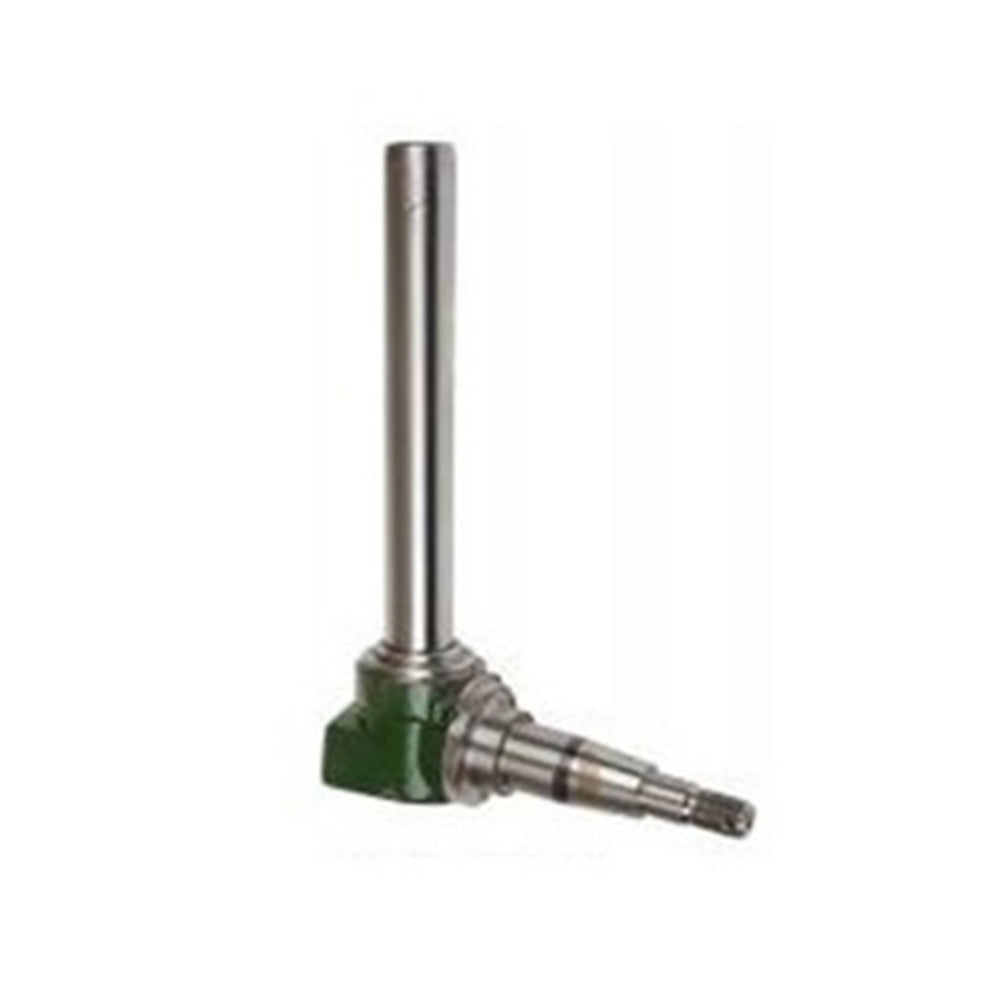

One New Aftermarket Replacement Universal Spindle

Fits John Deere Tractor Models:
820 (w/ 16.1" rear tires), 830 (w/ 16.1" rear tires), 1020 (Swept Back), 1520 (Swept Back), 1530 (w/ 16.1" rear tires), 1641F, 2020 (Swept Back), 2030 (s/n 187300 - earlier), 2040 (s/n 350000-later w/ 16.1 rear tires), 2240 (s/n 350000-later w/ 16.1 rear tires), 2355N (with 44" Wheel Tread)

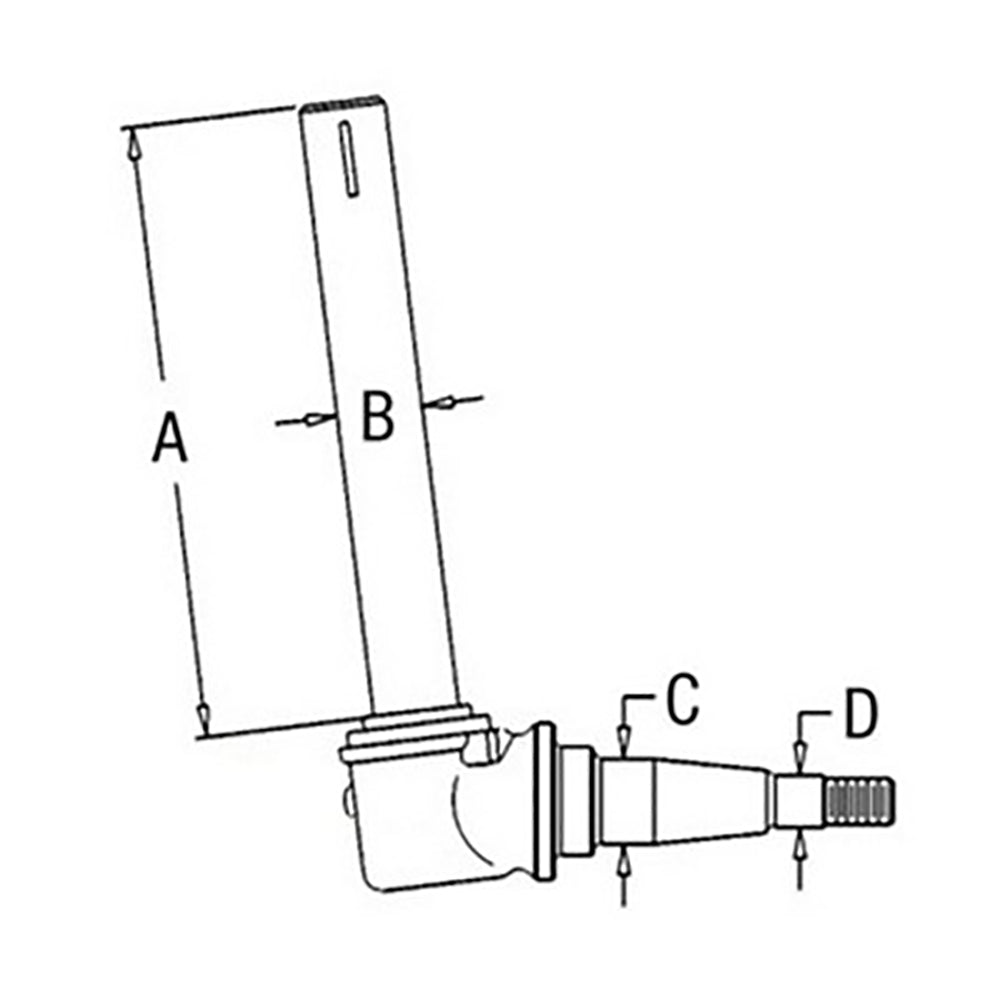

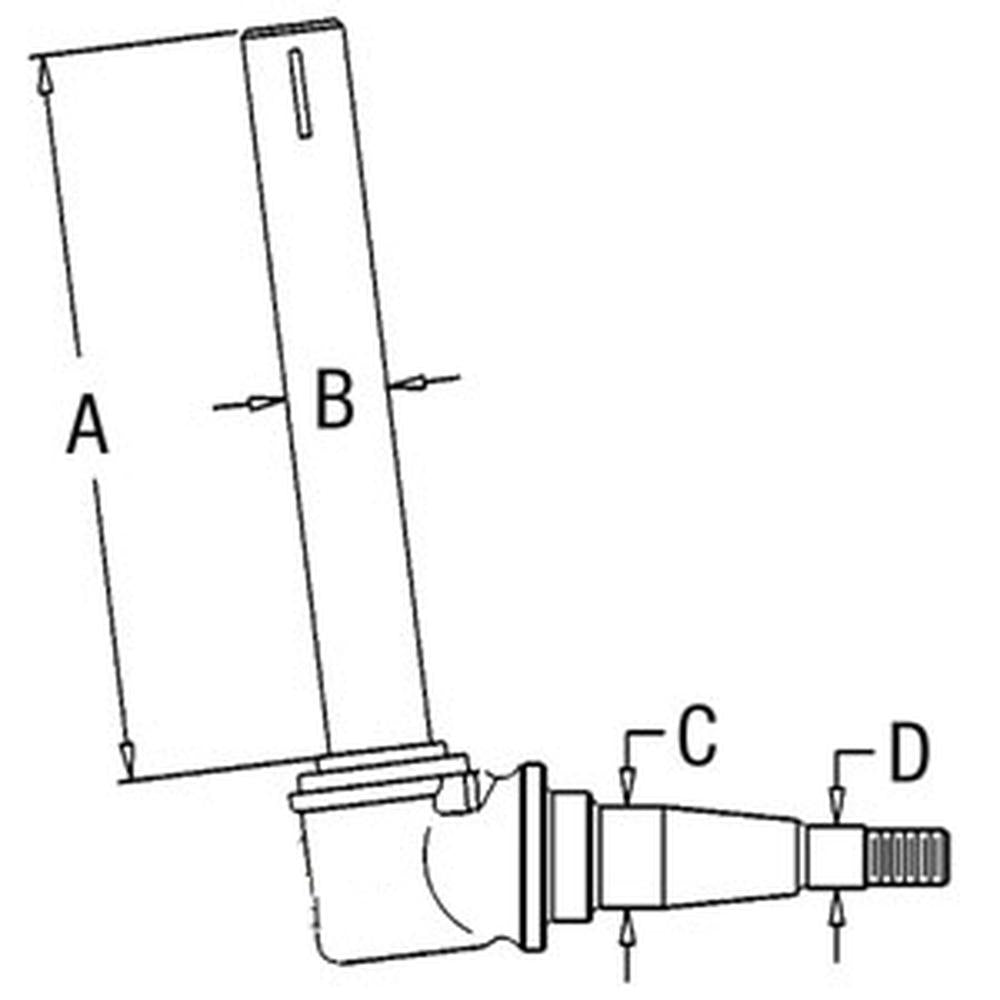

Tech Info:
Dim A (1) A - 9.875" ; length of shaft
Dim B (2) B - 1.375" ; diameter of shaft
Dim C (3) C - 1.375" ; diameter of shorter large end
Dim D (4) D - .842" ; diameter of shorter small end next to the threads.

Replaces Part Numbers:
AR103473, AR58608, AR58262

Models This Part Fits:

1630OU, 1130, 1120, 1035EF, 2250F, 2355N, 2040, 1850N, 2120, 2035EF, 1140, 1635EF, 1020 (Sweep Back), 1641F, 2255, 2030OU, 1950, 2450F, 1520 (Sweep Back), 2040F, 1030OU, 1140F, 2150, 2020 (Sweep Back), 2140, 2240, 830, 1530, 1030, 1840F, 1040, 1950F, 1640F, 820, 2030, 2650F

Additional Information:

Right or Left Hand Spindle Arm Length: 9.875" Spindle Shaft Diameter: 1.375" Inner Bearing Diameter: 1.375" Outer Bearing Diameter: .842"

Reference Numbers:

AR103473, AR58608, AR52862
