Spindle Assembly & Blade Kit Fits John Deere Replaces AM137328

Spindle Assembly & Blade Kit Fits John Deere Replaces AM137328

$94.99 USD
$94.99 USD
Sale Sold out
Shipping calculated at checkout.

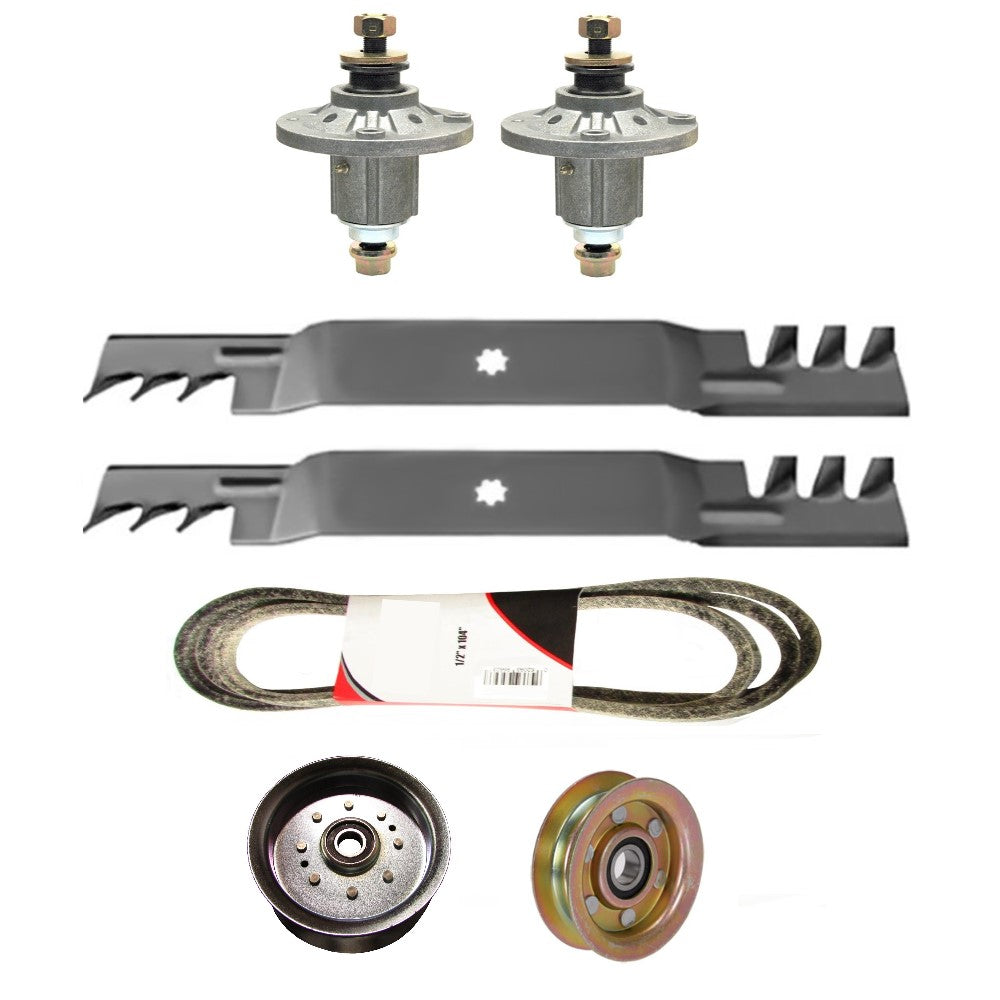

One New Aftermarket Spindle Assembly & Blade Kit

Tech Info:
 -Kit Includes:
 -(2) Spindle Assembly w/ Nut, (2) Toothed Mulching Blades, (1) Platform Drive Mower Belt, (1) Steel Flat Idler Pulley w/ Flange, (1) Flat Idler Pulley
 -
 -(2) Spindle Assembly w/ Nut Specifications:
 -7 Pt. Star
 -Replaces Part Number(s):
 -GX20234, GX22456, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625
 -
 -(2) Toothed Mulching Blade Specifications:
 -Length: 21-3/8"
 -Width: 2-1/2"
 -Thickness: .197
 -Center Hole: 7 Lobe
 -Replaces Part Number(s):
 -AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, M149625, M74175
 -
 -(1) Platform Drive Mower Belt Specifications:
 -Width: 1/2"
 -Length: 103.75"
 -Replaces Part Numbers: GX20072, GX20072JD, GY20570JD
 -
 -(1) Steel Flat Idler Pulley w/ Flange Specifications:
 -Inner Diameter: 11/16"
 -Outer Diameter: 5-1/4" Including Flanges
 -Height: 1-3/4"
 -Replaces Part Numbers: AUC17621, GY20110, GY20629, GY22082
 -
 -(1) Flat Idler Pulley Specifications:
 -Inner Diameter: 11/16"
 -Outer Diameter: 3-5/8"
 -Height: 1-3/16"
 -Replaces Part Numbers: GY20067, GY22172

Made to Fit John Deere:
 Riding Mower Models: 102, 115, 125, 135, D100, D105, D110, D120, D125, D130, LA105, LA115, LA120, LA125, LA135
 Replaces Part Number(s): AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625, AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, M149625, M74175, GX20072, GY20570, AUC17621, GY20110, GY20629, GY22082, GY20067, GY22172

 Lawn Mower Models: 102, 105, 107S, 108-14.5, 108-17HS, 115, 125, 135, 14.542GS, 14.54GS, 1642HS, 17.542HS, 1742HS, E100, E110, E120, E130, John Deere GX20072 GX20570 GY20570 Sabre GX20072, L100, L100 L105 L107 L108 L110 L111 L118 LA125 LA135, L105, L107, L108, L110, L111, L118, L130, L17.542, L17.542 L1742, L1742, LA100, LA100 LA105 LA110 LA115 LA120 LA125 LA135, LA105, LA110, LA115, LA120, LA125, LA135
 Replaces Part Number(s): GX20072, GX20072JD, GY20570JD

 Models: D140, E110-E180, S100-S180, S220, S240, X107, X127, X167, Z225 and Z235
 Replaces Part Number(s): AUC17621, GY20110, GY20629, GY22082

 Riding Mower Models: D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA155, LA165, L100, L105, L107, L108, L110, L111, L118, L120, L130, L17.542, L1742, L2048, L2548, S100, S110, S120, S140, S160, S170, S220, S240, X105, X110, X120, X125, X140, X145, X165, 108, 108-17HS, 125, 14.542GS, 155C, 1642HS, 17.542HS, 1742HS
 Replaces Part Number(s): GY20067, GY22172

Models This Part Fits:

D105, S240, D120, X125, E120, D130, LA125, LT160 (Belt, 102, LT170 (Belt, X145, D100, LA110, L110, LA120, S100, X126, X300, 115, Traction Drive), X127, SST15, 135, 107S, E130, D110, LA105, LA135, LT180 (Belt, 125, S120, X310 (Traction Drive), X120, E110, SST16, LA100, X105, Z225 EZTRAK, D125, E100, X304 (Belt, 105, S110, X110, LA115, Z235 EZTRAK, X107

Additional Information:

(2) Spindle Assembly w/ Nuts, (2) Toothed Mulching Blades, (1) Platform Drive Mower Belt, (1) Steel Flat Idler Pulley w/ Flange, (1) Flat Idler Pulley (2) Spindle Assembly w/ Nuts 7 Pt. Star Replaces Part Number(s): GX20234, GX22456, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625 (2) Toothed Mulching Blades Length: 21-3/8" Width: 2-1/2" Thickness: .197 Center Hole: 7 Lobe Replaces Part Number(s): AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, M149625, M74175 (1) Platform Drive Mower Belt Width: 1/2" Length: 103.75" Replaces Part Numbers: GX20072, GX20072JD, GY20570JD (1) Steel Flat Idler Pulley w/ Flange Inner Diameter: 11/16" Outer Diameter: 5-1/4" Including Flanges Height: 1-3/4" Replaces Part Numbers: AUC17621, GY20110, GY20629, GY22082 (1) Flat Idler Pulley Inner Diameter: 11/16" Outer Diameter: 3-5/8" Height: 1-3/16" Replaces Part Numbers: GY20067, GY22172

Reference Numbers:

AUC17621, GY20110, GY20629, GY22082, GY20067, GY22172

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
