1 6

AIR FILTER Fits Napa 6562 236688A1 76094055 86562968

AIR FILTER Fits Napa 6562 236688A1 76094055 86562968

$32.99 USD
$32.99 USD
Sale Sold out
Shipping calculated at checkout.

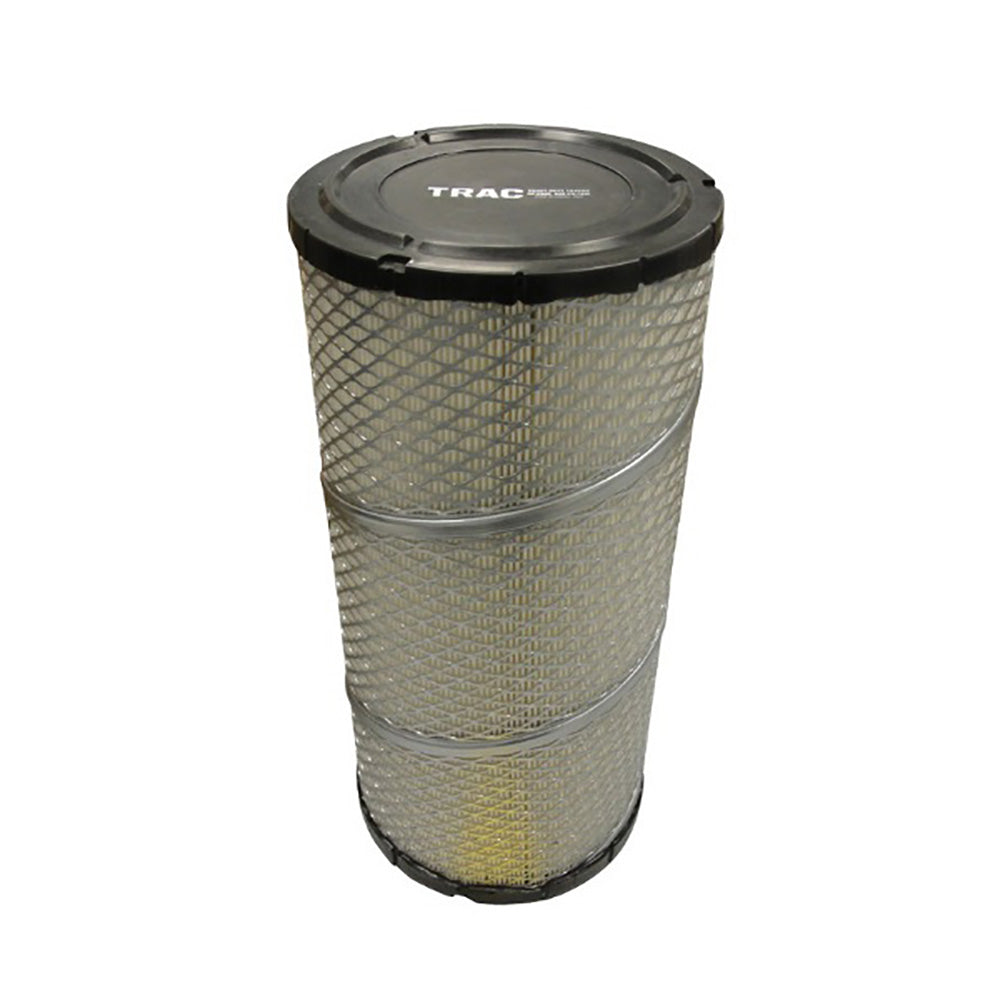

One New Aftermarket Replacement Outer Air Filter for John Deere, Case IH, Caterpillar, Kubota, and More

This radial seal outer (primary) air filter element fits the engine air intake system on a wide range of agricultural tractors, construction equipment, skid steers, compact track loaders, excavators, backhoes, telehandlers, forklifts, air compressors, and combines. It protects the engine by capturing dust, dirt, and contaminants before they reach the engine, maintaining performance and extending engine life across many John Deere, Case IH, Caterpillar (Cat), Kubota, Massey Ferguson, Komatsu, Volvo, JCB, and other OEM applications.

Specifications

  • Type: Radial Seal Outer (Primary) Air Filter Element
  • Inside Diameter: 3-9/16" (90.5 mm)
  • Outside Diameter: 6-1/2" (165.1 mm)
  • Length: 14-1/32" (356.4 mm)

Compatible Models

John Deere Tractors: 5075GL, 5075GN, 5075GV, 5076E, 5076EF, 5076EL, 5082E, 5083E, 5083EN, 5088, 5090E, 5090EH, 5090EL, 5093E, 5093EN, 5101E, 5101EN, 5103, 5203, 5210, 5215, 5220, 5225, 5303, 5310, 5310N, 5315, 5320, 5320N, 5325, 5325N, 5403, 5410, 5410N, 5415, 5415H, 5420, 5420N, 5425, 5425H, 5425HC, 5425N, 5435, 5445, 5450, 5455, 5460, 5503, 5510, 5510N, 5515, 5520, 5520N, 5525, 5525N, 5603, 5605, 5610, 5615, 5625, 5705, 5715, 5715HC, 5725, 5725H, 5725HC, 6040, 6088, 6100B, 6110B, 7010, 7030, 7040, 7088, 7120, 8010, 8120, 9060, 9120, AFX8010, CR920, CR940, CR960, CR970, CR980, CR9040, CR9060, CR9070, CR9080, Module Express 625, R9350

John Deere Construction/Crawler: 310, 310E, 310G, 310J, 310SE, 310SG, 310TMC, 311, 312, 312B, 312B L, 312C L, 312D, 315B, 315SE, 315SG, 320, 325, 328, 330, 336, 344, 345D, 410, 410 III, 410J, 410TMC, 416C, 416D, 420, 420 III, 420CT, 420D, 424D, 426C, 428C, 428D, 430, 430 III, 430D, 432D, 436C, 438C, 438D, 440, 440 III, 440CT, 442D, 444, 445CT, 445D, 450, 450CT, 450H, 450J, 450JLGP, 450JLT, 465, 488E, 485E, 486E, 545D, 550D, 550H, 570LXT, 570MXT, 580 Super L, 580 Super M, 580 Super N, 580L, 580M, 580N, 586G, 588G, 590 Super L, 590 Super M, 590 Super N, 590SL, 590SM, 650G, 650H, 650K, 686G, 686G XR, 688G, 750H, 750K, 750L, 785DTC, 795DTC, 850K, 860, 860SX, 880, 880SX, 910K, 914, 914G, 914G2, IT14G, IT14G II, 970, 980, LS180, LS190, L180, L185, L190, LB75.B, LB75B, LB90, LB90.B, LB90B, LB95, LB95.B, LB110.B, LB110B, LB115, LB115.B, LB115B, LX865, LX885, LX985, L865, L885

Case IH / Case Tractors and Equipment: C70, C80, C90, C95MAX, C100, C105MAX, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110, CX130D LC, CX135SR, CX160D LC, CX720, CX740, CX760, CX780, CX820, CX840, CX860, CX880, CX8070, CX8080, CX8090, MX80C, MX90C, MX100C, JX70, JX90U, JX95, JX100U, JX1070U, JX1080U, JX1090U, JX1100U, 580 Super L, 580 Super M, 580 Super N, 580N, 590 Super M, 590 Super N, 590SM, SR130, SR175, SR200, SR220, SR250, SV185, SV250, SV300, TR270, TR320, 70XT, 90XT, 95XT, 40XT, 60XT, TH82, TH83, TH103, TH210, TH215, TH406C, TH407C, TH414C, TH417C, AFX8010, CPX420, CPX620, WB93-5, WB93R-2, WB93R-5, WB93R-5E0, WB93R-5EO, WB93S-5, WB93S-5EO, WB97R, WB97R-5, WB97S-2, WB97S-5, WB97S-5EO, WB140-2, WB140-2N, WB140-2T, WB140PS-2N, WB142-5, WB146-5, WB146PS-5, WB156-5, WB156PS-5

Caterpillar (Cat): 135C, 135C RTS, 236, 236B2, 236B3, 236D, 242B3, 242D, 246, 246B, 246C, 252, 252B, 252B2, 252B3, 256C, 257B3, 257D, 262, 262B, 262C, 267B, 268B, 272C, 272D, 272D XHP, 277, 277B, 277C, 277D, 279C, 279D, 287, 287B, 287C, 289C, 289D, 297C, 299C, 299D, 304J, 307, 312, 312B, 312B L, 312C L, 312D

Komatsu: PC95R-2, PC110R-1, PC118MR-8, PC128US-2, PC130-7, PC130-8, PC138-2, PC138US-2, PC138US-8, PC138USLC-2, PC138USLC-2A, PC138USLC-8, PC158US-2, PC158USLC-2, PF290B, PF300B, PF300C, PS150B, PS150C, PS200B, PS300B, PS300C, PS360B, WA100M, WA100M-5, WA100M-6, WB97S-2, 6D125

Kubota: M4-071, M5-091, M5-111, M5040, M6-101, M6-111, M6040, M6060, M7040, M8200, M8540, M8560, M9000, M9540, M9960, M96, M96S, M100GX, M100X, M105, M105S, M105X, M108, M108S, M108X, M110GX, M110X, M315, SVL90, SVL95, SVL97

Massey Ferguson: 3200, 3200 X, 3210, 3245, 3255, 3300, 3300 X, 3400, 3400 X, 3010S, MF85, MF95, AGROVECTOR 26.6, AGROFARM TTV420, AGROPLUS 100, ARES 540, ARES 550, ARES 610, ARES 620, ERGOS 90, ERGOS 95

McCormick: MC70B, MC80, MC80B, MC90, MC90B, MC95, MC100, MC105, MC110B, MC115, MCT125C, MCT135C, MTX265, MYTHOS, MYTHOS 90, MYTHOS 100, MYTHOS 110, C232, C238, F60, F70, F80, F90, F95, F100, F100DT, F105, F110, F110DT, F115, F115DT, F120, F120DT

Deutz / Deutz-Fahr / Claas / Renault / Landini / Fiat: AGROTRON, AXOS 310, CERES 65, CERES 70, CERES 75, CERES 310, CERES 320, CERES 325, CERES 326, CERES 330, CERES 335, CERES 340, CERES 345, CERES 346, CERES 355, CERGOS 330, CERGOS 335, CERGOS 340, CERGOS 345, CERGOS 350, CERGOS 355, ERGOS 90, ERGOS 95, BLIZZARD, BLIZZARD 95, AR46E2, AR52E, AR65, AR80

Volvo / Ingersoll-Rand / Atlas Copco: ECR145CL, ECR145D, ZX160, QAS 58, QAS 78, XAS 90, E150, PX70

JCB: 4T80, 4T100, 4T115, 4T125, BL60, BL61, BL61 PLUS, BL70, BL71, BL71 PLUS, 1110 ROBOT, 1110T ROBOT, 1110HF ROBOT, 1110THF ROBOT, 190 ROBOT, 190HF ROBOT, 190T ROBOT, 190THF ROBOT, SLP160 ROBOT, AGT, MH CITY, MH PLUS, MH5.6, TM200 TELE-AGRI, TM270 TELE-AGRI, TM300, FLEXIROC T20

Vermeer: HW305, FX25, FX28, FX30, FX38, FX40, FX45, FX48, FX58, FX60, RT80, AMZ131XT, SCORPION 6030

Hitachi: ZX160, ZX160

GEHL: CTL80, SV185

Terex / Grove / Liebherr / Kobelco / Toyota: SK135SRLC, L506, L506 COMPACT, L506 STEREO, L506 TYPE 426, L507, L507 SPEEDER, L507 STEREO, L508, L508 STEREO, L508 TYPE 232, L508 TYPE 372, L508 TYPE 428, L508 TYPE 778, L509, L509 STEREO, L509 TYPE 429, L509 TYPE 779, L509 TYPE 789, L510 STEREO, L510 TYPE 340, L510 TYPE 782, L514 STEREO, L221, L223, L225, L230, 7FD45, AL730, SD75, TD5010, TD5020, TD5030, TD5050, TN85A, TN85DA, TN95A, TN95D, TN95DA, 9304100188, U80, U80B

Ford / New Holland: TD95D, TL80A, TL90, TL90A, TL100, TL100A, TM200 TELE-AGRI, TM270 TELE-AGRI, TM300, T90, T95, T100, T105, TB80, TB85, TB90, TB100, TB110, TB120, TT55, TT65, TT75, G50, G70, G80, G90, G115 MAX, TX62, TX63, TX64, TX65, TX67, TX68, TX750, TX760, TX760B, TX870, TX870B, TX970B, TX860, TX860B, TX860SB, PT9000

Farmtrac / Farmall / Challenger: 280, 311, 40.8, 30.7, 35.7, 85A, 75A, 95A, 85, 75, 95, 100, 80, 70, 60, 248, 248B, 260, 311, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 90-90DT, 100-90, 100-90DT, 110-90, 110-90DT, MT465B, CB44B, CB54B, CB434D, CB544, CB545, CD54, CP433C, CP433E, CS431C, CS423E, CS433C, CS433E, ME8200, ME9000, PW110R-1, PW118MR-8

Fiat / Renault / Landini: 3100, 3200, 3210, 3245, 3255, 3400, AGROVECTOR 26.6

Replaces Part Number(s):

AT171853, AT169911, AT262566, KV16429, RT6005011111, 6005 011 1111, 60050111111, 1930589, 47128157, 47132343, 47132345, 82981152, 84036676, 84217229, 86555826, 86982524, 87418364, 87418365, 87438248, 87438249, 87631623, 87682989, 87682993, LP02P000043, LP11P00004S002, P828889, L99453, 7619404, 4486002, 35393685, 85400720, 2914930700, 17741-23600-71, 4270033M1, 42N-02-11960, 600-185-2100, 600-185-2110, 848101144, 8481-01-189, 113855M1, 26510342, 3540051M1, 6190627M1, 6190627-M1, WR352113, 110-6326, 1106326, 131-8902, 1318902, 220166005, 11883618, 00 0147 519 0, 427471A1, P772580, 9304100188, 222421A1, KMH0781, 30981-70410, 59700-26112, 59700-26116, 32/915701, 32915701, 4446016, 90002042, 0.900.0301.0

Aftermarket Interchange Numbers

Donaldson P828889, Baldwin RS3544, Fleetguard AF25557, Wix 46562, NAPA 6562

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

AR52E, CX8080, TX65, 287, 6445, 244J, M95X, QAS 58, MC100, PC110R-1, 688G, 248B, 75, 550D, 6810S, B95TC, 3210, CERGOS 330, 5420, FX25, 315SG, LB115.B, 279C, 5076EF, 3400 X, MCT135C, 88-93, M312, PF290B, 524-50, PS300C, WB146PS-5, L506 COMPACT, 580 SUPER M, 5515, 5510N, PC138US-8, 420D, MC95, CB545, PC128US-2, LX985, 5410, 3245, CX8070, CERES 335, 5425H, 438D, AR46E2, M8540, M105, 5455, 980 ELITE, CERGOS 355, C95MAX, TX860, TH62, CX130D LC, 325, 3200 X, MYTHOS 100, 248, F115DT, 236D, 262C, 90XT, 970 ELITE, 650K, ARES 550, 430, PW110R-1, 970, 1110 ROBOT, 432D, 3255, AR65, PS150C, 312C L, CTL80, AMZ131XT, SD75, M100GX, 280, 906H, MC70B, 310E, ARES 620, 5525N, 287C, 90-90DT, 910K, 590 SUPER L, 260, M100X, 6455, 428D, 410, TB80, 88-93DT, WX150, 527-55, L509 TYPE 779, BLIZZARD 95, CX780, L508 TYPE 372, PC130-8, TH417C, 3300, 5083EN, MH CITY, MC90B, M5-091, L221, 5725H, L510 TYPE 782, F90, P110, CX160D LC, SR250, L507, 436C, 272D, 5088, 256C, E150, 5525, 315SE, 6100B, LB90, 310SG, 277C, ZX160, WB97R-5, G80, WB142-5, 580N, 5310N, 580L, MYTHOS 110, LB75B, CERGOS 340, L514 STEREO, 135C, 5103, CERES 340, TL100, 650H, MC80, 7610S, CERES 330, TB90, 5603, FX28, BL60, PC158USLC-2, 5315, 4T80, 420 III, 5450, TX970B, 450, 257B3, 5520N, CX760, TT55, TX760, CX80, WA100M-6, C105MAX, M6040, 908H, TD95D, LS190, 5075GV, 590SM, 340; CERES 326, L230, 545D, CERES 310, TH82, ME9000, 775DTC, 5075GL, B115, 90-90, 100-90DT, CERES 346, P130, JX1100U, L510 TYPE 340, 310, LX865, CR940, WB93R-5EO, PS300B, SV185, M108S, L509 STEREO, G115 MAX, 95A, 262B, 315B, 88-94, 428C, LB90.B, 330, TD5050, 7088, 1110THF ROBOT, L507 STEREO, CB544, LS180, 190THF ROBOT, 246C, CERES 320, 236B2, CX90, B90B, L865, 440 III, CB434D, C90, TH414C, M95S, TH63, CX860, FX40, 346; ERGOS 90, MC105, BL61, 30.7, TL80A, 310G, 5605, 430D, SR200, 312B L, TL90, B100BLR, CERES 65, AGROFARM TTV420, CERES 325, 3300 X, TX750, 5101E, CX840, MT465B, G50, 6088, 1110HF ROBOT, 307, 6110B, 5320, BL61 PLUS, G70, PC158US-2, TD5020, 5083E, TT65, F60, PC138USLC-8, C227, 5425HC, 297C, LB110B, 5520, CX105, 788, L509 TYPE 429, PC138USLC-2, L510 STEREO, 486E, 650G, 328, 85A, C190, 60XT, F115, 3100, CERGOS 350, M8200, CX110, B100B, 5445, MX90C, 4T125, FX60, L506 TYPE 426, 686G XR, CR9060, 5076EL, CERES 355, 750H, 880SX, 590 SUPER N, L508 TYPE 778, 880 ELITE, IT14G II, WB93R-2, CERES 75, G90, 410TMC, 210E, PC130-7, AXOS 310, CX95, WB93S-5EO, 5610S, 570MXT, SVL97, LB95.B, 5076E, M5-111, 450CT, M7040, B95, 590SL, WB97S-5, CB54B, JX1090U, SR220, 299D, 5220, 190 ROBOT, WB146-5, TR270, 5093E, 5415H, TR320, TM200 TELE-AGRI, CP433C, 7040, 445D, 5210, 435, 5510, 426C, 252B, 410 III, FX58, 110-90, 438C, 5610, CP433E, 5503, LB110.B, 488E, 336, 5410N, 5325N, CX880, L225, PT9000, PW118MR-8, JX90U, 252B3, 75A, M96S, 277, CX75, PF300C, 785DTC, WB93R-5, TN95DA, 5303, M110GX, 5325, MH5.6, F120DT, IT14G, M108, 6040, TH215, ECR145D, F70, 906, CX70, 5090EH, T90, 445 III, CS433E, LB90B, M9960, 310J, 750K, M5040, TL100A, FX30, 345D, BLIZZARD, ERGOS 95, 450JLT, JX100U, L885, U80B, F110DT, 95XT, 907H2, JX1070U, 5093EN, C238, L220, SR130, C232, PS150B, M9540, TX63, 242B3, Module Express 625, 586G, 450J, 5310, CB44B, 6610S, FLEXIROC T20, MC115, 9060, T100, 908H2, TB100, 6403, 5725, 795DTC, TX67, PS200B, 310TMC, PC95R-2, CERES 70, 5435, CS431C, TX870, L509 TYPE 789, 262, SLP160 ROBOT, 6D125, TM300, M105X, TH406C, LB95, 411, TX860SB, 246, TD5030, TB120, 5705, F120, TL90A, 257D, 320, 5075GN, PC138-2, C100, TN85DA, CR970, SVL95, L508 TYPE 428, 416D, AGT, WB156-5, 550H, CPX420, L506 STEREO, WB93S-5, 242D, 5215, TM270 TELE-AGRI, TB85, WB140-2, CX135SR, 580 SUPER N, 7010, WB97S-2, M6-111, ARES 610, F100DT, WA100M, 277B, L223, 85, 252, 465, 485E, 420, XAS 90, CX8090, CERGOS 335, L508 TYPE 232, 860, BL71, WB97R, 272C, AGROVECTOR 26.6, CX720, MC90, 424D, CR960, ME8200, 88-94DT, 914, 686G, WB97S-5EO, CERGOS 345, CR980, SR175, L180, JX95, TH103, 442D, 5425N, 5090EL, FX48, 5460, 760, 906H2, 216, 100-90, 907H, 272D XHP, BL70, 95, 35.7, 268B, MYTHOS, 8120, 85-90DT, TX68, 445CT, L508, WB140PS-2N, 7635, MX100C, 914G, MX80C, 411B, 5082E, TN85A, 252B2, 5725HC, 5403, F110, 420CT, F80, 7120, L218, SVL90, TX860B, AL730, PF300B, 440CT, PX70, L506, 6470, QAS 78, 267B, 279D, 236B3, TTV430; AGROPLUS 100, 4T115, SCORPION 6030, 80, MYTHOS 90, T95, SV300, 6460, 450H, AW1070, TX870B, M9000, FX38, 8010, 277D, M6060, WB140-2T, 70, 5615, 110, 310SE, 860SX, V8550A, 570LXT, 3400, 246B, CR920, 410J, MC80B, 312D, PC118MR-8, WA100M-5, JX1080U, 580 SUPER L, 5715HC, LX885, MH PLUS, F100, MCT125C, CS423E, 430 III, 85-90, R9350, 750L, 5415, L509, C70, TX64, ARES 540, SK135SRLC, B110B, CX820, LB75.B, 5225, 5425, 236, HW305, CERES 345, 9120, C80, B95LR, TX760B, 588G, 4T100, 914G2, 312, 299C, 210LE, CR9070, LB115B, WB93R-5E0, M315, 5420N, 850K, 312B, 860 ELITE, TX742, 5320N, TH407C, U80, F95, M6-101, M8560, 580M, 304J, 40XT, 1110T ROBOT, 100, 7030, PS360B, TB110, L508 STEREO, 287B, 5715, M105S, M96, 3200, TX62, FX45, B110, RT80, 5203, 190HF ROBOT, CR9080, L507 SPEEDER, MC110B, 450JLGP, T105, TH210, PC138USLC-2A, SV250, LB115, M4-071, 5090E, WB140-2N, 70XT, L185, B90BLR, F105, CX100, TT75, CX740, 7FD45, 190T ROBOT, L190, 554, TD5010, 908, 416C, ECR145CL, CD54, 980, 440, CR9040, 311, WB93-5, 110-90DT, 590 SUPER M, WB156PS-5, BL71 PLUS, TH83, 5625, AFX8010, TN95A, AR80, CX85, 5101EN, 135C RTS, 40.8, 3010S, PC138US-2, CPX620, 289C, B115B, 289D, M108X, M110X, CS433C

Additional Information:

Inside Diam.: 3-9/16" (90.5mm) Outside Diam.: 6-1/2" (165.1mm) Length: 14-1/32" (356.4mm)

Reference Numbers:

L99453, 4486002, AT169911, AT171853, AT262566, KV16429, RT6005011111, 00 0147 519 0, 6005 011 1111, 60050111111, 9304100188, 42N-02-11960, 600-185-2100, 600-185-2110, 848101144, 8481-01-189, P828889, 4270033M1, 4446016, 90002042, 0.900.0301.0, 47128157, 1930589, 113855M1, 26510342, 3540051M1, 4270033M1, 6190627M1, WR352113, 30981-70410, 59700-26112, 59700-26116, 11883618, 2914930700, 1930589, 222421A1, 47132343, 47132345, 82981152, 84036676, 86555826, 86982524, 87418364, 87438248, 87438249, 87631623, 87682989, 87682993, KMH0781, 1930589, 47128157, 47132343, 47132345, 82981152, 84036676, 84217229, 86555826, 86982524, 87418364, 87418365, 87438249, 87631623, 87682989, 87682993, LP02P000043, LP11P00004S002, P828889, 220166005, 3540051M1, 427471A1, P772580, 17741-23600-71, 35393685, 85400720, 6190627-M1, 7619404, 32/915701, 32915701, P828889, 3540051M1, 222421A1, 427471A1, P772580, 110-6326, 1106326, 131-8902, 1318902, 4486002

Product Category:

Construction
View More: Construction Replacement Parts

Product Group:

Filters
View More: Filters Replacement Parts
