AHC16698 Tilt Cylinder with bushings Fits John Deere 850J, 850K
AHC16698 Tilt Cylinder with bushings Fits John Deere 850J, 850K
Couldn't load pickup availability

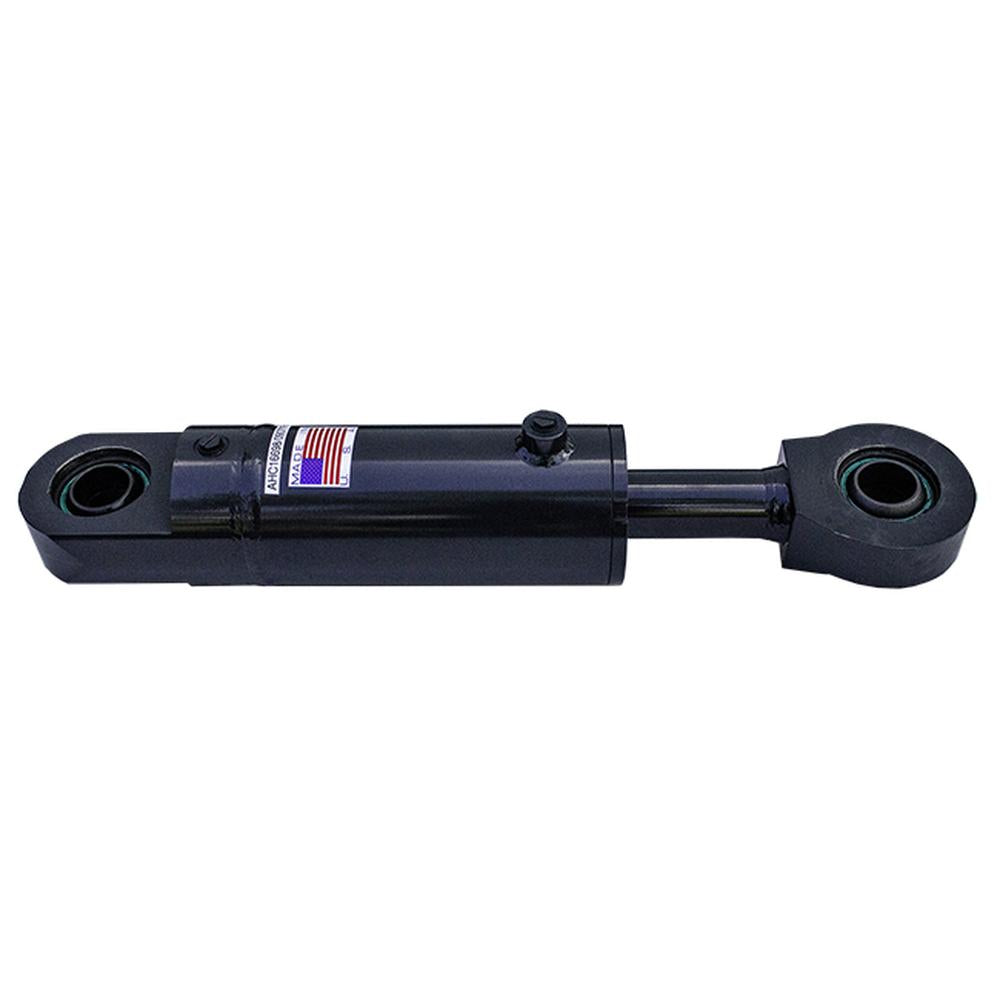

One New Aftermarket Replacement Tilt Cylinder with Bushings for John Deere Crawler Dozers
This aftermarket replacement hydraulic tilt cylinder restores blade tilt function on John Deere (JD) 850J, 850J-II, and 850K crawler dozers. Mounted to the Power Angle Tilt (PAT) blade assembly, this cylinder enables precise blade angle adjustments for fine grading, leveling, and slope work. The cylinder includes both rod-end and tube-end bushings. Note: This is the IDM (inner dozer mount) PAT blade tilt cylinder. Verify your blade configuration before ordering -- the ODM (outer dozer mount) application uses a different cylinder.
Specifications
- Bore: 125mm
- Rod Diameter: 63mm
- Includes rod-end and tube-end bushings
- Application: IDM PAT blade tilt cylinder
Compatible Models
John Deere Crawler Dozers: 850J, 850J-II, 850K
Serial Number Note: For the John Deere 850J, this cylinder (AHC16698) applies to machines up to serial number 311988 on IDM PAT blade configurations. Verify your serial number and blade type before ordering.
Replaces Part Number(s):
AHC16698
New aftermarket replacement part - not remanufactured, not used.
