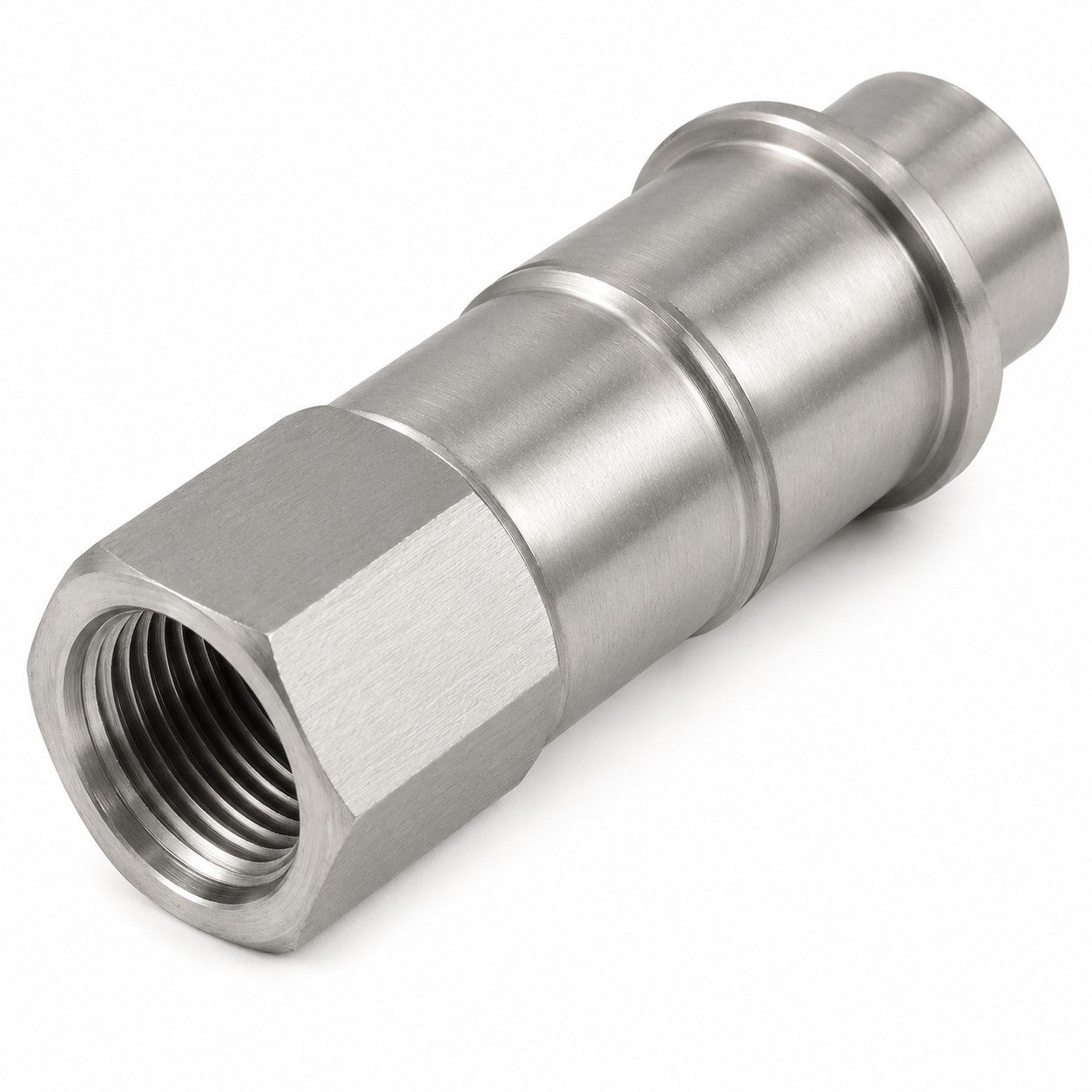

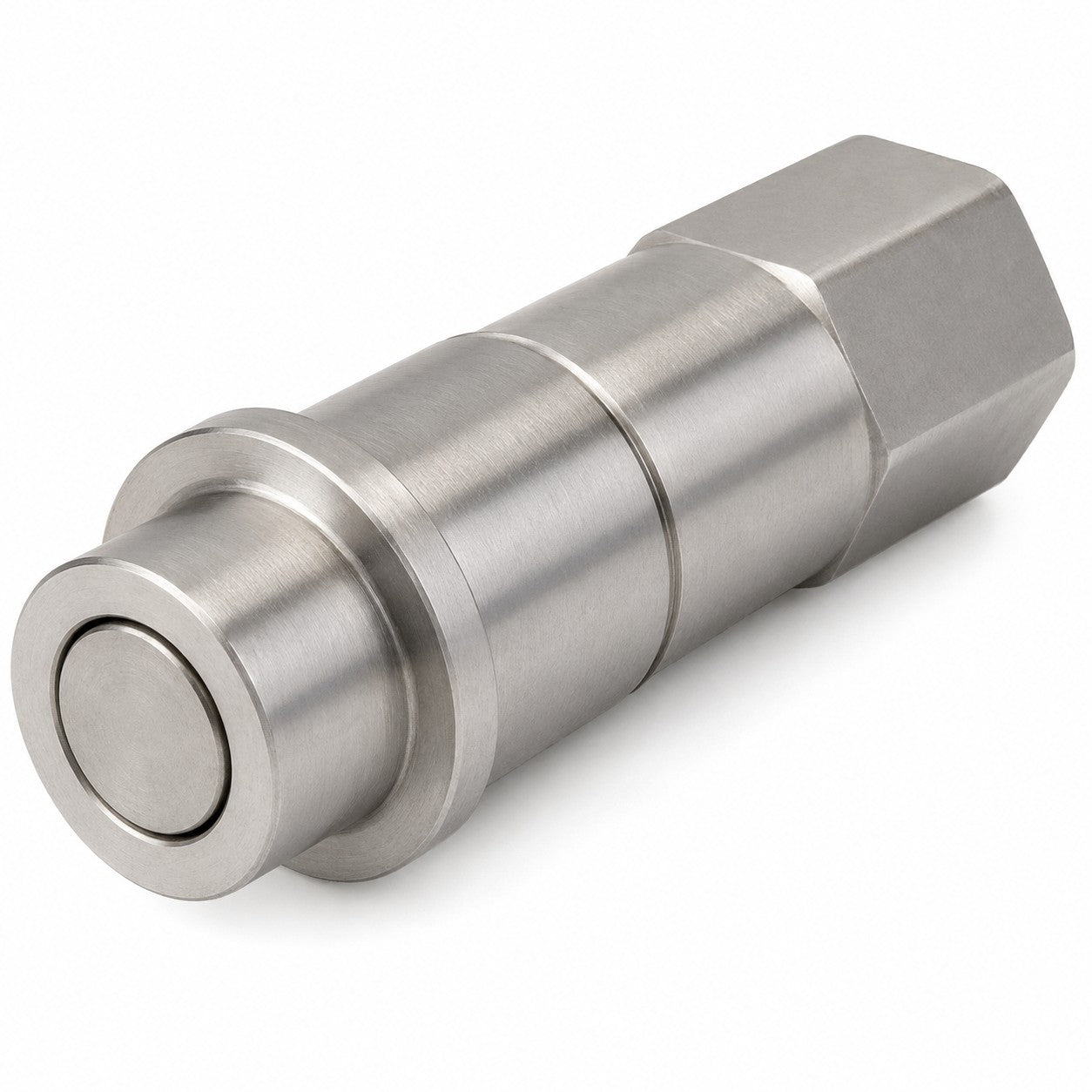

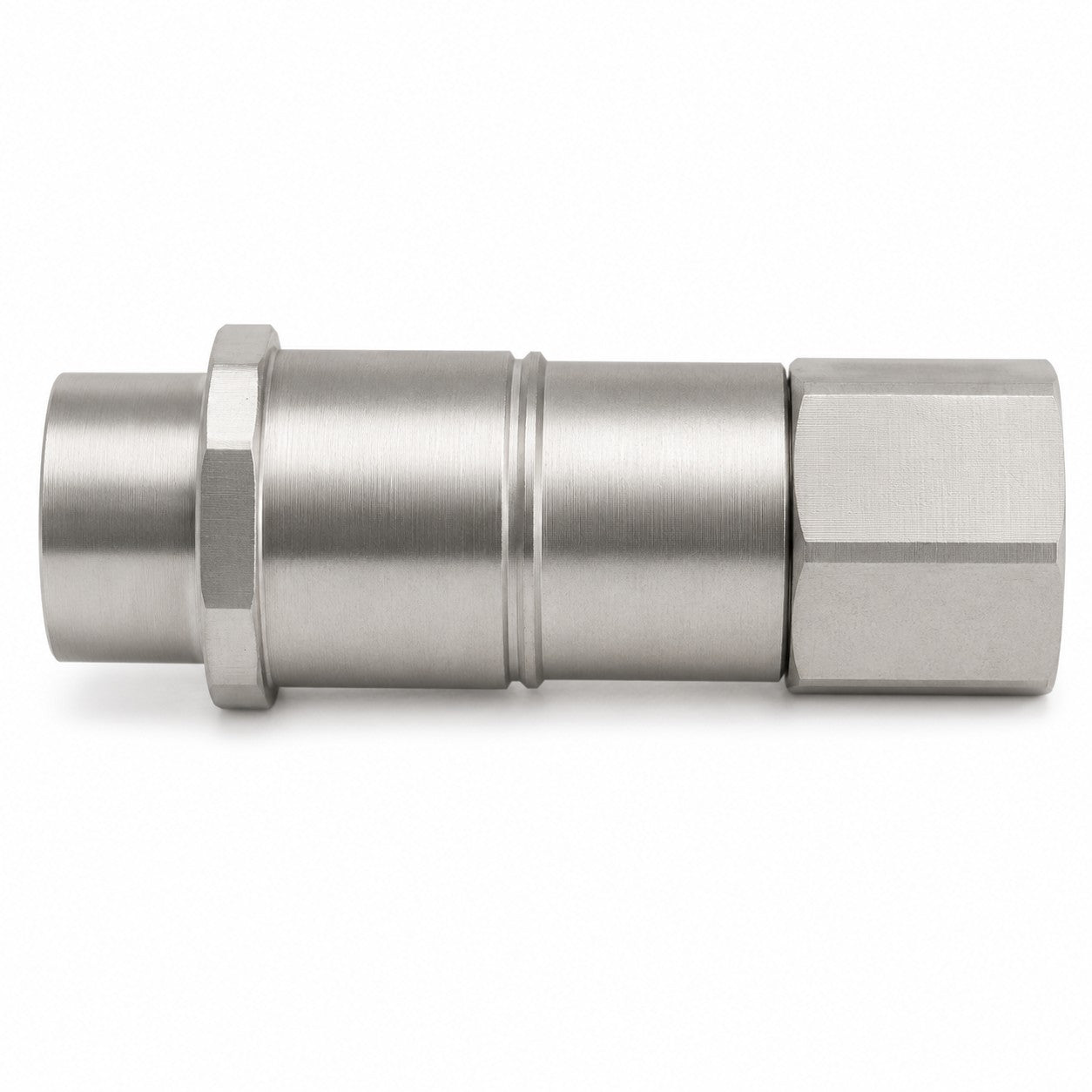

AH225669 Hydraulic, Quick Coupler Socket; 1/2
AH225669 Hydraulic, Quick Coupler Socket; 1/2
Couldn't load pickup availability
One New Aftermarket Replacement Hydraulic Quick Coupler Socket Fits John Deere Combines and Headers
This 1/2 in. hydraulic quick coupler socket is used in the single-point hydraulic coupling system on Fits John Deere combines, grain heads, and draper heads. It provides a fast-connect hydraulic interface between the header and the feederhouse, allowing hydraulic-driven header functions to be connected and disconnected quickly in the field.
Specifications
- Coupling Size: 1/2 in.
- Thread Size: 7/8 in.-14
- Weight: 0.69 lb
- Height: 1.5 in.
- Length: 3.7 in.
Compatible Models
Fits John Deere - 600 Series Grain Heads: 606C, 608C, 614R, 615F, 615P, 615R, 616, 616F, 616R, 618, 618F, 618PF, 618R, 620, 620F, 620PF, 620R, 622, 622F, 622PF, 622R, 622X, 625D, 625F, 625PF, 625R, 625X, 630, 630D, 630F, 630FD, 630PF, 630R, 630X, 635, 635D, 635F, 635FD, 635PF, 635R, 635X, 639, 640D, 640FD, 640X, 645FD, 649, 659
Fits John Deere - Draper Heads: 725D, 730D, 730FD, 735D, 735FD, 740D, 740FD, 745FD, 913, 913F, 913R, 915, 915F, 915R, 916, 916F, 916R, 918, 918F, 918R, 920, 925D, 930D, 936D, RD30F, RD35F, RD40F, RD45F
Fits John Deere - Combines: 9540, 9540WTS, 9540I WTS, 9560, 9560WTS, 9560I WTS, 9580WTS, 9580I WTS, 9640WTS, 9640I WTS, 9660 WTS, 9660WTS, 9660I WTS, 9670, 9680I WTS, 9680WTS, 9780CTS, 9780I CTS, C670, T550, T560, T660, T670, W540, W550, W650, W660
Fits John Deere - Corn Heads: 30R, 35R, 46R
Replaces Part Number(s):
AH225669, A-AH225669, AXE53030, AH171018, AXE60985, 0004-044, 0004044
New aftermarket replacement part - not remanufactured, not used.
