AB4666R Radiator Core w/ Gaskets Fits John Deere Tractor 50 520 530
AB4666R Radiator Core w/ Gaskets Fits John Deere Tractor 50 520 530
Couldn't load pickup availability

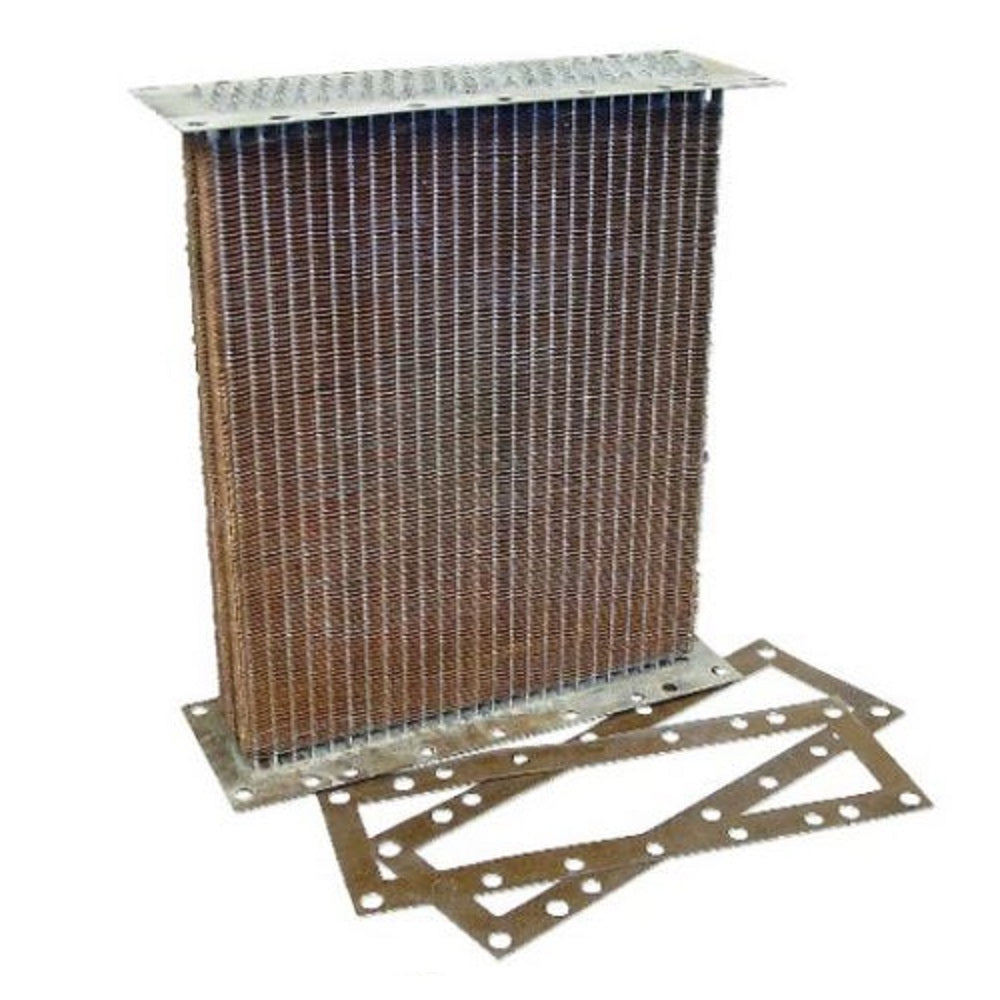

One New Aftermarket Replacement Radiator Core with Gaskets Fits John Deere Tractor
This kit includes one aftermarket replacement radiator core and two cork header gaskets for the Fits John Deere (Fits JD) 2-cylinder tractor cooling system. The core features copper fins and a brass lockseam tube construction for reliable heat transfer. This is the complete kit needed when rebuilding or replacing the radiator core on these classic Fits John Deere row-crop tractors.
Specifications
- Radiator Core Height: 17.750"
- Radiator Core Width: 16.000"
- Plate Width: 5.562"
- Core Thickness: 2.000"
- Rows: 3
- Fins Per Inch: 8
- Top and Bottom Header: 5-5/8" x 16"
- Bolt Holes Per Header Plate: 18
- Gasket Material: Cork
- Gasket Size: 5-5/8" x 16"
- Quantity: 1 radiator core + 2 gaskets
Compatible Models
Fits John Deere (Fits JD) 2-Cylinder Tractors: 50, 520, 530, B (SN 60000 and up - Styled)
Fits John Deere Backhoe Loader: 50
Note: Fits John Deere Model B fitment applies to Styled units with serial number 60000 and above.
Replaces Part Number(s):
Radiator Core: AB4666R, AB3599R, AB1608R, B1507R, JDS330, JDS3483
Gaskets: GK2418, B1507R, B1507, R2177G
Aftermarket Interchange Numbers
AB3599R-A, AB4666R-A
New aftermarket replacement part - not remanufactured, not used.
