REAR COMBO LIGHT RED DOT 50 60 520 530 620 70 80 630 720 730 Fits John Deere 12V
REAR COMBO LIGHT RED DOT 50 60 520 530 620 70 80 630 720 730 Fits John Deere 12V
Couldn't load pickup availability
One New Aftermarket Replacement 12 Volt Rear Combo Red Dot Lamp Assembly Kit Fits John Deere, Fits Ford, and Fits International Tractors
This aftermarket replacement kit includes one 12-volt rear combination (combo) lamp assembly featuring the classic Red Dot lens and one metal lamp retainer. The lamp assembly mounts via a rear post that inserts into the back of the seat or battery box. This design is for tractors that have the combo light switch located on the dash -- the switch is NOT built into the lamp itself.

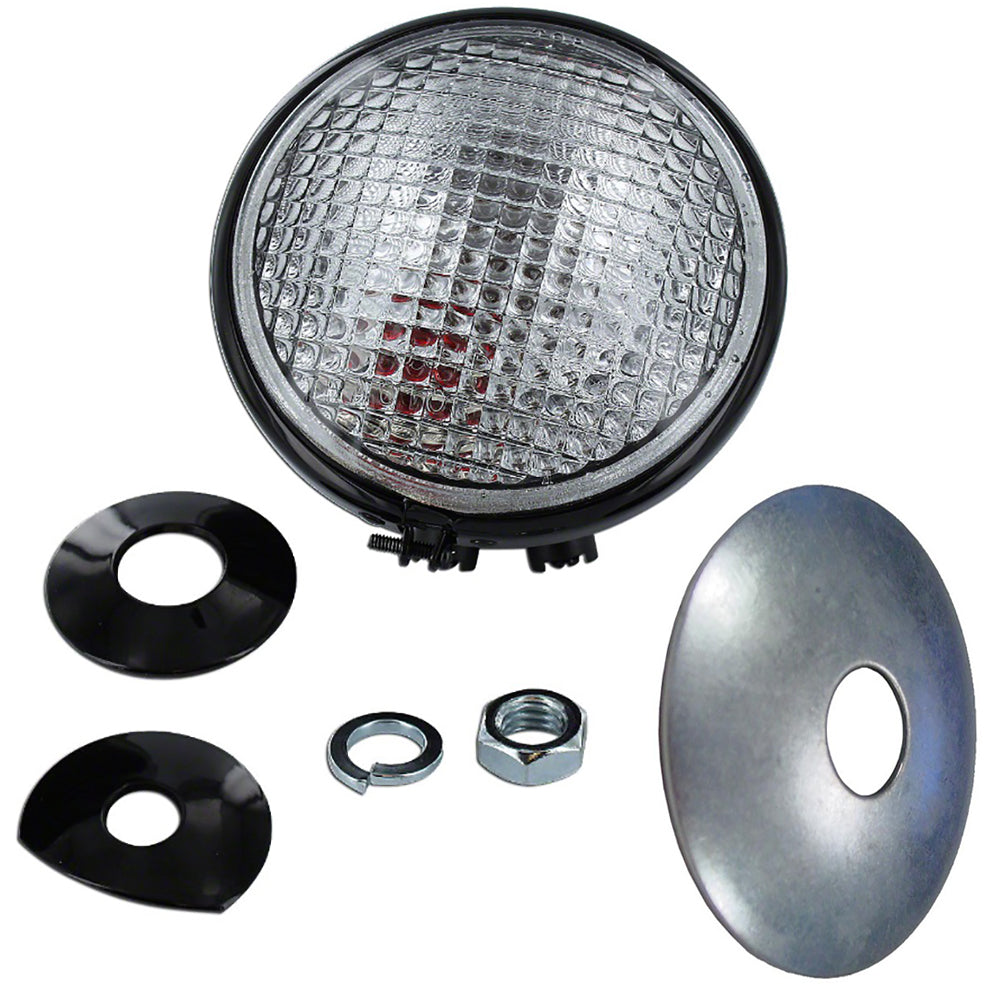

Kit Includes

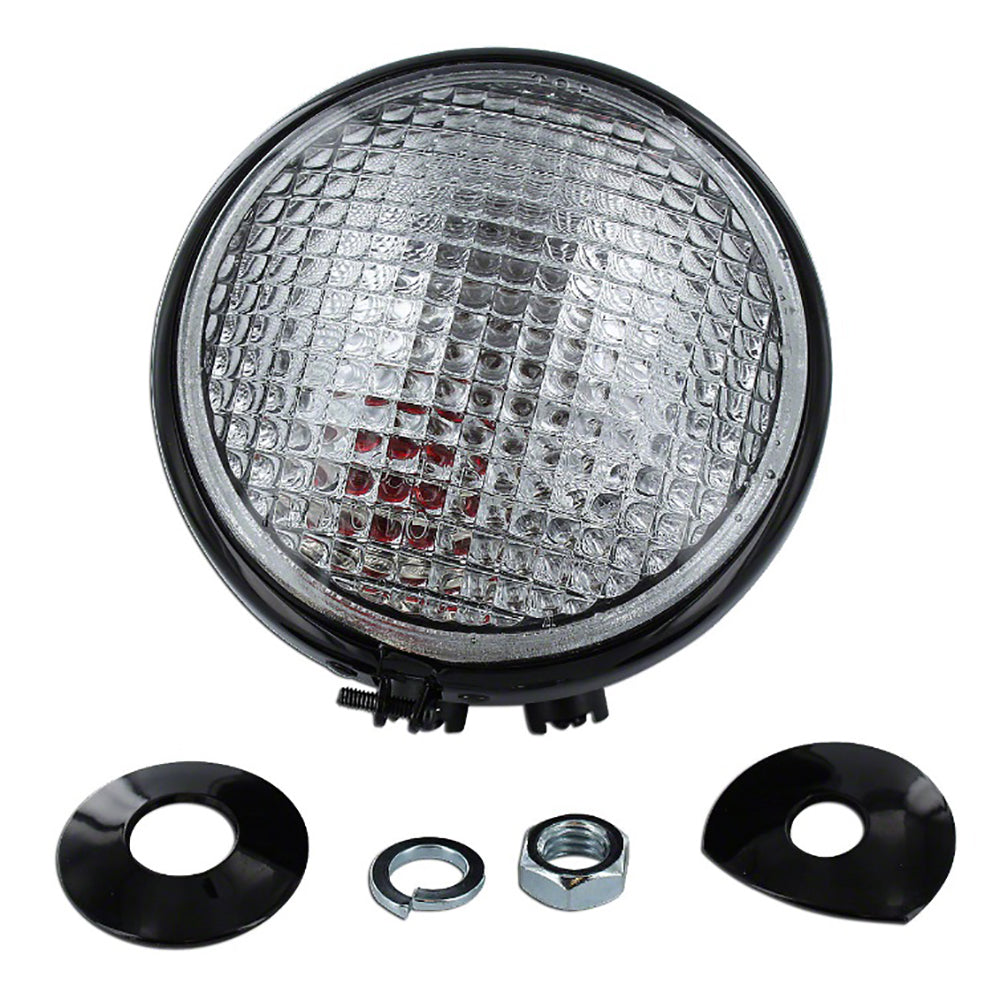

- One (1) 12V Rear Combo Red Dot Lamp Assembly -- 4-3/4" diameter

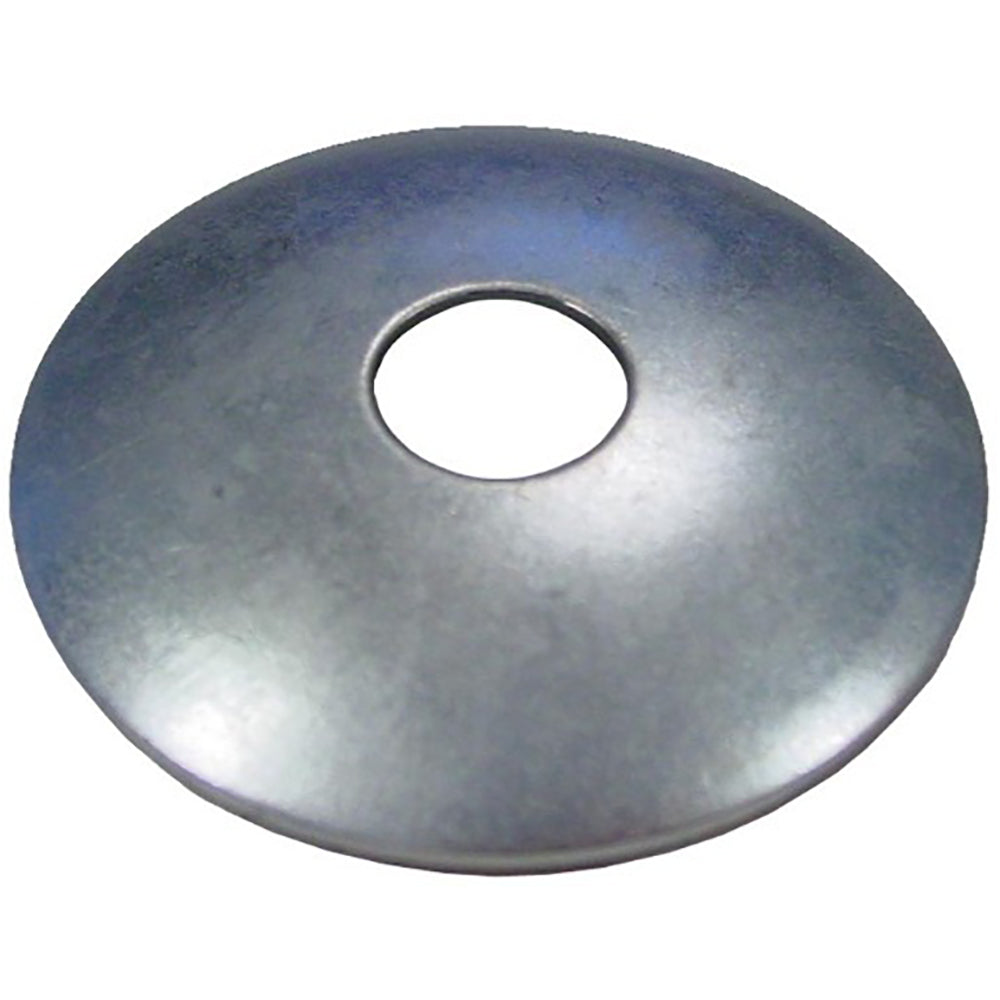

- One (1) Lamp Retainer -- 2-1/4" outside diameter, 9/16" center hole, metal
Specifications
- Voltage: 12 Volt
- Lamp Assembly Diameter: 4-3/4"
- Retainer Outside Diameter: 2-1/4"
- Retainer Center Hole: 9/16"
- Retainer Material: Metal
- Mount Type: Rear post, installs into back of seat or battery box
- Switch: Dash-mounted (switch not included)
Compatible Models
Fits John Deere Tractors: 50, 60, 70, 80, 520, 530, 620, 630, 720, 730, 820, 830, 1020, 2010, 2020, 2030, 2355, 2440, 2510, 2520, 2555, 2630, 2640, 2755, 2840, 2855, 2940, 2955, 3010, 3020, 4000, 4010, 4020, 4320, 4520, 4620
Fits Ford Tractors: Verify fitment using Fits Ford part numbers C5NN13N020B and D8NN13N020AA (see Replaces section)
Fits International (IH) Tractors: Verify fitment using Fits International part number 388947R1 (see Replaces section)
Replaces Part Number(s):
AA5199R, AA6733R, AR21735R, AR26574, B2295R, F2935R, 82858740, 83917547, C5NN13N020B, D8NN13N020AA, 388947R1
New aftermarket replacement part - not remanufactured, not used.
