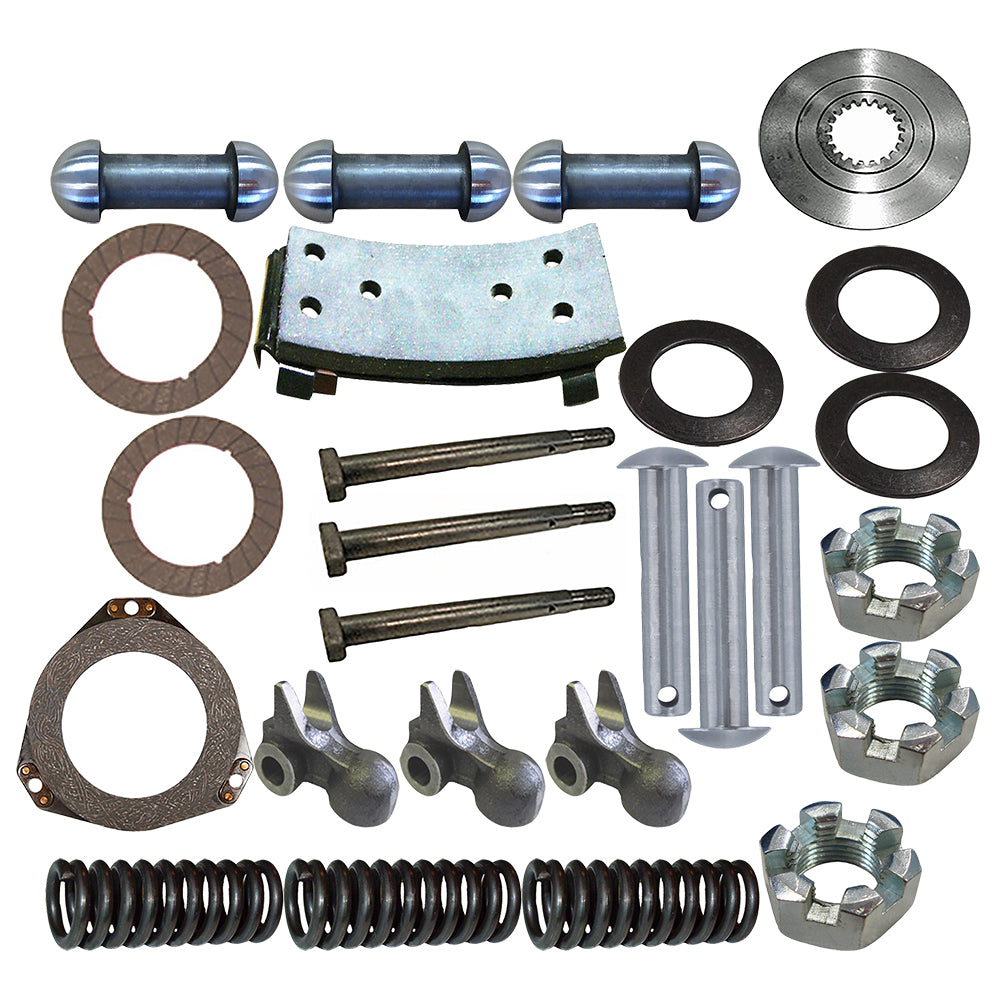

Complete Clutch Overhaul Kit Fits John Deere Replaces A352R

One New Aftermarket Complete Clutch Overhaul Kit

Tech Info:

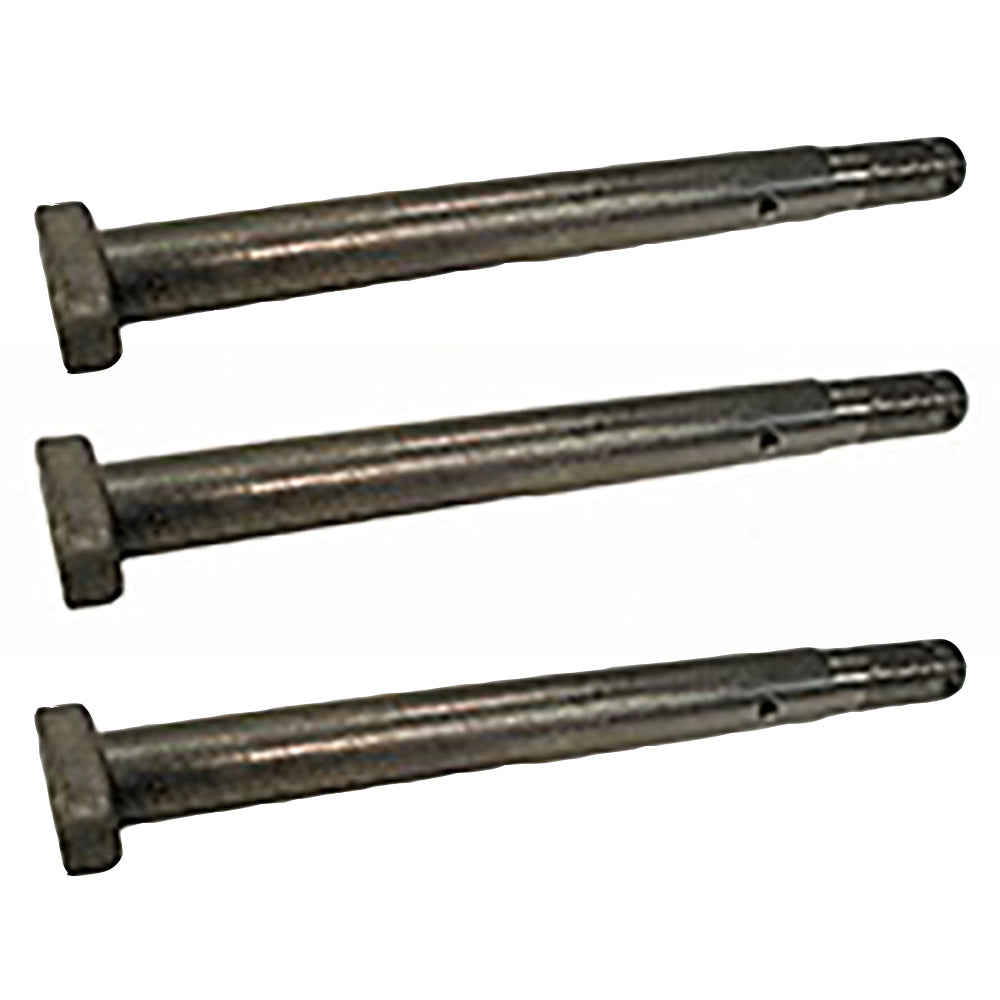

 -(3) Clutch Operating Bolt
 -9/16" diameter
 -6-7/16" overall length
 -Replaces Part Numbers: A4354R
 -

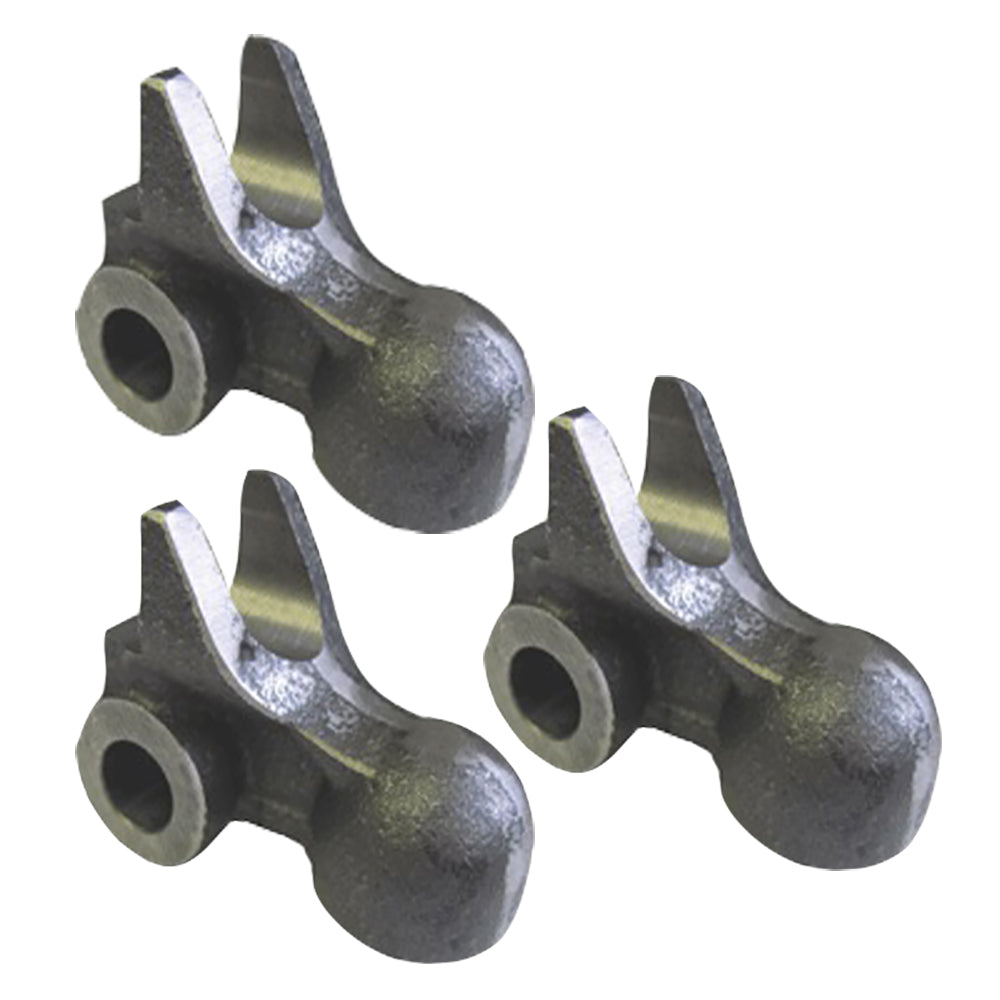

 -(3) Clutch Dog
 -3 required per tractor
 -Replaces Part Numbers: C74R
 -

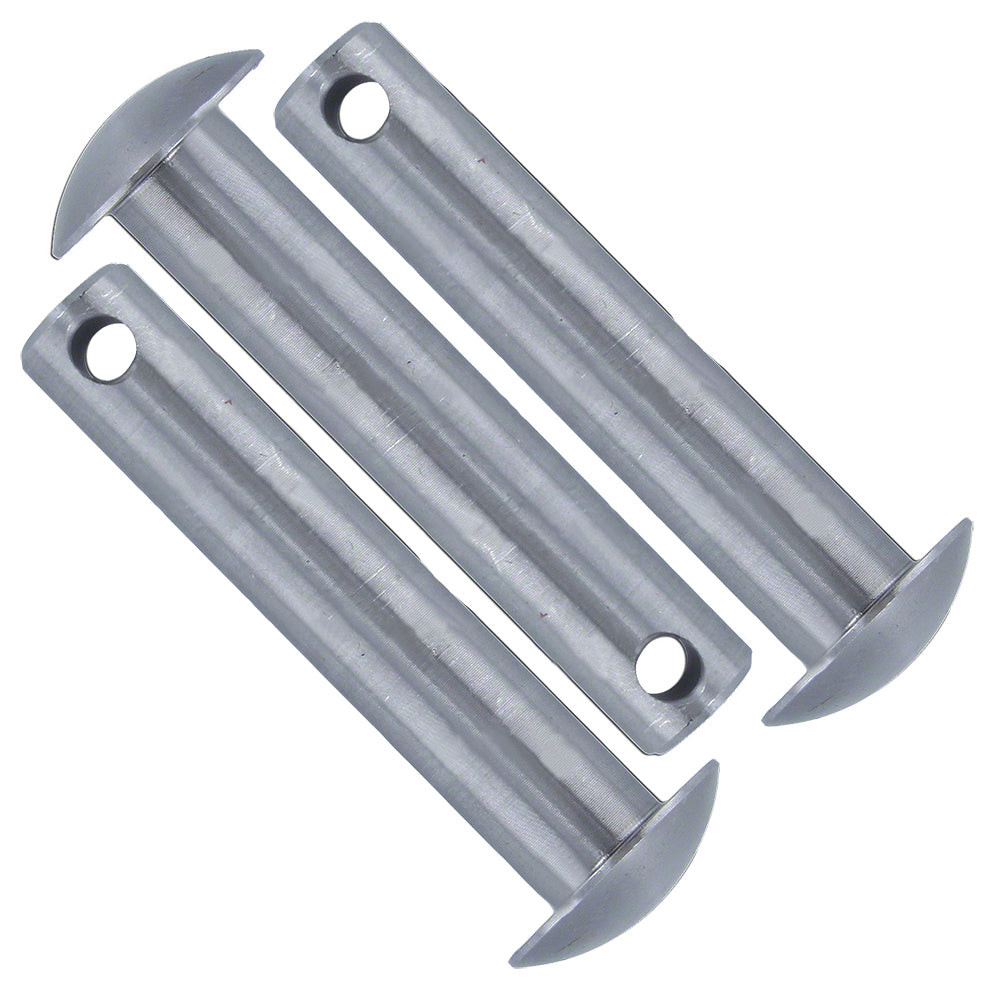

 -(3) Clutch Dog Pin
 -0.495" diameter
 -2.500" usable length
 -3 used per tractor
 -Replaces Part Numbers: D355R
 -

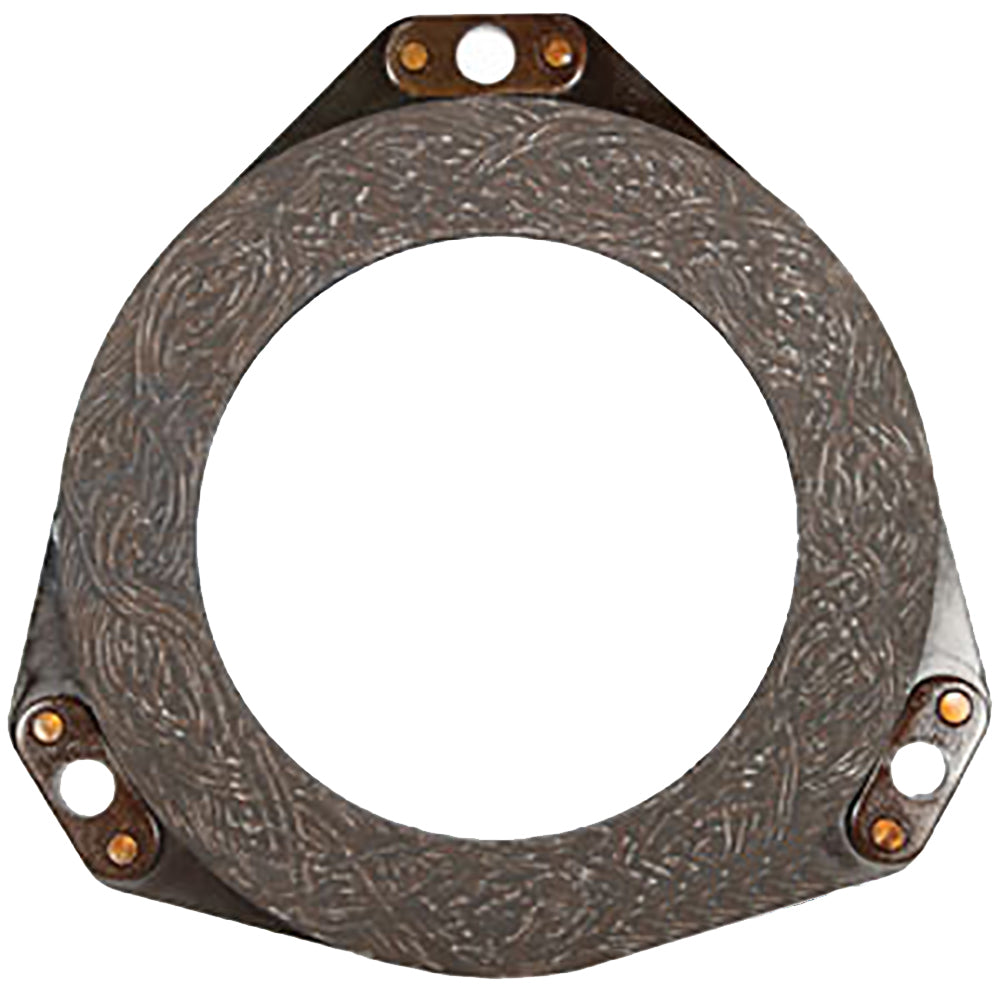

 -(1) Facing Clutch Pulley
 -10" disc outside diameter
 -0.393" thick
 -Replaces Part Numbers: AA5082R, AA6129
 -

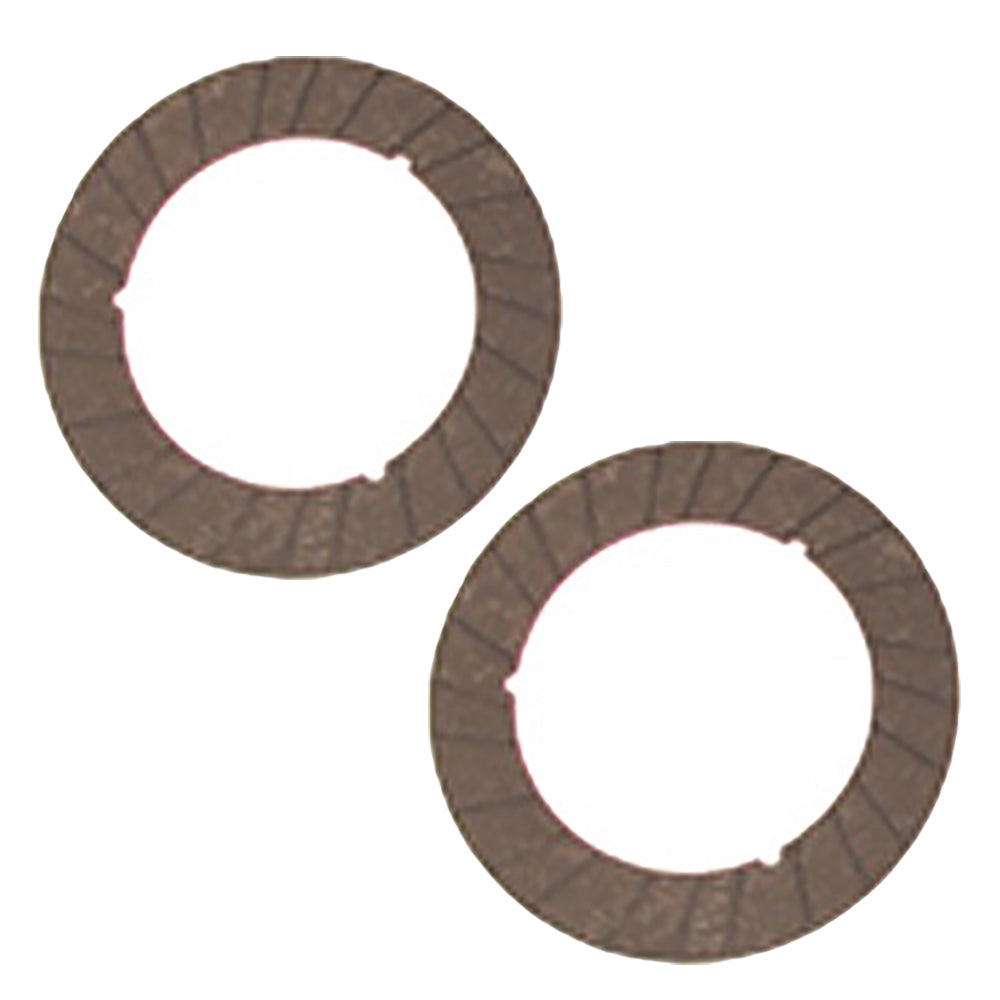

 -(2) Facing Clutch Disc
 -10" outside diameter (OD)
 -6-3/4" inside diameter (ID)
 -0.150" thick
 -The side with the grooves faces the driving disc
 -1-5/8" lining width
 -Replaces Part Numbers: R90215, C614R
 -

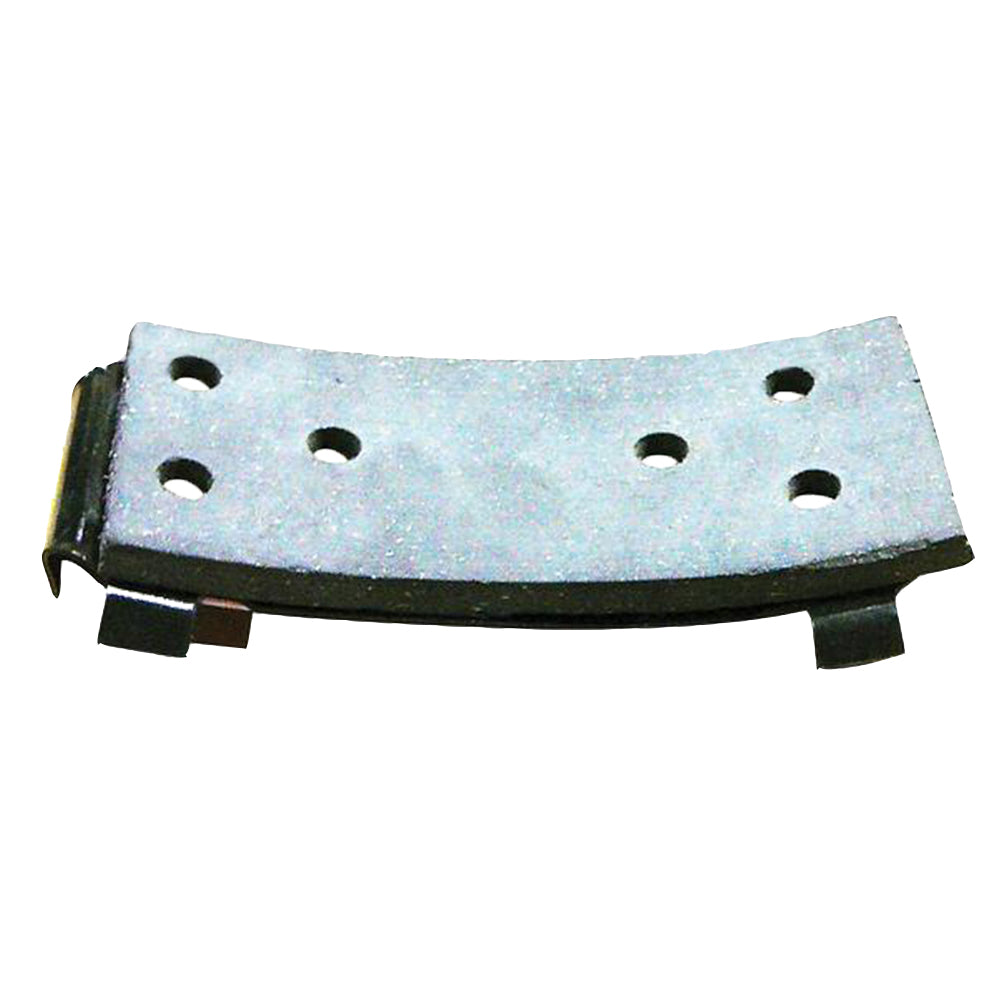

 -(1) Brake Pad Pulley
 -Non-asbestos lining with countersunk brass rivets
 -Replaces Part Numbers: AB4748R, AF4748R, RE29790
 -

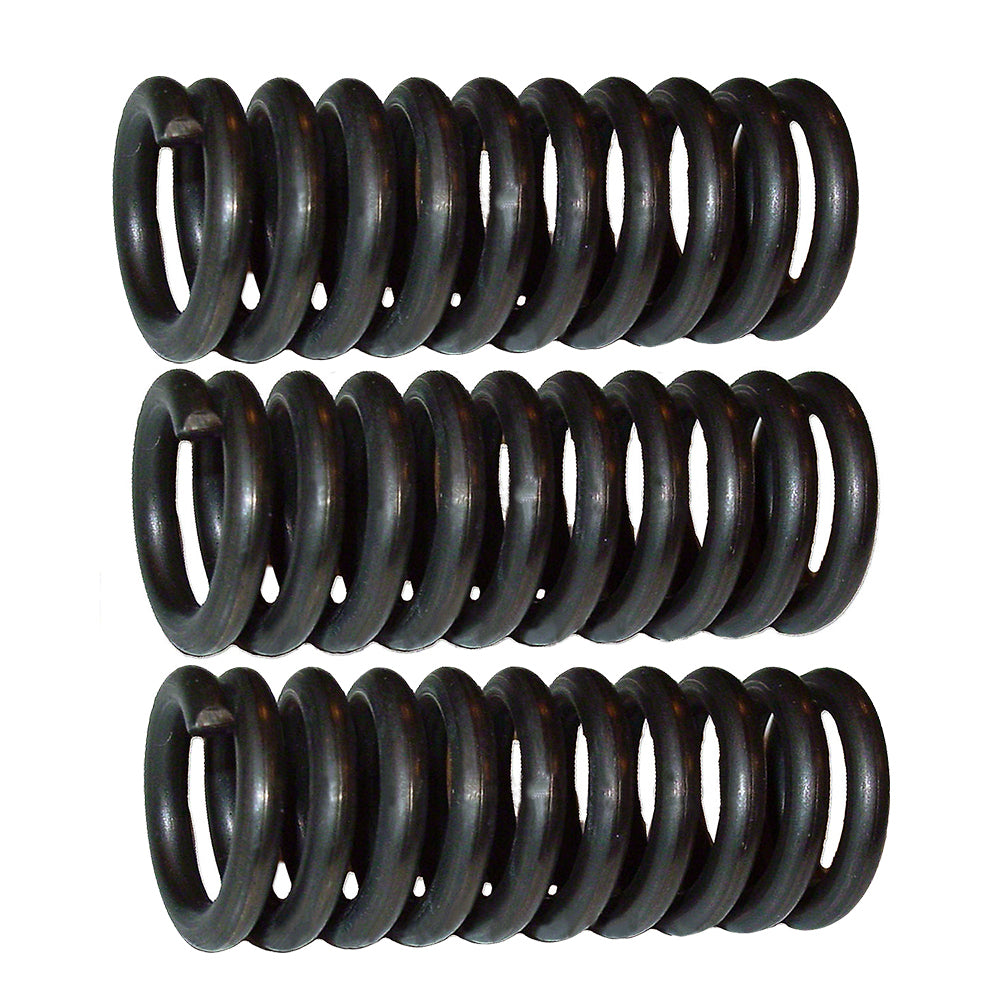

 -(3) Clutch Disc Adjusting Spring
 -1.915" long
 -0.740" outside diameter
 -0.500" inside diameter
 -0.120" wire thickness
 -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc
 -3 springs used per tractor
 -Replaces Part Numbers: A352R
 -

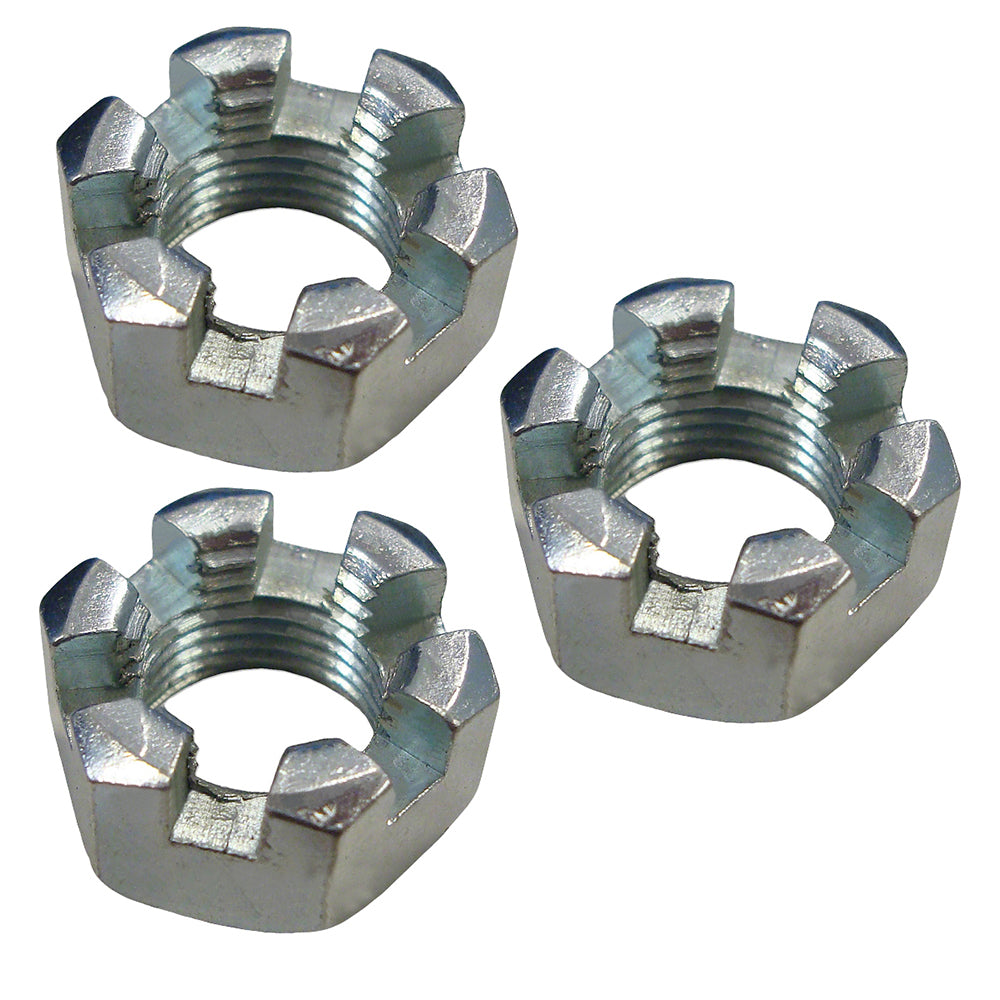

 -(3) Clutch Adjusting Nut
 -9/16" - 18 NF
 -Grade 5
 -Slotted hex nut, 9/16"
 -3 used per tractor; sold individually
 -Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228
 -

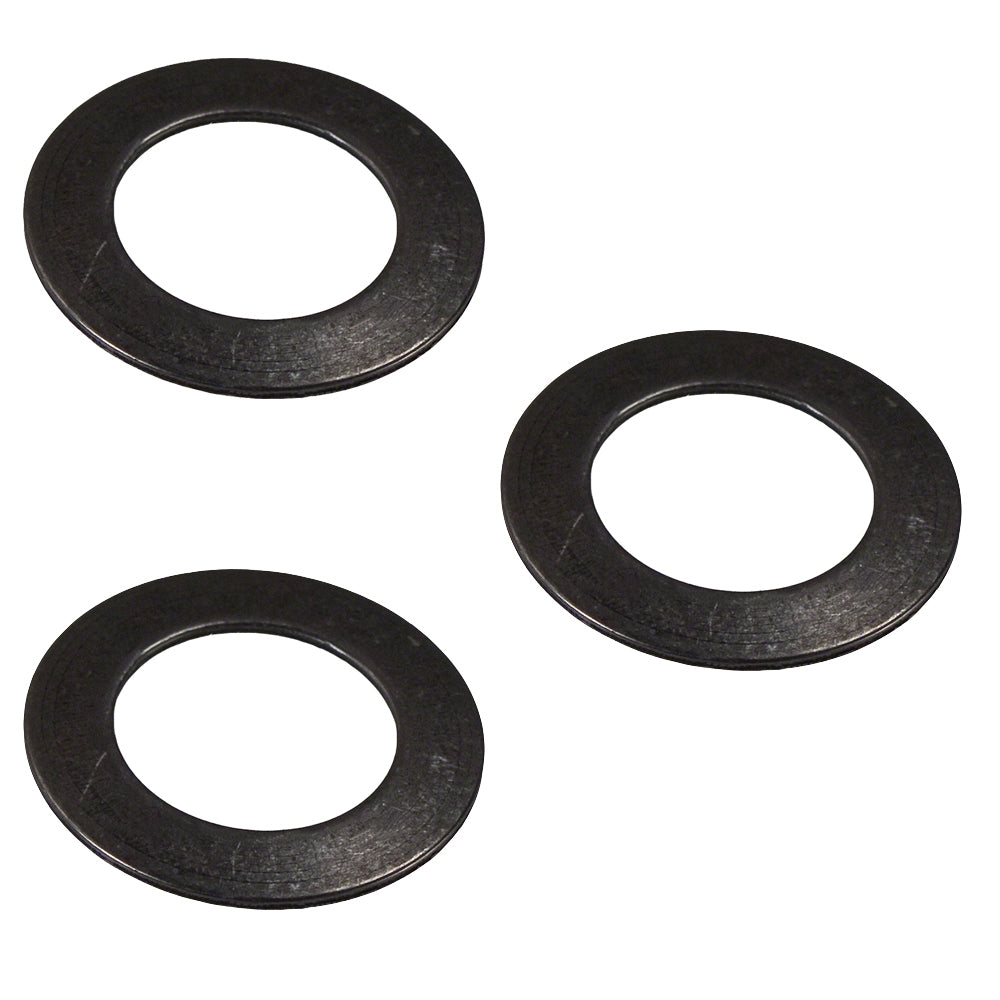

 -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer
 -0.572" inside diameter
 -0.937" outside diameter
 -0.035" thick
 -Spring steel
 -Torque initially to 15 FT pounds, then adjust as needed
 -Use to smooth out the hand clutch engagement
 -3 used per tractor
 -Replaces part Numbers: JDS1626
 -

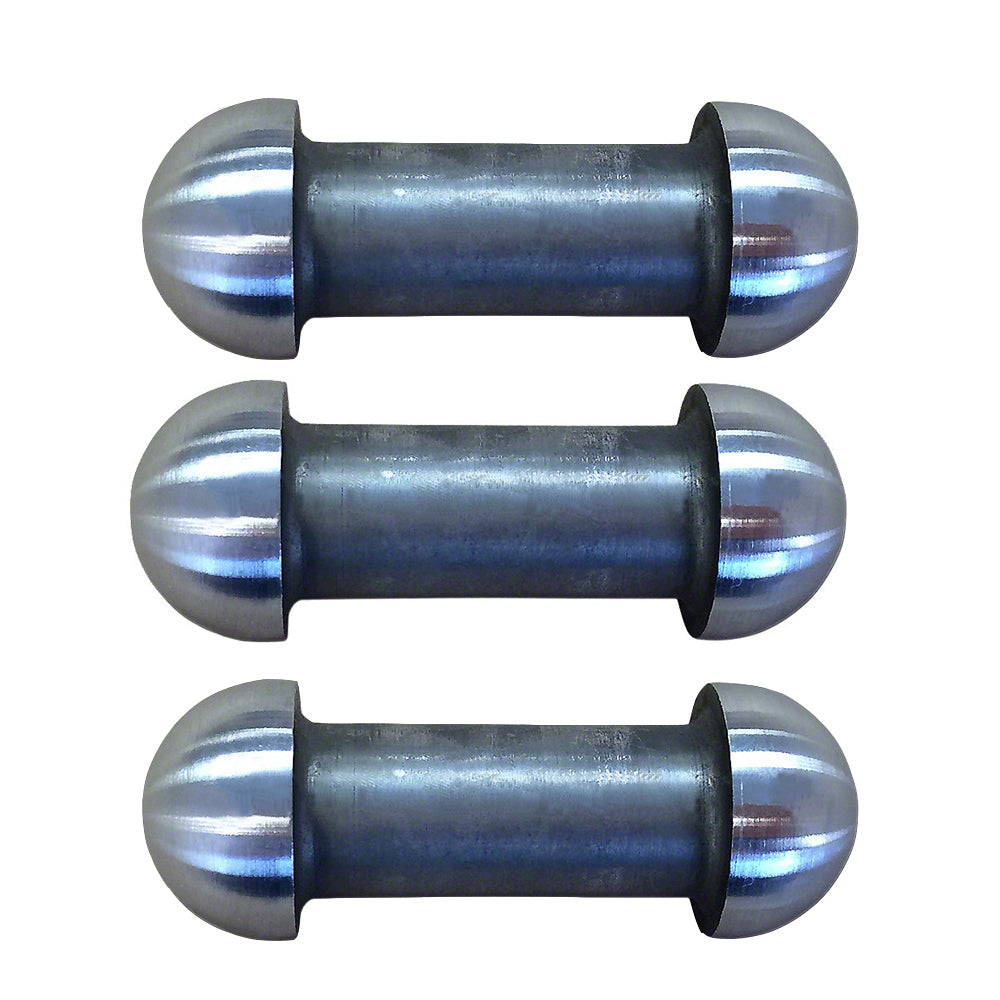

 -(3) Clutch Dog Toggle
 -1.999" overall length
 -Three (3) used per tractor
 -Note: When installing, the end with the hole fits into the clutch dog
 -Replaces part Numbers: C434R
 -

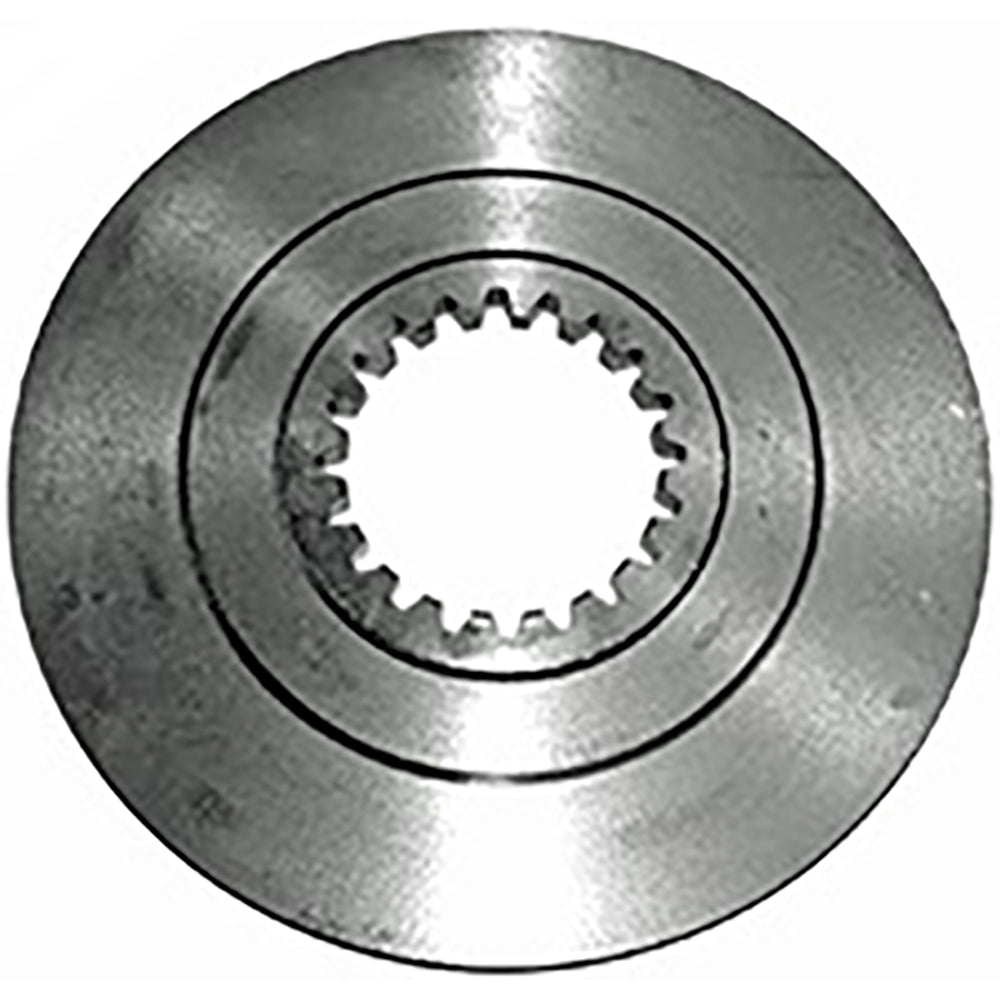

 -(1) Clutch Slider Disc
 -9.910" outside diameter
 -0.247" thick
 -20 splines
 -3-5/8" spline inside diameter
 -Replaces Part Numbers: AF1247R

Made to Fits John Deere:
 Models: GM, 730, 70, 720, GH, GW, D, 630, G, GN, DI, 620, GP
 Model Breaks: GW & GN & GM & GH & GP & DI & 730 & 720 & 70 & 630 & 620 Gas, LP, Diesel,D Gas, LP, Diesel - SN: 109944 and up,G Gas, LP, Diesel - SN: 13804 and up
 Replaces Part Number(s): C434R, AF1247R, A4354R, C74R, D355R, AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, JDS1626
