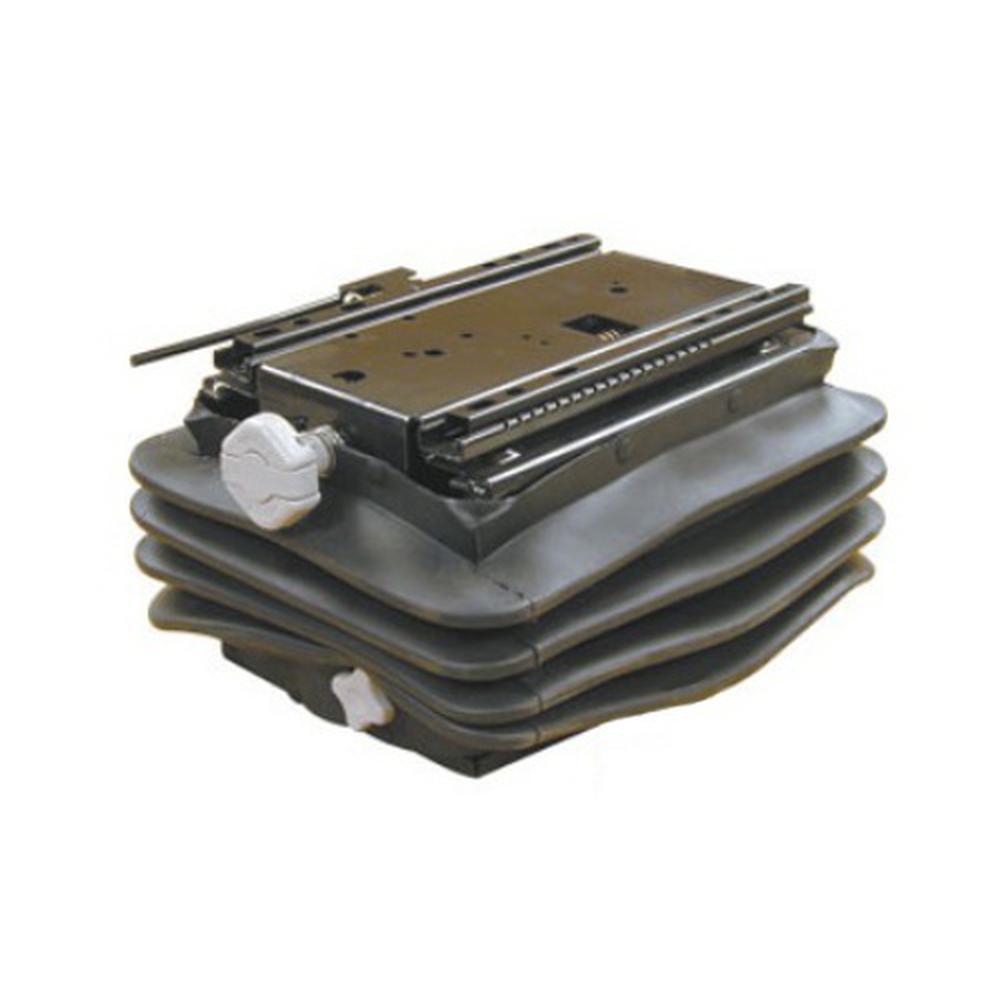

A-SSM100 Seat Suspension w/ Rails - Fits Massey Ferguson

2220, 2650, 2660, 2670, 2680, 471, 481, 491, 492, 573, 583, 593, 596

- Mechanical Suspension
- Suspension Stroke 4" / 100mm
- Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"
- Weight Adjustment 110 - 330 lbs. / 50 - 150kg
- All dimensions & specifications must be checked before ordering.
- This is a universal suspension meant for a flat mounting surface.
- Some applications may require drilling & bracket fabrication to mount.
- Black long lever is for the slide track
- Gray handle lever in the middle is for adjusting the weight
- Gray star shaped knob is to adjust suspension up or down
- The following seats can be added to this suspension.

F20ST105, F20ST135, F20ST145, F20ST155, TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100BL, LGS100YL, T500BL, T500GY, FLS122BL, FLS322BL, T110BL, T110YL, T122BL
