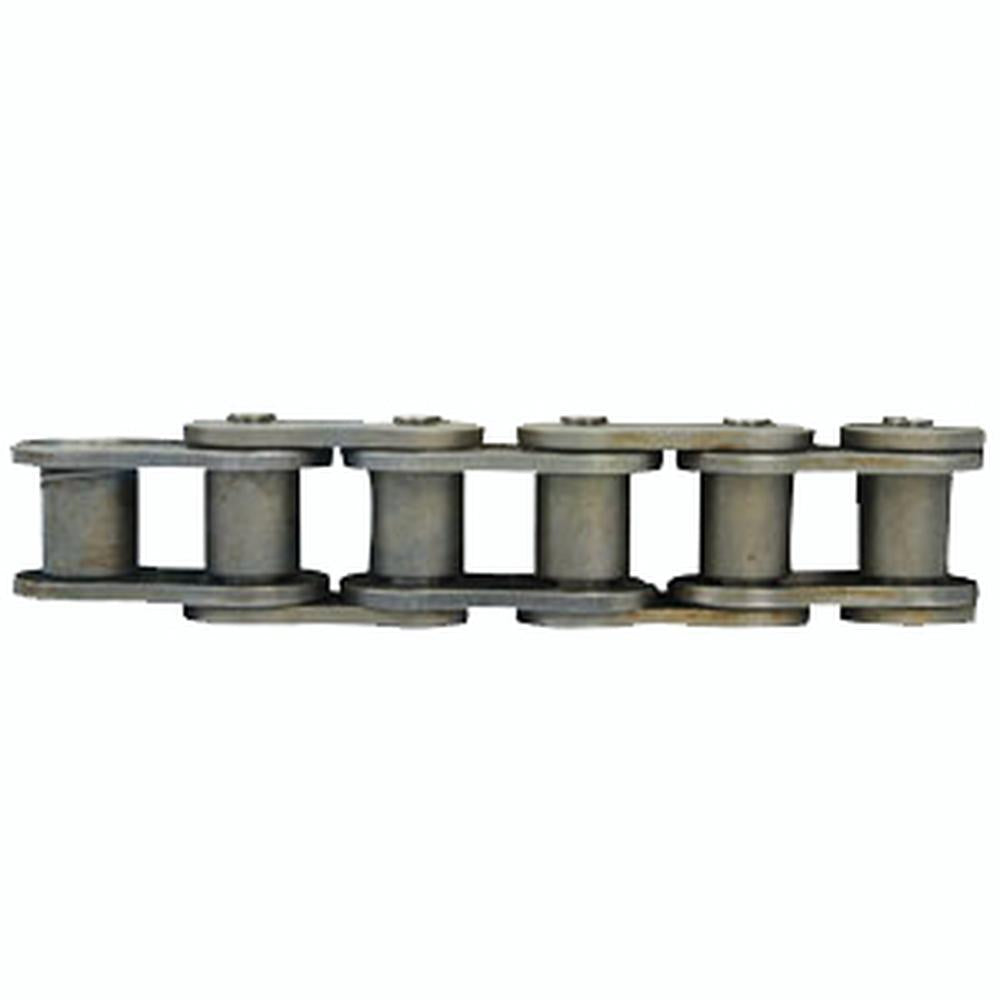

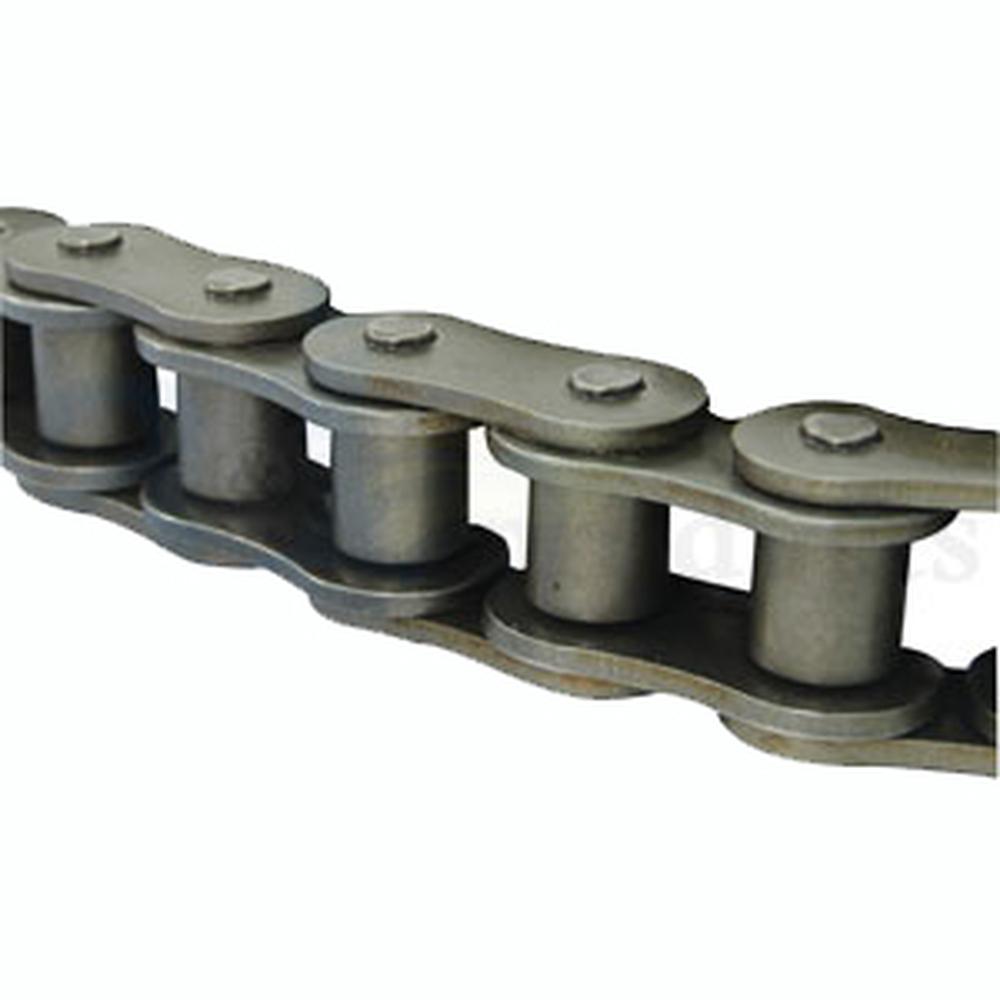

A-RC120H-AI Chain, Roller; 120 Heavy, 10 Ft.
A-RC120H-AI Chain, Roller; 120 Heavy, 10 Ft.
Couldn't load pickup availability
One New Aftermarket Replacement #120H Heavy Series Roller Chain - 10 Ft. Box
This ANSI #120H heavy series single-strand roller chain is a direct replacement for agricultural, construction, and industrial drive applications requiring extra strength and fatigue resistance. The "H" heavy designation means the chain is built with thicker side plates than standard #120 chain, delivering greater shock load capacity and longer service life without changing sprocket size. Compatible with all standard #120 sprockets. Supplied as a 10-foot box including one connecting link.
Specifications
- Chain Standard: ANSI B29.1 Heavy Series (#120H)
- Pitch Length: 1-1/2"
- Inner Roller Width: 1"
- Roller Diameter: 0.875"
- Pin Diameter: 0.437"
- Link Plate Height: 1.425"
- Strands: Single
- Pitches / Links per 10 Ft.: 80

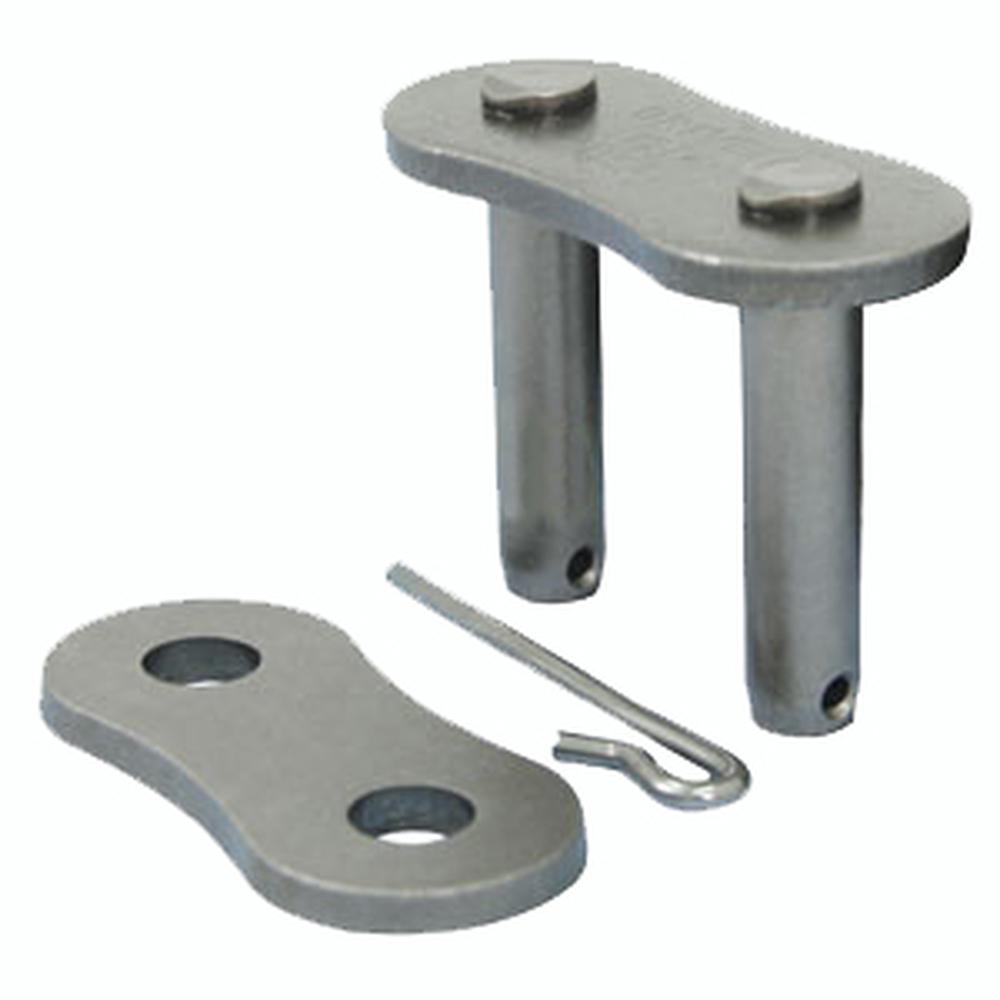

- Length Supplied: 10 Ft. (includes 1 connecting link)
Compatible Applications
ANSI standard dimensions allow this chain to operate on any standard #120 sprocket. Commonly used in agricultural equipment (combines, balers, grain augers, feeders), construction equipment (skid steers, conveyors), and heavy industrial drives and conveying systems.
Replaces Part Number(s):
RC120H, A-RC120H, A-RC120H-AI
New aftermarket replacement part - not remanufactured, not used.
