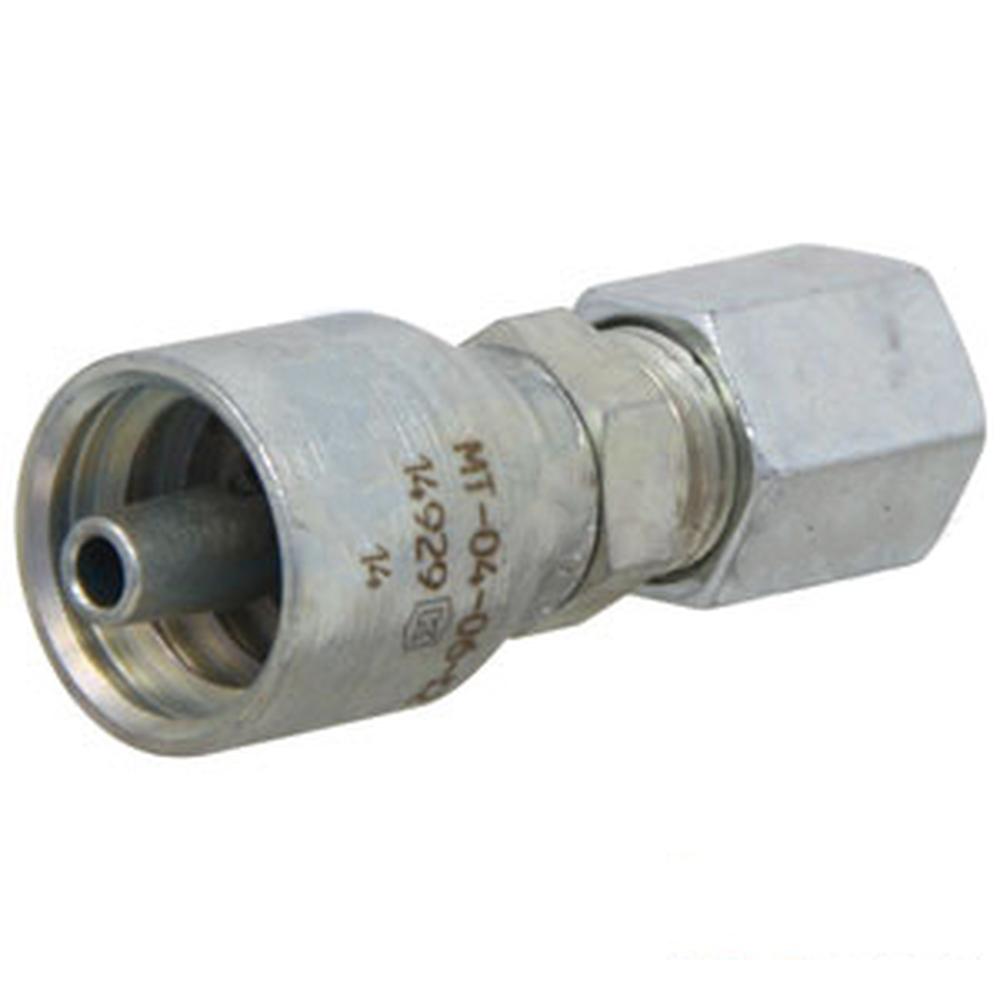

A-MT-04-06-K2-AI (HW-MT) Flareless Compression SAE J514

One New Aftermarket Replacement MT-04-06-K2-AI Flareless Compression Hydraulic Hose Fitting

This male flareless compression hose end fitting connects 1/4 in. hydraulic hose to a 3/8 in. tube end without requiring the tube to be flared. Flareless compression fittings connect most types of metal hydraulic tubing without needing to flare the tube ends -- ideal for heavy wall tubing and for repair situations when flaring tools are not available. The K2 designation indicates a compact bite-the-wire style that includes a nut and cutting ring (sleeve). SAE J514 covers complete general and dimensional specifications for flareless type hydraulic tube fittings intended for general application in hydraulic systems on industrial equipment and commercial products.

Specifications

• Style: Male Flareless Compression with Nut and Cutting Ring (K2 Compact)
• Hose End Dash Size: -04 (1/4 in.)
• Tube/Thread End Dash Size: -06 (3/8 in.)
• Standard: SAE J514 Flareless
• Configuration: Straight

Compatible Hose Types

Recommended hose types: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, and KURT TUFF Hose.

Compatible Equipment

Universal hydraulic hose end fitting suitable for agricultural equipment, construction equipment, industrial machinery, and mobile hydraulic systems requiring a 1/4 in. hose to 3/8 in. flareless tube connection per SAE J514.

Replaces Part Number(s):

A-MT-04-06-K2-AI, MT-04-06-K2

Aftermarket Interchange Numbers

MT-04-06-W, KTMT-04-06-W

New aftermarket replacement part - not remanufactured, not used.
