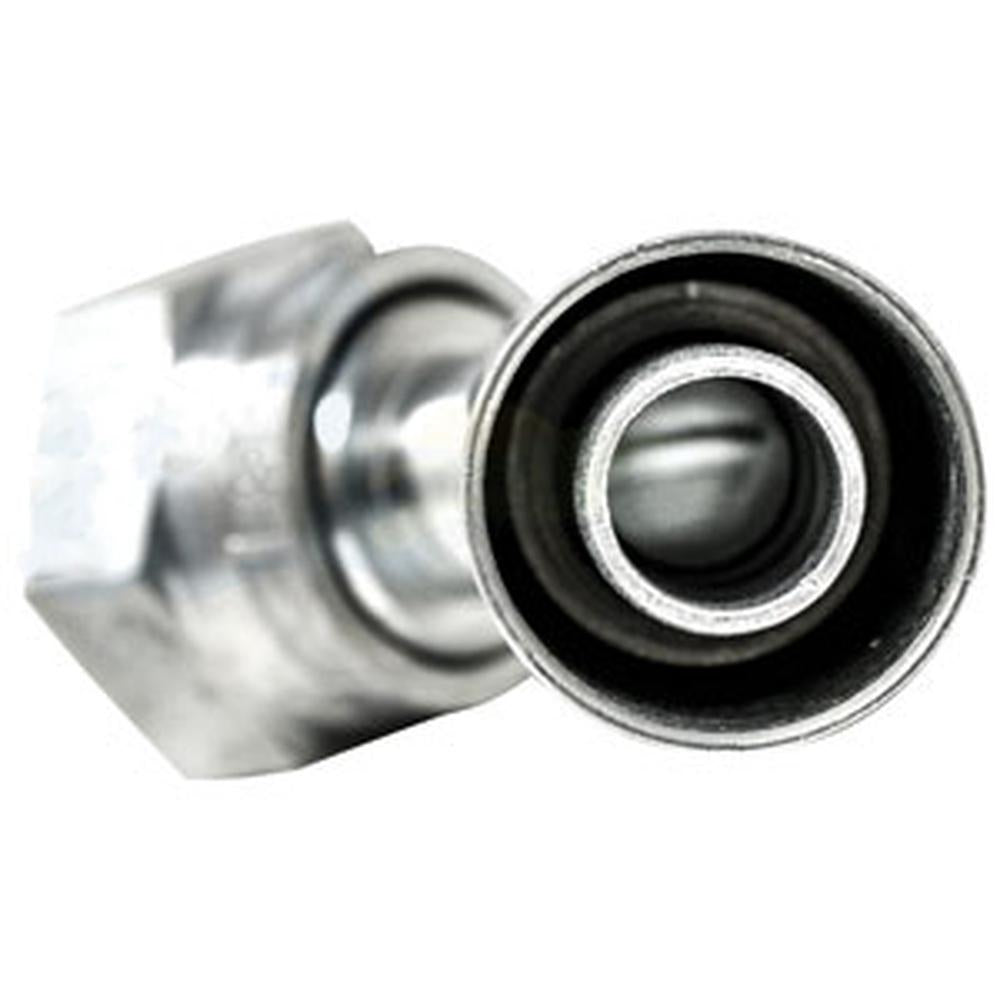

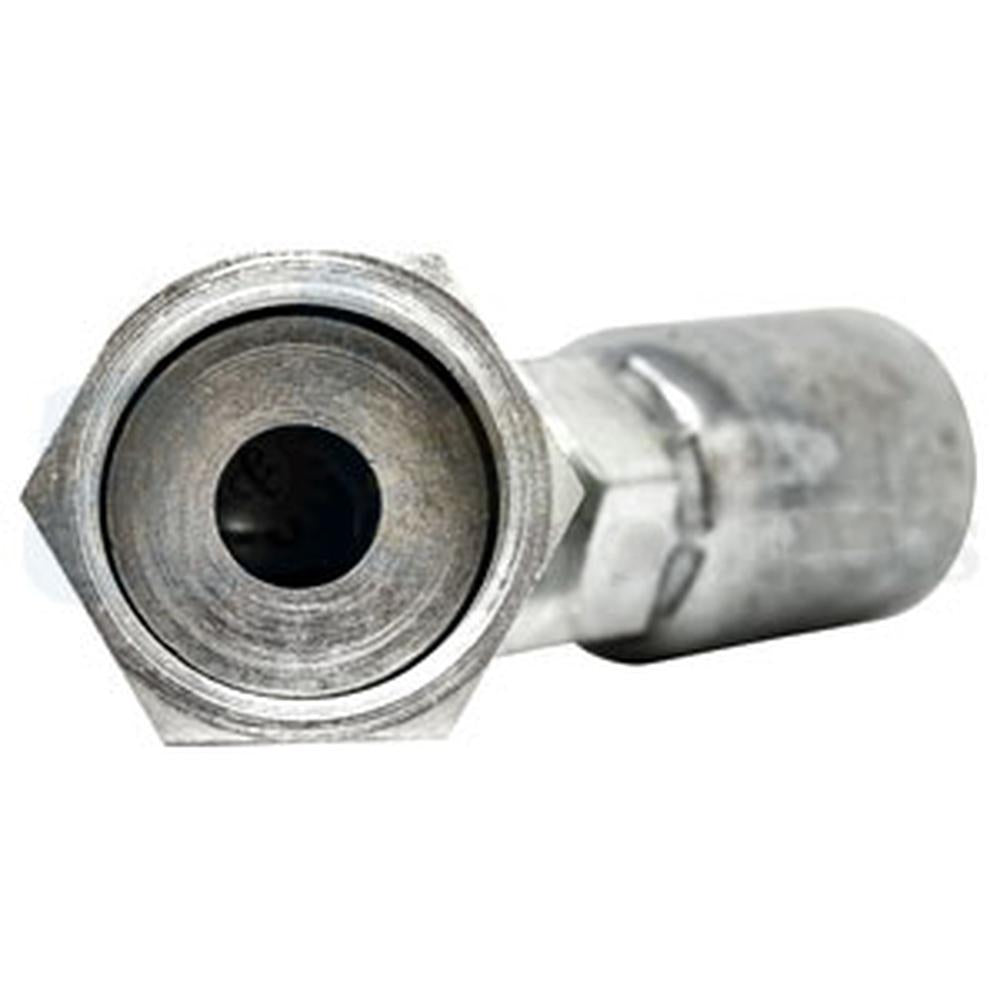

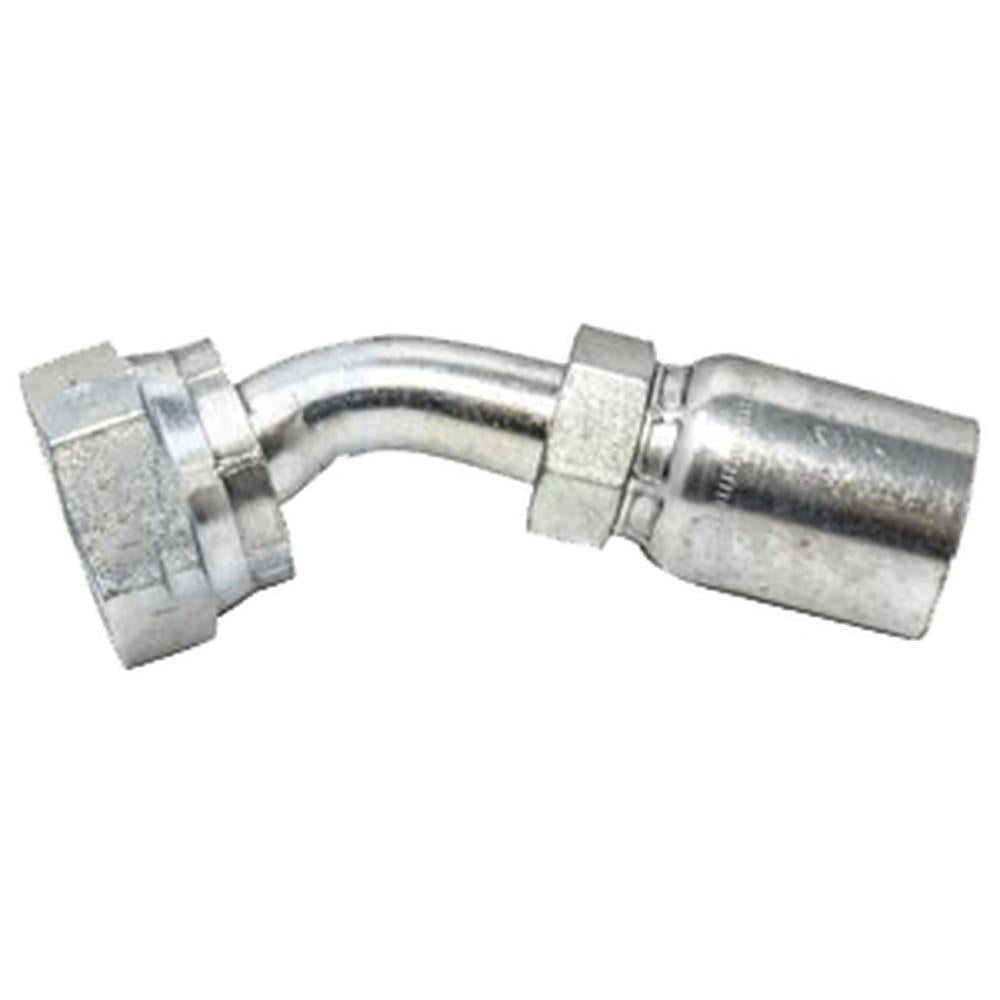

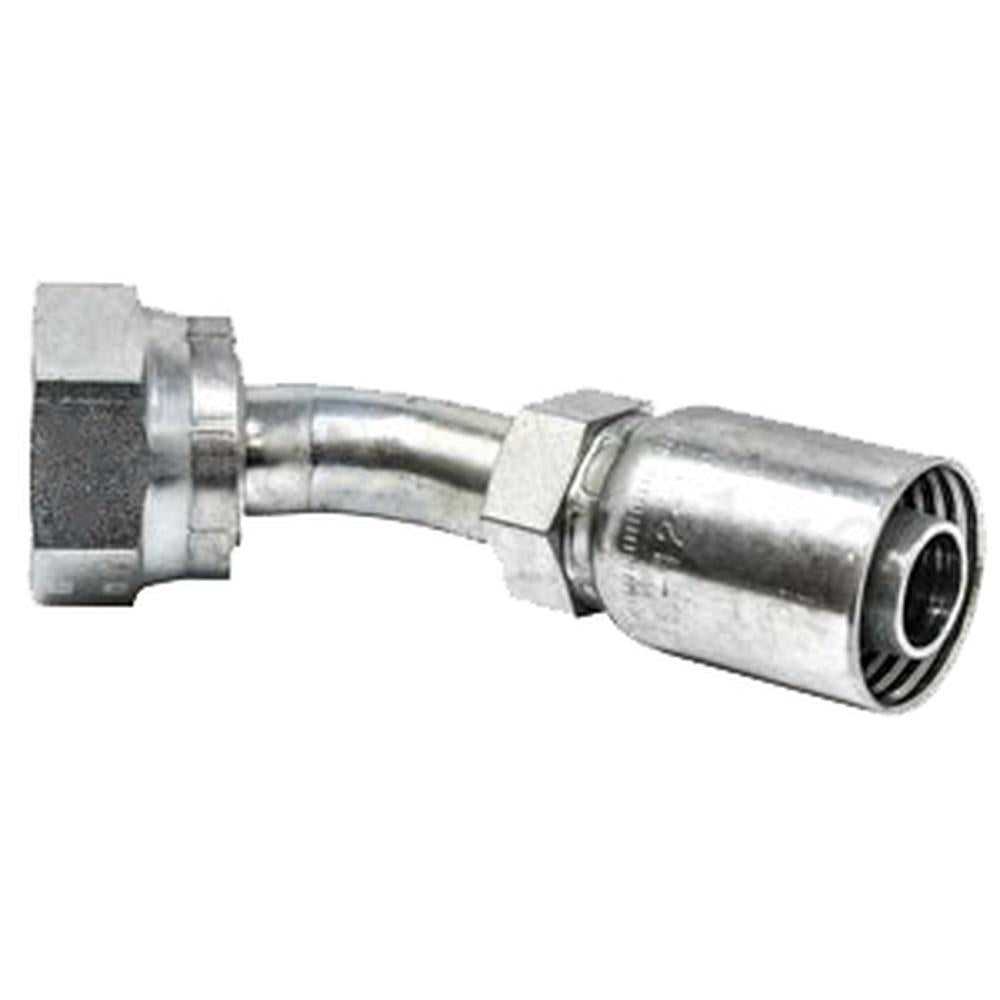

A-FFX45-12-16-AI (HC-FFX45) Female Seal Lok - Swivel - 45� Elbow
A-FFX45-12-16-AI (HC-FFX45) Female Seal Lok - Swivel - 45� Elbow
Regular price
$80.30 USD
Regular price
Sale price
$80.30 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Female Seal-Lok Swivel 45-Degree Elbow Hydraulic Crimp Fitting
This HC-FFX45 series Female O-Ring Face Seal (ORFS) swivel fitting features a 45-degree elbow design for use in hydraulic hose assemblies where routing space is limited. Part number A-FFX45-12-16-AI connects 3/4-inch (dash-12) hydraulic hose to a 1-inch ORFS female swivel thread end, providing a leak-resistant, rotatable connection that simplifies installation and service on high-pressure hydraulic lines used in agricultural, construction, and industrial equipment.
Specifications
- Hose ID: 3/4 inch (dash -12)
- Thread End: 1-inch ORFS Female Swivel (dash -16)
- Nominal Thread Size: 1-7/16 - 12
- Elbow Angle: 45 degrees
- Connection Type: O-Ring Face Seal (ORFS) - Female Swivel
- Series: HC-FFX45
Interchange / Replaces Part Number(s)
FFX45-12-16, 12U-L76 (Weatherhead)
New aftermarket replacement part - not remanufactured, not used.
