A-FFX-16-20-AI (HC-FFX) Female Seal Lok - Swivel - Straight - Short

One New Aftermarket Replacement HC-FFX Female Seal-Lok Swivel Straight Short Hydraulic Hose End Fitting

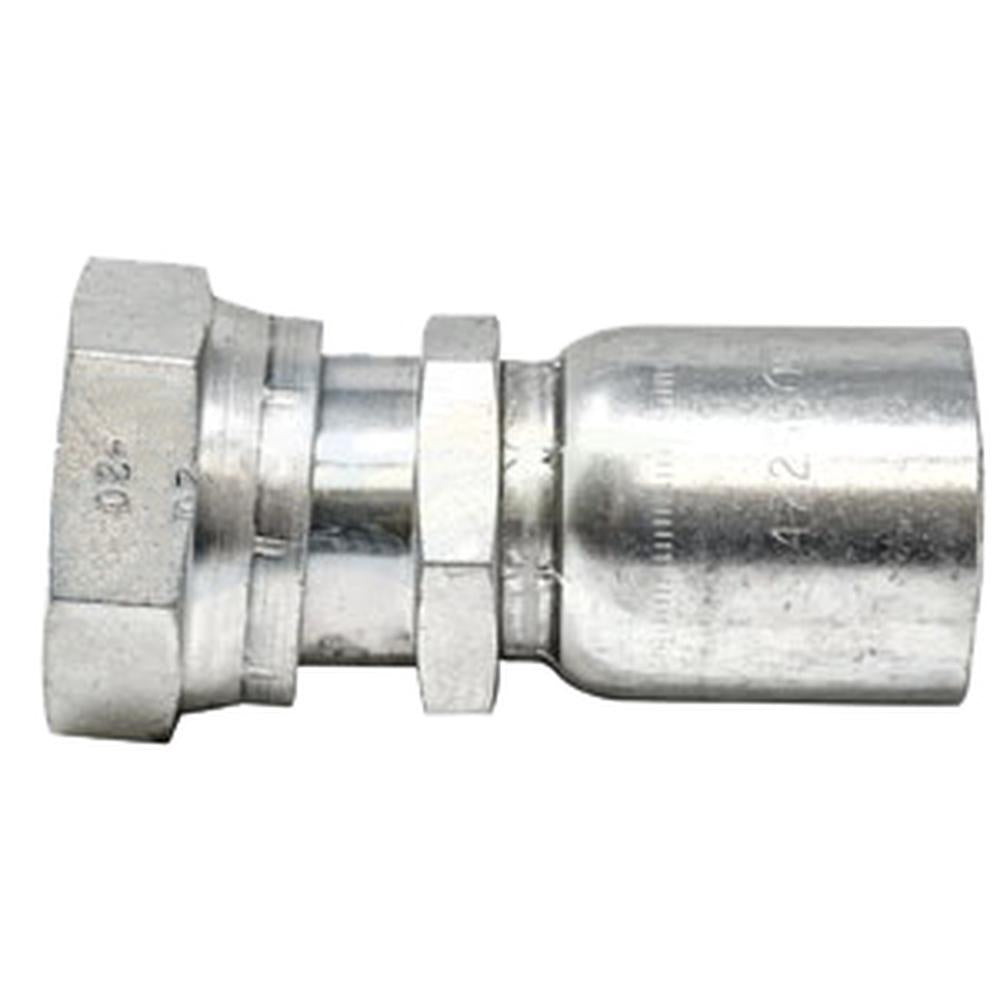

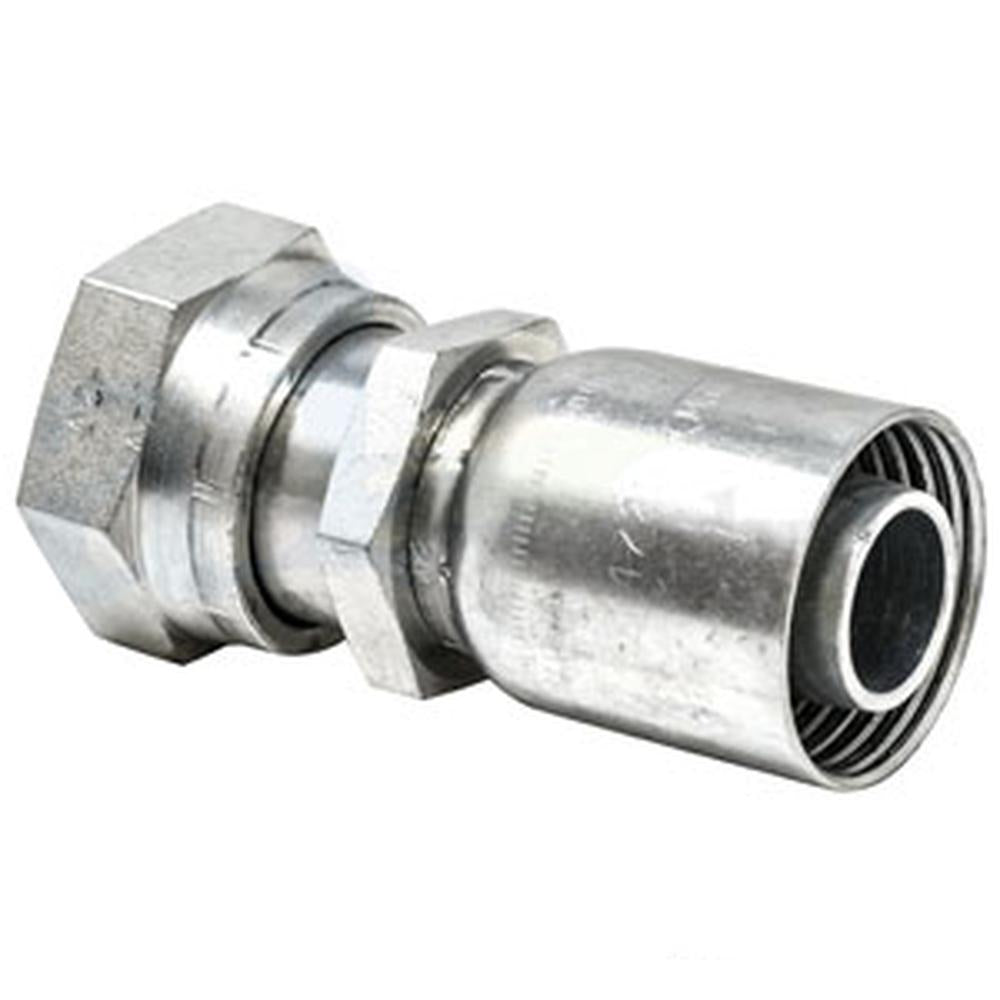

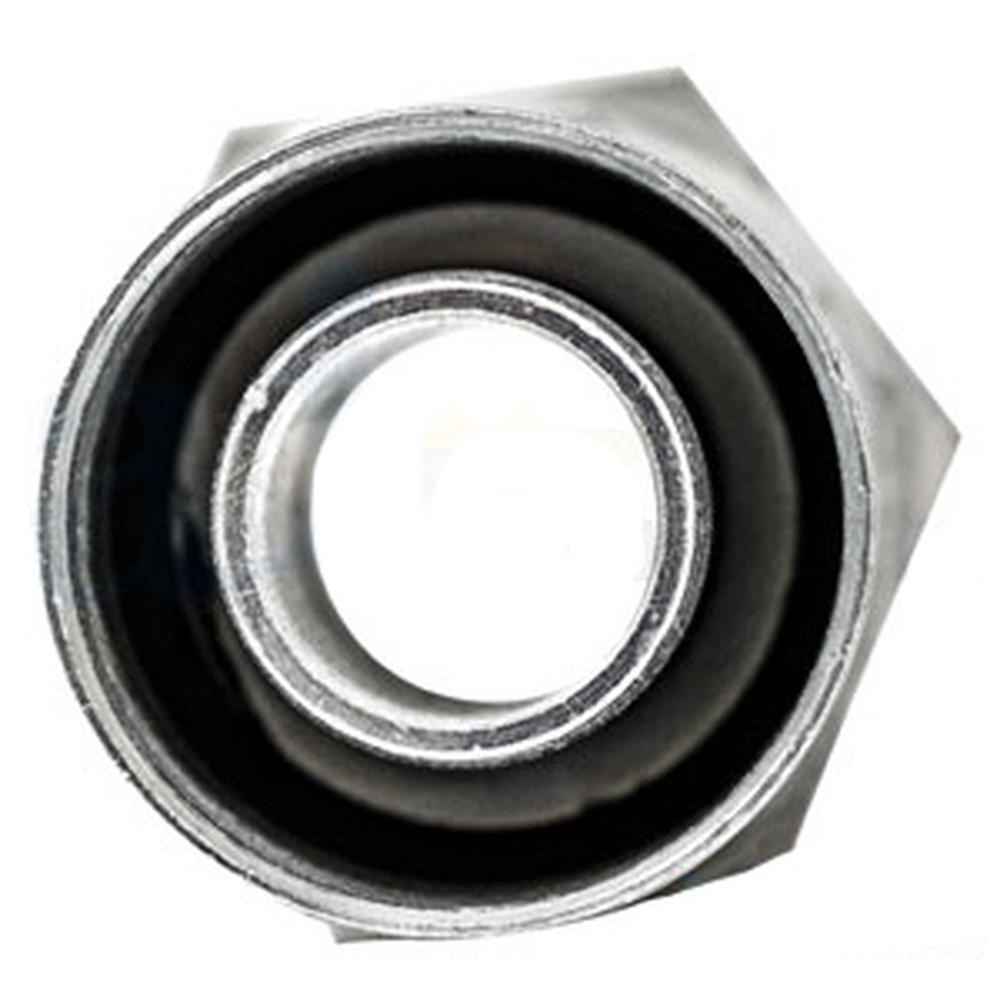

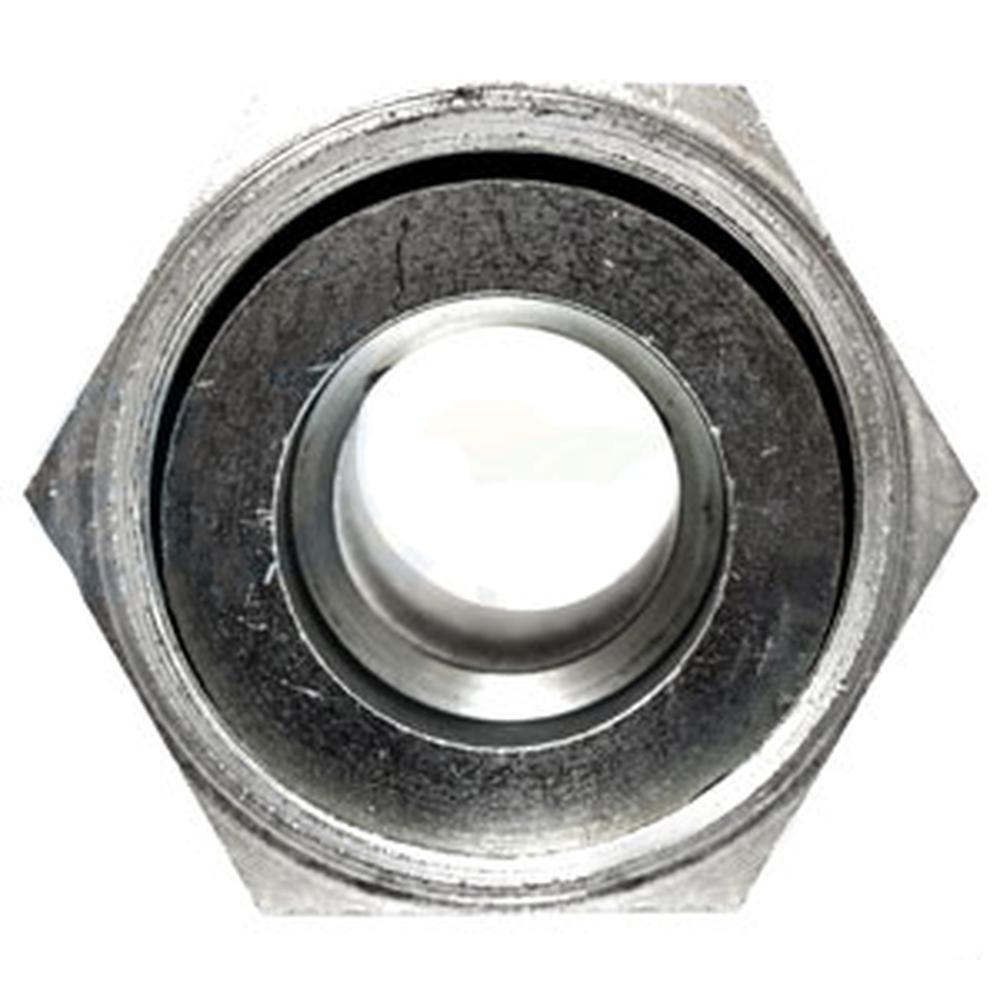

This HC-FFX series Female Seal-Lok (O-Ring Face Seal / ORFS) swivel straight short crimp fitting is a jump-size hose end designed for high-pressure hydraulic systems. It connects a 1" (dash -16) hose ID to a 1-5/16" (dash -20) ORFS female swivel port, forming a leak-resistant seal via an O-ring compressed against a flat face -- no metal deformation required. The swivel nut design allows for easy alignment and installation without twisting the hose. Part number A-FFX-16-20-AI.

Specifications

• Fitting Type: Female O-Ring Face Seal (ORFS) / Seal-Lok -- Swivel, Straight, Short
• Series: HC-FFX (jump size)
• Hose Inside Diameter: 1" (dash -16)
• Thread Size: 1-11/16 x 12 ORFS
• Dim A: 1.000"
• Dim B: 3.603"
• Dim C: 1.869"
• Dim D: 1-5/8"
• Dim E: 1-7/8"
• Compatible Hose Types: SAE 100R2, 100R16, 100R17, 100R1, 100R3

Compatible Applications

HC Series Seal-Lok: Female, Swivel, Straight -- fits agricultural, construction, and industrial equipment hydraulic hose assemblies using 1" hose with a 1-5/16" (-20) ORFS port connection.

Replaces Part Number(s):

A-FFX-16-20-AI, A-FFX-16-20

Aftermarket Interchange Numbers

Dayco HY16-200FT, Weatherhead 16U-S80, 1JSHY-20-16

New aftermarket replacement part - not remanufactured, not used.
