A-FFX-10-08-W (HW-FFX) Female "Seal-lok" Swivel Straight
A-FFX-10-08-W (HW-FFX) Female "Seal-lok" Swivel Straight
Couldn't load pickup availability

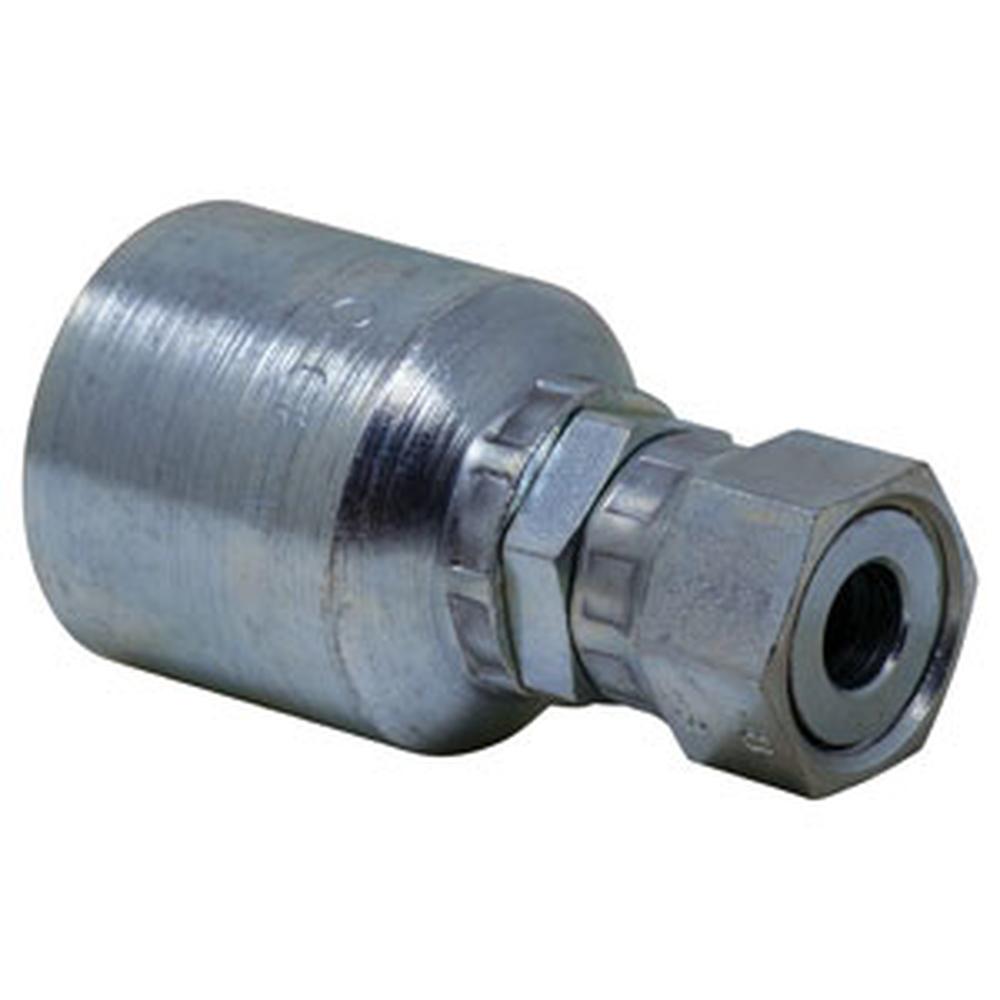

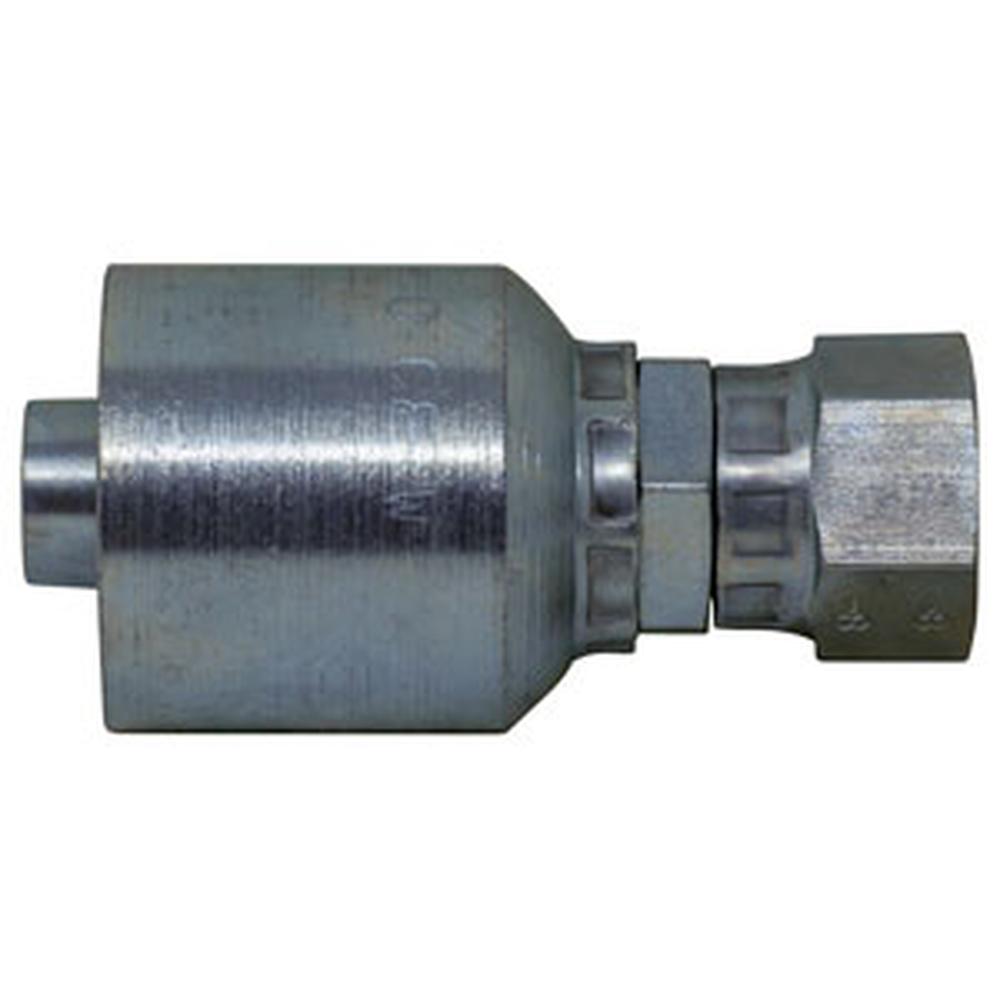

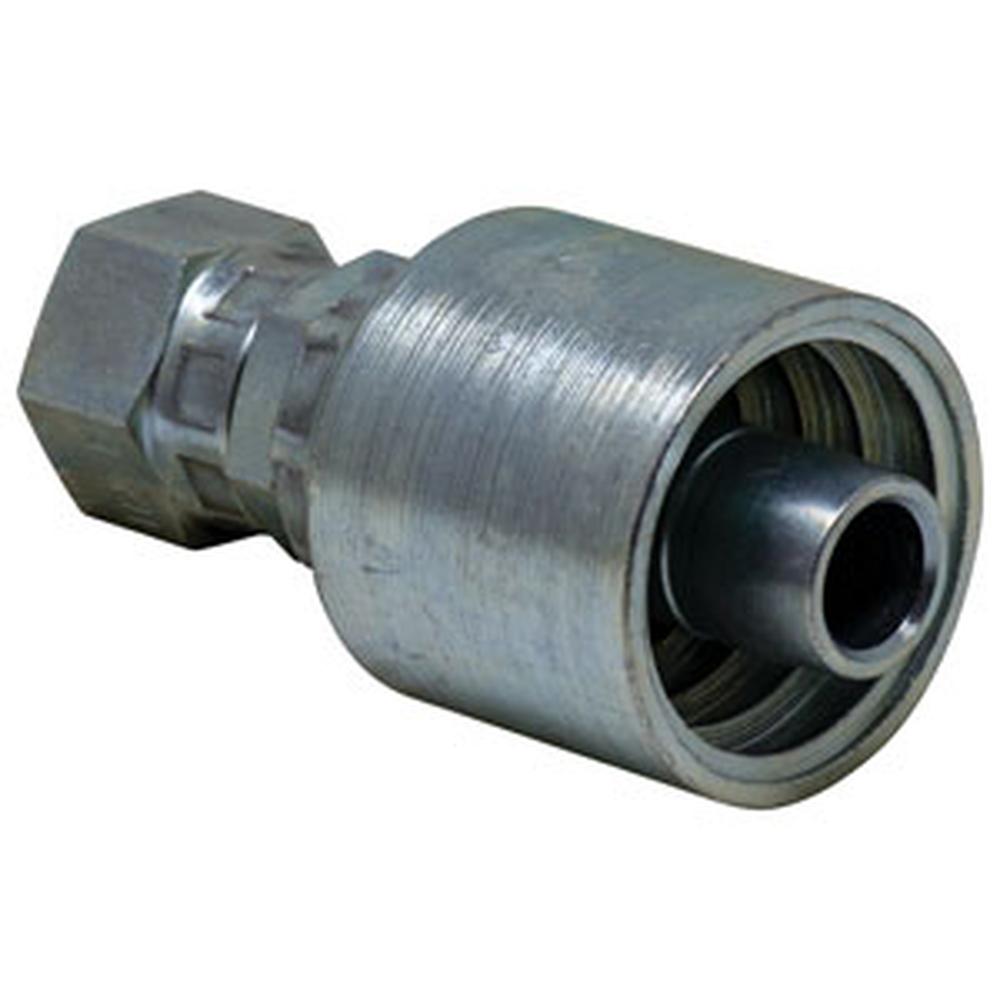

One New Aftermarket Replacement HW-FFX Female Seal-Lok Swivel Straight Crimp Fitting
This HW Series Female Seal-Lok (O-Ring Face Seal / ORFS) swivel straight crimp fitting connects 5/8" hydraulic hose to a 13/16-16 male O-ring face seal port. The swivel design allows the hose end to rotate for easier installation and alignment in tight hydraulic plumbing configurations. Commonly used on agricultural tractors, construction equipment, and other hydraulic systems requiring a leak-free face seal connection.
Specifications
- Part Number: A-FFX-10-08-W
- Series: HW-FFX (HW Series Seal-Lok, Female, Swivel, Straight)
- Hose Inside Diameter: 5/8"
- Thread Size: 13/16-16 (O-Ring Face Seal)
- Dim A: 0.625"
- Dim B: 3.460"
- Dim C: 1.360"
- Dim D: 7/8"
- Dim E: 15/16"
- Connection Type: Crimp-On
Compatible Applications
HW Series Seal-Lok crimp fittings are widely used in hydraulic hose assemblies on Fits John Deere, Fits Case IH, Fits New Holland, and other major agricultural and construction equipment brands that use O-ring face seal (ORFS) hydraulic connections.
New aftermarket replacement part - not remanufactured, not used.
