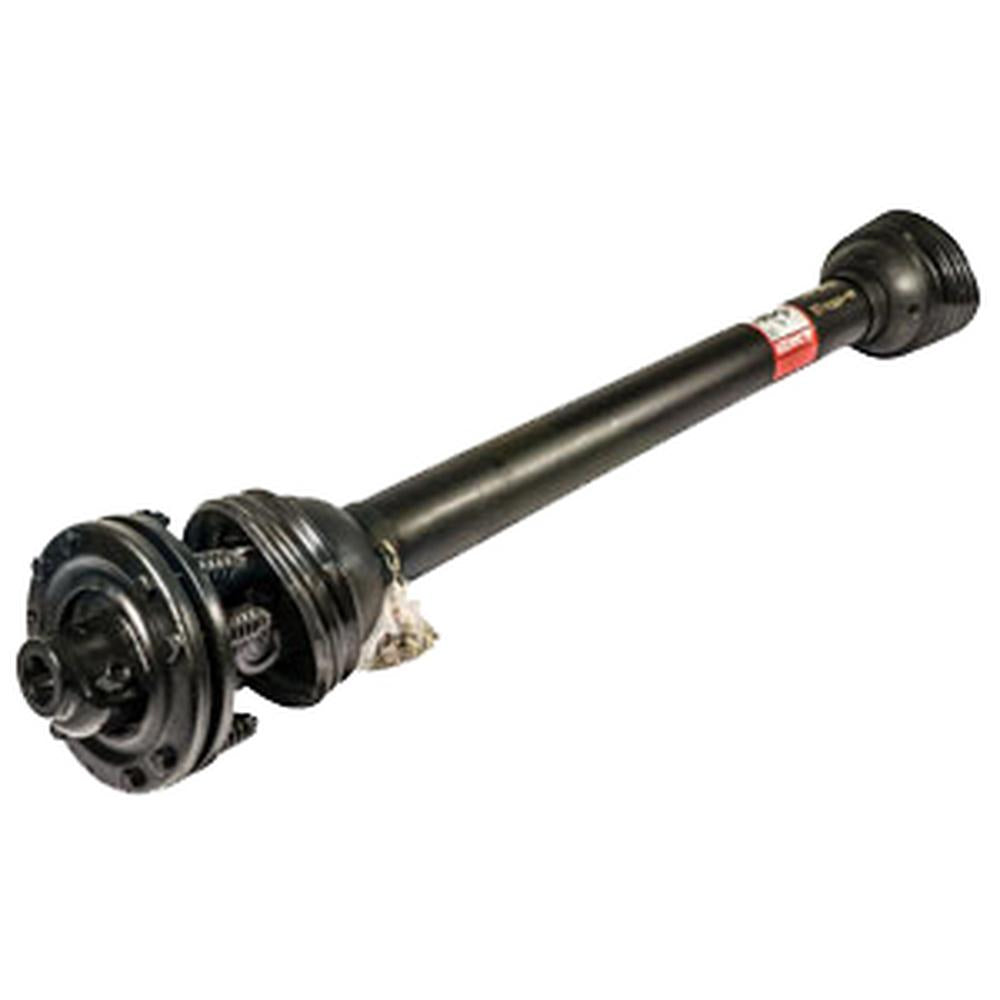

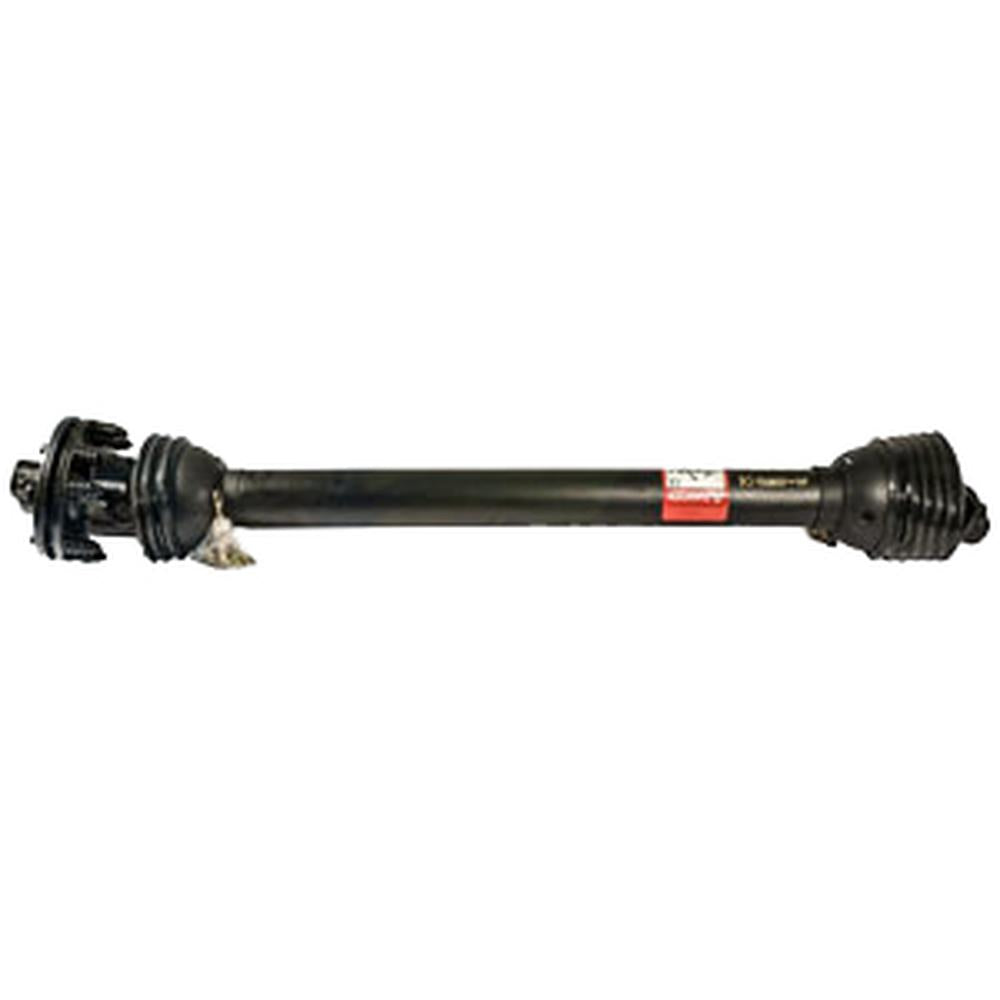

A-CS64416-AI Driveline; W/ 7.87" Friction Clutch
A-CS64416-AI Driveline; W/ 7.87" Friction Clutch
Regular price
$472.92 USD
Regular price
Sale price
$472.92 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Driveline; W/ 7.87" Friction Clutch

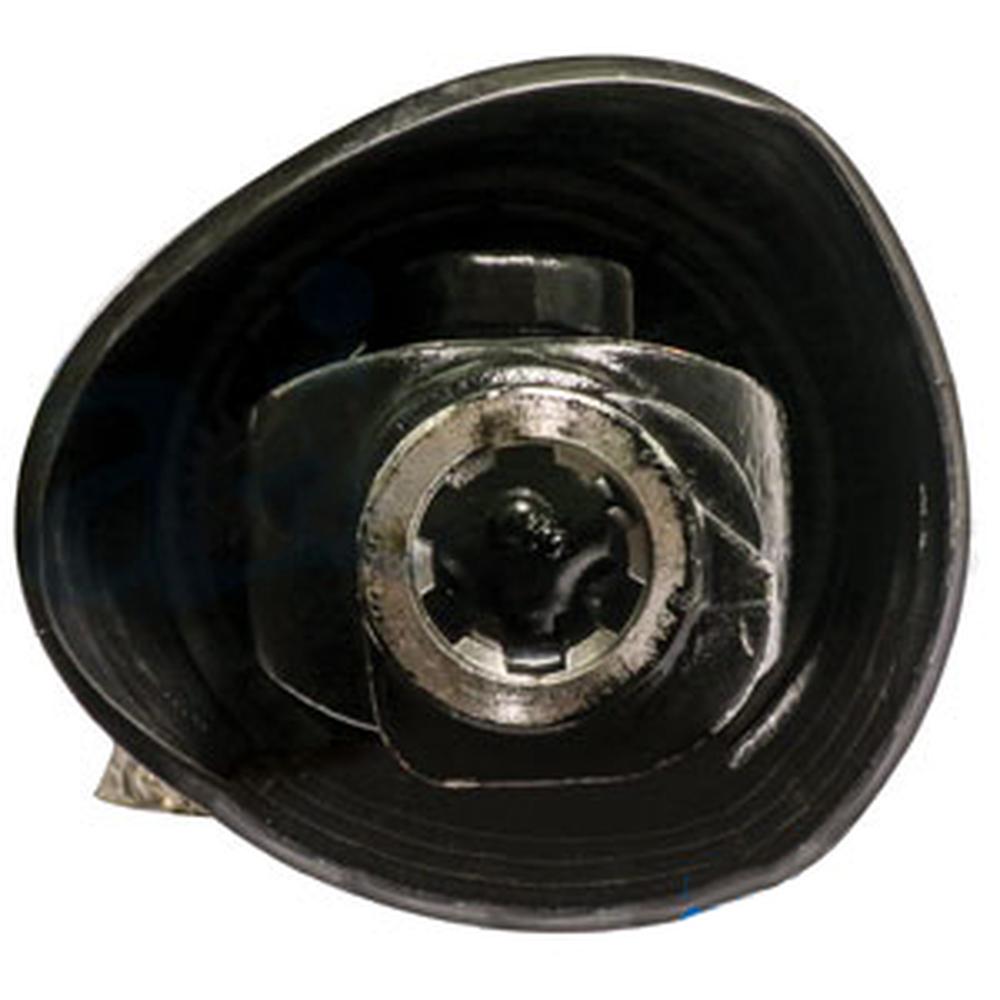

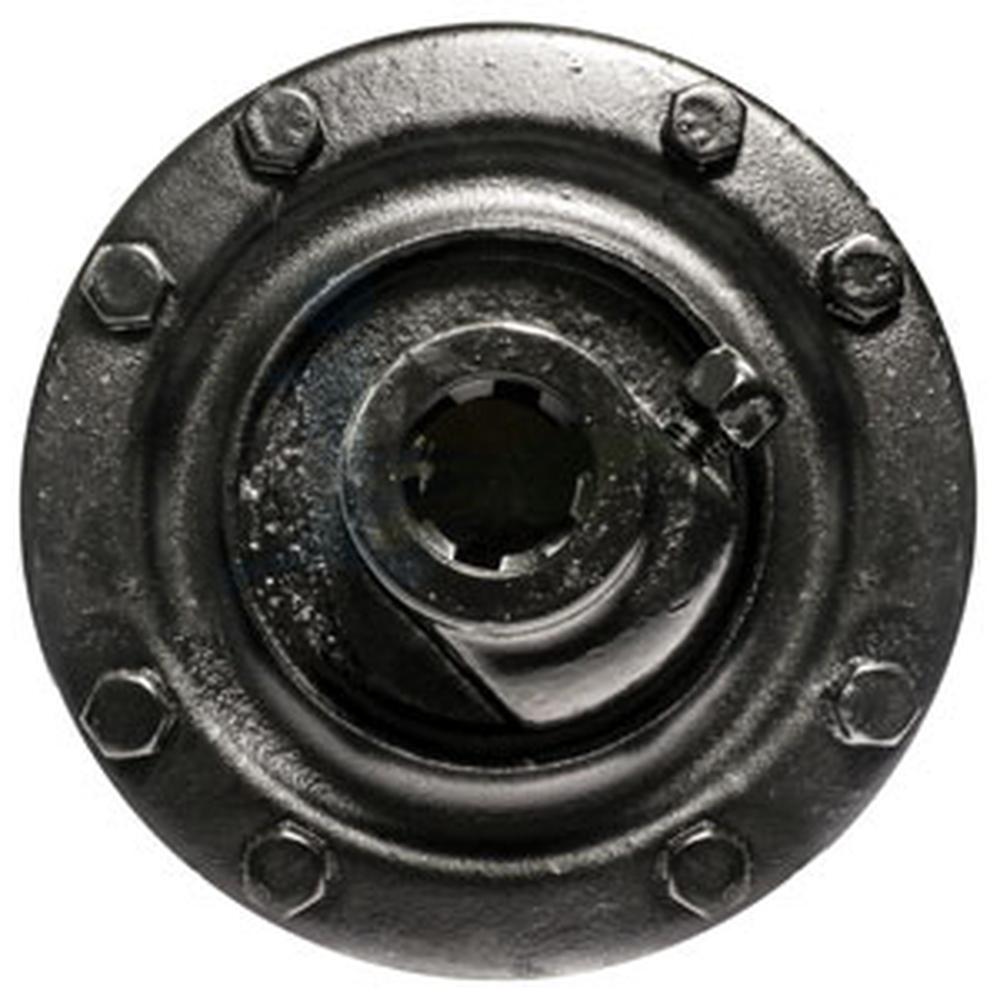

-New 100 Series size 6 Driveline with Friction Clutch. Driveline is rated as a category 4 HD (64 hp). The drivelines minimum C-to-C length is 44" (1120 mm), maximum length: 67" (1710 mm), and total collapsed length is 54" (1365 mm). The tractor end is 1-3/8" 6 spline yoke and the implement end is a 1-3/8" 6 spline FF2 7.87" friction clutch.
-It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficientoverlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- alternative to original part.
-C to C Max:1710 mm/ 67"
-C to C Min:1120 mm/ 44"
