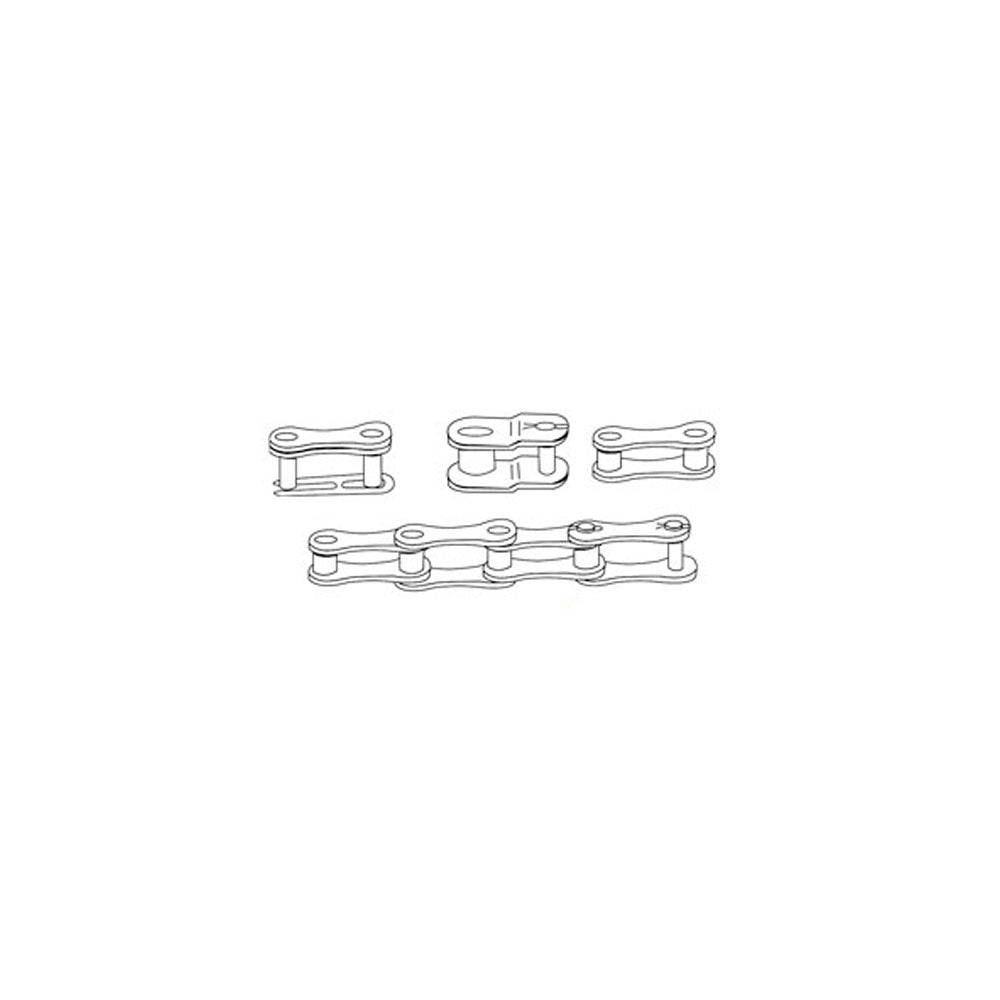

A-CL2060-AI 2060 Extended Pitch Connector Link (USA)

One New Aftermarket Replacement 2060 Extended Pitch Connector Link - USA-Made Timken Drives Chain

This 2060 extended pitch connector link (also called a master link) is used to join the ends of A2060 extended pitch roller chain, completing the loop for drive and conveyor applications. The spring clip style link is manufactured in the USA to ANSI B29.1 standards and features heat-treated carbon/alloy steel components for reliable performance. Compatible with A2060 double pitch roller chain used across agricultural equipment, material handling systems, and industrial conveyors. Note: Install spring clip with opening facing away from the direction of travel to prevent disengagement.

Specifications

• Chain Series: A2060 Extended Pitch (Double Pitch) Roller Chain
• Pitch Length: 1-1/2"
• Width: 1/2"
• Pin Diameter: 0.234"
• Link Plate Thickness: 0.094"
• Clip Type: Spring Clip
• Material: Carbon/Alloy Steel, Heat-Treated
• Standard: ANSI B29.1
• Country of Origin: USA

Compatible With

A2060 Extended Pitch Roller Chain - fits all standard A2060 double pitch roller chain used in agricultural, lawn and garden, and industrial conveyor applications across multiple equipment brands.

Replaces Part Number(s):

RCCLA2060 (Edcor), SW2060COUS (Fits John Deere), ACL2060, CL2060H, 108759, 673-CL2060

New aftermarket replacement part - not remanufactured, not used.
