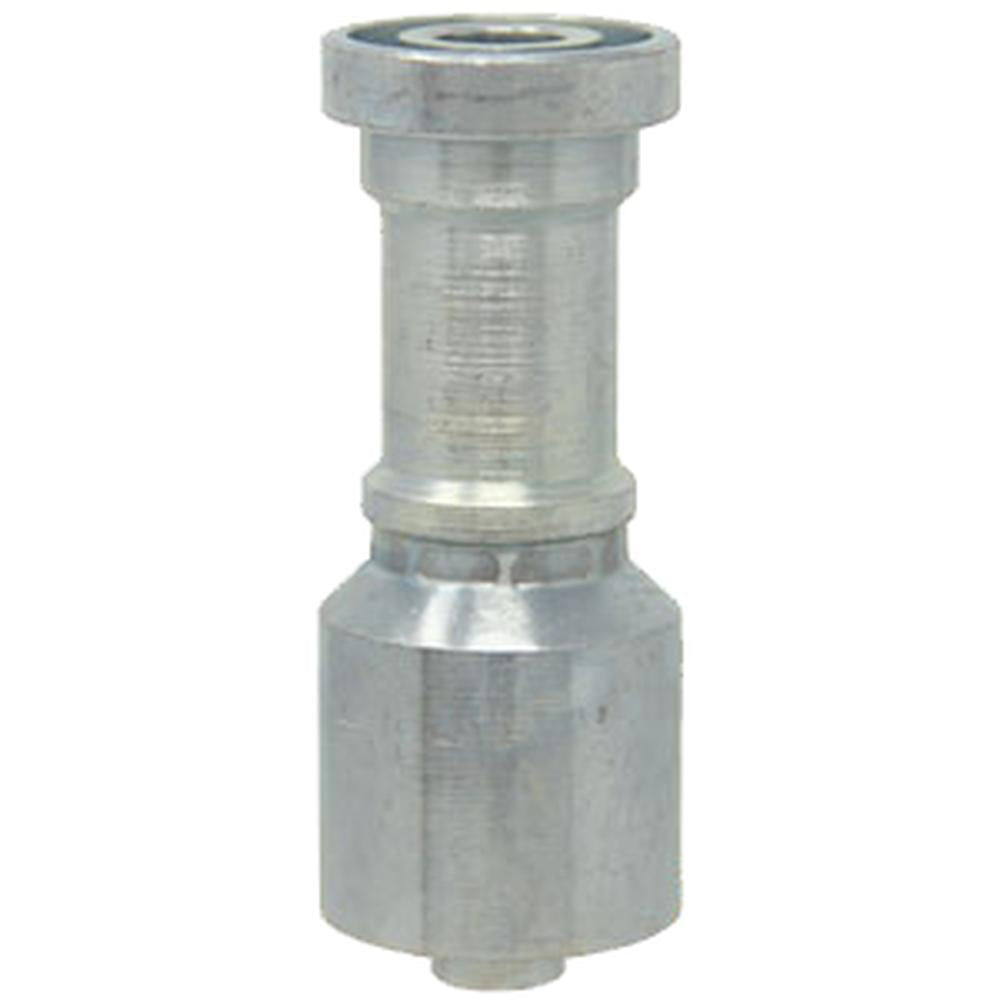

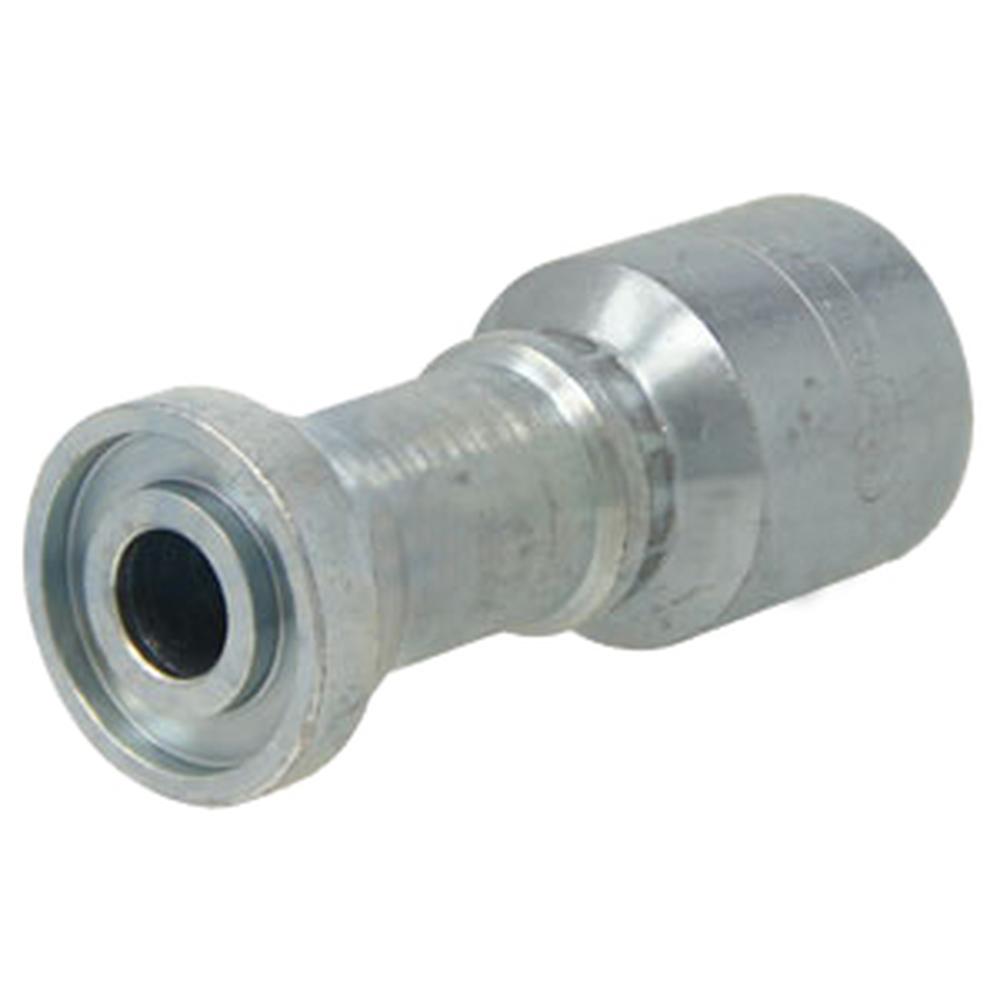

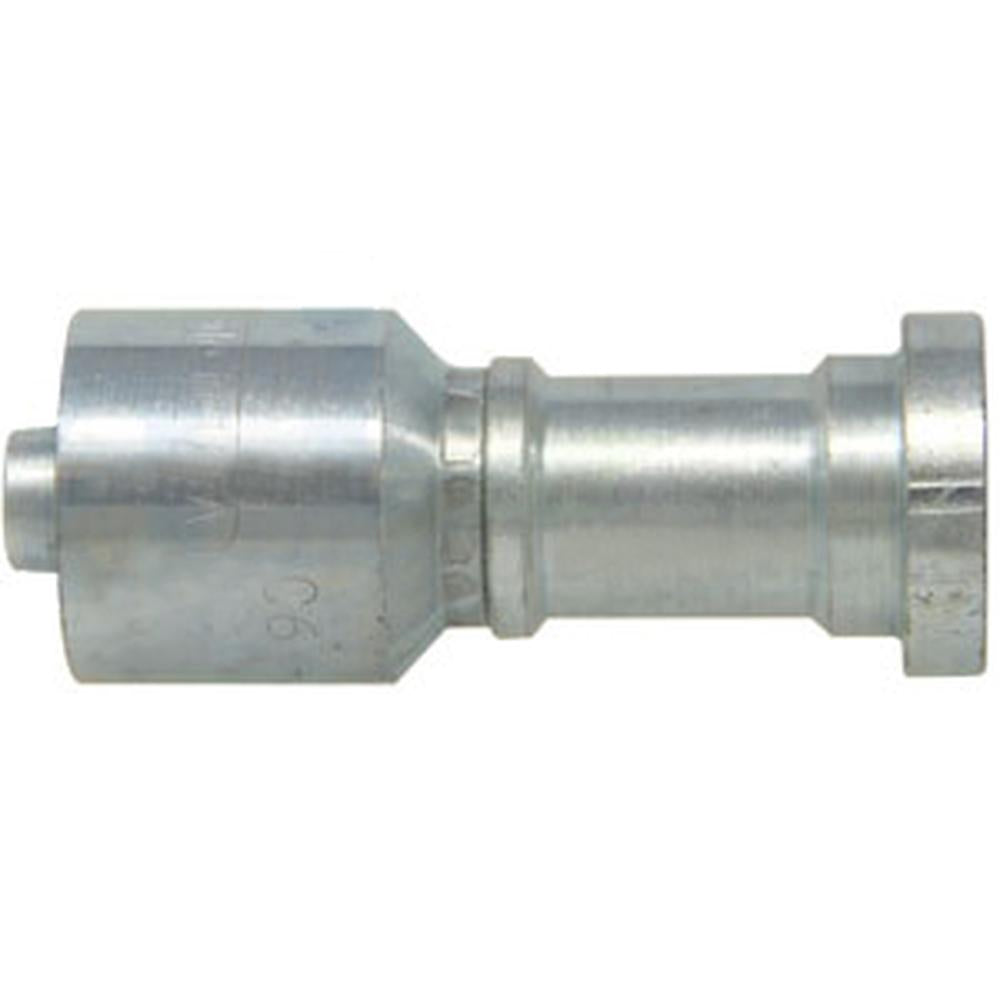

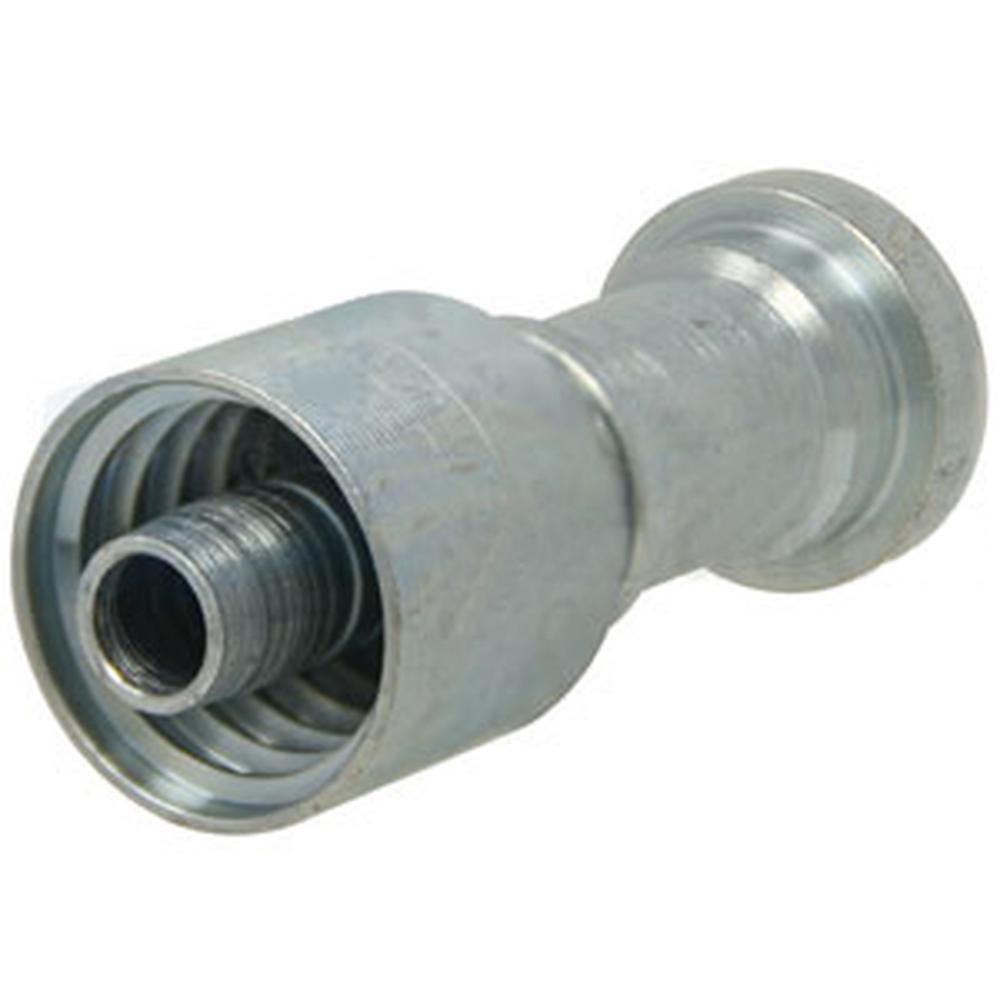

A-C61-08-08-W-AI (HW-C61) Code 61 Flange Head - Straight

One New Aftermarket Replacement Code 61 Flange Head - Straight Hydraulic Hose Fitting

This Code 61 (SAE J518 / ISO 6162) straight flange head fitting is a standard-pressure hydraulic hose end fitting designed for use in agricultural, construction, and industrial fluid power systems. The fitting features a grooved flange head that seals against a smooth-face female port via an O-ring, secured by four bolts in a rectangular bolt pattern. Part number A-C61-08-08-W-AI indicates a -08 hose end (1/2" hose I.D.) mating with a -08 Code 61 flange port (1/2" nominal port size), straight configuration.

Specifications

• Standard: SAE J518 Code 61 / ISO 6162
• Configuration: Straight
• Hose I.D.: 1/2" (Dash -08)
• Flange Port Size: 1/2" (Dash -08)
• Pressure Rating: Up to 3,000 PSI (Code 61 standard pressure series)
• Material: Carbon steel
• Seal Type: O-ring face seal
• Bolt Pattern: 4-bolt rectangular (SAE J518)

Compatibility

SAE J518 Code 61 fittings are widely used in agricultural tractors, combine harvesters, skid steers, excavators, loaders, and other heavy equipment hydraulic systems. Compatible with SAE 100R1, 100R2, 100R16, 100R17, and equivalent 1-wire and 2-wire braided hydraulic hoses. SAE J518 is interchangeable with ISO 6162, DIN 20066, and JIS B 8363 flange standards (note: bolt sizes may vary).

Aftermarket Interchange Numbers

HW-C61, C61-08-08-W, A-C61-08-08-W-AI

New aftermarket replacement part - not remanufactured, not used.
