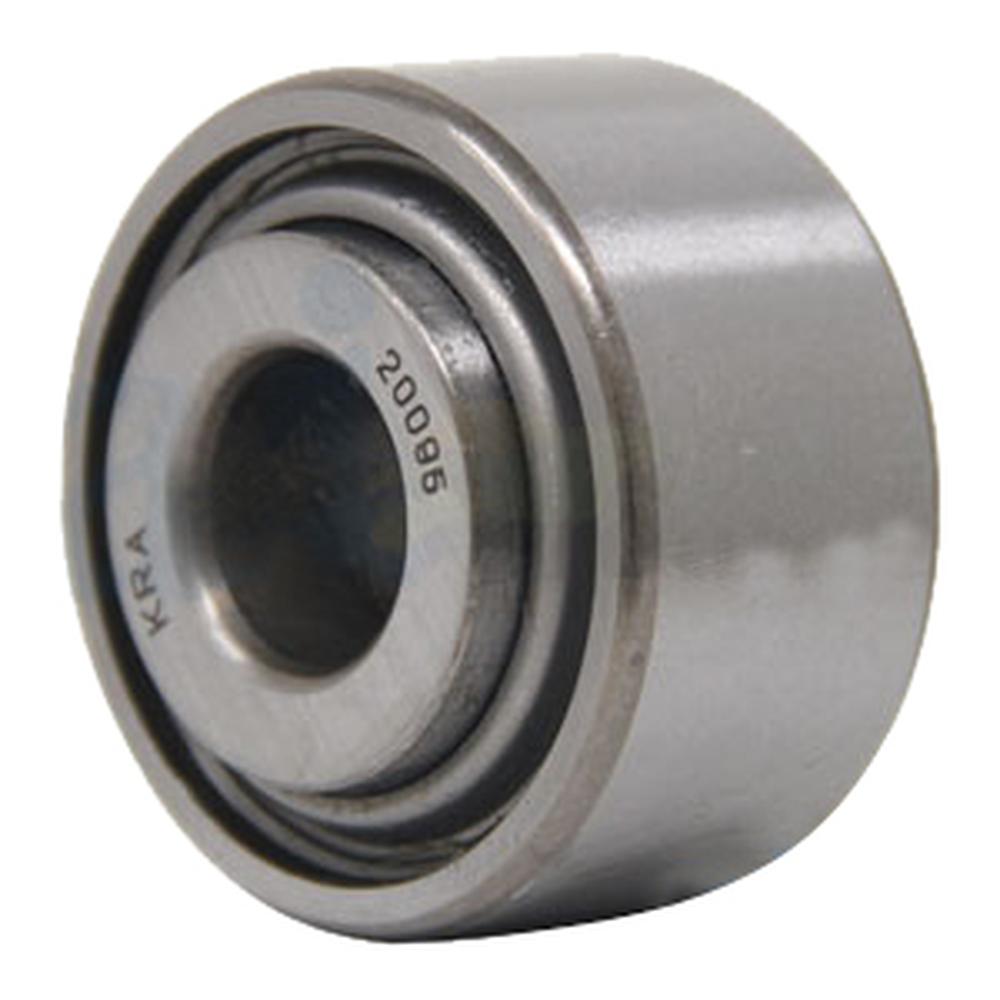

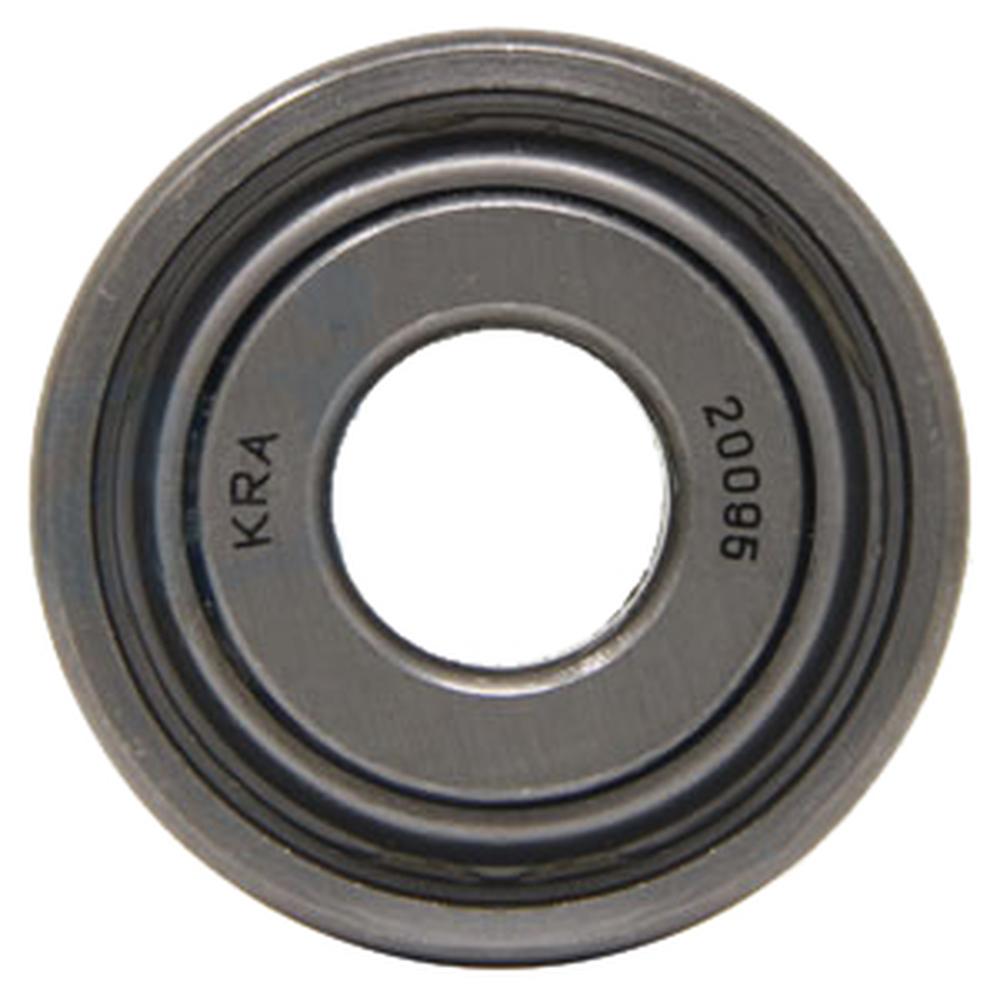

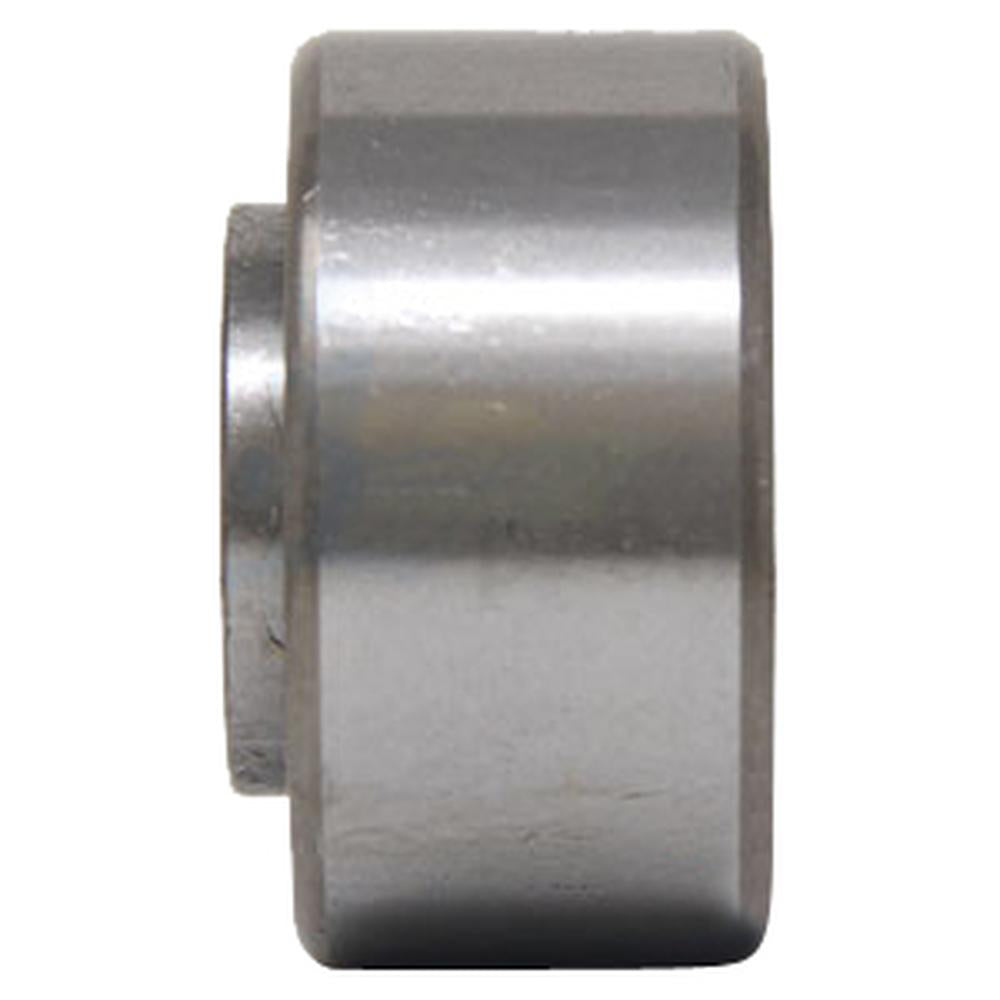

A-AA59196-AI Bearing, Double Row Ball
A-AA59196-AI Bearing, Double Row Ball
Couldn't load pickup availability
One New Aftermarket Replacement Double Row Ball Bearing for John Deere Planters and Drills
This double row angular contact ball bearing is used in the seed disc opener assembly on John Deere MaxEmerge XP planter row units. It is a direct aftermarket replacement for OEM part number AA59196, fitting a wide range of John Deere planter and drill models.
Specifications
- Type: Double Row Angular Contact Ball Bearing
- Inside Diameter: 0.630" (16 mm)
- Outside Diameter: 1.780" (45.21 mm)
- Inner Race Width: 1.02"
- Outer Race Width: 0.896"
- Weight: 0.44 lb
Compatible Models
John Deere Planters: 450M, 451R, 460M, 460R, 461R, 560M, 560R, 561R, 1010, 1530, 1535, 1700, 1700T, 1705, 1710, 1715, 1720, 1720 CCS, 1725, 1725 CCS, 1730, 1735, 1740, 1745, 1750, 1755, 1760, 1765, 1770, 1770NT, 1775, 1775NT, 1780, 1785, 1790, 1795, DB44, DB58, DB60, DB60T, DB66, DB80, DB88, DB90, DB120, DL12, DL16, DR8T, DR12, DR16, DR18, DR24 (all with XP Pro Row Units where applicable)
Replaces Part Number(s):
AA59196, A-AA59196, A-AA59196-AI
Aftermarket Interchange Numbers
5204PY3, 5204KRY2, K2EDD0165, ARU-K2E-DD0165
New aftermarket replacement part - not remanufactured, not used.
