A-86993462-AI Compressor

A-86993462-AI Compressor

$260.99 USD
$260.99 USD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement A/C Compressor for Case IH, New Holland, McCormick, Massey Ferguson, and More

This aftermarket replacement air conditioning (A/C) compressor is a direct-fit Sanden SD7H15-type unit designed for the cab climate systems of a wide range of agricultural tractors, combines, sprayers, crawlers, skid steers, wheel loaders, and construction equipment across Case IH (Case/International Harvester), New Holland, Steiger, McCormick, Massey Ferguson, Hesston, AGCO, Challenger, Ford/New Holland, Kubota, and New Idea platforms. Replaces OEM part number 86993462 and cross-references to numerous Case IH and New Holland supersession chains.

Specifications

  • Compressor Type: Sanden SD7H15

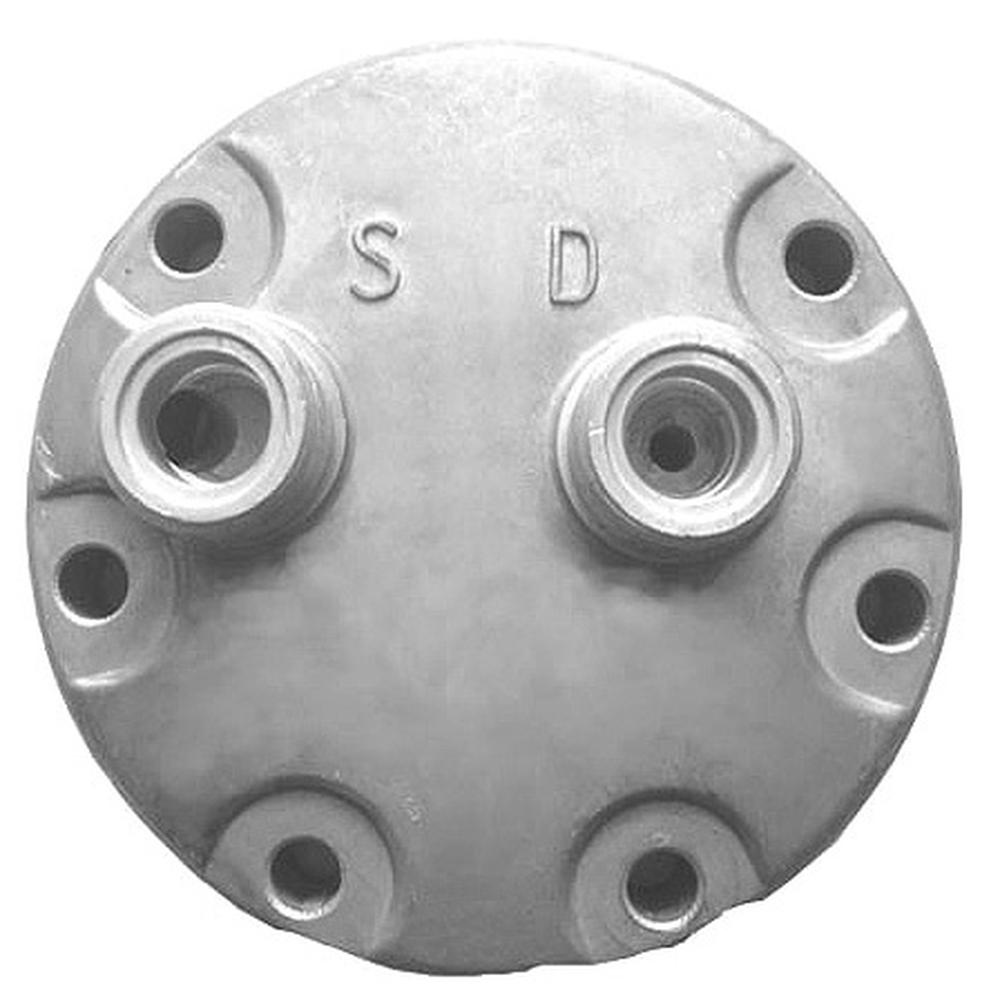

  • Cylinder Head: MD
  • Voltage: 12V
  • Pulley Grooves: 2
  • Clutch Diameter: 6 in.
  • Coil Position: 12:00
  • Mount Type: Ear
  • Fittings: Horizontal 1 in. Tube-O (O-ring 1 in. x 1 in.)
  • Refrigerant: R134A
  • Oil Type: PAG-100, 9.6 oz.

Compatible Models

Case IH Tractors: 3220, 3230, 4210, 4230, 4240, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8825, 8825HP, 8830, 8860, 8860HP, 8870, 8880, 8880HP, 8910, 8920, 8930, 8940, 8950, C70, C80, C90, C100, CS78, CS94, CS100, CS110, CS120, CS130, CS150, CVX120, CVX130, CVX150, CVX170, CVX1135, CVX1145, CVX1155, CVX1170, CVX1190, CVX1195, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110, CX140, MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC125, MC130, MC135, MTX110, MTX125, MTX140, MTX155, MTX175, MTX200, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240, MX270, STX275, STX280, STX325, STX330, XTX215, ZTX230, ZTX260, ZTX280, 9210 (SN JEE0031850 and above), 9220 (SN JEE0031850 and above), 9230 (SN JEE0031850 and above), 9240 (SN JEE0031850 and above), 9250 (SN JEE0031850 and above), 9260 (SN JEE0031850 and above), 9270 (SN JEE0031850 and above), 9280 (SN JEE0031850 and above), 9310, 9330, 9340, 9345, 9350, 9365, 9370, 9380, 9390, 9420, 9425, 9430, 9435, T9010, T9020

Case IH Combines: 1620, 1622, 1640, 1644, 1660, 1666, 1670 Hillside, 1680, 1682, 1688, 1800, 1822, 1844, 2022, 2044, 2055, 2144, 2155, 2166, 2188, 2344, 2366, 2377, 2388, 2555, 2577, 2588, 5088, 5840, 5850, 6088, 7088, 8200, 8250, 8250S, 8400, 8450, 8500, 8550, 8550S, 8820, 8825, 8830, 8850, CPX420, CPX610, CPX620

Case IH Sprayers: SP80, SP85B, SP110, SP115B, SP115C, SP165, SP185B, SP185C, SPX3150 Patriot, SPX3185 Patriot, SPX3200, SPX3200 Patriot, SPX3200B Patriot, SPX3310, SPX3310 Patriot, SPX4260 Patriot, SPX4410, 3150 Patriot, 3185 Patriot, 3210 Patriot, 4420 Patriot, FLX3010, FLX3300B, FLX3330B, FLX3510, FLX4010, FLX4300, FLX4375, FLX4510

Case IH Backhoes / Construction: 580 Super K, 580L, 580M, 580SL, 580SM, 585, 590, 590L, 590SL, 590SL Series II, 590SM, 590 Turbo, 595, 621, 621B, 621C, 621D, 650G, 650H, 650K, 650L, 680L, 721, 721B, 721C, 721D, 750K, 750L, 780D, 820, 821, 821B, 821C, 850E, 850G, 850H, 850K, 850L, 885, 895, 895XL, 921, 921B, 921C, 956XL, 995, 995XL, 1056XL, 1150E, 1155E, 1150G, 1150H, 1150K, 1255XL, 1455XL, 1650L, 570LXT, 570LXT II, 570LXT Series II, 570MXT

Case IH Skid Steers: 85XT, 90XT, 95XT

New Holland Tractors: TJ275, TJ280, TJ325, TJ330

New Holland Crawlers/Dozers: D75, D75B, D85, D85B, D95, D95B

New Holland Loaders: LV80, LW110.B, LW130.B, U80

New Holland Combines: 1666, TX60, TX62, TX63, TX64, TX65, TX66, TX68, TX32, TX34, TX36

New Holland Windrowers/Swathers: 8820, 8825, 8825HP, 8830, 8840, 8860, 8860HP, 8870, 8880, 8880HP, WR9725

New Holland Cotton Harvesters: 6088, 7088, CP690

Steiger Tractors: 220, 220 XL, 220XL, 225 Magnum, 240 Magnum, 280, 330, 335, Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 220, Magnum 225, Magnum 240, Magnum 250, Magnum 260, Magnum 310, 180 Magnum, 190 Magnum, 200 Magnum, 210 Magnum, 220 Magnum, QUADTRAC

Massey Ferguson Tractors: 8200, 8400, 8450, 8500, 8550, 8820, 8830, 8910, 8920

McCormick Tractors: MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC125, MC130, MC135, MTX110, MTX125, MTX140, MTX155, MTX175, MTX200

AGCO / Challenger Tractors: A8000, A8800, Challenger MT series

Hesston / Hesston-Fiat Windrowers: 8100, 8200, WR9725

Ford/New Holland Tractors: 8670, 8770, 8870, 8970

Kubota: See models metafield -- verify fitment before ordering.

Note: Case IH 9210, 9220, 9230, 9240, 9250, 9260, 9270, and 9280 series tractors require serial number JEE0031850 and above. Verify serial number before ordering for these models.

Replaces Part Number(s):

86993462, 86993462R, 86983967, 86983967R, 86992613, 47109148, 47050714, 47773024, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 199755C3, 1990755C3, 1990760C1, 1977958C1, 1977959C1, 1343925C1, 194121A1, 194121A1COMPRESSOR, 97179C2, 97204C1, 97273C2, 83934C91, 700712705, 700713317, B509660, AG325732, AMX10125, 1-34-684-458, 4478, 4609, 8804478NEW, U4478, U4609, 2025220010, 20252-20010, 500-7000, 500-7005

Aftermarket Interchange Numbers

ACA10-0004 (aftermarket cross-reference)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

2388, 3210 Patriot, 8860HP, 5240, T9020, 2022, SPX3150 Patriot, 7230, D95B, 1682, FLX3330B, 8500, MX135, X60.50, WR9725, 956XL, Magnum 220, 921B, SP80, 750L, TJ325, MX110, 7240, 3020 Titan, MX120, 2577, 7120, 220 Magnum, 695, 9310, 750K, 3520 Titan, FLX4510, 850K, 7088, 685, SP165, 8200, 995XL, A8000, 885, 2166, 8860, U80, 1155E, SP85B, XTX215, 8850, CVX1145, CPX620, 7140, D75, MX180, 1255XL, 8110, CX100, CX95, MC100, C100, 580L, 921, 590SL, 680L, 9390, 1644, Magnum 250, 8250S, 1150E, SP115C, MTX200, MX90C, 850E, SPX4260 Patriot, C80, 1666, 8550, 90XT, CS110, 625, Magnum 310, Magnum 200, MX220, 1455XL, 585, CVX120, 650H, 595, 8825, 570MXT, 5230, CS120, 721, CVX1170, FLX3510, 7150, MX80C, MC105, Magnum 260, 335, W110TC, 895, TJ330, 620, 420, 1800, 1650L, CX105, 721B, 9345, 821G, SPX3185 Patriot, 6088, CX60, 855E, 8400, Magnum 240, FLX3010, 1150K, SPX3200 Patriot, SPX3310 Patriot, MC90, CS130, 921C, 8250, C70, 9220, CX50, 2555, 5220, 2344, 330, CS94, 590SL Series II, 1844, 9230, 9210, CS150, 621D, 4210, 895XL, 5840, 5088, 9250, MC120, CVX1190, 5250, FLX4375, FLX3300B, MC80, 220 XL, 3185 Patriot, 4520 Titan, FLX4300, CPX420, 9350, CVX1135, 2055, 1620, 1150H, T9010, 1680, 5850, CS100, 2588, Magnum 210, 590 Turbo, 8930, MX100, 240 Magnum, 3230, CVX130, 4020 Titan, LW130.B, FLX4010, SPX4410, MX100C, 9435, CVX1195, MX200, SP115B, 220, CX80, 8840, 85XT, 850G, 8450, MTX140, 9280, 9240, SPX3200, 3150 Patriot, MC125, QUADTRAC, C90, 1688, LW110.B, 780D, 1150G, 9430, 8880HP, 8870, MX270, CVX1155, MTX155, 621B, 9425, 821, CX90, 5830X, 1670 Hillside, SP185C, STX325, 180 Magnum, 9265, 7250, 7130, 1822, 9340, MC135, CPX610, 1660, 280, 8830, 995, ZTX280, 2377, 850H, 225 Magnum, 7220, Magnum 190, X60.40, SPX3200B Patriot, 4420 Patriot, 220XL, 2044, 3220, ZTX260, CX75, 785XL, 8825HP, 590L, 2144, 821B, 650G, 8950, MC130, 650L, D75B, TJ275, TJ280, 190 Magnum, 4240, CX70, X60.30, CVX170, D95, 3030 Titan, 5130, SP110, 5150, 2188, MC115, 570LXT, SP185B, 1640, CVX150, 7210, 8820, 5140, 9260, Magnum 225, 5120, LV80, 9330, MX150, MC95, 9380, 8550S, 521D, 9635, 1622, 570LXT Series II, 200 Magnum, 9370, CX140, STX280, 570LXT II, 590SM, 2155, 621C, 580M, MTX125, MX240, 4230, 821C, 721C, 590, Magnum 180, 2366, 650K, 210 Magnum, CS78, 8910, CX110, MTX175, MX170, A8800, D85, 580 Super K, 850L, 9225, 8880, 621, STX330, 580SM, 9270, X60.20, 8920, 5830, SPX3310, STX275, 795XL, 8940, MTX110, D85B, ZTX230, 1056XL, 9420, 7110, 9365, 580SL, 95XT, CX85

Additional Information:

Volt -12 Compressor Type - Sanden Cylinder Head - MD Grooves - 2 Clutch Diameter - 6" Fittings - Horizontal 1" Tube-O Mount Type - Ear Coil Position - 12:00 Refrigerant - R134A Oil Type - PAG-100, 9.6 oz. Fitting Description - Horiz. O-ring 1"x1"

Reference Numbers:

1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, 97204C1, 97273C2, U4478, U4609, 4609, 1990760C1, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 4609, 47050714, 47773024, 700713317, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, U4478, U4609, 47109148, 47773024, 86993462, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 500-7000,500-7005, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 20252-20010, 2025220010, 1-34-684-458, 1343925C1, 194121A1COMPRESSOR, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 500-7000,500-7005, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 8804478NEW, 700713317, 700713317, 4609, 8804478NEW, U4478, U4609, 1977959C1, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 1999755C3R, 4478, 47050714, 47773024, 700712705, 83934C91, 86983967, 86983967R, 86992613, 86993462, 86993462R, 97179C2, 97204C1, 97273C2, AG325732, AMX10125, B509660, U4478, U4609, 1-34-684-458, 1343925C1, 194121A1, 1977958C1, 1977959C1, 1990755C3, 199755C3, 1999755C1, 1999755C2, 1999755C3, 4478, 47109148, 47773024, 700712705, 83934C91, 86983967, 86993462, 86993462R, 97204C1, 97273C2, AG325732, B509660, 1977959C1, 1990760C1, 1999755C2, 1999755C3, 700713317
