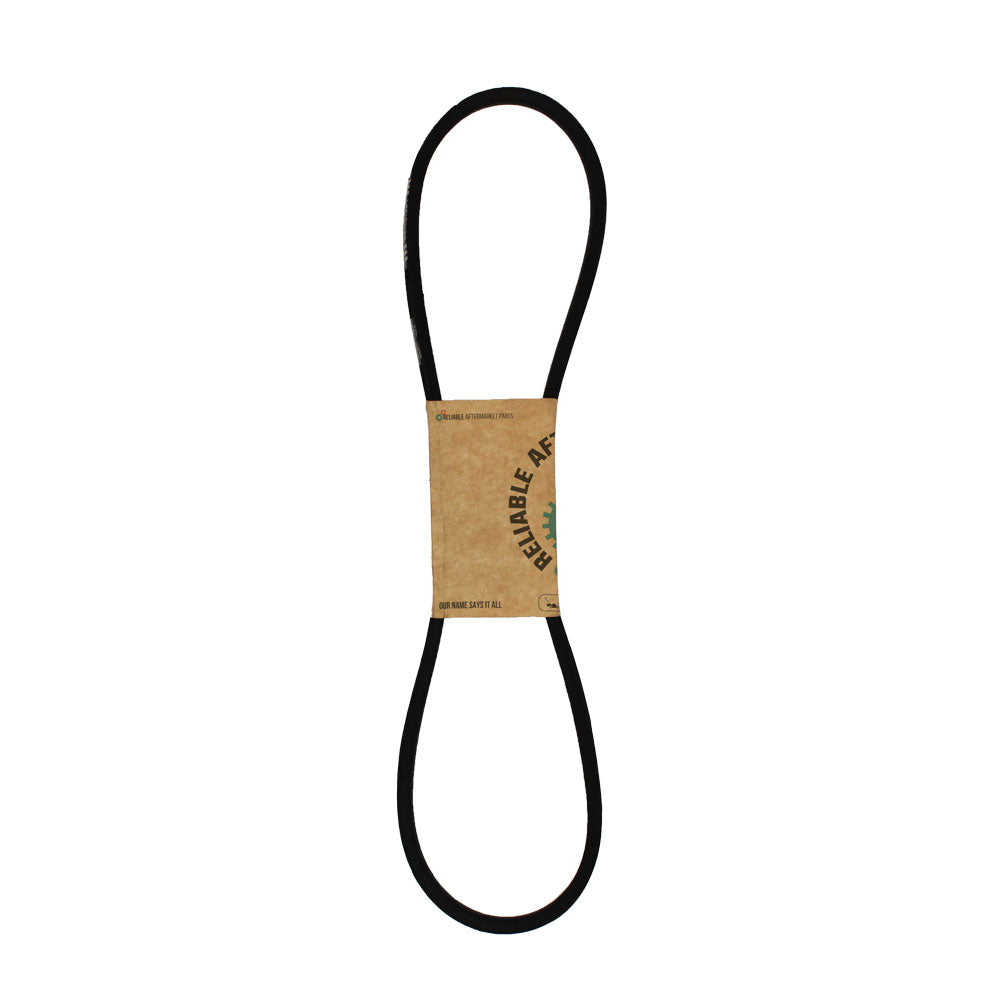

A/4L-Section V-Belt 4L500 fits Universal Several

One New Aftermarket Replacement A/4L-Section V-Belt (A48 / 4L500) for Lawn & Garden, Agricultural, and Industrial Equipment

This classical wrapped A/4L-section drive belt (A48 / 4L500) delivers reliable power transmission across a wide range of lawn and garden tractors, zero-turn mowers, walk-behind mowers, snow blowers, and light agricultural equipment. Featuring a polyester cord reinforced construction with a fabric-wrapped outer surface, this belt resists heat, oil, and abrasion for long service life. The trapezoidal cross-section wedges firmly into sheave grooves to minimize slippage and maximize torque transfer.

Specifications

• Belt Section: A / 4L
• Top Width: 1/2" (0.500")
• Thickness / Depth: 5/16" (0.3125")
• Outside Circumference: 50"
• Inside Length: 48"
• Construction: Classical wrapped, polyester cord reinforced
• Minimum Sheave OD: 2-3/4"

Compatible Models

Ariens: 834001, 834002, 834008, 834010, 834011, 834015, 834016, 834017, 834022, 831009, 831010, 831025, 831032, 831040, 831042, 831045

Gravely: 992045 (see models list), 892045, 892051

MTD / Cub Cadet / White: 05-32SB03, 05-32SB04, 05-32SB05, 05-32SB06, 05-32YS01, 05-36XR03, 05-36XR04, 05-36XR05, 05-37MS01, 05-37MS03, 05-37MS04, 05-37MS05, 05-37MS06, 05-42SB02, 05-42SB03, 05-42SB04, 05-42SB05, 05-42XR03, 05-42XR04, 05-42XR05, 05-42XR06, 754-0214, 954-0214

Simplicity / Allis Chalmers: 990194, 990195, 1136, AERCORE 800, 49" Snow Thrower

John Deere: TCU29693

Toro: 915007, 915009, 915014, 915016, 915023, 915025, 915302, 915305, 915306

Massey Ferguson / AGCO: M43569, M82719

Case / International Harvester: A2-083201, A2-103201, 427205C91, 13517C

Ingersoll-Rand / Bobcat: 518, 9700, 9720, 195-798-000, 190-798-000, 196-798-000, 19798S

Ford / New Holland: 86514514

Thermo King: 610678

Also fits additional models listed in OEM cross-reference below. Compatible with zero-turn mowers, walk-behind mowers, lawn and garden tractors, snow blowers/throwers, combines, grass baggers, and other agricultural equipment from multiple brands including John Deere (JD), Case IH, Allis Chalmers, Massey Ferguson, Toro, Gravely, Ariens, Simplicity, Cub Cadet, MTD, White, Ford, New Holland, Bobcat, and Ingersoll-Rand.

Replaces Part Number(s):

4L500, A48, AP48, A48DC, B1A48, B1SB5083, 399-A48, 399A48, MD1011B, PK1570BV, 312414670, BTO0204, MHC00729, TCU29693, 17927, 21034, 245-2332, 2452332, 248-5050, 5601-33, 62048, 886705, 954-0214, 754-0214, 382884, 95859112, 610678, 86514514, PL0643, 0518465-0, 05184650, 518465, 70518465, REMF6480, 07234500, 07209600, 1209600, 1209600, 100261M1, 3637978M91, 834264M1, 108196, 8091017, 8091017SM, M43569, M82719, PT8676, 427205C91, 75-750, 75750, K9525

Aftermarket Interchange Numbers

Dayco AP48, Gates A48, Goodyear A48, Browning A48, Jason Industrial A48, D&D Power Drive A48/4L500

New aftermarket replacement part - not remanufactured, not used.
