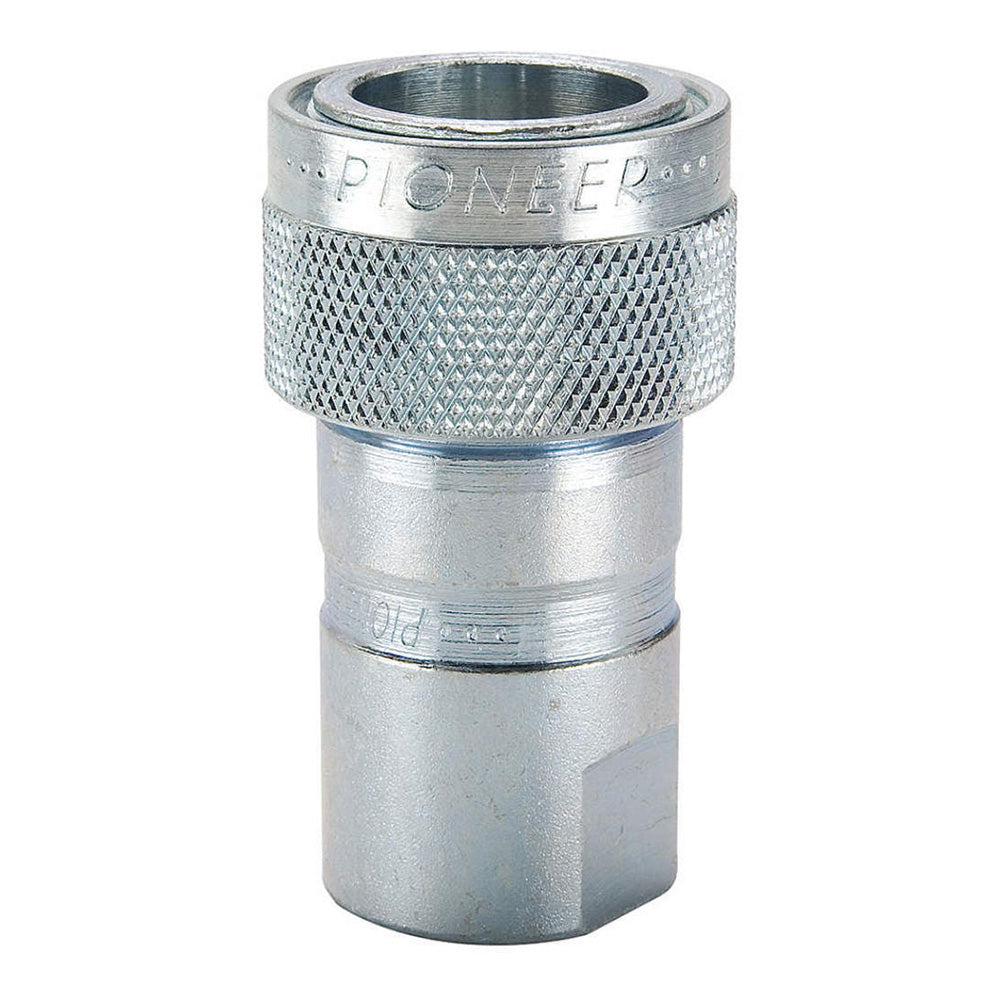

A-4050-15P-P-AI Female Coupler Body

One New Aftermarket Replacement Female Coupler Body - Parker 4000 Series Hydraulic Quick Disconnect

This aftermarket replacement female coupler body is a Parker 4000 Series hydraulic quick disconnect coupling designed for general-purpose hydraulic connections on agricultural and construction equipment. The coupler features a 1/2" body size with a 3/4-16 ORB (O-Ring Fits Boss) female thread connection and a ball-type valve with a manual sleeve. It connects with 4000 Series nipples and 1/2" 8010 Series nipples compliant with ISO 5675 (Pioneer universal male tips), making it widely compatible across ag and construction hydraulic systems.

Specifications

• Body Size: 1/2"
• Thread Size: 3/4-16 ORB (O-Ring Fits Boss, SAE-8)
• Valve Type: Ball / Poppet
• Sleeve Type: Manual
• Body Material: Steel
• Seal Material: Nitrile (NBR)
• Maximum Operating Pressure: 3,000 PSI
• Maximum Operating Temperature: 250 degrees F
• Minimum Operating Temperature: -40 degrees F
• Length: 2.81"
• ISO Standard: ISO 5675 (Pioneer tip compatible)

Compatible Applications

General Purpose - Parker 4000 Series: Tractors and agricultural equipment, hydraulic loaders, add-on hydraulic circuits, hydraulic tools, snow plow attachments, construction equipment, forestry equipment, oil tools, steel mill machinery

Replaces Part Number(s):

4050-15P, A-4050-15P

New aftermarket replacement part - not remanufactured, not used.
