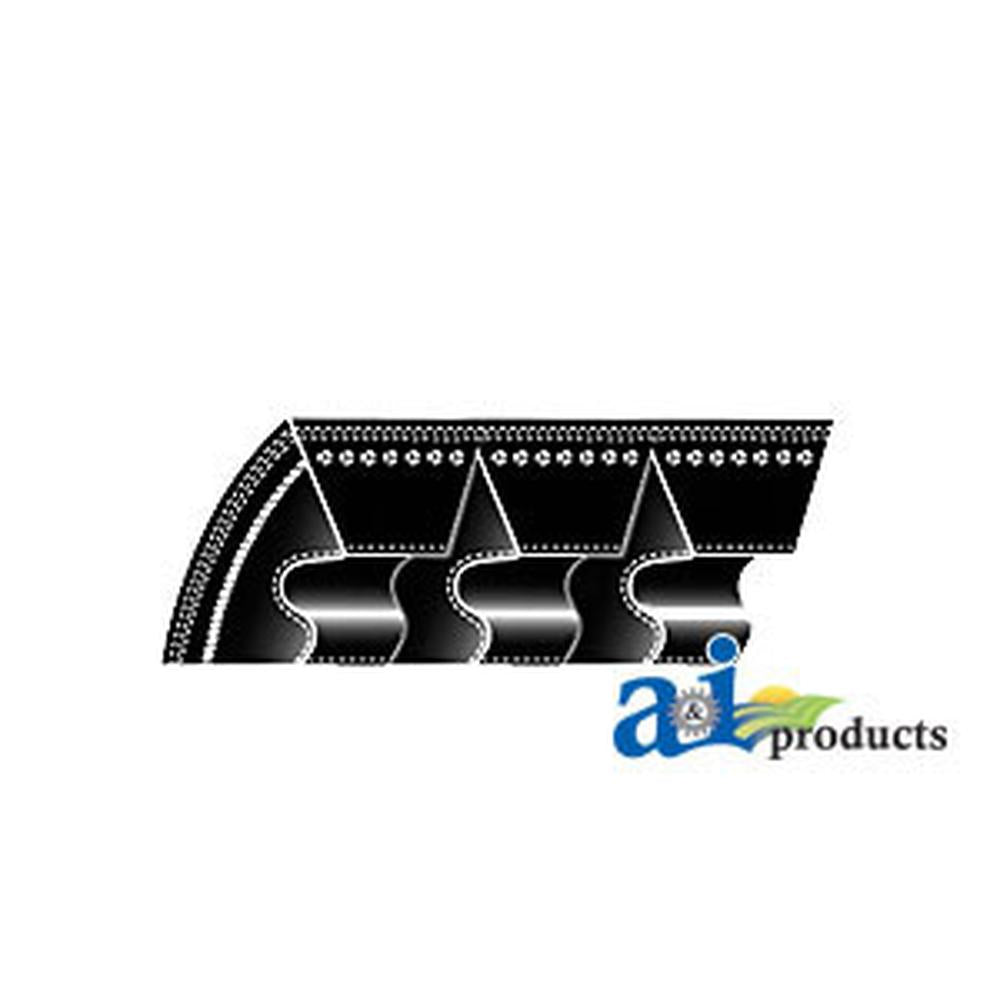

A-3VX1000/06 Cogged Wedge Banded V-Belt ( 3/8" X 100")
A-3VX1000/06 Cogged Wedge Banded V-Belt ( 3/8" X 100")
Couldn't load pickup availability
One New Aftermarket Replacement 3VX Cogged Wedge Banded V-Belt - 3/8" x 100" OC, 6 Band
This 3VX1000/06 cogged wedge banded V-belt is a 6-band power transmission belt used in agricultural, industrial, lawn and garden, and other multi-groove drive applications. The cogged (notched) inner surface increases flexibility and heat dissipation, allowing the belt to operate efficiently on smaller-diameter pulleys and at higher speeds. The banded construction ties all six ribs into a single unit, preventing belt rollover, reducing vibration and belt whip, and distributing load evenly across all grooves -- ideal where multiple conventional V-belts cause instability or where drive space is limited.
Specifications
- Belt Section: 3VX (Cogged Wedge)
- Number of Bands/Ribs: 6
- Top Width (per rib): 3/8 in (0.375 in)
- Outside Circumference: 100 in
- Inside Length: approx. 98 in
- Belt Depth: approx. 0.32 in
Replaces Part Number(s):
A-3VX1000/06, 3VX1000/06, 3VX1000-06, 6/3VX1000, 6-3VX1000, r3VX1000-06
New aftermarket replacement part - not remanufactured, not used.
