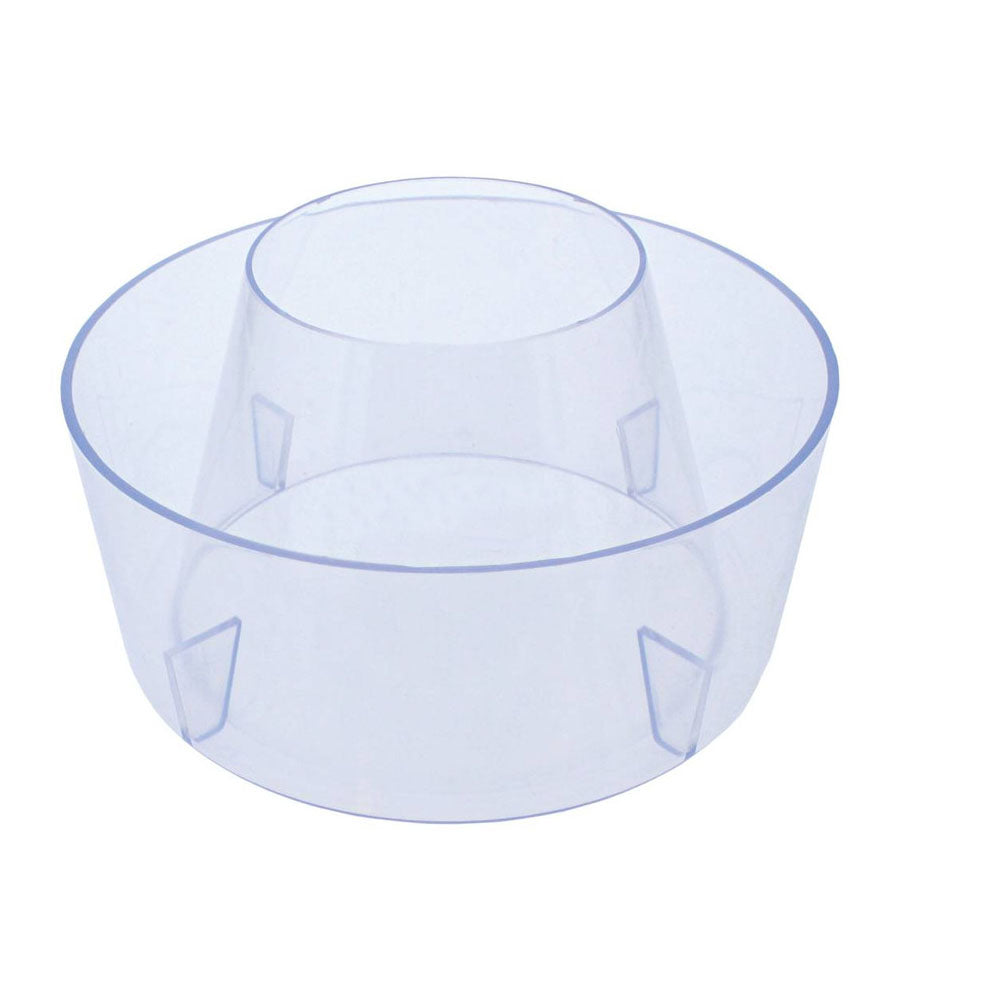

242391002 Pre-Cleaner Bowl (7")

242391002 Pre-Cleaner Bowl (7")

$17.97 USD
$17.97 USD
Sale Sold out
Shipping calculated at checkout.

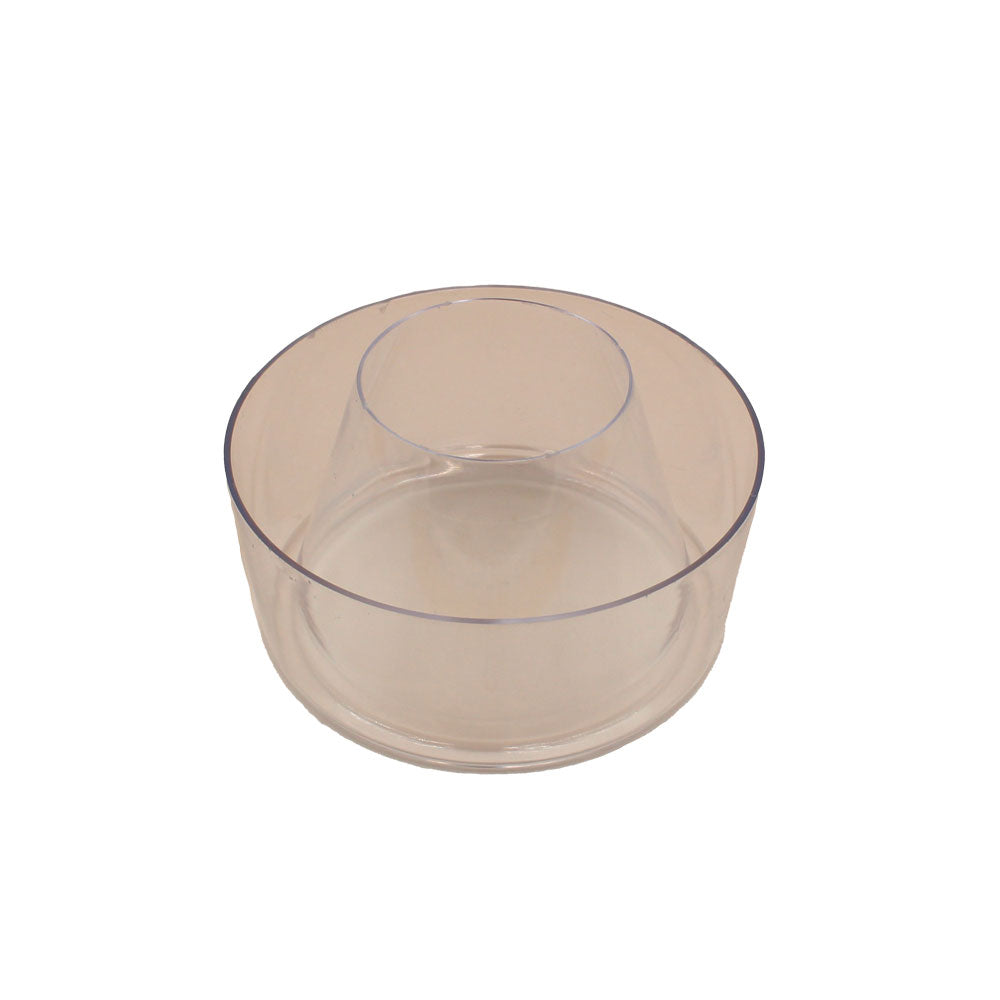

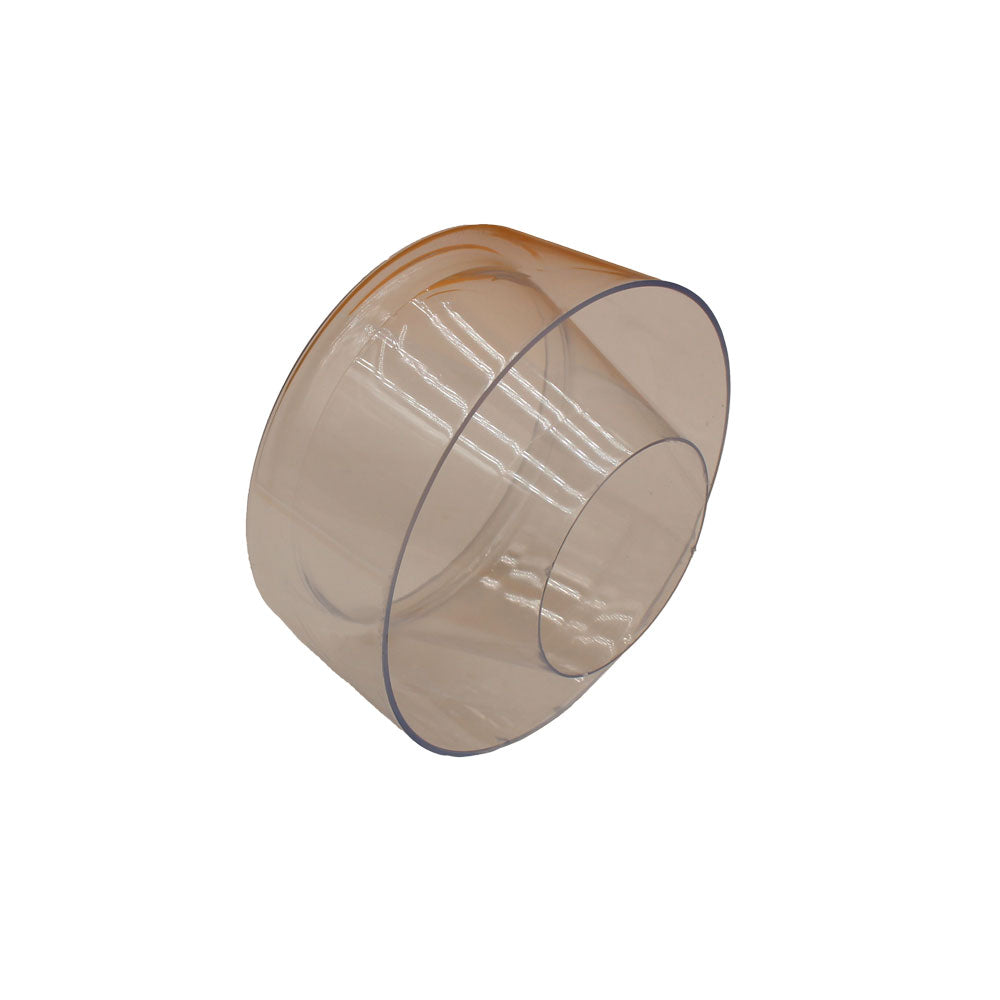

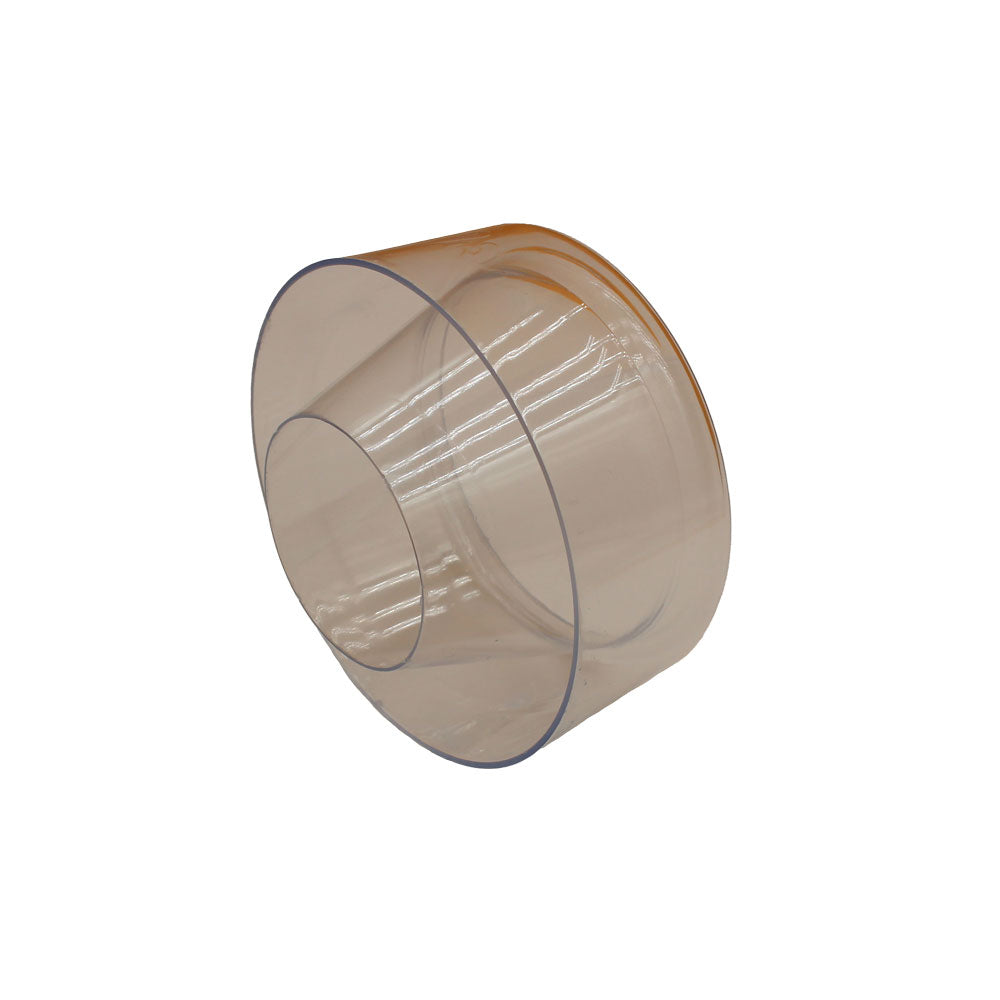

One New Aftermarket Replacement 7" Pre-Cleaner Bowl for Multiple Tractor Brands

This 7-inch air pre-cleaner bowl mounts at the top of the air cleaner assembly and serves as the first line of defense in the engine's air intake system, using centrifugal action to separate heavy dust, chaff, and debris before they reach the main air filter element. Compatible with a wide range of row crop tractors, utility tractors, industrial tractors, and combines from more than a dozen manufacturers. Fits units using 2-1/4" to 2-1/2" inlet pipes.

Important Note: Multiple pre-cleaner bowl sizes exist for many of these makes and models. Bowl size can vary depending on engine configuration (diesel vs. gas, 3-cylinder vs. 4-cylinder, turbocharged vs. naturally aspirated, etc.). Verify your bowl diameter and inlet pipe size before ordering -- bowls of different sizes are NOT interchangeable.

Specifications

  • Outside Diameter (Top): 7.250 in (184.15 mm)
  • Upper Opening (Cone) Diameter: 3.500 in (88.9 mm)
  • Side Height: 3.000 in (76.2 mm)
  • Overall Height: 4.000 in (101.6 mm)
  • Inlet Pipe Size: 2-1/4" to 2-1/2"

Compatible Models

Fits Allis Chalmers: A, AII, C, CR, D17, F, F2, G, GVI, H, K, K2, L, M, M5, Super 90, Super 95

Fits Case / Fits Case IH: 1030, 1030 Comfort King, 1031, 1032, 1033, 430, 430CK, 431, 450, 450B, 450C, 450E, 455E, 455G, 470, 480 Loader, 480B, 480CK, 530, 530A, 530CK, 530 Construction King, 531, 540, 550, 570, 580, 580B, 580C, 580CK, 580 Construction King, 580 Loader, 600, 620, 630, 631, 632, 640, 650, 660, 703, 715, 720, 730, 730 Comfort King, 730CK, 731, 740, 741, 742, 744, 770, 830, 830 Comfort King, 830CK, 831, 840, 841, 842, 843, 870, 920, 930, 930 Comfort King, 940, 950, 990, 995, 1030CK, 310C, 310D, 315C, 315D, 344E, 350, 350B, 350C, 350D, 355D, 400G, 410B, 410C, 410D, 444C, 444D

Cockshutt: 1550, 1555, 1600, 1650, 1655, 1750, 1755, 1800, 1840, 1850, 1850N, 1855, 1900, 1950, 1950N

David Brown: 1194, 1290, 1294, 1390, 1394, 1490, 1494, 990, 995

Deutz / Deutz-Fahr: D 2506, D 3006, D 4006, D 4007, D 4506, D 4507, D 4807, D 5006, D 5206, D 5207, D 5506, D 6006, D 6007, D 6206, D 6207, D 6806, D 6807, D 6907, D 7006, D 7007, D 7206, D 7207, D 8006, D 10006, D 13006, DX3.10, DX3.30, DX3.50, DX3.60, DX3.65, DX3.70, DX3.80, DX3.90

Fiat: 450, 500, 540, 600, 640, 650, 666, 700, 750

Fits Ford/New Holland: 2000, 2600, 2610, 2910, 3000, 3600, 3600V, 3610, 3900, 3910, 3930, 4000, 4000 3 Cylinder, 4000SU, 4100, 4110, 4120, 4121, 4130, 4130 3 Cylinder, 4131, 4140, 4190, 4200, 4330, 4340, 4400, 4410, 4600, 4600SU, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5200, 5340, 5600, 5610, 5700, 5900, 5910, 6000, 6600, 6610, 6700, 6710, 6810, 7000, 7200, 7600, 7610, 7700, 7710, 8000, 9000, TW10, TW20, 3070, 3080, 3090, 3095, 3120, 3230, 3300, 3350, 3400, 3430, 3550, 3050, 3060, 3065

Fits International Harvester / Fits FARMALL / Wheatland: 230, 230A, 231, 233, 234, 240, 240S, 253, 263, 265S, 271, 275, 281, 282, 285S, 290, 290D, 293, 300, 333, 334, 340, 350, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399, 400, 403, 445, 450, 453, 460, 500, 503, 504, 533, 544, 560, 600, 606, 615, 650, 660, 683, 699, 715, 2000, 2504, 2544, 2606, H, Super H, M, Super M, MD, MTA, T6, W6, W400, W450, Super WD9, WR9S

Fits JCB: 1F

Fits John Deere: 1010, 1020, 1030 (Serial 50000+), 1040, 1120, 1130, 1140, 1350, 1550, 1630 (Serial 50000+), 1635 (Serial 50000+), 1640, 1641, 1750, 1830, 1840, 1850, 1850N, 1950, 1950N, 2010, 2020, 2030, 2035 (Serial 50000+), 2040, 2040S, 2120, 2130 (Serial 50000+), 2135 (Serial 50000+), 2150, 2155, 2240, 2250, 2255, 2310, 2355, 2355N, 2360, 2360DTC, 2440, 2450, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2504, 2510, 2510DTC, 2510SD, 2510SD-DTC, 2520, 2555, 2610, 2610DTC, 2610SD, 2610SD-DTC, 2630, 2640, 2650, 2840, 3010, 3020, 290D, 310C, 315C, 315D, 344E, 350B, 350C, 355D, 400G, 410B, 410C, 444C, 444D, 450C, 450E, 455G, 520, 530, 620, 630, 720, 730, 820, 820 3 Cylinder, 830, 830 3 Cylinder, 920, 940, 4010, 4020, 4400 (Serial to 201250)

Long: 1030, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2510, 2510DTC, 2510SD, 2510SD-DTC, 2555, 2610, 2610DTC, 2610SD, 2610SD-DTC

Fits Massey Ferguson (MF): 35 (Diesel), 65 (Diesel), 85, 88, 90, 97, 98, 135, 150, 165, 175, 180, 231, 233, 234, 240, 240S, 245, 253, 263, 265S, 271, 275, 281, 282, 285S, 290, 290D, 293, 333, 334, 340, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399, 1080, 1085, 3050, 3060, 3065, 3070, 3075, 3080, 3090, 3095, 3120, 3230, 3300, 3350, 3430, 3550

Minneapolis-Moline: 5 Star, 2-70, G, GVI, M5, M602, M604, M605, Super 90, Super 95, G1000, G1050, G1350

Oliver: 1550, 1555, 1600, 1650, 1655, 1750, 1755, 1800, 1840, 1850, 1850N, 1855, 1900, 1950, 1950N, 88, 90, Super 90, Super 95

Perkins Engines: A4.212 (LA), A4.236 (LD), A4.248 (LF), AD3.152 (CE)

Same: Antares 130, Explorer 70, Laser 90, Tiger Six

White: 100, 120, 125, 140, 145, 160, 170, 185, 195, 2-30, 2-32, 2-44, 2-45, 2-50, 2-55, 2-60, 2-62, 2-105, 2-110, 2-135, 2-150, 2-155, 2-180, 1270, 1370, 1465, 1470, 2270, 4-105, 4-115, 4-135, 4-144, 4-150, 4-155

Replaces Part Number(s):

101965A, ML204, PF60030, 2315448, 02315448, 242391002, 73533, 80073533, C0NN9A663A, 73186, A24394, 10P871, F3446R, L60631, R28794, 708799447, 79055224, 9960647, K260382, TX17063, 3031851R1, 365413R1, 3119347, 1125804, 18A227, 71125804, 1508881M1, 1508881V1, 739400M91, 32206201, 158881M1, D5NN9A663A, 101965AGV, 3130928R1, 379670R91, 6190192M1, 70879947, 83926290, W101965A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

560, 7000, 2520, 1294, K2, 820, 2120, 830, 335, A4.212 (LA), 2020, 2460DTC, 770, 530, 7085, DX3.50, Telescopic Handlers, 7200, 5600, 480 Loader, Agricultural Tractors, CH, 3430, 1900, 7710, D 6806, 1020, 3070, Utility Tractors, D 7207, A4.248 (LF), 550, 2000, 530CK, 2-70, 444C, 1650, 5100, Compact Tractors, D7207, 455G, 2840, 5610, 730 Comfort King, 580CK, 615, 2155, 9000, 660, 431, 1030 Comfort King, 3095, W400, 350D, 390T, 175, 310C, 4140, 2600, 7700, 6170, 3000, 650G, 6260 VC, K, 281, 5000, 5340, 1635, M604, 282, L, DX3.70, 3930, 3300, 533, 350, 2355N, 640, 940, 630, 2010, 2040S, 3610, 504, 230A, 393, 3910, 631, 375, 3080, 403, 6240 VC, 555G, 245, 730, 450G, 3050, 1855, 515, 400, D 6007, 2130, 5030, 444D, M605, D236, 930, 231, C263, 4600, 1950N, 4010, 2460SD, 98, Super H, H, 2460SD-DTC, 720, 580 Loader, 240, 715, 6250, 3900, 1030, M5, 1390, D17, 5 Star, 530A, DX3.30, D 8006, Vineyard Tractors, D239, 920, 4000SU, D5207, 6180, 1031, 1140, 265S, 6000, 4340, 1080, 3350, 344E, 1640, 365, D 5506, F, 390E, 3550, 230, 290, 6610, C200, D 2506, 544, 880, 520, 1394, 650, Backhoe Loaders, D6507, 2460, 394S, 4600SU, 1641, 2510DTC, 842, 2555, 2504, 843, 4100, 1490, 88, 1190, 6260 SC, 6710, D7807, 841, D 6206, 362, Loading Shovels, 683, D10006, DX4.70, 6700, 580K, D 7007, 90, 315C, 2150, T6, 606, 2440, 680, 580B, 7600, 699, 2360DTC, 355D, 460, A, 1194, 1950, 480CK, 840, 3060, 6150, 2450, 85, 3075, 240S, 6810, TW10, DX3.90, 293, D 4506, 390, 2610SD-DTC, 4130, 2810, G, 1010, 4610, 1290, 450C, Super 90, 1600, F2, 65, 1130, 2910, 410C, 180, D6507C, 420, 580 Construction King, 503, 703, 2140, 1750, 2610, 3400, 450E, MTA, TW20, 455E, 350C, 453, 4000, 510D, 1690, 2510SD-DTC, 4630, M, 550G, 2510, 1494, 2030, D 5006, 35, 400G, D 10006, 310D, 4000 3 cylinder, 1800, 2630, 1830, 445, AD3.152 (CE), 271, 2360, 580C, 470, 1555, 3065, 398, 315D, 1032, GVI, 334, 233, 632, 995, 2250, D 6807, 5200, 253, D282, D6207, 6600, 744, 1550, W6, 1850N, 300, 410D, D7007C, 831, Super M, 396, 150, D7807C, 350B, 1033, 830 3 cylinder, 731, C, 3010, 4190, 234, 8000, 2040, 135, 399, D13006, 5910, 430, 570, Wheeled Loaders, D 4007, 4130 3 Cylinder, 480B, 290D, DX3.60, 830CK, 740, 285S, 930 Comfort King, D 4807, 450B, D 5206, Super WD9, D 7006, 820 3 cylinder, DX3.10, 1850, 2650, 1840, 500, 2135, DX3.80, 5900, 1030CK, D 3006, 950, 742, 6240, 4830, D8006, 3230, CR, AII, 97, 300D, 1040, 1755, 4020, 480, 6250 VC, 340, 830 Comfort King, 1085, 2240, W450, 4330, 3120, D 6907, 990, 4120, 643, M602, 2310, 2610SD, D301, 531, D 7206, 2355, 3600, 263, D 6207, 530 Construction King, D 4507, D 6006, 870, 4200, D188, 741, 430CK, 275, 620, 5700, 1655, 7610, Row Crop Tractors, 2035, 410B, 2606, 4410, 1120, MD, 2640, 6260, 540, 3055, 6160, 2610DTC, 600, 383, D 13006, Orchard Tractors, 30, 3020, 4110, 2510SD, Super 95, 1630, Tractors, 3600V, 532, D4507, 333, Dozers, 2544, D 4006, 6140, D7007, 2255, A4.236 (LD), DX3.65, 165, 4131, Mini Excavators, WR9S, 3090, 4400, 4121, 450, 5110, D 5207, 1350

Additional Information:

For Units Using 2-1/4" to 2-1/2" Inlet Pipes Top Diameter: 7.250 in (184.15 mm) Upper Opening Diameter: 3.500 in (88.9 mm) Side Height: 3.000 in (76.2 mm) Overall Height: 4.000 in (101.6 mm)

Reference Numbers:

3119347, R28794, F3446R, L60631, F3446R, L60631, R28794, 73533, 80073533, C0NN9A663A, 83926290, D5NN9A663A, 81806316, 708799447, 79055224, 9960647, 32/206201, 32206201, K260382, L60631, R28794, 365413R1, 71125804, 1125804, 18A227, 73186, A24394, 3031851R1, 365413R91, TX17063, 1508881V1, 158881M1, 739400M91, 1508881M1, 71125804, 150881M1, 73533, 80073533, C0NN9A663A, 2315448, 02315448, 242391002, ML204, PF60030, 1125804, 18A227, 71125804, 1508881V1, 158881M1, 739400M91, 1508881M1, 71125804, W101965A, 101965A, 73186, A24394, 3031851R1, 365413R1, 73186, K260382, 79055224, TX17063, 708799447, 9960647, 10P871, 70879947, 83926290, D5NN9A663A, 101965AGV, 1508881M1, 3130928R1, 365413R1, 379670R91, 6190192M1, 73533, 79055224, 80073533, C0NN9A663A, 02315448, 1508881M1, 1508881V1, 101965A, 101965A, W101965A, 242391002, 71125804, 1125804
