A-1931020 Ring, Piston; +0.60MM (.024") (1 Cyl)

One New Aftermarket Replacement Piston Ring Set Fits Case IH / Fits New Holland Tractors - +0.60MM (.024") Oversize, Single Cylinder

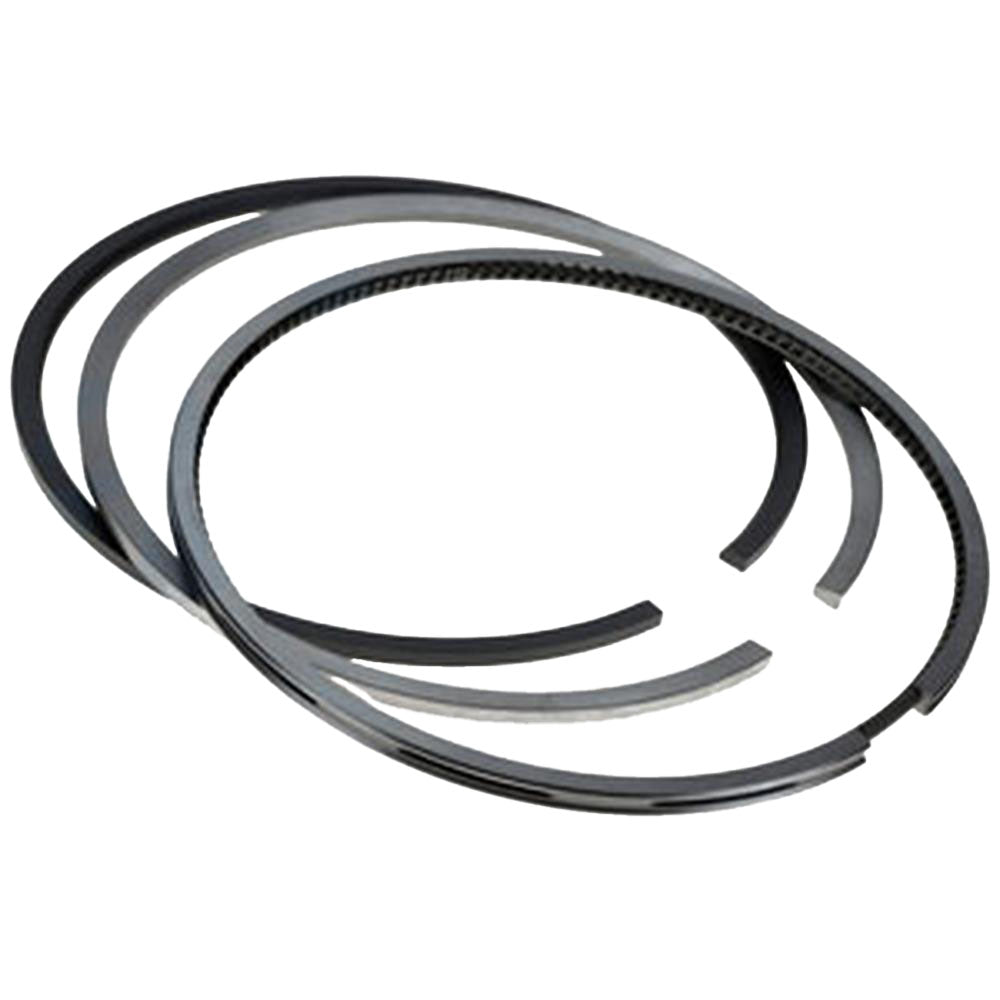

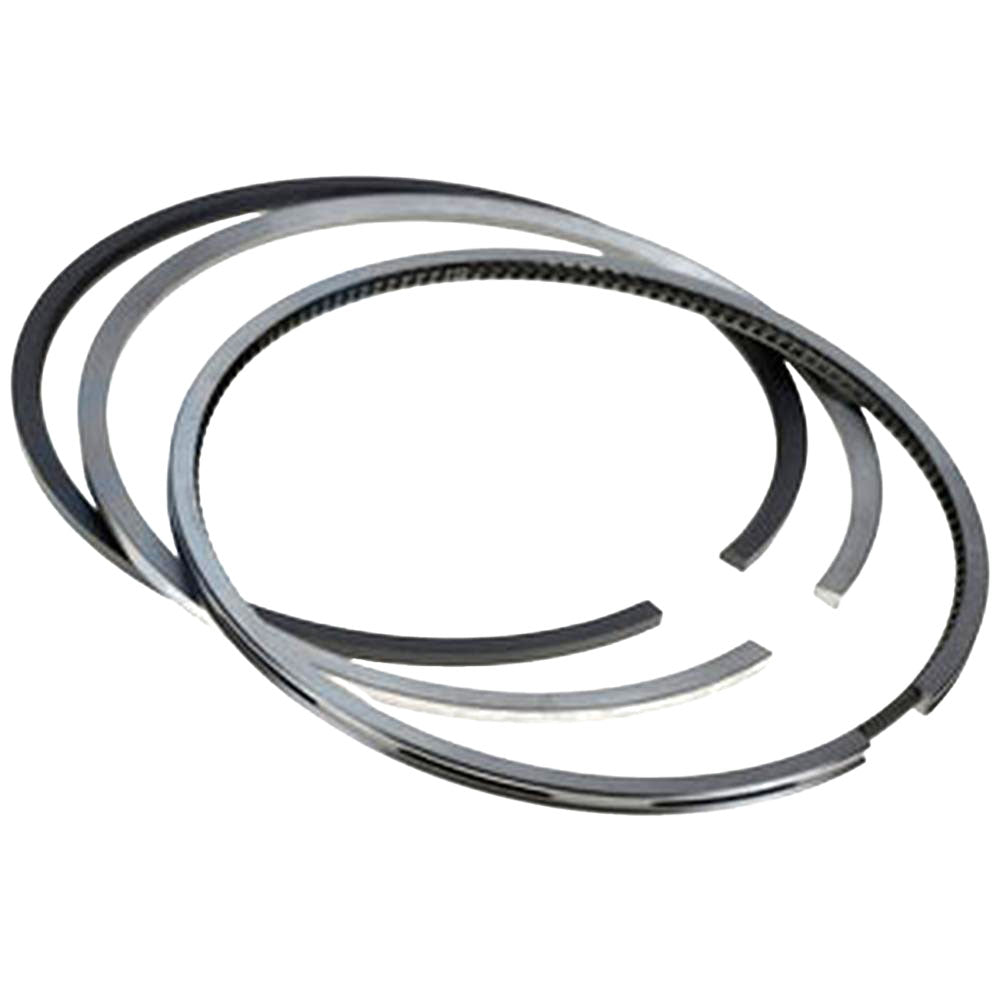

This +0.60MM (.024" oversize) piston ring set is a single-cylinder engine rebuild component designed for the Fits Iveco 8045.25 diesel engine used in Fits Case IH and Fits New Holland tractors. The set includes compression rings and an oil control ring, helping restore proper cylinder sealing, reduce blow-by, and maintain engine efficiency during overhaul or top-end rebuilds.

Specifications

• Oversize: +0.60MM (.024")
• Coverage: 1 cylinder (order per cylinder needed)
• Engine: Fits Iveco / FPT 8045.25 Diesel
• 2nd Ring Type: Taper Face with Reverse Internal Step
• 2nd Ring Width: .098" / 2.5 mm
• 3rd Ring Type: Oil Control Ring with Coil Spring
• 3rd Ring Width: .157" / 4 mm
• Top Ring Width: .118" / 3 mm

Compatible Models

Important Serial Number Restriction: For JX90U and JX100U (Fits Case IH) and TL90 and TL100 (Fits New Holland), this ring set fits serial number 776979 and later with Emissionised Engine only. For earlier serial numbers, a different ring set is required.

Fits Case IH Tractors: JX90 (with Emissionised Engine), JX90U (SN 776979 and later, with Emissionised Engine), JX95 (with Emissionised Engine), JX100U (SN 776979 and later, with Emissionised Engine)

Fits New Holland / Fits Ford New Holland Tractors: TL90 (SN 776979 and later, with Emissionised Engine), TL100 (SN 776979 and later, with Emissionised Engine), 6635 (2/96-12/98), 7635 (2/96-12/98)

Replaces Part Number(s):

1931020, A-1931020

New aftermarket replacement part - not remanufactured, not used.
