A-1716039-AI Bearing, Taper Cone

Name: A-1716039-AI Bearing, Taper Cone
SKU: A-1716039-AI
Price: 15.99 USD
Availability: InStock

A-1716039-AI Bearing, Taper Cone

$15.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Taper Cone Bearing (LM501349) Fits Massey Ferguson, Fits John Deere, Fits Case/IH, Fits Ford/New Holland and More

This tapered roller bearing cone (LM501349) is a widely used single-row tapered roller bearing cone in the LM501300 series, designed to handle both radial and axial loads in wheel hubs, axle components, and steering assemblies across a broad range of agricultural equipment. The cone pairs with compatible cups including LM501310, LM501311, and LM501314 and is typically mounted in opposing pairs on a shaft.

Specifications

Bearing Type: Tapered Roller Bearing Cone (Single Row)
Series: LM501300
Bore (Inner Diameter): 1.625 in (41.275 mm)
Outer Diameter: 2.891 in (73.431 mm)
Cone Width: 0.780 in (19.812 mm)
Fillet Radius: 0.14 in (3.56 mm)
Material: 52100 Bearing Grade Chromium Steel
Compatible Cups: LM501310, LM501311, LM501314

Compatible Models

Fits Massey Ferguson: 1345, 1355, 1363, 1365, 1366, 1373, 1376, 1383, 1386, 1395, 1460, 1480, 1482, 1550, 1555, 1600, 1655, 1660, 1666, 1680, 1682, 1688, 1745, 1750, 2166, 2188, 2344, 2366, 2377, 2388, 2440, 2577, 2588, 2640, 2745, 2946, 2946A, 2956, 2956A, 8412, 8415, 8570, 8680, 8780, 8780XP, 9540, 9545, 9560, 9565, 9690, 9695, 9790, 9795, 9831, 9895, MX80C, MX90C

Fits John Deere: 7000, 7100

Fits Case/International Harvester: 300, 410, 510, 540, 550, 550C, 660, 660B, 670, 670B, 680B, 750, 760, 770, 850, 855, 860, 865, 880

Fits Ford/New Holland: 2-44, 2-446, 2-4412, 2-4413, 2-4413L, 2-4414, 3230, 3600, 3930, 3930N, 3930NO, 4100, 4130, 4130NO, 4600, 4610N, 4630, 4630N, 4630NO, 4630O, 5000, 5100, 5110, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7600, 7610, 7610S, 7700, 7710, 7710 5100, 7740, 7815, 7840, T7 SUPER

White Oliver: 62, 72, 77, 78, 82, 84, 88, 92 SUPER, SUPER 55, 205

GEHL: 604J, 605J

Vermeer: 750, 760 (round baler)

Fits Woods: (rotary cutter / mower conditioner applications)

Challenger: (applicable Challenger tractor models)

Also used in Wheel Hub, Axle Component, and Steering Assembly applications across the above equipment lines.

Replaces Part Number(s):

1716039, LM501349, LM501349-I, 831728M1, 74254700, W102846A, 102729A, 102846A, 11114WD, 042163, WAA4221A, 67370, JD8902, 663557R1

Aftermarket Interchange Numbers

SET45, SET69, VKHB 2153, 663557R91, 144079C91, 202521C91, 3221283R91, 598757R91, 671075R91, 102846A, 35A513, B7A4221A, CFT20400, WAA4221A0W, 4T-LM501349, BR45, KLM501349, TMLM501349, TX5715A, BT501349LM, WB01055, WB1055

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

205, 1688, 1745, 7710 5100, 2956A, 7100, 3930, 8680, 2-446, 8415, T7 SUPER, 6215, 1850, 6810, 750, 7000, 1660, 7600, 1480, 6700, 2-4412, 2188, 1363, 4100, 2946, 1750, 8570, 2366, 9545, 7610S, 5900, 2640, 4130, Axle Components, MX80C, 7840, 770, 550, 865, 1383, 9540, 5110, 860, 5600, 1666, 4600, 1355, 8780, 9790, 3230, 1460, 5610, 540, 2440, 1555, 1550, 7815, 88, MX90C, 6410, 7610, 9690, 880, 1680, 2-44, 1600, 660, 1682, 62, 1345, 4610N, 1366, 4630N, 1482, 6710, 6610S, 850, 300, 9560, 3930N, 5700, 604J, 5610S, 8780XP, 1655, 2-4413L, 6600, SUPER 55, 72, 2577, 510, 1376, 84, 1386, 1395, 2946A, 855, 6610, Steering Assemblies, 78, 3600, 1365, 1373, 9795, 2388, 2377, 5000, 9695, 2344, 7700, 92 SUPER, 680B, 660B, 410, 6640, 7740, 2-4414, 2956, 2-4413, 5640, 8412, 9831, 77, 605J, 670, 4630NO, 9895, 760, Wheel Hubs, 4630, 3930NO, 2745, 2166, 550C, 2588, 9565, 4630O, 7710, 4130NO, 82, 670B

Additional Information:

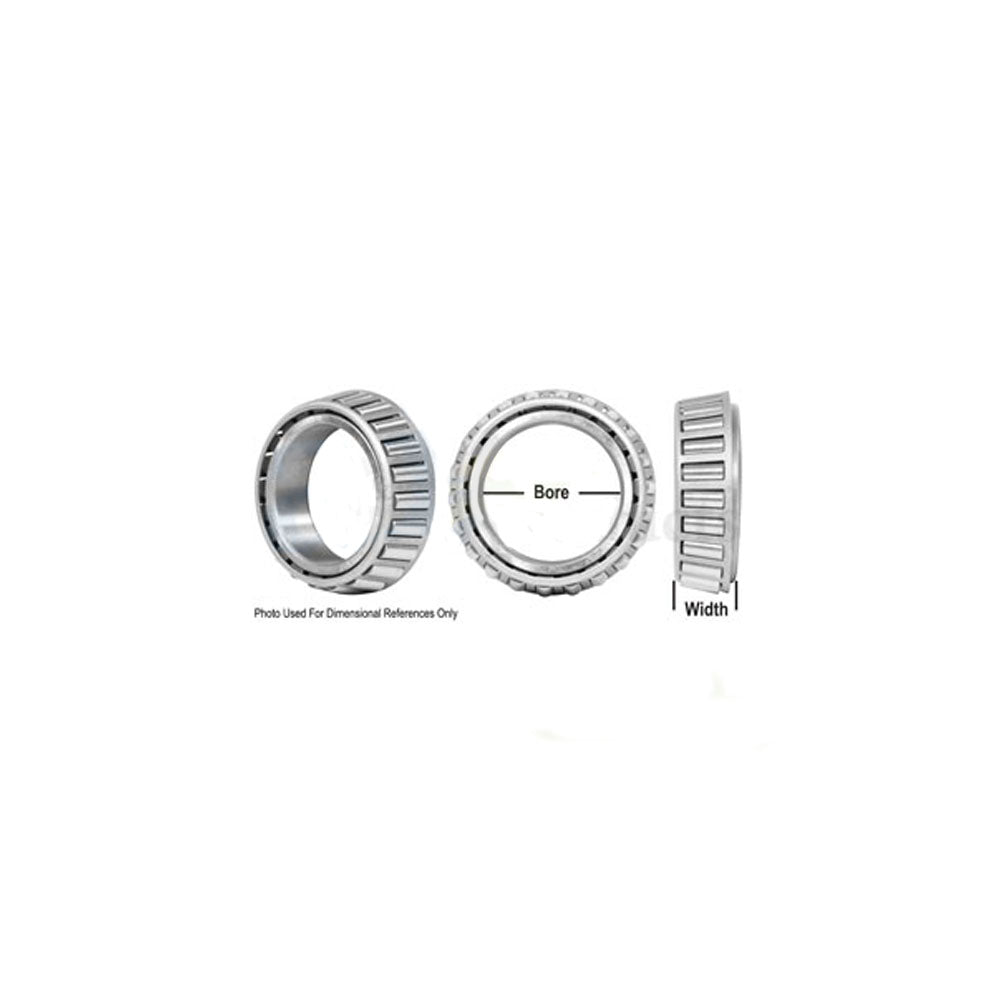

Bore: 1.625" Radius: .14" Width: .780"

Reference Numbers:

042163, 74254700, 11114WD, W102846A, 102729A, 102846A, 831728M1, WAA4221A, 67370, LM501349-I, 1716039, JD8902, 663557R1, W102846A, 102729A, 102846A, LM501349-I
