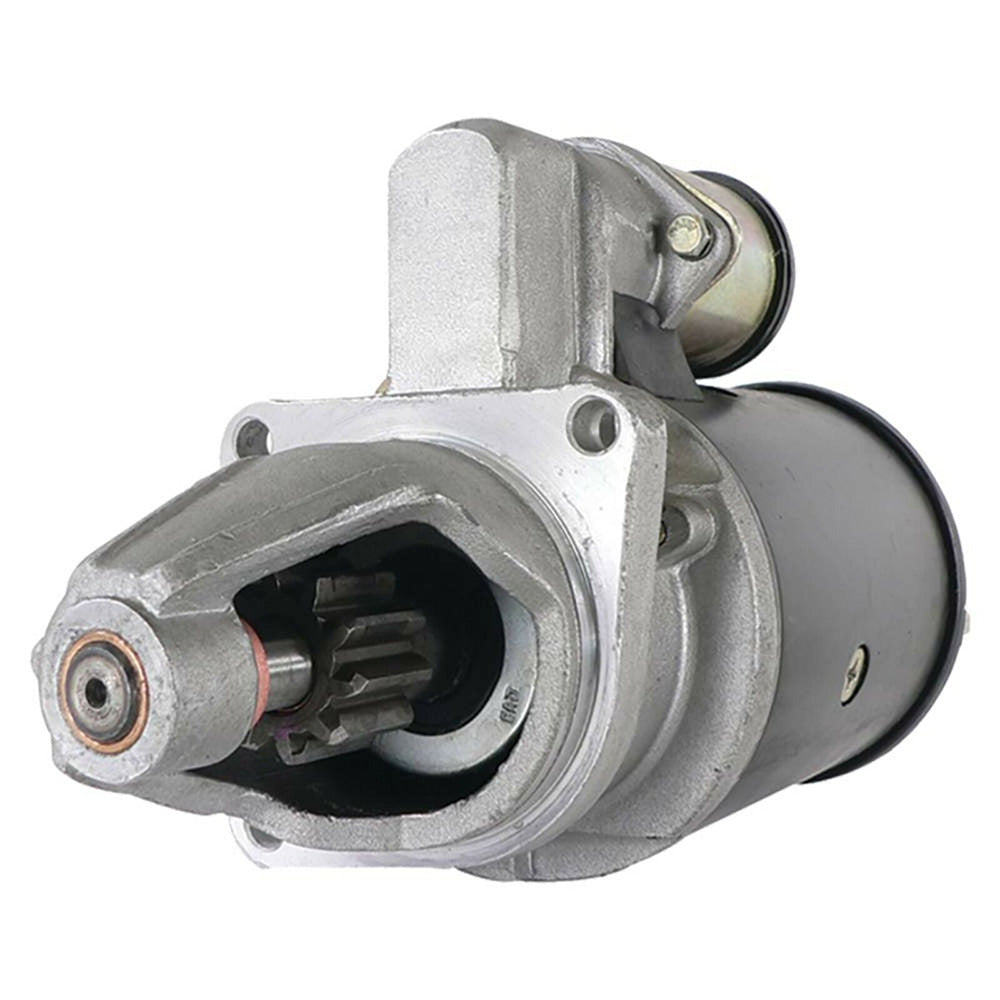

A-1618050M4-AI Starter, Fits Lucas

One New Aftermarket Replacement Lucas-Style Starter for Massey Ferguson Tractors

This direct-drive (DD) Lucas-style starter motor is a direct replacement for Massey Ferguson 2000, 3000, and 3600 Series tractors powered by Perkins diesel engines. It mounts on the left-hand side and delivers reliable cranking performance with a clockwise rotation and 10-tooth drive gear at 12 volts / 2.8 kW output.

Specifications

• Type: Direct Drive (DD), Lucas Style
• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Teeth: 10
• Gear OD: 1.575 in / 40 mm
• Tooth Pitch: 15.42 mm
• Flange Diameter: 89 mm
• Mounting Angle: 40 degrees
• Mounting Bores: 3 x 10.0 mm unthreaded
• Mounting Points Diameter: 127 mm
• Weight: 31.11 lbs / 14.14 kg
• Mount: Left-Hand (LH)

Compatible Models

Massey Ferguson: 2620, 2640, 2645, 2675, 2680, 2685, 2705, 2720, 2725, 3080, 3090, 3505, 3525, 3545, 3610, 3630, 3650

Replaces Part Number(s):

1618050M4, A-1618050M4, 1618050M4-AI, 1618050M3, 1618050M14, 1618050R4, 1618050V4, 161805M3, 1903145M91, 1903-145-M91, 3637269R91, 3637-269-R91, 3931421M91, 11130896

Aftermarket Interchange Numbers

Lucas Industries: 27533, 27533A, 27533A/E, 27533B, 27533D, 27533F, 27601, 27601B | Lucas Remanufactured: 5028 | Lucas Electrical: LRS00553 | Iskra: 11.130.896 | Iskra Sales: IS0896 | Iskra Tech: AZJ3318 | Sparex: 41141 | Mahle: MS348 | Magneti Marelli: MSN192 | Other: 16669, 180-359, 180-359A, 91-17-8883, M127

New aftermarket replacement part - not remanufactured, not used.
