A-155BH-AI Cone (07100)
A-155BH-AI Cone (07100)
Couldn't load pickup availability

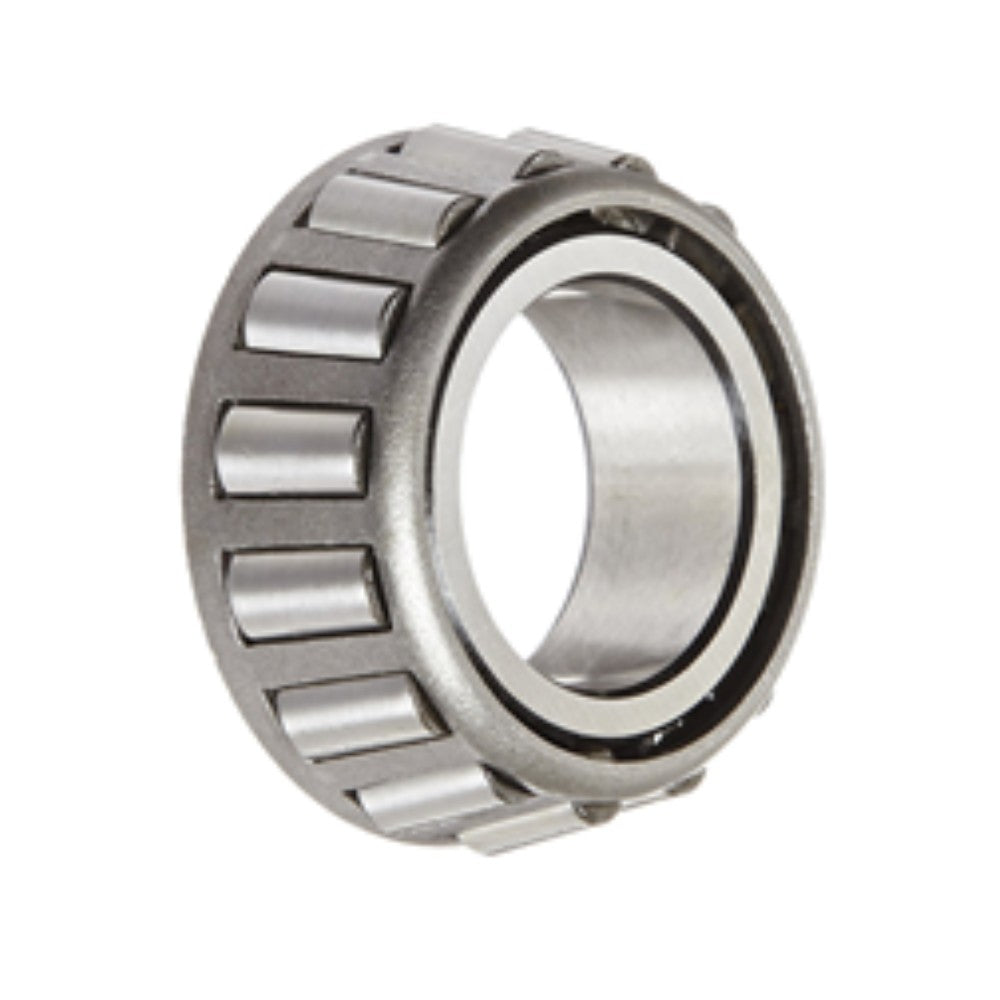

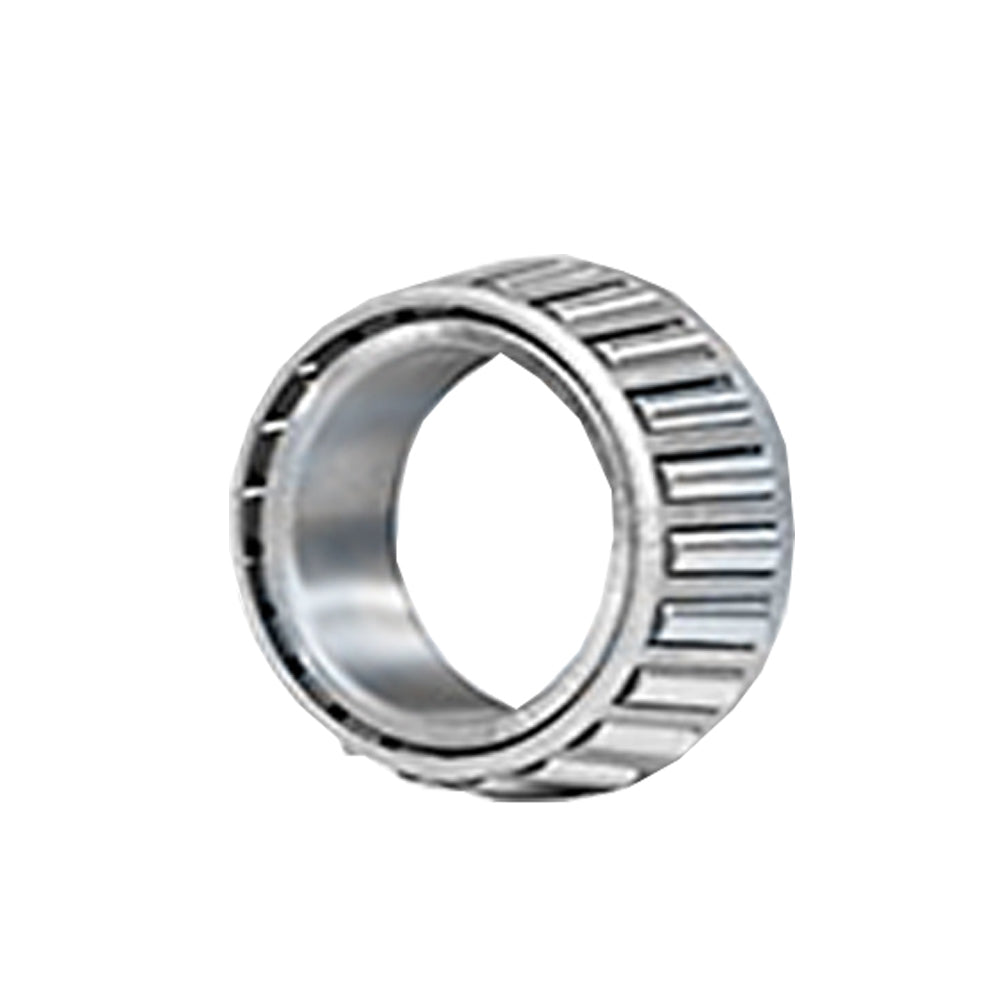

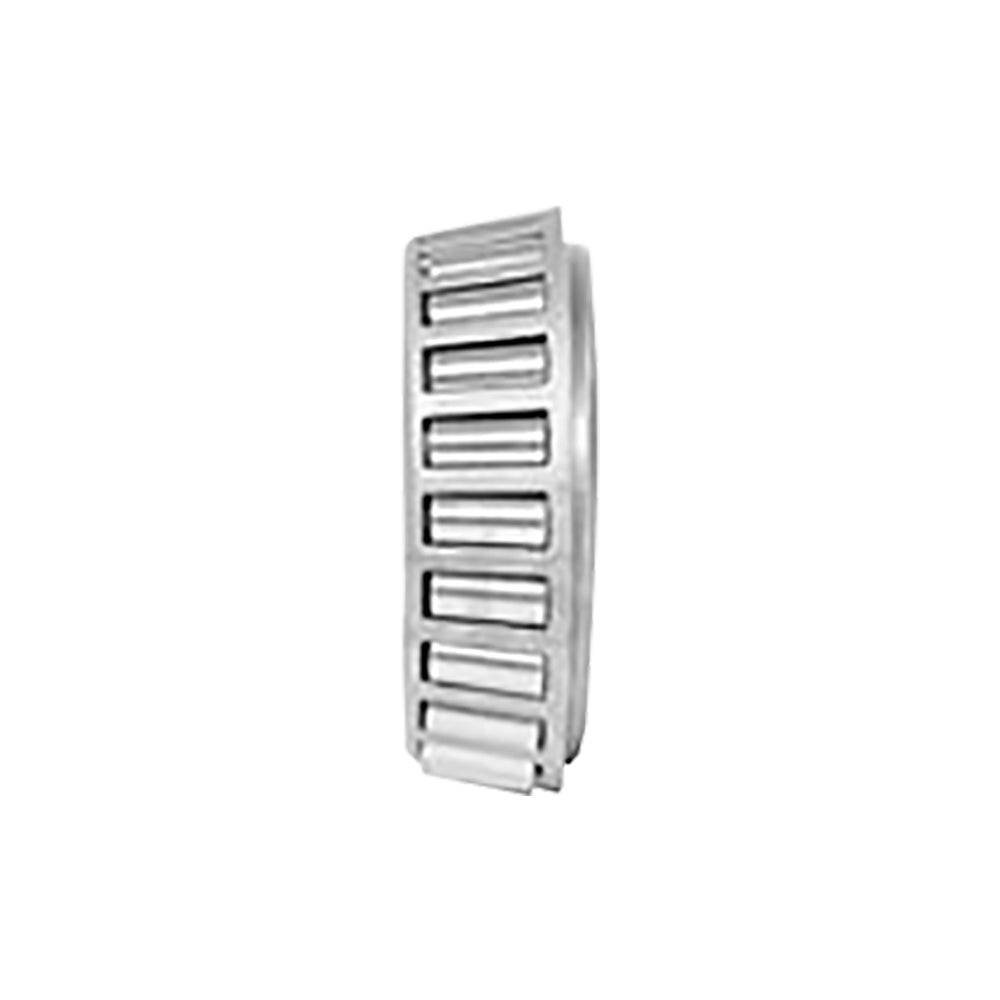

One New Aftermarket Replacement Tapered Roller Bearing Cone for Hesston, Bush Hog, Rhino, Fits Woods, Fits Case/International Harvester and More
This tapered roller bearing cone (inner ring assembly) is a direct-fit replacement for wheel assemblies, spindle assemblies, gang assemblies, gearboxes, and driveline assemblies found on a wide range of agricultural equipment including round balers, rotary cutters, and disc harrows. The cone works in conjunction with a compatible cup (outer ring, sold separately) and is typically mounted in opposing pairs on a shaft to support both radial and axial loads.
Specifications
- Type: Tapered Roller Bearing Cone (Single Cone, Inner Ring)
- Bore (ID): 1.000 in (25.4 mm)
- Cone Width: 0.561 in (14.26 mm)
- Maximum Shaft Fillet Radius: 0.04 in
- Series: Timken 07000
- Cage Material: Steel
- Load Ratings: 6,540 lb Dynamic / 6,650 lb Static
Compatible Equipment
Bush Hog: Rotary Cutters, Disc Harrows
Hesston: Round Balers
Rhino: Rotary Cutters
Fits Woods: Rotary Cutters (including Model 84)
Kewanee: Disc Harrows, Gang Assemblies
Riverside Tractor: Agricultural Equipment
Fits Case / Fits Case/International Harvester (Fits Case IH): Agricultural Equipment
Used in wheel bearing assemblies, spindle assemblies, gang assemblies, gearboxes, and driveline/power transmission assemblies across round baler, rotary cutter, and disc harrow applications.
Replaces Part Number(s):
07100, 1-07100TIM, 07100TIM, 155BH, X5612, 07093, 913-07100, 050112, 510WD, 70017
Aftermarket Interchange Numbers
07100S, 4T-07100, K07100, AM118782, 807188, F37925, 105E1201A, 105E1201, 9439944, 62AX202, 10A6713, 10X9957, 302095E
New aftermarket replacement part - not remanufactured, not used.
