A-13685-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 13685 Series

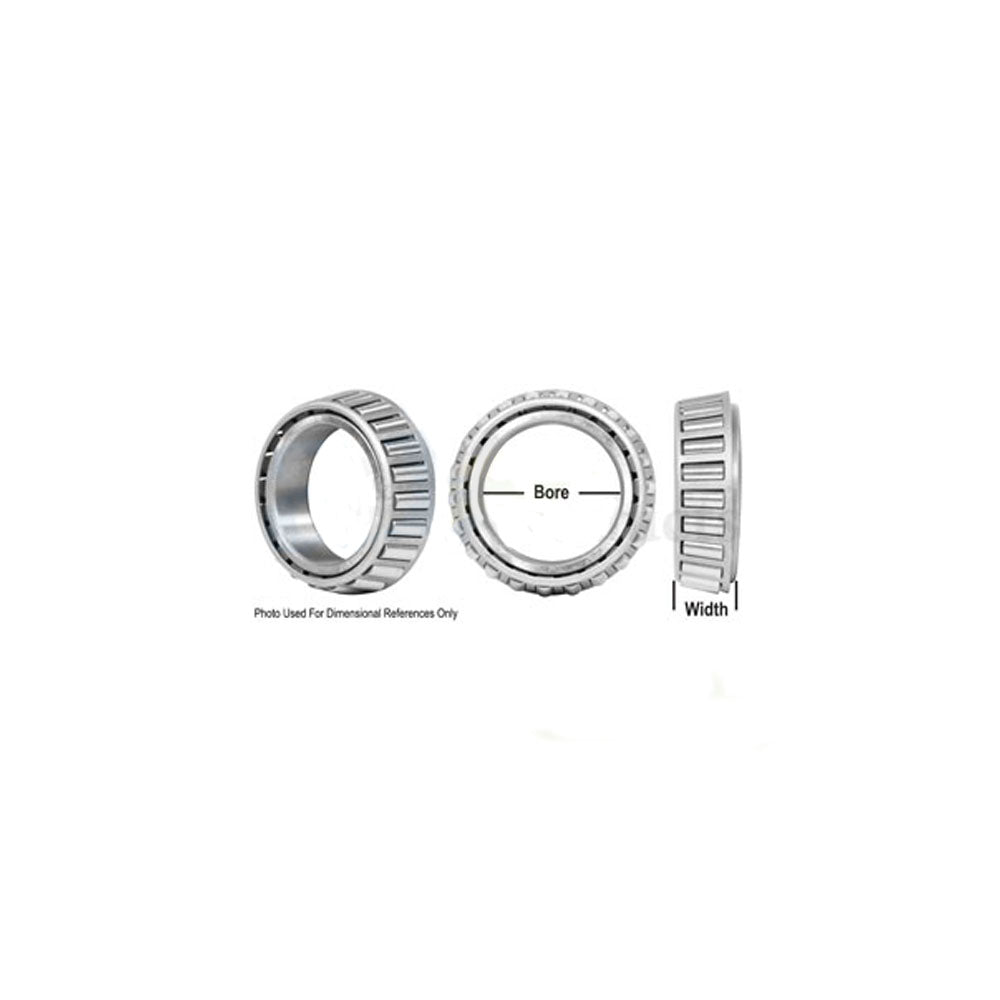

This tapered roller bearing cone (inner ring assembly) is a direct aftermarket replacement for the OEM part number 13685. It is one of two main separable parts of a tapered roller bearing -- the cone (inner ring) assembly pairs with a matching cup (outer ring). With capacity to manage both radial and axial loads, this bearing is suited for demanding wheel, axle, and front axle/steering applications on agricultural tractors.

Specifications

• Bore Diameter: 1.500" (1-1/2 in) | 38.1 mm
• Cone Width: 0.750" (3/4 in) | 19.05 mm
• Max Shaft Fillet Radius: 0.14" | 3.6 mm
• Outer Diameter (cup): 2.717"
• Bearing Material: Fits Case Carburized Steel
• Dynamic Load Rating: 15,100 lb | Static Load Rating: 15,300 lb
• Series: 13600 (Type TS - Tapered Single)
• Net Weight: 0.44 lbs

Compatible Models

Fits Case / Fits Case IH Tractors: 300, 300B, 400B, 500B, 600B, 630

White / Oliver / Minneapolis-Moline Tractors: 5 Star, 602, 670, G1000, M5

Used in front axle/steering wheel bearing and axle-related applications on the models listed above. Verify fitment before ordering.

Replaces Part Number(s):

13685, A-13685-P-AI, A-13685-I, A-5429N (Fits Case), A-W10A6833 (White Tractor), A-022627X (Fits Massey Ferguson), A-70937209 (Fits Massey Ferguson), A-050487 (Gehl), A-713222 (Hesston)

Aftermarket Interchange Numbers

13685-TIM (A&I Mega-Cross / Timken equivalent), NTN 13685, National Seals 13685, 13685-2, 13685-3

New aftermarket replacement part - not remanufactured, not used.
