A-10P3009-AI Voltage Regulator (12 Volt)

Name: A-10P3009-AI Voltage Regulator (12 Volt)
SKU: A-10P3009-AI
Price: 28.9 USD
Availability: InStock

A-10P3009-AI Voltage Regulator (12 Volt)

$28.90 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

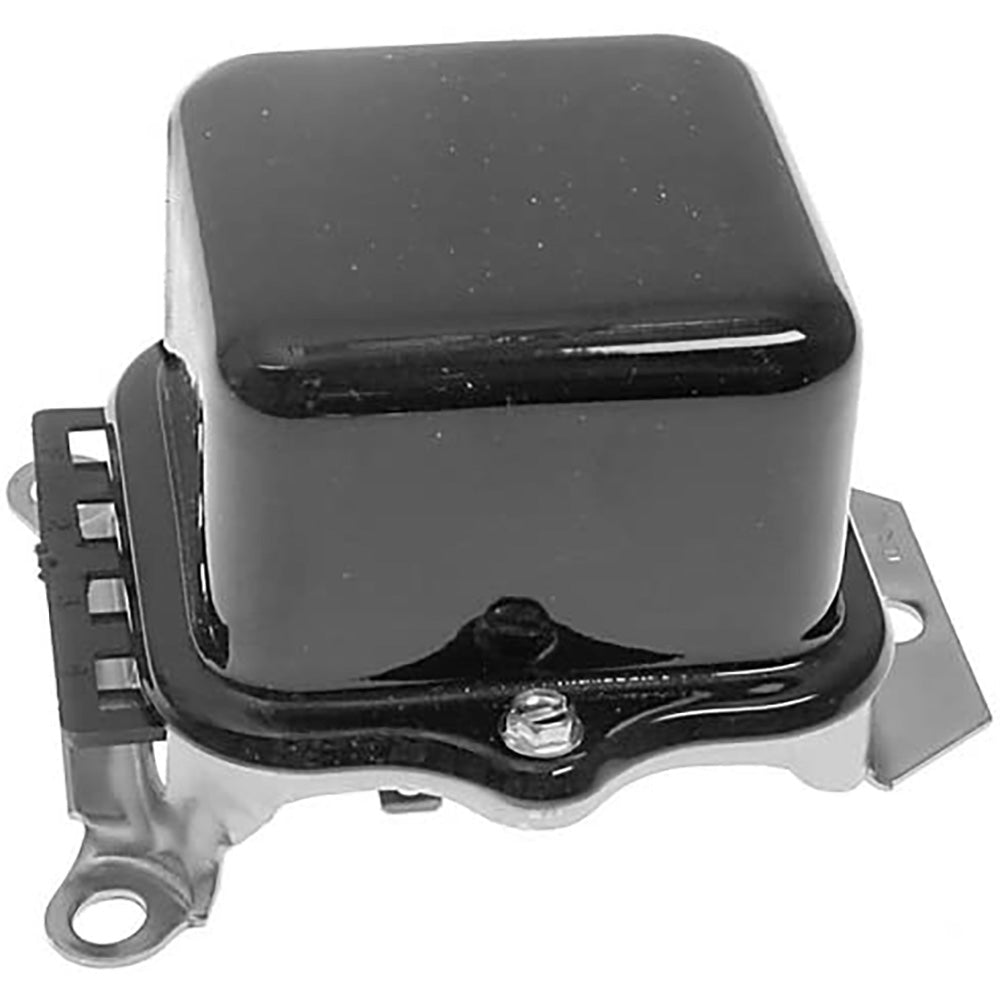

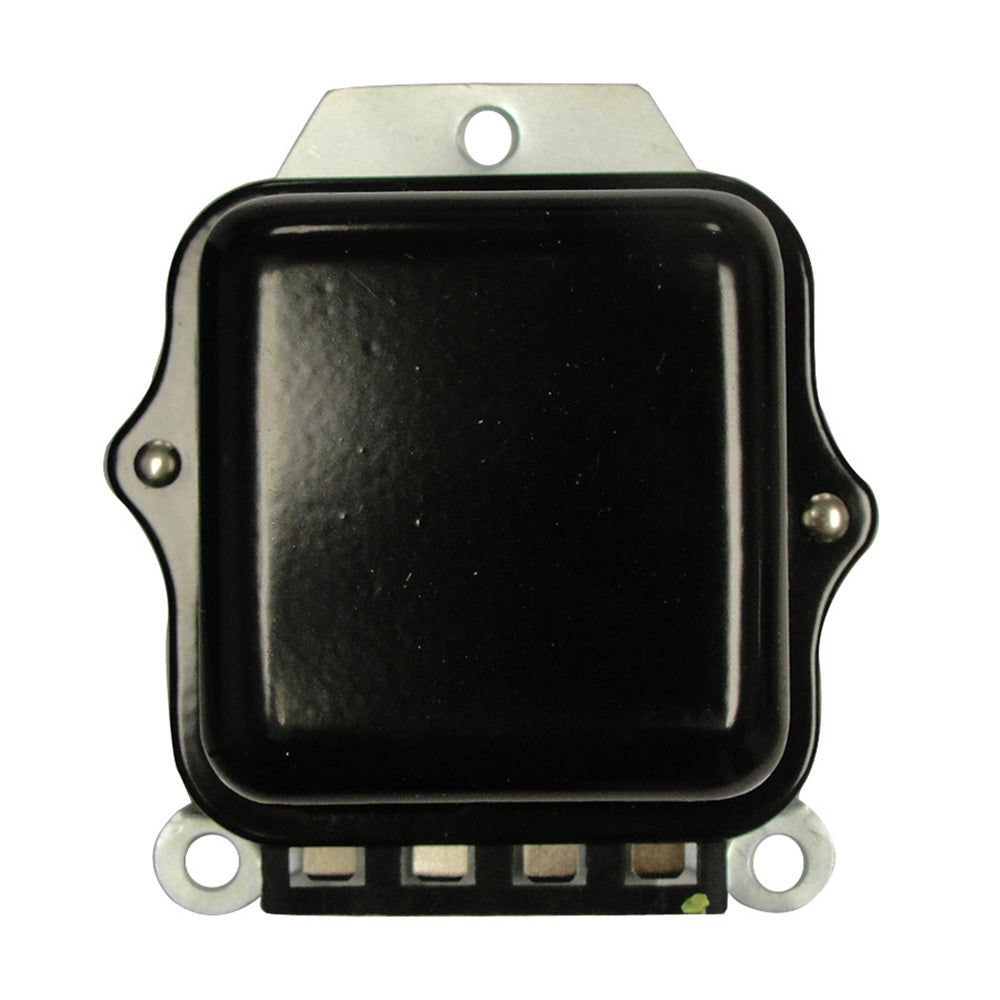

One New Aftermarket Replacement Voltage Regulator (12 Volt) for International Harvester, Massey Ferguson, Allis Chalmers, Oliver, Minneapolis-Moline and More

This external 12-volt voltage regulator is designed for use with Delco 10DN and 20DN alternator systems requiring an external regulator. It regulates charging system output to protect the battery and electrical accessories across a wide range of agricultural tractors, combines, construction equipment, and industrial machines from multiple major manufacturers. The 4-terminal configuration uses the standard F (Field), 2 (Stator), 3 (B+), and 4 (Light) terminal layout common to Delco external-regulator charging systems.

Specifications

Voltage: 12-Volt
Terminals: 4 - (F-Field) / (2-Stator) / (3-B+) / (4-Light)
Type: External voltage regulator
Designed for use only in 12-volt alternator systems with external regulator

Compatible Models

Allis Chalmers Tractors: D19, D21, 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220

Cockshutt / CO-OP Tractors: 30

Gleaner Combines: E, E3, F, F2, F3, G, K

International Harvester (IH) Tractors: 504, 544, 606, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 2444, 2504, 2544, 2606, 2706, 2756, 2806, 2826, 2856, 4100, 4156, 21026, 21206, 21256, 21456

International Harvester Backhoe Loaders: 2444, 2504

International Combines: 205, 315, 403, 503, 615, 715, 815, 915

International Harvester Equipment: 616, 622

Massey Ferguson Tractors: 20, 30, 31, 40, 50, 70, 80, 130, 135, 150, 165, 175, 178, 180, 302, 304, 1080, 1100, 1130, 1150, 1500, 1800, 2200

Massey Ferguson Combines: 205, 300, 410, 510, 540

Massey Ferguson Backhoe Loaders / Construction / Industrial: 20, 31, 40, 50, 70, 80, 205, 302, 304, 320, 2200, 2500

Massey Harris Tractors: 50A

Minneapolis-Moline Tractors: G, G750, G900, G1000, G1000 Vista, Jet Star 3, Jet Star 3 Super, JetStar 3, M670, M670 Super

Oliver Tractors: 77, Super 77, 90, 770, 880, 1255, 1355, 1550, 1555, 1650, 1655, 1750, 1755, 1850, 1855, 1950, 1950T, 1955, 2050, 2150, 2155

White / Oliver Tractors: 2-50A, 4100

Additional models (from catalog): Several 12-Volt Delco alternator applications - see Replaces Part Numbers below for full cross-reference.

Replaces Part Number(s):

65303C1, 65303C1GV, 65302C1, 65304C1, 967867R91, 384988R91, 1119507, 1119515, 1119516, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 10P3009, W10P3009, 243986, 70243986, 72072955, 21A654, 21A621, NR-151, RAB12-10, RAB12A10, 7702, 7702-002, 1702-002, 0211702-280, 30-3001806, 303001806, 158732AS, 157651AS, 166626A, 1119207, 1119502, 1119506, 1119508, 1119512, 1119513, 1119519, 79004814-4, D630, D632, D635, D663, 1102943, 1102944, 1102945

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1100889, 1855, 1100885, 1100888, 70, 302, U302, 966, 1100846, 1100797, 1100944, 1100838, 2656, 3165, 1100590, 1850, 1100572, 21456, 1100818, 770, 2150, 130, 715, 706, 1100886, 815, 1100896, 504, 1102943, 616, 1100566, M670 Super, 1206, 1500, 2606, 1100907, 1100791, 21206, 1468, 540, 615, 170, 1950, 3800, D19, 510, 826, 410, 766, 1100870, K, MF40, 2504, 606, 1100843, 77, 320, F2, G750, 1100751, 1119507, 1100933, 1600, 544, 1750, 1100568, 444, 1100804, 1100817, 1066, 80, 1456, 190, 1100951, 1102944, G, 40, 1100910, Hydro 100, 806, 1800, 21026, F, 1550, G1000 Vista, 1100816, 1950T, 1100879, 1100847, 1100842, 31, 756, 178, 1100932, 1655, 135, 1100908, 1100845, 915, 1100558, 1100780, 21256, 1100860, 2200, 1130, 185, E, 880, M670, 1755, 50A, 2706, JetStar 3, 1100790, 1100883, 1555, 210, 1100787, 1100, 356, D21, 1100810, 1100557, F3, 1100943, 2856, 1100891, 300, 1255, 30, 1100851, 1100778, 303, 856, 1100591, 220, 304, Jet Star 3, 1100893, 150, 1100905, 2500, 1100836, 1100916, Several 12-Volt, 1100742, 4156, 200, G900, 1100921, 1150, 664, 4100, 3850, 2155, 1100856, 1355, 20, 1100875, 2135, 1100796, 1100567, 1100871, 1100553, 2806, 50, 190XT, 1026, 160, 1100569, 2756, 1100570, Super 77, Jet Star 3 Super, 1100892, 2444, 1650, 1102945, 1080, 1256, 2826, 1100837, 656, 1100849, 1100839, G1000, 1466, 180, 503, 1100895, 315, 1955, 165, 1100750, 403, 1100939, 2544, 175, 2050, 1085, 205, 1100931, E3, 1100917, 1100662, 622, 90, 1100834

Additional Information:

12-Volt 4 Terminal: (F-Field) - (2-Stator) - (3-B+) - (4-Light) Designed for Use Only in 12 Volt Alternator Systems

Reference Numbers:

W10P3009, 10P3009, 158732AS, 166626A, 30-3001806, 303001806, 1119207,1119502, 1119506, 1119508, 1119512, 1119513, 1119515, 1119516, 1119519, D630, D632,D635, D663, 65302C1, 65303C1, 65303C1GV, 65304C1, 967867R91, 1119515, 1119516, 384988R91, 384988R91, 65302C1, 65304C1, 508522M91, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 1119515, 1119516, 384988R91, 65302C1, 65303C1, 65303C1GV, 65304C1, 967867R91, 384988R91, 65302C1, 65303C1, 65303C1GV, 65304C1, 967867R91, 1119515, 1119516, 1119507, 243986, 70243986, 72072955, 10P3009, 79004814-4, 21A654, NR-151, 21A621, 0211702-280, 1702-002, 7702, 7702-002, RAB12-10, RAB12A10, 1119507, 243986, 70243986, 72072955, 10P3009, 1903077M91, 182548M1, 1031060M91, 508522M91, 1071060M91, 1119516, 384988R91, 65302C1, 65303C1, 65303C1GV, 65304C1, 967867R91, 1119515, 65303C1, 65303C1GV, 65304C1, 967867R91, 1119515, 1119516, 384988R91, 65302C1, 157651AS, 166626A, 30-3001806, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 1031060V92, 182548M1, 1031060M1, 1031060M91, 1031060M92, 1071060M91, 508522M91, 1031060M92, 1031060M1, 1031060V92, 182548M1, 1031060M91, 1071060M91, 508522M91, 1031060M1, 1031060V92, 182548M1, 1031060M91, 1031060M92, 1071060M91, 508522M91, 65303C1GV, 65304C1, 967867R91, 1119515, 1119516, 384988R91, 65302C1, 65303C1, 182548M1, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 508522M91, 243986, 72072955, 70243986, 10P3009, 30-3001806, 303001806, W10P3009, 10P3009, 158732AS, 166626A, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 1031060M1, 1031060M91
