A-109268C2-AI AC/HT Switch

Name: A-109268C2-AI AC/HT Switch
SKU: A-109268C2-AI
Price: 34.58 USD
Availability: InStock

A-109268C2-AI AC/HT Switch

$34.58 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

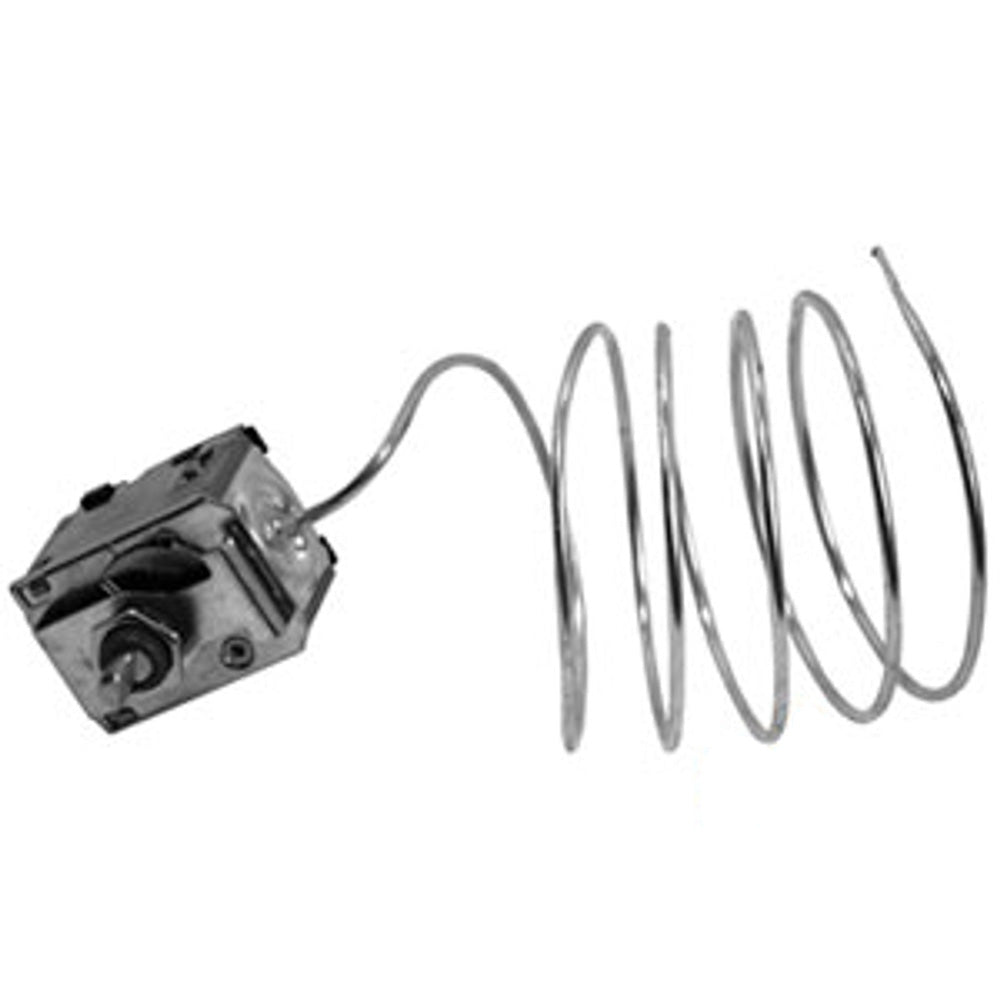

One New Aftermarket Replacement Thermostatic (AC/HT) Switch Fits Case IH, Fits International Harvester, Fits Massey Ferguson, Fits John Deere, Fits Allis Chalmers, Fits Ford, and More

This rotary adjustable thermostatic switch controls the air conditioning and heating system in the cab, cycling the AC compressor on and off to prevent evaporator freeze-up and maintain consistent cab temperature. The 48-inch capillary tube senses evaporator temperature and triggers the switch at 33 degrees F (cut-in) and 26 degrees F (cut-out). Rated for medium and heavy duty 12-volt systems, this vented rotary switch is used across a wide range of agricultural tractors, combines, and industrial equipment from multiple manufacturers.

Specifications

Voltage: 12V
Switch Type: Rotary Adjustable
Capillary Tube Length: 48 inches
Temperature Cut-In: 33 degrees F
Temperature Cut-Out: 26 degrees F
Duty Rating: Medium and Heavy Duty
Vented

Compatible Models

Fits Case IH Tractors: 585, 595, 685, 695, 785, 885, 895, 986, 1086, 1486, 1586, 2656, 2706, 2756, 2806, 2856, 3088, 3220, 3230, 3288, 3388, 3488, 3588, 3688, 3688HC, 3788, 4386, 4568, 4586, 4786, 5088, 5288, 5488, 6388, 6588, 6788, 7288, 7488, 786, 856, 886, Hydro 186, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX150, MTX155, MTX165, MTX175, MTX185, MTX200, XTX185, XTX200, XTX215

Fits Case IH Combines: 715 (S/N 23001 and Above), 1420, 1440, 1460, 1470, 1480, 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1688

Fits Case IH Harvesters: 782, 1400, 1800, 1822, 1844, 2022, 2044, 2055

Fits Case IH Windrowers / Hay Equipment: 4000, 5000

Fits Massey Ferguson Tractors: 285, 375, 383, 390, 390T, 393, 396, 398, 399, 410, 540, 698, 699, 750, 760, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 2940, 4840, 4960, 5200, 5210, 5300, 5310, 5400, 5410, 5500, 5510, 6144, 6145, 6175, 6195, 6215, 6600, 6620

Fits Massey Ferguson Combines: 510, 540

Fits Allis Chalmers Tractors: 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4850, 4955, 5020, 8010, 8050, 8070, 8550, Field Fits Boss 185

Fits John Deere Tractors: 2290, 2294, 2640, 2705, 2775, 2805, 2940, 2094, 2096, 4030, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4850, 4955, 5020

Fits John Deere Combines: 6600, 6620, 7700, 7720, 8820

Fits Ford/New Holland Tractors: 7840, 8000, 8200, 8340, 8400, 8430, 8440, 8600, 8630, 8640, 8650, 8700, 9000, 9200, 9600, 9700, TW series

White Tractors: 2-85, 2-88, 2-105, 2-110, 2-135, 2-150, 2-155, 2-180, 4-175, 4-180, 4-210, 100, 120, 140, 160, 100-90, 100-90DT, 115-90, 115-90DT, 125 Workhorse, 140-90, 140-90DT, 145 Workhorse, 160-90, 170 Workhorse, 180-90, 180-90DT, 195 Workhorse, 55-90, 55-90DT, 60 American, 70-90, 80 American, 80-90, 90-90, 90-90DT

Deutz Tractors: D6200, D6600, D7007C, D7500, D8006, D8500, D10006, D13006

Steiger Tractors: Bearcat/Cougar 1000 Power, Cougar 1000 Series, Lion, Lion 1000 Powershift, Panther, Panther 1000, Panther 1000 Powershift

Hesston: 1490, 1690

McCormick Tractors: MTX110, MTX120, MTX125, MTX135, MTX140, MTX150, MTX155, MTX165, MTX175, MTX185, MTX200, XTX185, XTX200, XTX215

Industrial Series: CA-Industrial Series, CS Series, CU-Industrial Series, KM Series IV, CM Series IV, SM Series IV

Replaces Part Number(s):

109268C2, 92101C1, AH80197, AR49960, AR59779, AL59879, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620, 8022337, 841445, 7022163, L73646, A73646, L73617, 1034565M91, 250698M1, 3320059M2, 303133680, 30-3133680, 70268476, 71162474, D3NN19618A, V31505, V53620, 9672323

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Panther 1000 Powershift, CX60, 5020, 1670, 180-90, 195 Workhorse, MX120, MX150, 7720, 396, 4250, 4-180, Bearcat/Cougar 1000 Power, CX1045, 8440, D10006, 2294, 3525, 4760, 8340, 715, 5210, 9200, MC105, 6145, 375, CS Series, MC100, SM Series IV, 100, 9000, 5200, 1500, 4560, 9600, MTX150, CX100, MTX120, 540, 2940, 1666, 2094, 8000, 1135, XTX200, 510, 2096, 390T, Panther, 115-90DT, D7500, 410, MTX125, 699, 145 Workhorse, 6124, CX80, 1086, 2290, 398, MTX175, MC80, MX80C, 4650, 2-150, 115-90, D8500, 1440, 285, 4955, KM Series IV, 1480, MC135, 698, 6175, MTX185, 7700, MTX110, 6144, 1800, 399, CA-Industrial Series, 5310, Lion, 5300, MC115, 1486, 5410, 750, 2-105, 8630, 4840, 55-90, 100-90, D6600, 760, 5400, 70-90, CX75, 2-155, 4755, 6215, 8200, MC95, CX85, CX95, 55-90DT, 1130, 1620, Hydro 186, 383, 8450, 1805, 8010, Cougar 1000 Series, 6620, 6600, 4230, 2-180, 4455, 1100, 1688, 2090, 2675, 390, 90-90DT, 80 American, 4050, 1420, 1105, 4255, 8430, 4430, 4420, 8650, MTX165, 8600, D7007C, 1896, 5500, 393, 8070, 4850, 1460, 4240, 1644, CX90, 125 Workhorse, 60 American, 1690, 100-90DT, MC90, CX70, 1505, 4030, 1680, 2-85, 2805, 140-90, 80-90, Field Boss 185, 170 Workhorse, 7580, 1150, MX170, 4555, CX50, CM Series IV, 180-90DT, 1586, 8700, 90-90, 2640, 4040, D6200, 4055, MTX200, XTX215, 2775, CU-Industrial Series, 8240, MX90C, 2745, 140, D13006, 4640, MC120, 160, 160-90, 2-110, 2-88, 1660, 3545, 4520, Lion 1000 Powershift, 3505, MX100, MTX155, 8050, 120, 1080, 4-175, 6195, 140-90DT, 2-135, MTX140, 8820, 7840, 8640, 1640, MTX135, 2705, 9700, 4-210, XTX185, 8400, Panther 1000, 1490, 1155, 4960, MX135, 5510, 1085, 8550, MX110, 4450, 4620, D8006, 4630, 4440, MX100C

Additional Information:

Volt: 12 Capillary Length: 48" Switch Type: Rotary Vented Rated Medium & Heavy Duty

Reference Numbers:

1034565M91, 250698M1, 3320059M2, 70268476, 71162474, 303133680, 30-3133680, 8022337, 841445, 7022163, D3NN19618A, V31505, V53620, 9672323, AH80197, AR49960, AR59779, AL59879, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620, L73646, A73646, L73617, 109268C2, 92101C1
