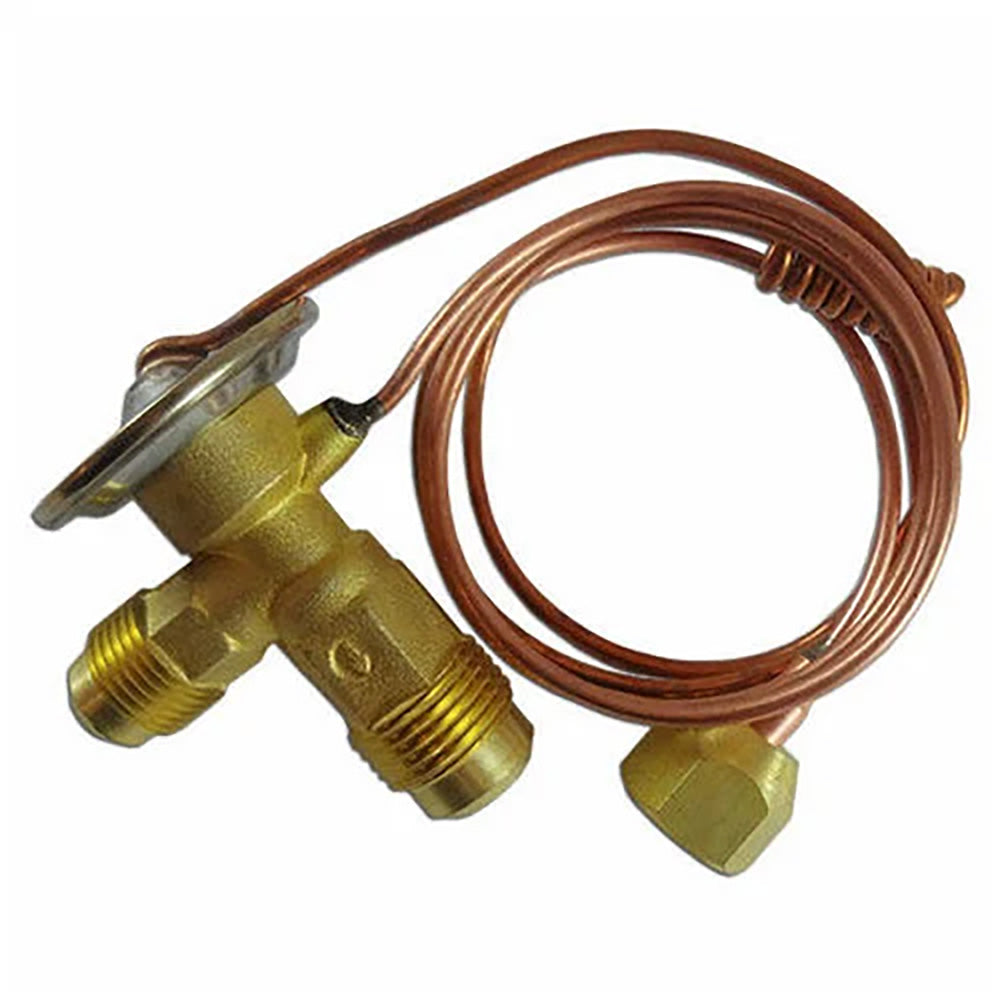

A-1072136M91-AI Expansion Valve

One New Aftermarket Replacement Expansion Valve Fits Massey Ferguson Tractors and Combines

This aftermarket replacement A/C expansion valve regulates refrigerant flow in the cab air conditioning system, metering liquid refrigerant into the evaporator to produce cold air. It is an externally equalized, right-angle, flare-type valve compatible with R134a refrigerant. When the expansion valve fails, operators typically experience warm air, inconsistent cab temperatures, or frost at the vents. Note: if replacing due to a compressor failure, always replace the expansion valve together with the compressor and receiver-drier to protect the new compressor.

Specifications

• Valve Type: Externally Equalized, Right Angle
• Fitting Type: Flare
• Inlet Fitting: #6 (3/8" Male Flare)
• Outlet Fitting: #8 (1/2" Male Flare)
• Capillary: 19" Long, Coil
• Equalizer: 31" Long, Female Flare
• Superheat: 8 Cap
• Capacity: 1-1/2 Tons
• Refrigerant: R134a

Compatible Models

Fits Massey Ferguson Tractors: 1500, 1800, 2745, 2775, 2805, 410 (S/N 1200015063 and below), 510 (S/N 1201009156 and below), 750 (S/N 169603515 and below), 8570 (S/N 11101 and below)

Fits Massey Ferguson Combines: 8560, 8590, 9720

Fits John Deere Combines: 3300, 4400, 4420, 6600, 6602, 7700, 955, 965, 975, 985

Fits John Deere Forage Harvesters: 5200, 5400, 5440, 5460

Fits John Deere Hay Cutting: 2250, 2270, 2280

Fits Ford/New Holland Tractors: 8600, 8700, 9600, 9700, 8000 Series, 9000 Series

Fits Case/Fits Case IH Tractors: 770, 870, 970, 1070, 1090, 1170, 1175, 1270, 1294, 1370, 1470, 1570, 1690, 1896, 2090, 2094, 2096, 2290, 2294, 2390, 2394, 2470, 2590, 2594, 2670, 2870, 3294, 4490, 4494, 4690, 4694, 4890, 4894, 4994

Fits Case Backhoe Loaders: 580, 580D, 580K, 580SD, 580SE, 680H, 680K, 780B, 780C

Fits Allis Chalmers Tractors: 200, 210, 220, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580

Replaces Part Number(s):

9966613, AH144896, 1072136M91, D3NN19849A, 1626141M1, 250902M1, 2766757W1, 30-3178706, 3380223M1, 529877M1, 1336422C1, 539064R1, 66398C1, 70257322, AH80191, F63726, V63145

New aftermarket replacement part - not remanufactured, not used.
