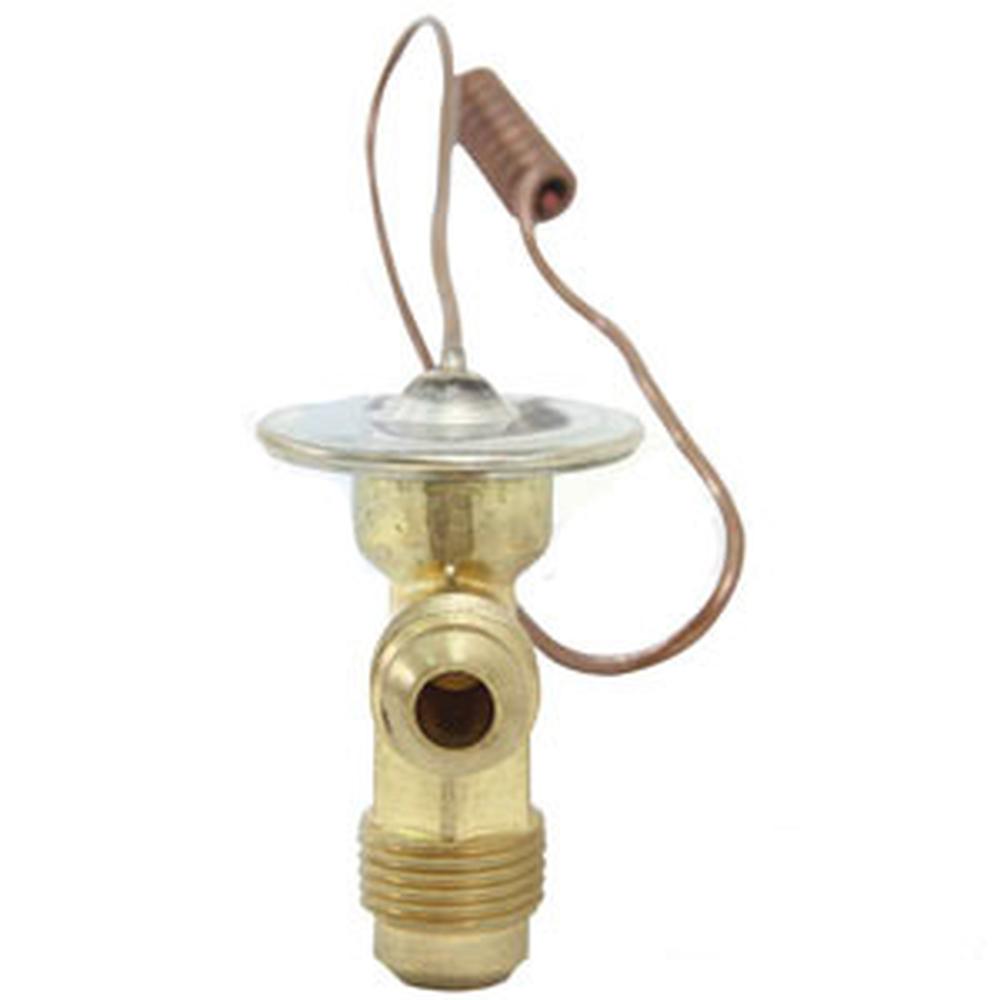

A-1-7844-AI Expan.Valve

One New Aftermarket Replacement A/C Expansion Valve (TXV) for Agricultural Equipment

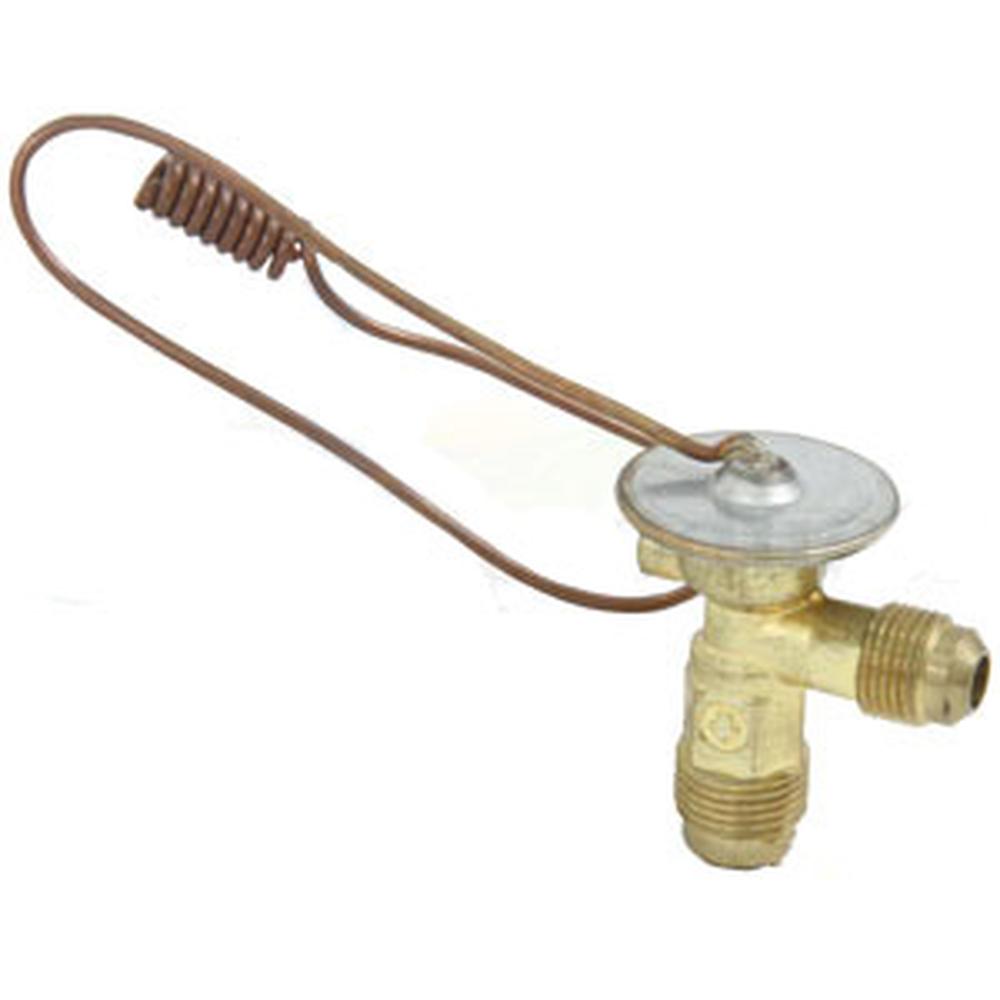

This aftermarket replacement thermostatic expansion valve (TXV) installs at the evaporator inlet line and regulates the flow of refrigerant into the evaporator core. It is a critical component of the cab air conditioning system -- a failed expansion valve can cause warm air output, inconsistent cab temperatures, or frost buildup at the vents. Compatible with both R12 and R134a refrigerant systems. Internally equalized design with a 12.00-inch capillary tube and flare connections. When replacing this valve after a compressor failure, always replace the receiver/drier at the same time.

Specifications

• Type: Internally Equalized Thermostatic Expansion Valve (TXV)
• Capillary Tube Length: 12.00 in.
• Connection Type: Flare
• Refrigerant Compatibility: R12 and R134a
• Location: Evaporator Inlet

Compatible Models

Fits Allis Chalmers: Tractor 440

Gleaner: Combines E2, F, G, K

Fits Case IH: Tractor 9190

Steiger: Tractors Bearcat, Cougar, Panther, PT/PTA, Tiger, Wildcat, Super Wildcat

Fits Ford/New Holland: Tractors FW20, FW30, FW40, FW60; Combine TR70; Forage Harvester 1890; Swathers 903, 905, 907, 909, 910, 912, 1100, 1112, 1114; Mower Conditioners 1496, 1499

Fits International / IH: Tractors 656, 706, 756, 806, 856, 4366, 4386, 4568, 4586, 4786; Combines 615, 715, 815, 915; Industrial Tractors 2656, 2706, 2756, 2806, 2856

Fits John Deere (Fits JD): Tractors 4000, 4020, 4320, 4520, 4620, 5020, 6030, 7020, 7520 (4WD); Combine 484; Cotton Pickers 9900, 9910

Fits Massey Ferguson (MF): Tractors 1085, 1105, 1135, 1155, 1500, 1505, 1800, 1805, 4800, 4840, 4880, 4900; Combines 510, 750, 760

Replaces Part Number(s):

1-7844, 01-7844, 25-055, 25-084, 25-1038, 70179C1, 168903C1, 244562R1, 244562R91, 250902M1, 529877M1, 529876M91, 9617883, 71160956, 72084697, 83906905, 83915986, 83972479, AR45882, AR49961, F3960933

New aftermarket replacement part - not remanufactured, not used.
