954-04331 Lower Transmission Drive Belt Fits Troy Bilt TB30 TB30R
954-04331 Lower Transmission Drive Belt Fits Troy Bilt TB30 TB30R
Regular price
$46.99 USD
Regular price
Sale price
$46.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

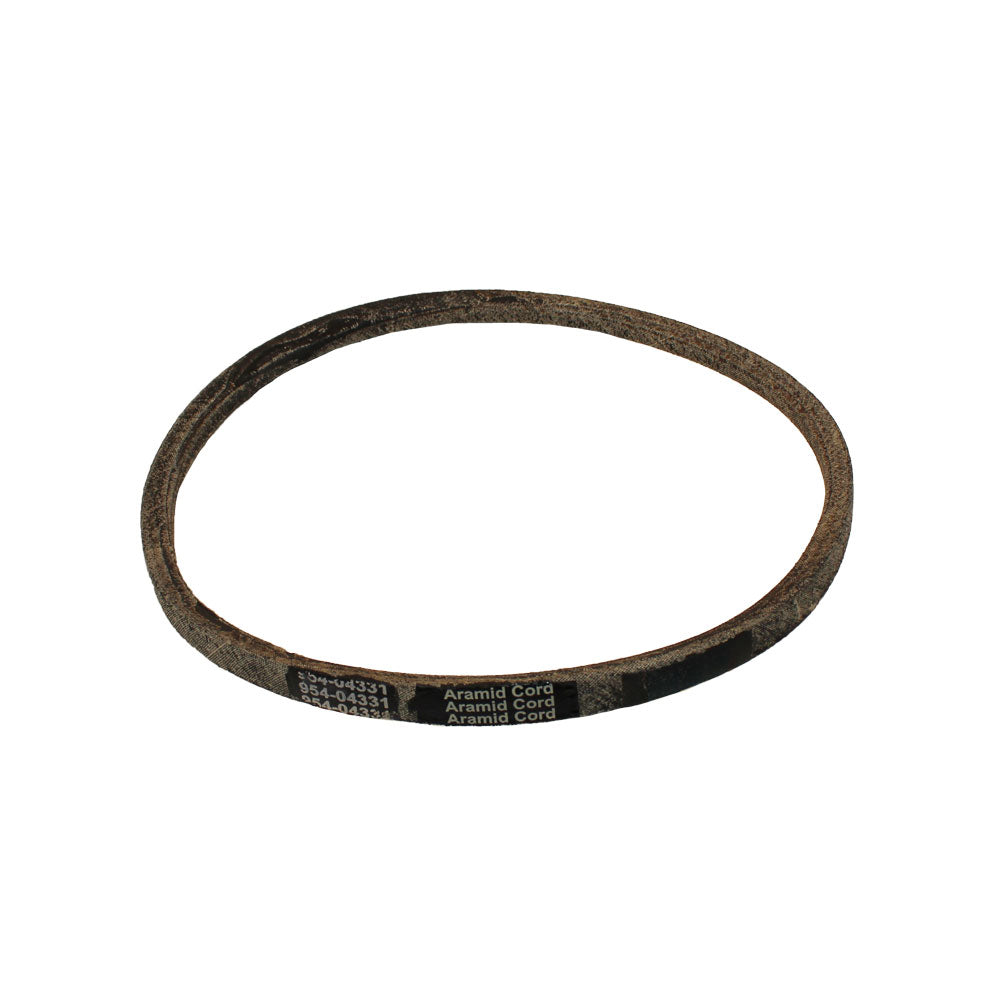

One new aftermarket lower ground drive transmission belt.
This is the lower drive belt on the TB30 rear engine rider, the belt that carries power down to the transaxle. It is about 35 1/4 inch long with a narrow top width near 0.59 inch, which is a special factory width, so it is not a plain hardware store 4L or 5L V belt. The upper drive belt on the same mower is also about 35 1/4 inch long but wider, so match the lower belt and its narrow width rather than length alone.
Made to fit Troy Bilt TB30, TB30R, TB30B and TB30T rear engine riders, and made to fit Cub Cadet CC30 and the matching Craftsman R1000 and R1500 riders.
This belt replaces the earlier factory number 754-04331. It is the lower belt, not the upper drive belt (954-05040) and not the deck blade belt (954-05001), so match the position and the width before ordering.
View full details
This is the lower drive belt on the TB30 rear engine rider, the belt that carries power down to the transaxle. It is about 35 1/4 inch long with a narrow top width near 0.59 inch, which is a special factory width, so it is not a plain hardware store 4L or 5L V belt. The upper drive belt on the same mower is also about 35 1/4 inch long but wider, so match the lower belt and its narrow width rather than length alone.
Made to fit Troy Bilt TB30, TB30R, TB30B and TB30T rear engine riders, and made to fit Cub Cadet CC30 and the matching Craftsman R1000 and R1500 riders.
This belt replaces the earlier factory number 754-04331. It is the lower belt, not the upper drive belt (954-05040) and not the deck blade belt (954-05001), so match the position and the width before ordering.
